Parts for 200 Pro XS (DFI) 3.0L 2-Stroke DFI Mercury Optimax Outboard Motor Coil Plate

Revise Search: Outboard > 2-Stroke DFI Mercury Optimax Outboard > 200 Pro XS (DFI) 3.0L > 1B504989 - 1B912785 - USA > Coil Plate

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

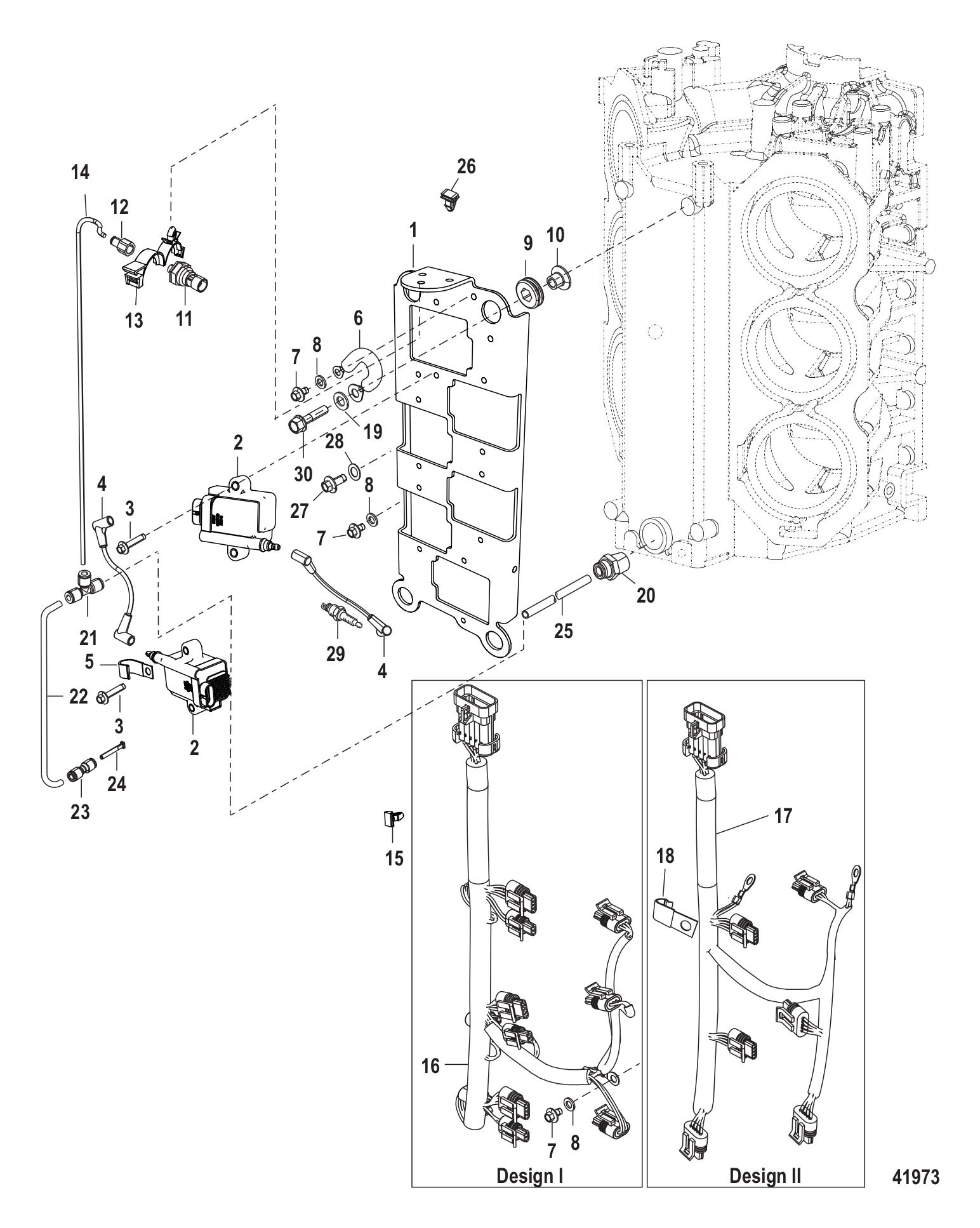

Coil Plate

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	879346A51	KT-5 PIN DELPHI (1 required per assembly) — Replaces: 854839T02
		879346A51 - KT-5 Pin Delphi [ More info ] $25.09 5 In Stock.
#1	884272T	PLATE (1 required per assembly)
		884272T - Plate [ More info ] $68.99 Available to Order: Shipping delay up to 10 days.
#2	8M0077473	IGNITION COIL 200/225/200 Pro XS (6 required per assembly) — Replaces: 883778A01, 883778A02
		339-8M0077473 - Ignition Coil [ More info ] $179.49 $178.99 Available to Order: Shipping delay up to 10 days.
#2	8M0077471	IGNITION COIL 250 (6 required per assembly) — Replaces: 879984T00, 879984T01
		300-8M0077471 - Ignition Coil [ More info ] $196.49 In Stock
#3	82129125	SCREW 200/225/200 Pro XS (12 required per assembly)
		10-821291 25 - Screw [ More info ] Unavailable
#3	82129130	SCREW 250 (12 required per assembly)
		10-821291 30 - Screw [ More info ] $4.69 Available to Order: Shipping delay up to 10 days.
#4	881908T	CABLE SET (1 required per assembly)
		84-881908T - Cable Set, Six Wires [ More info ] $137.49 In Stock
		18-28086 - Plug Wire Set 84-881908T, 6 Wires [ More info ] $122.89 In Stock
		18-28085 - Plug Wire Set 84-881908T, 4 Wires Only [ More info ] $81.28 In Stock
		18-28083 - Wire, Plug 84-881908T, 1 Wire [ More info ] $24.20 In Stock
#5	55098	J CLIP @5 (1 required per assembly)
		54-55098 - J Clip - Priced Individually [ More info ] $4.90 5 In Stock.
		54-8M0024808 - J-CLIP [ More info ] Unavailable
#6	858414A1	CABLE ASSY (2 required per assembly)
		84-858414A 1 - Cable [ More info ] $19.49 Available to Order: Shipping delay up to 10 days.
#7	82129110	SCREW (4 required per assembly)
		10-821291 10 - Screw [ More info ] $1.10 1 In Stock.
#8	8M0204649	WASHER @10 (4 required per assembly) — Replaces: 29245
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 10+ In Stock.
#9	833155	GROMMET @5 (4 required per assembly)
		25-833155 - Grommet [ More info ] $4.49 $3.60 3 In Stock.
#10	8502341	BUSHING (4 required per assembly)
		23-850234 1 - Bushing [ More info ] $3.09 Available to Order: Shipping delay up to 10 days.
#11	881879A7	SENSOR KIT (1 required per assembly)
		881879A 7 - Sensor Kit [ More info ] Unavailable
#12	8M0207782	SPACER (1 required per assembly) — Replaces: 892403
		22-8M0207782 - SPACER [ More info ] Unavailable
#13	883066	CLIP (1 required per assembly)
		54-883066 - Clip [ More info ] $2.29 Available to Order: Shipping delay up to 10 days.
#14	85978571	TUBING (52.00 INCHES BULK) CUT TO 18 INCHES (1 required per assembly)
		32-859785 71 - Hose - 52 Inch [ More info ] $50.49 Available to Order: Shipping delay up to 10 days.
#15	879962	CLIP (1 required per assembly)
		54-879962 - Clip [ More info ] $1.99 4 In Stock.
#16	892972T05	HARNESS-COIL (Design I) (250) [1B757090] & Below (1 required per assembly) — Replaces: 892972T04
		84-892972T05 - Coil Harness [ More info ] $265.49 Available to Order: Shipping delay up to 10 days.
#17	892972T05	HARNESS-COIL (Design II) (250) [1B757091] & Up (1 required per assembly)
#18	54457	J CLIP (Design II) (250) [1B757091] & Up (5 required per assembly)
		54-54457 - J Clip [ More info ] $4.79 Available to Order: Shipping delay up to 10 days.
#19	4002318	WASHER @5 (4 required per assembly)
		12-40023 18 - Washer - Priced Individually [ More info ] $2.99 5 In Stock.
#20	881866	FITTING (1 required per assembly)
		22-881866 - Fitting [ More info ] $7.59 Available to Order: Shipping delay up to 10 days.
#21	875207	FITTING (1 required per assembly)
		22-875207 - Fitting [ More info ] $15.19 Available to Order: Shipping delay up to 10 days.
#22	85978571	TUBING (52.00 INCHES BULK) CUT TO 44 INCHES (1 required per assembly)
#23	859747	FITTING (1 required per assembly)
		22-859747 - Fitting [ More info ] $11.20 10+ In Stock.
		228M0214971 - Fitting [ More info ] $11.59 Available to Order: Shipping delay up to 10 days.
#24	859732	FITTING (1 required per assembly)
		22-859732 - Fitting [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#25	85978571	TUBING (52.00 INCHES BULK) CUT TO 5 INCHES (1 required per assembly)
#26	879962	CLIP (1 required per assembly)
#27	82129114	SCREW (2 required per assembly)
		10-821291 14 - Screw [ More info ] $2.49 Available to Order: Shipping delay up to 10 days.
#28	36001	WASHER @3 (2 required per assembly)
		12-36001 - Washer - Priced Individually [ More info ] $1.50 10+ In Stock.
		18-4270 - Washer 12-36001 [ More info ] $1.25 $0.91 2 In Stock.
#29	889597Q	NGK IZFR5G @4 200/225/200 Pro XS (6 required per assembly) — Replaces: 889597001
		33-889597Q - NGK IZFR5G Spark Plug - Priced Individually [ More info ] Unavailable
		IZFR5G - NGK Spark Plug, 5887 [ More info ] $25.56 10+ In Stock.
#29	843220Q	NGK IZFR6J @4 250 (6 required per assembly) — Replaces: 843220001
		33-843220Q - NGK Spark Plug IZFR6J - Priced Individually [ More info ] Unavailable
#30	81893435	SCREW (4 required per assembly)
		10-818934 35 - Screw [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
		108M0103814 - Screw (M8 x 35 MM) [ More info ] $4.19 6 In Stock.
