Parts for 200 Pro XS (DFI) 3.0L 2-Stroke DFI Mercury Optimax Outboard Motor Bottom Cowl

Revise Search: Outboard > 2-Stroke DFI Mercury Optimax Outboard > 200 Pro XS (DFI) 3.0L > 1B504989 - 1B912785 - USA > Bottom Cowl

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

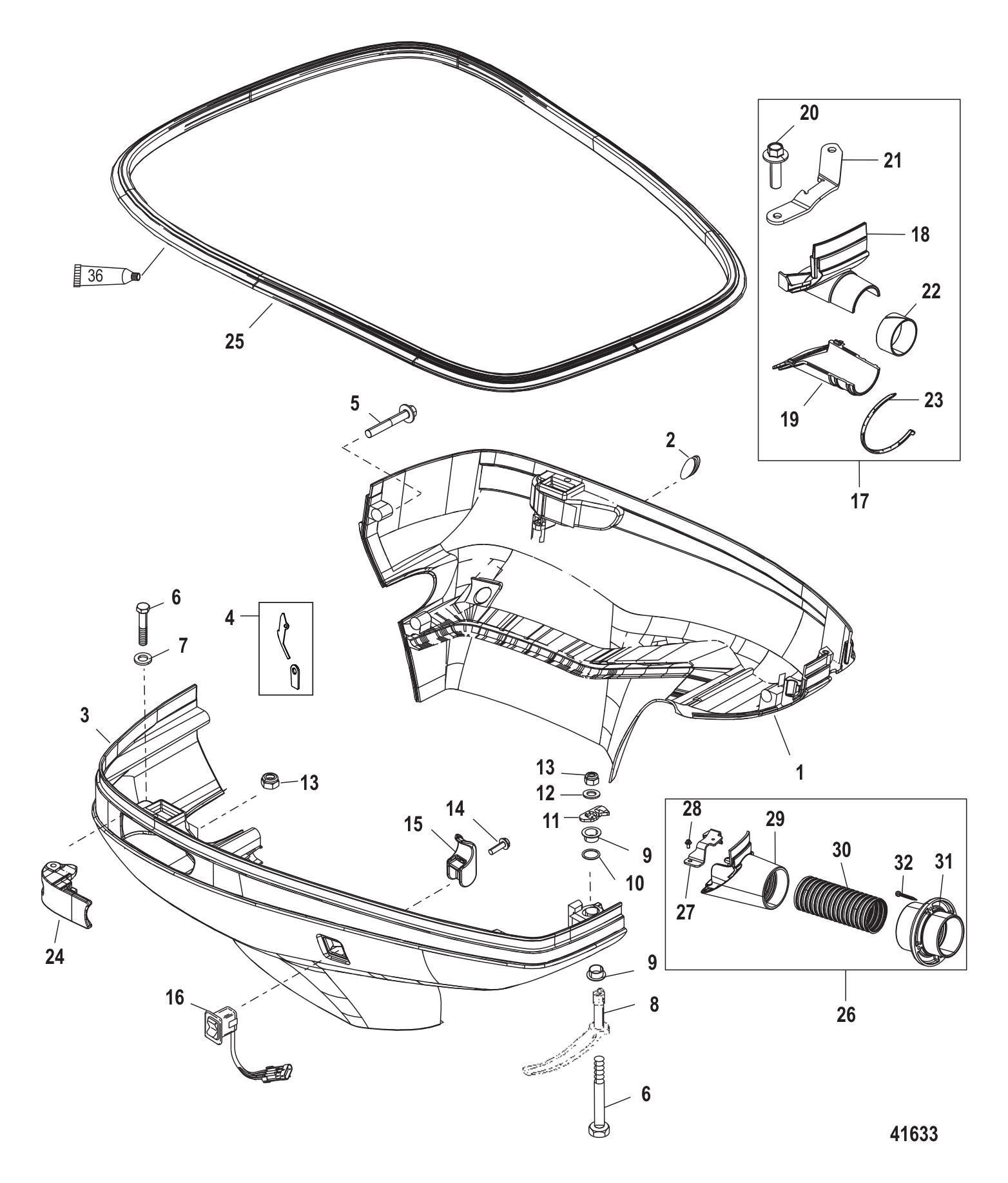

Bottom Cowl

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	8M0135962	DECAL STRIP (Strip of 5) (1 required per assembly) — Replaces: 854700, 8M0063389
		378M0135962 - Decal STRIP [ More info ] $31.99 Available to Order: Shipping delay up to 10 days.
#1	8M0122314	COWL-BOTTOM, PORT (1 required per assembly) — Replaces: 850302A07, 8M0107324
		1008M0122314 - COWL-BOTTOM, PORT [ More info ] $913.99 Available to Order: Shipping delay up to 10 days.
#2	854367001	PLUG (1 required per assembly)
		854367001 - Plug [ More info ] $27.19 Available to Order: Shipping delay up to 10 days.
#3	8M0122313	COWL-BOTTOM,STBD (1 required per assembly) — Replaces: 850301A07, 8M0107323
		1008M0122313 - COWL-BOTTOM,STBD [ More info ] $913.99 Available to Order: Shipping delay up to 10 days.
#4	889246A97	GASKET KIT (1 required per assembly)
		27-889246A97 - Gasket Kit [ More info ] $16.49 Available to Order: Shipping delay up to 10 days.
#5	82130040	SCREW (4 required per assembly)
		10-821300 40 - Screw [ More info ] $7.89 $4.43 10+ In Stock.
#6	824868	SCREW (3 required per assembly)
		10-824868 - Screw [ More info ] $12.79 Available to Order: Shipping delay up to 10 days.
#7	8M0204649	WASHER @10 (2 required per assembly) — Replaces: 29245
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 10+ In Stock.
#8	8M0053903	HANDLE (1 required per assembly) — Replaces: 850684F1
		8M0053903 - Handle A [ More info ] $62.99 Available to Order: Shipping delay up to 10 days.
#9	335891	BUSHING (2 required per assembly)
		0335891 - Stern Bracket (335891) [ More info ] Unavailable
#10	48462	O RING (1 required per assembly)
		25-48462 - O-ring, (.614 X .070) [ More info ] $1.80 4 In Stock.
#11	8219423	PAWL (1 required per assembly)
		821942 3 - Pawl [ More info ] $42.49 Available to Order: Shipping delay up to 10 days.
#12	69057	WASHER (1 required per assembly)
		12-69057 - Washer, (.281 X .734 X .063) [ More info ] $1.80 2 In Stock.
#13	401366	NUT @5 (3 required per assembly)
		11-40136 6 - Nut - Priced Individually [ More info ] $3.59 2 In Stock.
#14	8214281	SCREW (1 required per assembly)
		10-821428 1 - Screw [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#15	822873	CLIP (1 required per assembly)
		54-822873 - Clip [ More info ] $7.89 Available to Order: Shipping delay up to 10 days.
#16	8M0042300	SWITCH-TRIM (1 required per assembly) — Replaces: 896620001
		87-8M0042300 - Trim Switch [ More info ] Unavailable
		87-8M0235191 - SWITCH TRIM [ More info ] Unavailable
#17	8M8027677	RIGGING KIT 3.0L UPPER 200/225/250 (1 required per assembly) — Replaces: 859359A2
		8M8027677 - Rigging Kit 3.0L [ More info ] $58.99 Available to Order: Shipping delay up to 10 days.
#18	NSS	NOT SOLD SEPARATE CLAMP-UPPER ( required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#19	NSS	NOT SOLD SEPARATE CLAMP-LOWER (1 required per assembly)
#20	82130012	SCREW (M6 X 12) (2 required per assembly)
		10-821300 12 - Screw - Priced Individually [ More info ] $1.80 5 In Stock.
#21	NSS	NOT SOLD SEPARATE STRAP (1 required per assembly)
#22	859343	FOAM (1 required per assembly)
		859343 - Foam [ More info ] $5.99 Available to Order: Shipping delay up to 10 days.
#23	850181	TIE STRAP (11.750 INCHES) (2 required per assembly)
		54-850181 - Cable Tie [ More info ] $0.60 $0.48 9 In Stock.
#24	852361T02	HANDLE-COWL (2 required per assembly)
		852361T02 - Handle - Cowl A [ More info ] $86.99 $83.52 3 In Stock.
#25	8M0109222	SEAL (1 required per assembly) — Replaces: 8M0011984, 8M0043230
		8M0109222 - Seal [ More info ] $47.99 Available to Order: Shipping delay up to 10 days.
#26	842756T01	RIGGING KIT 200 Pro XS (1 required per assembly)
		32-842756T01 - Rigging Kit [ More info ] $331.99 Available to Order: Shipping delay up to 10 days.
#27	842744002	BRACKET (1 required per assembly)
		842744002 - Bracket [ More info ] $57.99 Available to Order: Shipping delay up to 10 days.
#28	82130012	SCREW (M6 X 12) (3 required per assembly)
#29	843185T02	COUPLER (1 required per assembly)
		843185T02 - Coupler [ More info ] $80.99 Available to Order: Shipping delay up to 10 days.
#30	842756005	HOSE (1 required per assembly)
		32-842756005 - Hose [ More info ] $145.49 Available to Order: Shipping delay up to 10 days.
#31	843174002	COUPLER (1 required per assembly)
		843174002 - Coupler [ More info ] $49.49 Available to Order: Shipping delay up to 10 days.
#32	47994	SCREW (#10 X 1.50) (4 required per assembly)
		10-47994 - Screw [ More info ] $1.23 Available to Order: Shipping delay up to 10 days.
