Parts for 200 (DFI) 3.0L 2-Stroke DFI Mercury Optimax Outboard Motor Oiling System

Revise Search: Outboard > 2-Stroke DFI Mercury Optimax Outboard > 200 (DFI) 3.0L > 1B912786 - 2B535571 > Oiling System

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Oiling System

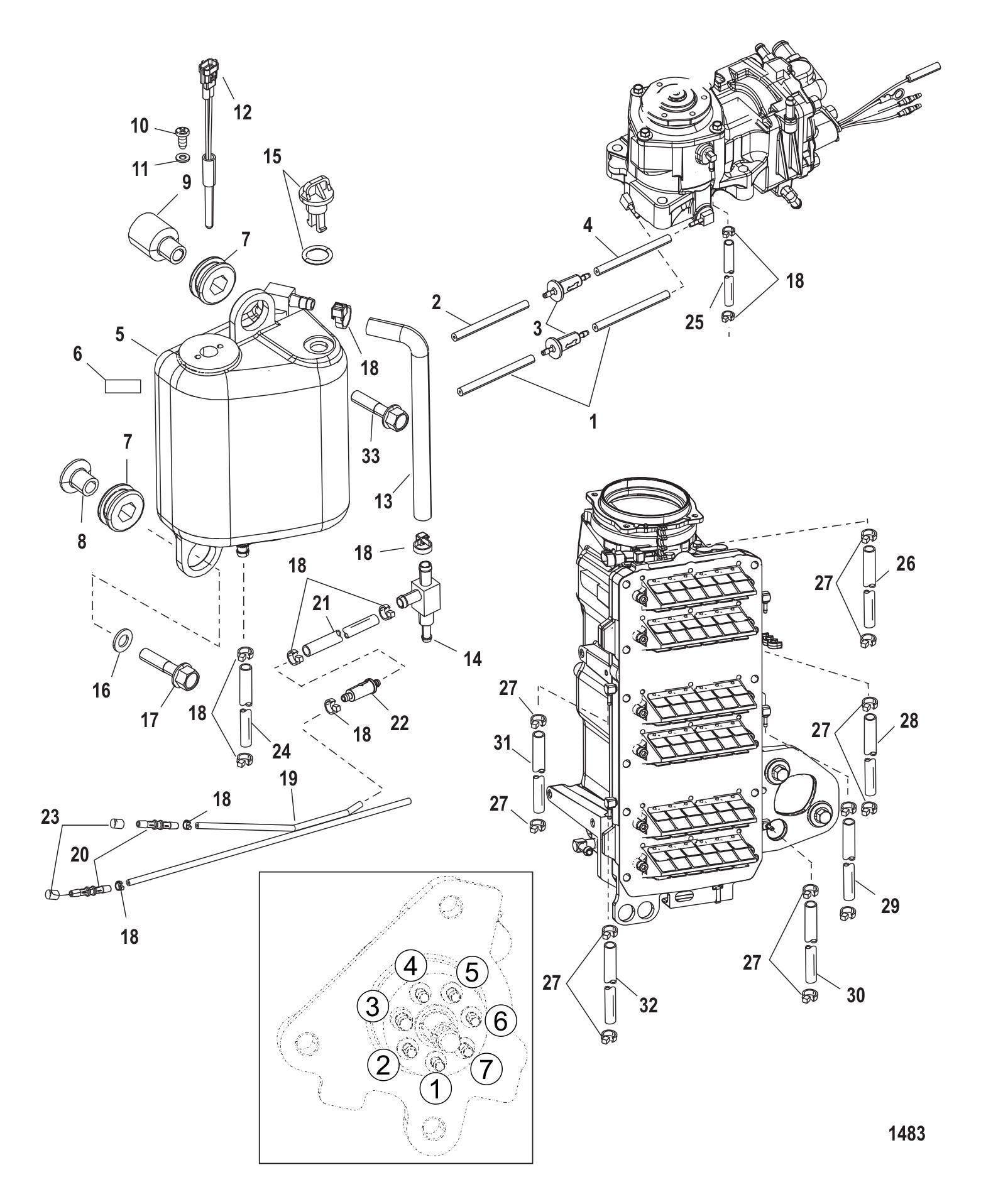

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	8M0054152	TUBING (39.00 INCHES BULK) CUT TO 11-1/2 INCHES - TO BLOCK (2 required per assembly) — Replaces: 85606065
		328M0054152 - Tubing-39 Inch [ More info ] $37.49 Available to Order: Shipping delay up to 10 days.
#2	8M0054152	TUBING (39.00 INCHES BULK) CUT TO 5 INCHES - TO BLOCK (1 required per assembly) — Replaces: 85606065
#3	8M0207786	FILTER-OIL (2 required per assembly) — Replaces: 8M0042285
		35-8M0207786 - In-Line Filter, Outboard [ More info ] $19.19 3 In Stock.
#4	8M0054152	TUBING (39.00 INCHES BULK) CUT TO 9 INCHES (1 required per assembly) — Replaces: 85606065
#5	8M0064075	OIL TANK ASSY (1 required per assembly) — Replaces: 884525T1
		1200-8M0064075 - Oil Tank Assembly [ More info ] $383.49 1 In Stock.
#6	NSS	NOT SOLD SEPARATE DECAL-RESERVOIR (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#7	855362001	GROMMET (3 required per assembly)
		25-855362001 - Grommet, Coolant Reservoir [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#8	855364	BUSHING (2 required per assembly)
		23-855364 - Bushing [ More info ] $5.99 10+ In Stock.
#9	883050	SPACER (1 required per assembly)
		23-883050 - Spacer [ More info ] $16.79 Available to Order: Shipping delay up to 10 days.
#10	58376	SCREW (.164-18 X .375) (1 required per assembly)
		10-58376 - Screw [ More info ] $1.23 $1.18 9 In Stock.
#11	72761	WASHER (.203 X .562 X .060) STAINLESS STEEL (1 required per assembly)
		12-72761 - Washer, (.203 X .562 X .060) Stainless Steel [ More info ] $1.63 10+ In Stock.
#12	856156T04	SWITCH (1 required per assembly)
		87-856156T04 - Switch [ More info ] $27.91 2 In Stock.
#13	885553	HOSE (1 required per assembly)
		32-885553 - Hose [ More info ] $33.29 Available to Order: Shipping delay up to 10 days.
#14	8M0207780	FITTING (1 required per assembly) — Replaces: 424254
		228M0207780 - Fitting [ More info ] $55.99 Available to Order: Shipping delay up to 10 days.
#15	887609	PLUG (1 required per assembly)
		19-887609 - Vent Plug [ More info ] $2.29 Available to Order: Shipping delay up to 10 days.
#16	4002318	WASHER @5 (3 required per assembly)
		12-40023 18 - Washer - Priced Individually [ More info ] $2.99 5 In Stock.
#17	81893435	SCREW (2 required per assembly)
		10-818934 35 - Screw [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
		108M0103814 - Screw (M8 x 35 MM) [ More info ] $4.19 6 In Stock.
#18	816311T	TIE STRAP @100 (AR required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#19	8752891	HOSE TO BLOCK (1 required per assembly)
		32-875289 1 - Hose [ More info ] $43.49 Available to Order: Shipping delay up to 10 days.
#20	858955	CONNECTOR (2 required per assembly)
		22-858955 - Connector [ More info ] $3.69 2 In Stock.
#21	875283	HOSE-2 INCHES (1 required per assembly)
		32-875283 - Hose -2 Inches [ More info ] $6.99 Available to Order: Shipping delay up to 10 days.
#22	875284T01	FILTER (1 required per assembly)
		35-875284T01 - Filter [ More info ] $6.79 6 In Stock.
#23	NSS	NOT SOLD SEPARATE PLUG (2 required per assembly)
#24	892830053	HOSE (24.00 INCHES BRAIDED) CUT TO 22 INCHES - TO CENTER OF OIL PUMP (1 required per assembly)
		32-892830053 - Hose -24 Inch [ More info ] $30.99 Available to Order: Shipping delay up to 10 days.
#25	8M0054213	HOSE CUT TO 34 INCHES - TO OIL PUMP CONNECTION ILLUSTRATED AS #3 (1 required per assembly)
		328M0054213 - Hose -40 Inch [ More info ] $55.99 Available to Order: Shipping delay up to 10 days.
#26	8M0054152	TUBING (39.00 INCHES BULK) CUT TO 19-1/2 INCHES - TO OIL PUMP CONNECTION ILLUSTRATED AS #7 (1 required per assembly) — Replaces: 85606065
#27	56762	TIE STRAP @5 (AR required per assembly)
		56762 - Tie Strap - Priced Individually [ More info ] $0.50 3 In Stock.
#28	8M0054152	TUBING (39.00 INCHES BULK) CUT TO 11 INCHES - TO OIL PUMP CONNECTION ILLUSTRATED AS #6 (1 required per assembly) — Replaces: 85606065
#29	8M0054152	TUBING (39.00 INCHES BULK) CUT TO 6 INCHES - TO OIL PUMP CONNECTION ILLUSTRATED AS #5 (1 required per assembly) — Replaces: 85606065
#30	8M0054152	TUBING (39.00 INCHES BULK) CUT TO 4 INCHES - TO OIL PUMP CONNECTION ILLUSTRATED AS #4 (1 required per assembly) — Replaces: 85606065
#31	8M0054152	TUBING (39.00 INCHES BULK) CUT TO 22 INCHES - TO OIL PUMP CONNECTION ILLUSTRATED AS #2 (1 required per assembly) — Replaces: 85606065
#32	8M0054152	TUBING (39.00 INCHES BULK) CUT TO 16 INCHES - TO OIL PUMP CONNECTION ILLUSTRATED AS #1 (1 required per assembly) — Replaces: 85606065
#33	81893460	SCREW (1 required per assembly)
		10-818934 60 - Screw [ More info ] $5.39 1 In Stock.
