Parts for V-175 (Ski) 2-Stroke Carbureted Mercury Outboard Motor Fuel Management System (Breakdown)

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > V-175 (Ski) > 0D082000 - 0G303045 - USA > Fuel Management System (Breakdown)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

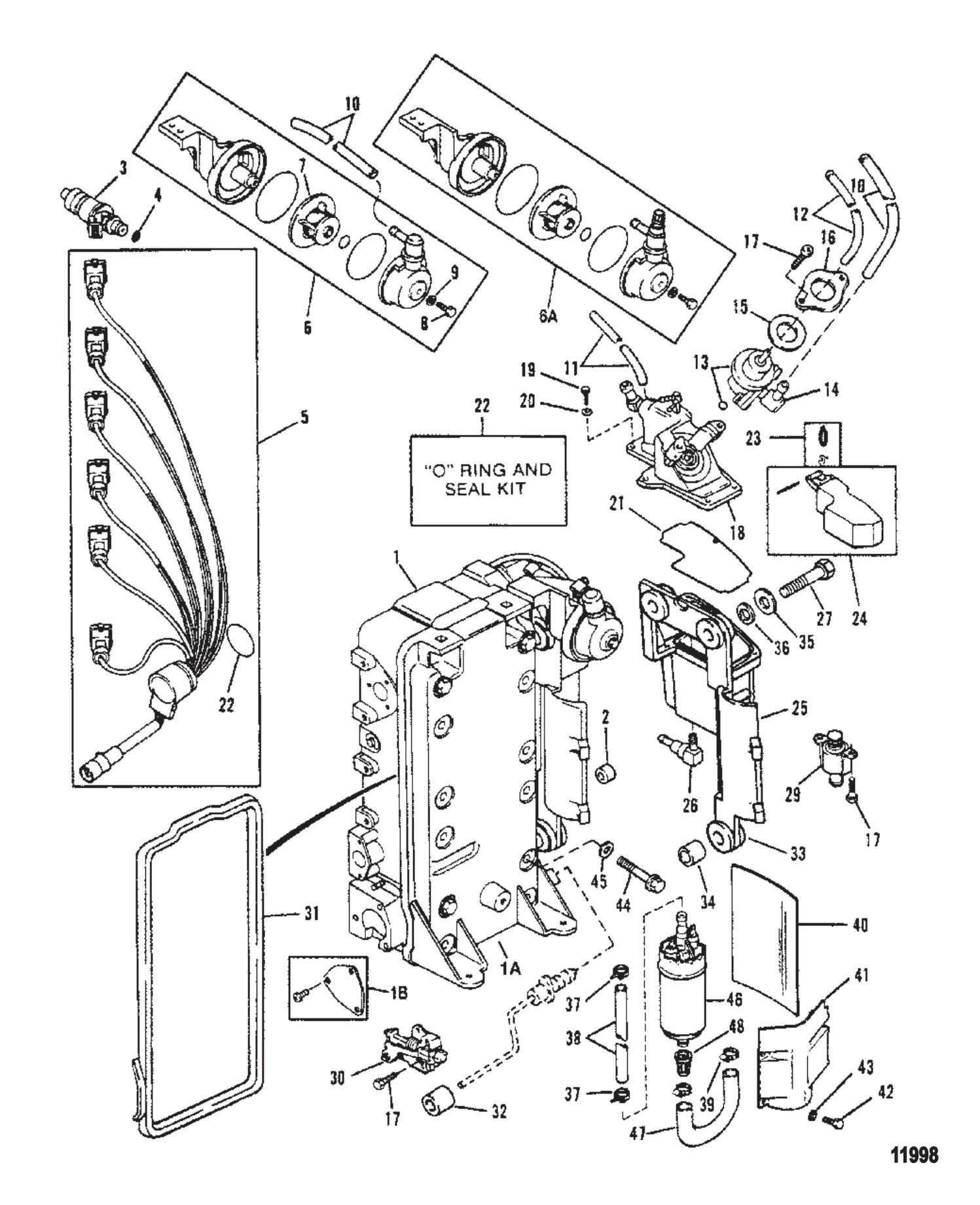

Fuel Management System (Breakdown)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	14817A19	FUEL MANAGEMENT (1 required per assembly)
		14817A19 - FUEL MANAGEMENT,NLA [ More info ] Unavailable
#1	827693	THROTTLE BODY (1 required per assembly)
		827693 - BODY,NLA [ More info ] Unavailable
#2	67748	ROLLER CAM (1 required per assembly)
		67748 - Roller [ More info ] $6.99 8 In Stock.
#3	18715T	INJECTOR ASSEMBLY (6 required per assembly) — Replaces: 18715
		18715T - Fuel Injector [ More info ] $817.99 Available to Order: Shipping delay up to 10 days.
#4	17422	FILTER INJECTOR (1 required per assembly)
		35-17422 - Injector Filter [ More info ] $31.79 $30.48 10+ In Stock.
#5	15443	HARNESS KIT (1 required per assembly)
		84-15443 - Harness Kit [ More info ] Unavailable
#6	15442	FILTER KIT FUEL (Design I) (1 required per assembly)
		35-15442 - Filter Kit, NLA [ More info ] Unavailable
#7	150282	FILTER FUEL (1 required per assembly)
		35-15028 2 - Fuel Filter [ More info ] $470.95 2 In Stock.
#8	400034	SCREW (M5 X 14) FILTER COVER (1 required per assembly)
		10-40003 4 - Screw [ More info ] Unavailable
#9	400255	LOCKWASHER (M5) COVER SCREW (1 required per assembly)
		13-40025 5 - LockWasher [ More info ] $1.10 $0.88 8 In Stock.
#10	1350385	TUBING (33.00 INCHES BULK) (.50&QUOT; O.D.) (1 required per assembly) — Replaces: 1350382
		32-13503 85 - Tubing - 33 Inch [ More info ] $58.49 Available to Order: Shipping delay up to 10 days.
#11	9912688	TUBING (36.00 INCHES BULK) (.125&QUOT; I.D.) (1 required per assembly)
		32-99126 88 - Tubing - 36 Inch [ More info ] $30.80 1 In Stock.
#12	892024122	TUBING (240.00 INCHES BULK) (.0937&QUOT; I.D.) (1 required per assembly) — Replaces: 99130122
		32-892024122 - Tubing - 20 Feet [ More info ] $49.32 1 In Stock.
#13	15027	REGULATOR PRESSURE (1 required per assembly)
		15027 - Regulator [ More info ] $369.99 Available to Order: Shipping delay up to 10 days.
#14	814233	ELBOW KIT (1 required per assembly)
		814233 - Elbow Kit,NLA [ More info ] Unavailable
#15	18791	GASKET PRESSURE REGULATOR (1 required per assembly)
		27-18791 - Pressure Regulator Gasket [ More info ] $2.20 9 In Stock.
#16	814012	PLATE PRESSURE REGULATOR (1 required per assembly)
		814012 - Plate [ More info ] $9.99 $8.45 10+ In Stock.
#17	814076	SCREW (AR required per assembly)
		10-814076 - SCREW,NLA [ More info ] Unavailable
#18	814010	COVER KIT (1 required per assembly)
		814010 - COVER KIT,NLA [ More info ] Unavailable
#19	4001987	SCREW (M4 X 16) COVER TO SEPERATOR (6 required per assembly)
		10-40019 87 - Screw [ More info ] $1.80 5 In Stock.
#20	26995	LOCKWASHER (#8) STAINLESS STEEL COVER SCREW (6 required per assembly)
		13-26995 - Lock Washer - Priced Individually [ More info ] Unavailable
#21	18790	SEAL VAPOR SEPERATOR (1 required per assembly)
		26-18790 - Seal [ More info ] $29.27 2 In Stock.
#22	15029	O-RING AND SEAL KIT (1 required per assembly)
		15029 - Seal Kit O-Ring [ More info ] Unavailable
#23	15446	VALVE KIT FLOAT (1 required per assembly)
		15446 - Float Valve Kit [ More info ] $50.49 Available to Order: Shipping delay up to 10 days.
#24	15445	FLOAT KIT (1 required per assembly)
		15445 - Fuel Management Float Kit - See Detail Page for Important Info [ More info ] Unavailable
#25	814011	BODY KIT (1 required per assembly)
		814011 - VAPOR SEPARATOR,NLA [ More info ] Unavailable
#26	424811	VALVE (1 required per assembly) — Replaces: 42481
		21-42481 1 - Check Valve [ More info ] $79.99 3 In Stock.
#27	4000332	SCREW (M6 X 35) SEPARATOR (3 required per assembly)
		10-40003 32 - Screw [ More info ] $2.29 Available to Order: Shipping delay up to 10 days.
#29	18241	CHECK VALVE (1 required per assembly)
		21-18241 - Check Valve [ More info ] Unavailable
#30	814077	VALVE SHUT-OFF (1 required per assembly)
		814077 - SHUT-OFF Valve, NLA [ More info ] Unavailable
#31	18792	SEAL INJECTOR MANIFOLD (1 required per assembly)
		26-18792 - Seal [ More info ] $28.39 Available to Order: Shipping delay up to 10 days.
#32	19275	SPACER (3 required per assembly)
		23-19275 - Spacer, NLA [ More info ] $1.63 $1.39 10+ In Stock.
#34	814913	SPACER (3 required per assembly)
		23-814913 - Spacer, NLA [ More info ] Unavailable
#35	35280	WASHER (.255 X .620 X .030) STAINLESS STEEL LARGE (3 required per assembly)
		12-35280 - Washer, (.255 X .620 X .030) Stainless Steel [ More info ] $3.19 $2.56 10+ In Stock.
#36	69057	WASHER (.281 X .734 X .063) SMALL (3 required per assembly)
		12-69057 - Washer, (.281 X .734 X .063) [ More info ] $1.80 2 In Stock.
#37	13791	CLAMP (15.7) HOSE (2 required per assembly)
		54-13791 - Clamp [ More info ] Unavailable
		54-8M0214911 - CLAMP @5 [ More info ] Unavailable
#38	1350385	TUBING (33.00 INCHES BULK) (CUT TO 1.75 INCH LENGTH) (1 required per assembly) — Replaces: 1350382
#39	F698772	CLAMP (2 required per assembly)
		54-F698772 - Clamp [ More info ] $5.69 $4.56 6 In Stock.
#40	14639	BLANKET FUEL PUMP (1 required per assembly)
		14639 - Blanket,NLA [ More info ] Unavailable
#41	14640T	COVER FUEL PUMP (1 required per assembly)
		14640T - Cover, NLA [ More info ] Unavailable
#42	32228	SCREW @3 (4 required per assembly)
		10-32228 - Screw - Priced Individually [ More info ] $1.80 $0.37 10+ In Stock.
#43	26996	LOCKWASHER @15 (4 required per assembly)
		13-26996 - LockWasher - Priced Individually [ More info ] $1.20 Available to Order: Shipping delay up to 10 days.
#44	845674	SCREW (12 required per assembly) — Replaces: 90088
		10-845674 - Screw [ More info ] $6.89 Available to Order: Shipping delay up to 10 days.
#45	8M0204649	WASHER @10 (10 required per assembly) — Replaces: 29245
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 10+ In Stock.
#46	14307T01	FUEL PUMP (1 required per assembly) — Replaces: 14307A1
		14307T01 - Fuel Pump [ More info ] $572.99 Available to Order: Shipping delay up to 10 days.
#47	146332	HOSE (1 required per assembly)
		32-14633 2 - Hose [ More info ] $44.99 Available to Order: Shipping delay up to 10 days.
#48	885188	FILTER (1 required per assembly) — Replaces: 823501
		35-885188 - Filter [ More info ] $18.49 6 In Stock.
#1A	827692	COVER (1 required per assembly)
		827692 - Cover [ More info ] Unavailable
#1B	827696	RETAINER KIT (1 required per assembly)
		827696 - Retaining Kit, NLA [ More info ] Unavailable
#6A	154422	FILTER KIT FUEL (Design II) (1 required per assembly) — Replaces: 154421
		0154422 - Part (154422) [ More info ] Unavailable
