Parts for 200 (DFI) 2-Stroke DFI Mercury Optimax Outboard Motor Port Center Main Oiling System

Revise Search: Outboard > 2-Stroke DFI Mercury Optimax Outboard > 200 (DFI) > 0G960500 - 0T178499 - USA > Port Center Main Oiling System

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

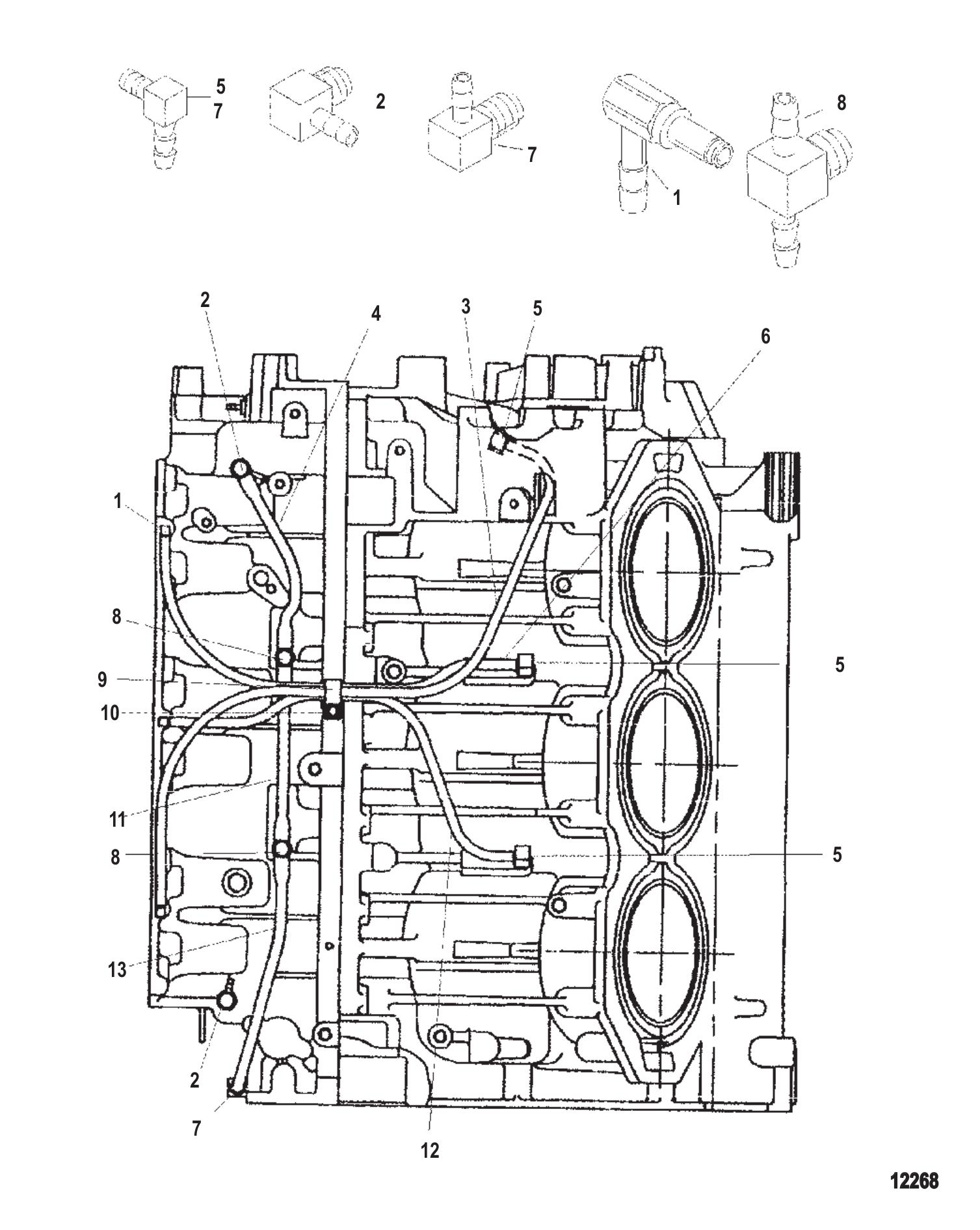

Port Center Main Oiling System

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	854198R00	PH 200 DFI -RM (200) (1 required per assembly) — Replaces: 854198A00
		854198R00 - Powerhead 200 Dfi -rm [ More info ] Unavailable
#-	854199R00	PH 225 DFI -RM (225) (Cylinder Heads Have No Casting Number) (1 required per assembly) — Replaces: 854199A00
		854199R00 - Powerhead 225 Dfi -rm [ More info ] Unavailable
#-	877869R00	PH 225 DFI -RM (225) (Cylinder Heads Casting Number 900-858485C1/C2 Or 900-858483C1/C2) (1 required per assembly) — Replaces: 877869A00
		877869R00 - Powerhead 225 Dfi -rm [ More info ] Unavailable
#1	151333	FITTING (3 required per assembly) — Replaces: 151332
		22-15133 3 - Fitting [ More info ] $18.49 Available to Order: Shipping delay up to 10 days.
#2	887801	ELBOW (2 required per assembly)
		22-88780 1 - Elbow [ More info ] $18.29 Available to Order: Shipping delay up to 10 days.
#3	8M0054152	TUBING (39.00 INCHES BULK) (CUT TO 20.50 INCH LENGTH) (1 required per assembly) — Replaces: 85606064, 85606065
		328M0054152 - Tubing-39 Inch [ More info ] $37.49 Available to Order: Shipping delay up to 10 days.
#4	8M0054152	TUBING (39.00 INCHES BULK) (CUT TO 5.00 INCH LENGTH) (1 required per assembly) — Replaces: 85606064, 85606065
#5	8592352	CHECK VALVE (3 required per assembly)
		21-859235 2 - Check Valve [ More info ] $32.19 Available to Order: Shipping delay up to 10 days.
#6	8M0054152	TUBING (39.00 INCHES BULK) (CUT TO 13.00 INCH LENGTH) (1 required per assembly) — Replaces: 85606064, 85606065
#7	8282182	CHECK VALVE (1 required per assembly)
		21-828218 2 - Check Valve [ More info ] $44.99 Available to Order: Shipping delay up to 10 days.
#8	8582362	CHECK VALVE (2 required per assembly)
		21-858236 2 - Check Valve [ More info ] $48.49 Available to Order: Shipping delay up to 10 days.
#9	23567	CLIP (1 required per assembly)
		54-23567 - Clip [ More info ] $5.79 $1.17 10+ In Stock.
#10	48408	SCREW @5 (1 required per assembly)
		10-48408 - Screw - Priced Individually [ More info ] $2.29 Available to Order: Shipping delay up to 10 days.
#11	8M0054152	TUBING (39.00 INCHES BULK) (CUT TO 4.75 INCH LENGTH) (1 required per assembly) — Replaces: 85606064, 85606065
#12	8M0054152	TUBING (39.00 INCHES BULK) (CUT TO 11.00 INCH LENGTH) (1 required per assembly) — Replaces: 85606064, 85606065
#13	8M0054152	TUBING (39.00 INCHES BULK) (CUT TO 9.00 INCH LENGTH) (1 required per assembly) — Replaces: 85606064, 85606065
