Power Trim Components Plastic Motor Housing

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	8M0168222	POWER TRIM KIT Plastic Motor Housing (1 required per assembly)
		8M0168222 - Power Trim Kit [ More info ] Unavailable
		TT2001 - PTT System 2-Wire Mercury Replaces Mercury 3-Ram 2-Wire 1996-up [ More info ] $999.00 $999.00 Available to Order
		8M0231193 - POWER TRIM KIT [ More info ] Unavailable
#1	8M0142591	MOTOR KIT (1 required per assembly)
		8M0142591 - Motor KIT [ More info ] $342.49 Available to Order: Shipping delay up to 10 days.
#2	82494830	SCREW (M6 X 30) (2 required per assembly)
		10-824948 30 - Screw [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#3	400256	LOCKWASHER (M6) (2 required per assembly)
		13-40025 6 - LockWasher - Priced Individually [ More info ] $1.80 $1.01 10+ In Stock.
#4	8M0090403	COUPLING DRIVE (1 required per assembly)
		8M0090403 - Coupling [ More info ] $30.89 Available to Order: Shipping delay up to 10 days.
#5	8M0142996	PO CHECK KIT (1 required per assembly)
		8M0142996 - PO CHECK KIT [ More info ] $67.49 Available to Order: Shipping delay up to 10 days.
#6	8M0060141	MANUAL RELEASE KIT (1 required per assembly)
		8M0060141 - MANUAL REL Valve [ More info ] $88.99 Available to Order: Shipping delay up to 10 days.
#7	8M0142997	TILT SHAFT KIT (1 required per assembly)
		8M0142997 - Shaft Kit [ More info ] $349.99 Available to Order: Shipping delay up to 10 days.
#8	878267	PIN (1 required per assembly)
		17-878267 - Pin, Groove [ More info ] $27.99 Available to Order: Shipping delay up to 10 days.
#9	8M0168220	TILT CYLINDER ASSEMBLY (1 required per assembly) — Replaces: 8M0142998
		8M0168220 - Tilt Cylinder Kit [ More info ] $1,262.99 Available to Order: Shipping delay up to 10 days.

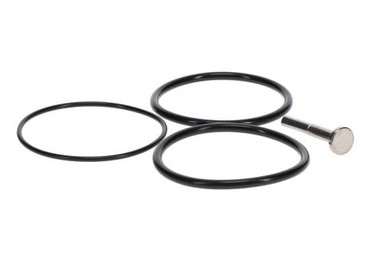

#10	8M0142999	O RING KIT TILT CYLINDER (1 required per assembly)
		8M0142999 - ORING TILT CYL [ More info ] $44.49 Available to Order: Shipping delay up to 10 days.
#11	8M0143000	MEMORY PISTON KIT (1 required per assembly)
		8M0143000 - Piston MEMORY KIT [ More info ] $79.49 Available to Order: Shipping delay up to 10 days.
#12	8M0142592	TRIM ROD KIT PORT Port (1 required per assembly)
		8M0142592 - TRIM ROD KIT PORT [ More info ] $321.99 Available to Order: Shipping delay up to 10 days.
#13	8M0143001	PISTON ASSEMBLY Starboard (1 required per assembly)
		8M0143001 - PISTON ASSEMBLY [ More info ] Unavailable
#14	8M0143003	END CAP ASSEMBLY (1 required per assembly)
		8M0143003 - End Cap ASSEMBLY [ More info ] $64.99 Available to Order: Shipping delay up to 10 days.
#15	878264A1	RESERVOIR KIT (1 required per assembly)
		878264A 1 - Reservoir Cover Kit [ More info ] $60.99 Available to Order: Shipping delay up to 10 days.
#16	811613	PLUG ASSEMBLY (1 required per assembly)
		19-811613 - Plug Assembly [ More info ] $29.99 Available to Order: Shipping delay up to 10 days.
#17	4000327	SCREW (M6 X 14) (4 required per assembly)
		10-40003 27 - Screw [ More info ] $2.99 Available to Order: Shipping delay up to 10 days.
#18	4002315	WASHER (6.60 X 12.5 X 1.5 MM -SS) (4 required per assembly)
		12-40023 15 - Washer - Priced Individually [ More info ] $0.80 Available to Order: Shipping delay up to 10 days.
#19	8M0143004	PUMP KIT (1 required per assembly)
		8M0143004 - Pump Kit [ More info ] $272.55 1 In Stock.
#20	8M0148385	REPAIR KIT POWER TRIM (1 required per assembly)
		37-8M0148385 - ORING COMPLETE [ More info ] Unavailable
#21	858771	SCREW (M10 X 30) (6 required per assembly)
		10-858771 - Screw [ More info ] $2.39 Available to Order: Shipping delay up to 10 days.
#22	4002319	WASHER (6 required per assembly)
		12-40023 19 - Washer (M10) [ More info ] $3.19 7 In Stock.
#23	8M0161312	PIN ROD EYE ASSEMBLY (1 required per assembly) — Replaces: 8M0094889
		178M0161312 - PIN ROD EYE [ More info ] $33.99 Available to Order: Shipping delay up to 10 days.
#24	8M0168219	SHOCK ROD KIT (1 required per assembly) — Replaces: 8M0143005
		8M0168219 - SHOCK ROD KIT [ More info ] $848.49 Available to Order: Shipping delay up to 10 days.
