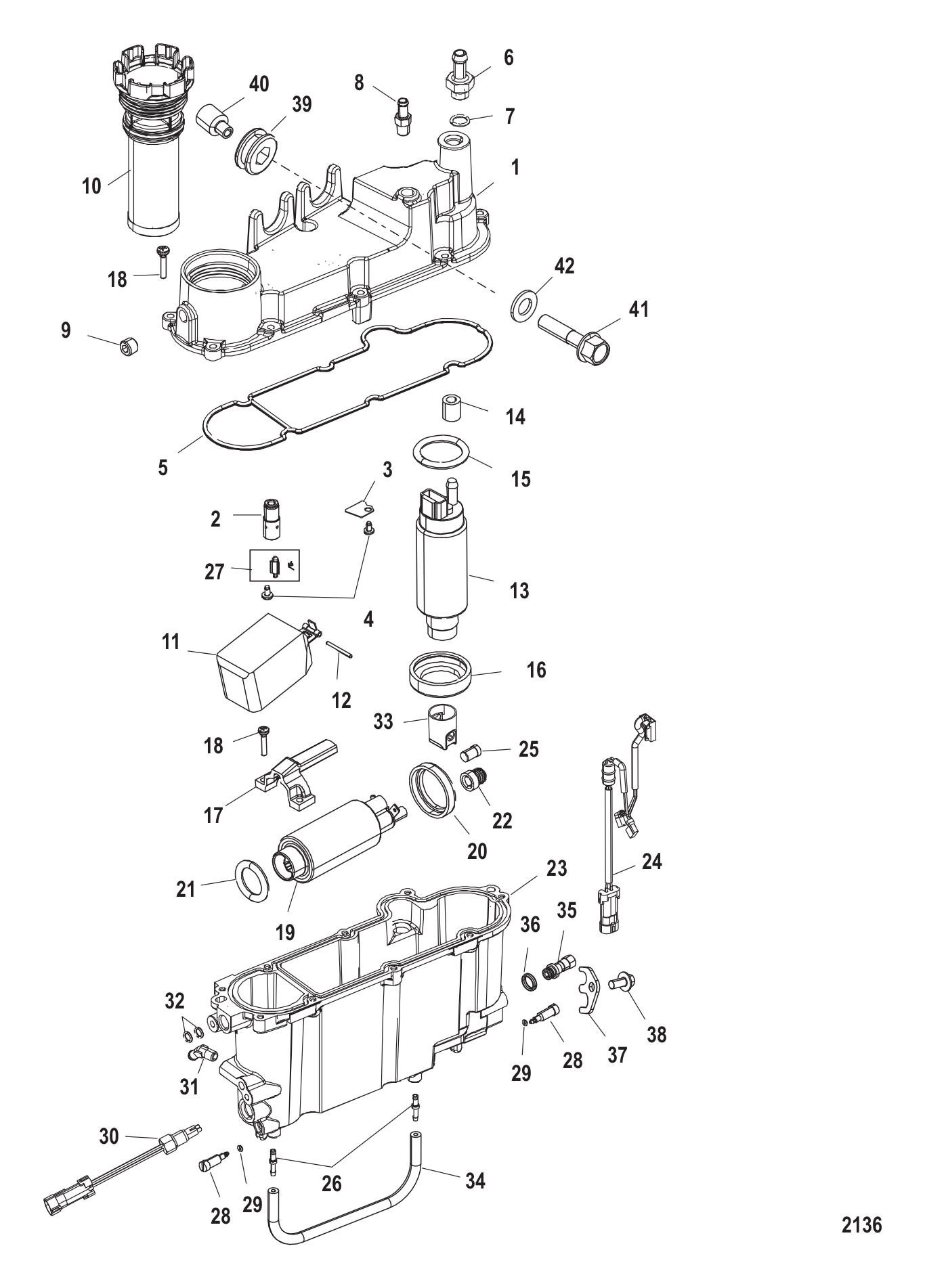

Parts for 200 (3.0L DFI) (Dts) 2-Stroke DFI Mercury Optimax Outboard Motor Vapor Separator Components
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | NSS | NOT SOLD SEPARATE VAPOR SEPARATOR ASSEMBLY [0T800999] & Below (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #- | 880133T12 | VAPOR SEPARATOR [0T801000] & Up (1 required per assembly) — Replaces: 880133T07 |
  |
|
880133T12 - Vapor Separator [ More info ] Unavailable |
| #- | 889316A1 | O RING KIT (1 required per assembly) |
  |
|
25-889316A 1 - O-ring Kit, Vapor Seperator [ More info ]
|
| #1 | 889317T1 | COVER KIT (1 required per assembly) |
  |
|
889317T 1 - Cover Kit [ More info ]
|
| #2 | NSS | NOT SOLD SEPARATE SEAT (1 required per assembly) |
| #3 | 889318001 | PLATE BAFFLE [0T801000] & Up (1 required per assembly) — Replaces: 889318 |
  |
|
889318001 - Baffle Plate [ More info ]
|
| #4 | 883223 | SCREW (M6 X 16) (2 required per assembly) |
  |
|
10-883223 - Screw [ More info ]
|
| #5 | 889319 | GASKET (1 required per assembly) |
  |
|
27-889319 - Gasket [ More info ]
|
| #6 | 883556 | FITTING (1 required per assembly) |
  |
|
22-883556 - Fitting [ More info ]
|
| #7 | 8M0062785 | O-RING (1 required per assembly) — Replaces: 883209 |
  |
|
258M0062785 - O-Ring [ More info ]
|
| #8 | 889329 | FITTING (1 required per assembly) |
  |
|
22-889329 - Fitting [ More info ]
|
| #9 | 883208 | PLUG (1 required per assembly) |
  |
|
19-883208 - Plug [ More info ]
|
| #10 | 8M0060041 | FILTER FUEL (1 required per assembly) — Replaces: 884380T, 8M0020349 |
  |
35-8M0060041 - New Part # 35-8M0122423 [ More info ] Unavailable |
|
  |
|
18-7981 - Filter, 35-884380T [ More info ]
|
  |
|
35-8M0122423 - Fuel Filter Element [ More info ]
|
  |
|
35-35120 - Fuel Filter [ More info ]
|
| #11 | 889320A1 | FLOAT KIT (1 required per assembly) |
  |
|
889320A 1 - Float Kit [ More info ]
|
| #12 | F10064 | SHAFT (1 required per assembly) |
  |
|
F10064 - Float Support Shaft [ More info ]
|
| #13 | 888725T02 | PUMP ASSEMBLY FUEL - HIGH PRESSURE [0T801000] & Up (1 required per assembly) — Replaces: 888725T1 |
  |
|
888725T02 - Fuel Pump [ More info ]
|
| #14 | 8M6000589 | SLEEVE (1 required per assembly) — Replaces: 855428 |
  |
|
8M6000589 - Fuel Pump Sleeve [ More info ]
|
| #15 | 8893162 | O-RING (1 required per assembly) |
  |
|
25-889316 2 - O RING [ More info ]
|
| #16 | 8M6001412 | SEAL (1 required per assembly) — Replaces: 889321 |
  |
|
268M6001412 - Seal [ More info ]
|
| #17 | 889328 | RETAINER (1 required per assembly) |
  |
|
889328 - Retainer [ More info ] Unavailable |
| #18 | 9643 | SCREW (11 required per assembly) |
  |
|
1395-9643 - Screw Assembly [ More info ]
|
| #19 | 888733T02 | PUMP ASSEMBLY BOOST [0T801000] & Up (1 required per assembly) — Replaces: 888733T1 |
  |
|
888733T02 - Boost Pump [ More info ]
|
  |
|
18-7336 - Electric Fuel Pump Mercury [ More info ]
|
| #20 | 889322 | GROMMET (1 required per assembly) |
  |
|
25-889322 - Grommet [ More info ]
|
| #21 | 889316 | O-RING (1 required per assembly) |
  |
|
25-889316 - O-Ring [ More info ]
|
| #22 | 8M6001413 | SEAL (1 required per assembly) — Replaces: 889323 |
  |
|
26-8M6001413 - Seal [ More info ]
|
| #23 | 889324T03 | BOWL KIT [0T801000] & Up (1 required per assembly) — Replaces: 889324T1, 889324T02 |
  |
|
889324T03 - Bowl Kit [ More info ]
|
| #24 | 889325A02 | WIRE (1 required per assembly) — Replaces: 889325A1 |
  |
|
84-889325A02 - Wire Kit [ More info ]
|
| #25 | NSS | NOT SOLD SEPARATE CHECK VALVE (1 required per assembly) |
| #26 | 8554241 | FITTING [0T800999] & Below (2 required per assembly) |
  |
|
22-855424 1 - Fitting [ More info ]
|
| #26 | 855424011 | FITTING [0T801000] & Up (2 required per assembly) |
  |
|
22-855424011 - Drain Fitting [ More info ]
|
| #27 | 889326A1 | VALVE KIT INLET (1 required per assembly) |
  |
|
889326A 1 - Inlet Valve Kit [ More info ]
|
| #28 | 889327A1 | SCREW DRIAN (2 required per assembly) |
  |
|
10-889327A 1 - Drain Screw Kit [ More info ]
|
| #29 | 8893161 | O-RING (2 required per assembly) |
  |
|
25-889316 1 - O-Ring - Priced Individually [ More info ]
|
| #30 | 8M0021043 | SENSOR ASSEMBLY FUEL AND WATER (1 required per assembly) — Replaces: 889330 |
  |
8M0021043 - Fuel and Water Sensor [ More info ] Unavailable |
|
  |
|
8M0214989 - Sensor [ More info ]
|
| #31 | 996642 | FITTING ELBOW 90 DEGREE (.125-27 X .250) NYLON [0T800999] & Below (1 required per assembly) |
  |
|
22-99664 2 - Elbow [ More info ]
|
| #31 | 782792 | FITTING ELBOW 45 DEGREE (1.25) [0T801000] & Up (1 required per assembly) |
  |
22-78279 2 - Elbow [ More info ] Unavailable |
|
  |
|
22-8M0207781 - ELBOW [ More info ] Unavailable |
| #32 | 627021 | O-RING (.301 X .070) (2 required per assembly) |
  |
|
25-62702 1 - O-Ring [ More info ]
|
| #33 | 889430 | INSERT (1 required per assembly) |
  |
|
|
| #34 | 8835451 | HOSE [0T800999] & Below (1 required per assembly) |
  |
|
32-883545 1 - Hose [ More info ]
|
| #34 | 883545002 | HOSE [0T801000] & Up (1 required per assembly) |
  |
|
32-883545002 - Hose [ More info ]
|
| #35 | 884820 | VALVE-SCHRADER (1 required per assembly) |
  |
|
884820 - Schrader Valve [ More info ]
|
| #36 | 891778 | O-RING (1 required per assembly) |
  |
|
25-891778 - O-Ring [ More info ]
|
| #37 | 884819 | CLIP (1 required per assembly) |
  |
|
54-884819 - Clip [ More info ]
|
| #38 | 82130012 | SCREW @5 (1 required per assembly) |
  |
|
10-821300 12 - Screw - Priced Individually [ More info ]
|
| #39 | 855362001 | GROMMET [0T980000] & Up (3 required per assembly) — Replaces: 855362 |
  |
|
25-855362001 - Grommet, Coolant Reservoir [ More info ]
|
| #40 | 883050 | SPACER (3 required per assembly) |
  |
|
23-883050 - Spacer [ More info ]
|
| #41 | 81893460 | SCREW (3 required per assembly) |
  |
|
10-818934 60 - Screw [ More info ]
|
| #42 | 4002318 | WASHER @5 (3 required per assembly) |
  |
|
12-40023 18 - Washer - Priced Individually [ More info ]
|
