Parts for 150, V-1500 2-Stroke Carbureted Mercury Outboard Motor Carburetor Assembly

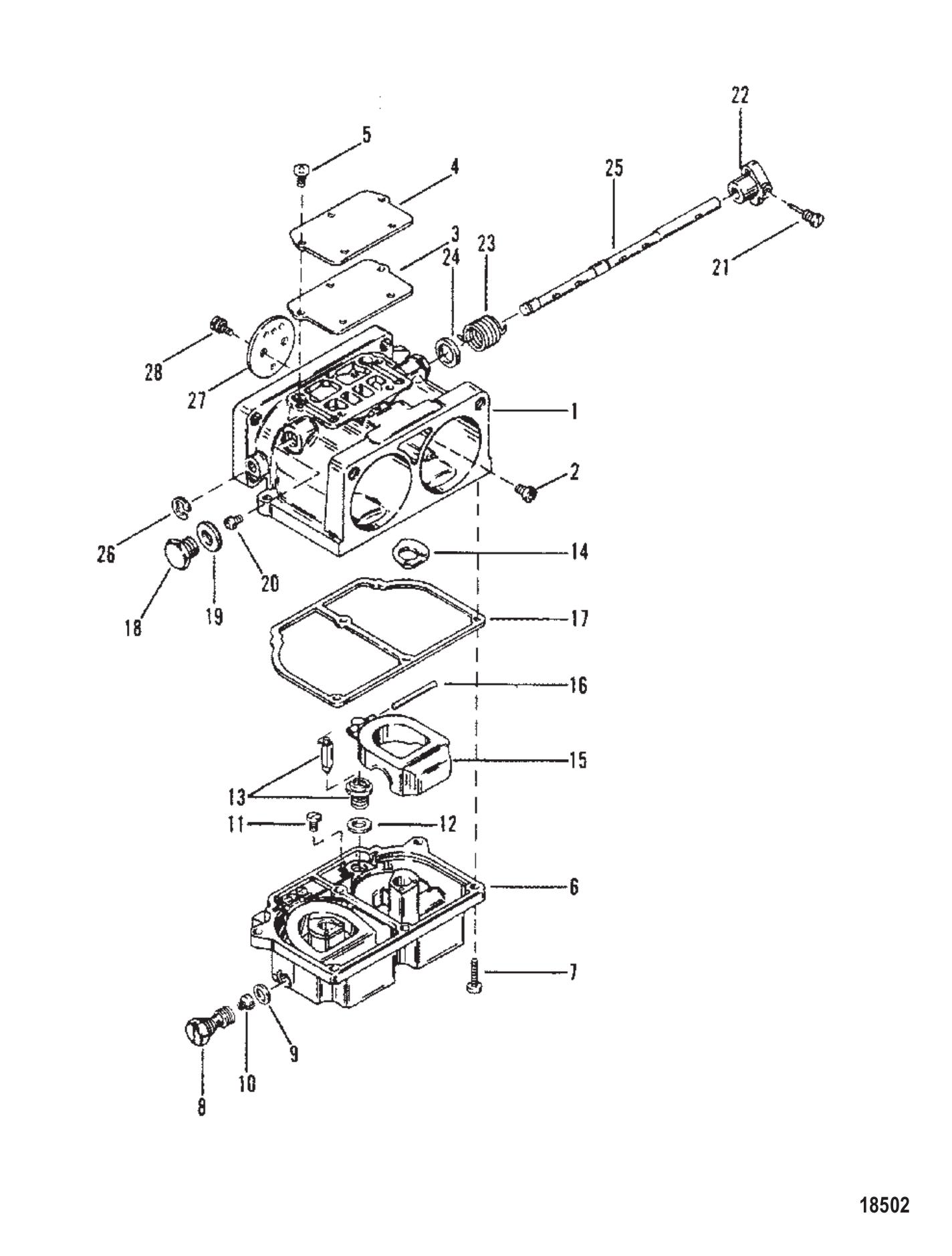

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 6452 | GASKET KIT ( required per assembly) |
  |
|
1395-6452 - Carburetor Gasket Kit [ More info ]
|
  |
|
18-7005 - Carburetor Gasket Kit [ More info ]
|
  |
|
1300-01136 - Carburetor Gasket Kit [ More info ]
|
| #- | 7826 | REPAIR KIT - CARB (WH-2/WH-9/WH-12) ( required per assembly) |
  |
|
1395-7826 - Carburetor Repair Kit [ More info ] Unavailable |
  |
|
18-97357 - Carb Kit, Mercury 1395-7826 [ More info ]
|
| #- | 8506 | REPAIR KIT - CARB ( required per assembly) |
  |
|
1395-8506 - Carburetor Repair Kit [ More info ]
|
  |
|
18-7354 - Carburetor Kit, 1395-8506 [ More info ]
|
  |
|
1300-36082 - Fuel Pump Repair Kit with Brass Parts [ More info ]
|
| #1 | 7563A1 | CARBURETOR (WH-9) (3 required per assembly) — Replaces: 7563A3 |
  |
|
1382-7563A 1 - Carburetor [ More info ] Unavailable |
| #1 | 7563A4 | CARBURETOR (TOP)(WH-12) (1 required per assembly) |
  |
|
1382-7563A 4 - Carburetor [ More info ] Unavailable |
| #1 | 7563A5 | CARBURETOR (CENTER)(WH-12) (1 required per assembly) |
  |
|
1382-7563A 5 - Carburetor [ More info ] Unavailable |
| #1 | 7563A6 | CARBURETOR (BOTTOM)(WH-12) (1 required per assembly) |
  |
|
1382-7563A 6 - Carburetor [ More info ] Unavailable |
| #1 | 5643A97 | CARBURETOR (TOP)(WH-29) (1 required per assembly) |
  |
|
1374-5643A97 - Carburetor, NLA [ More info ] Unavailable |
| #1 | 5643A98 | CARBURETOR (CENTER)(WH-29) (1 required per assembly) |
  |
|
1374-5643A98 - Carburetor, NLA [ More info ] Unavailable |
| #1 | 5643A99 | CARBURETOR (BOTTOM)(WH-29) (1 required per assembly) |
  |
|
1374-5643A99 - Carburetor, NLA [ More info ] Unavailable |
| #2 | 6249 | JET MAIN (.096) VENT BOWL (6 required per assembly) |
  |
|
1399-6249 - Jet -.096 [ More info ]
|
| #2 | 7335 | JET (.098) VENT BOWL (6 required per assembly) |
  |
|
1395-7335 - Jet -.098 [ More info ]
|
| #3 | NSS | NOT SOLD SEPARATE GASKET, COVER PLATE (3 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #4 | 6032 | PLATE (3 required per assembly) |
  |
|
1395-6032 - Plate [ More info ] Unavailable |
| #5 | NSS | NOT SOLD SEPARATE SCREW, COVER PLATE (15 required per assembly) |
| #6 | NLA | NO LONGER AVAILABLE FUEL BOWL (WH-2/WH-9) (3 required per assembly) |
  |
|
NLA - No Longer Availab [ More info ] Unavailable |
| #6 | 7822 | BOWL FUEL (CENTER/BOTTOM) (WH-12/WH-23) (2 required per assembly) |
  |
|
1395-7822 - Fuel Bowl, NLA [ More info ] Unavailable |
| #6 | 7823 | BOWL FUEL (TOP)(WH-12/WH-23) (1 required per assembly) |
  |
|
1395-7823 - Fuel Bowl, NLA [ More info ] Unavailable |
| #7 | NSS | NOT SOLD SEPARATE SCREW, FUEL BOWL (18 required per assembly) |
| #8 | 6025 | PLUG MAIN JET (6 required per assembly) |
  |
|
1395-6025 - Plug [ More info ]
|
| #9 | NSS | NOT SOLD SEPARATE GASKET, MAIN JET (6 required per assembly) |
| #10 | 4216 | JET (.064) MAIN FUEL (6 required per assembly) |
  |
|
1399-4216 - Jet -.064 [ More info ]
|
| #10 | 5225 | JET MAIN (.054) MAIN FUEL (6 required per assembly) |
  |
|
1399-5225 - Jet -.054 [ More info ]
|
| #10 | 6359 | JET (.052) MAIN FUEL (6 required per assembly) |
  |
|
1395-6359 - Jet -.052 [ More info ]
|
| #10 | 6028 | JET (.050) MAIN FUEL (6 required per assembly) |
  |
|
1395-6028 - Jet -.050 [ More info ]
|
| #10 | 6246 | JET (.048) MAIN FUEL (6 required per assembly) |
  |
|
1395-6246 - Jet -.048 [ More info ]
|
| #11 | NSS | NOT SOLD SEPARATE SCREW, FLOAT PIN (6 required per assembly) |
| #12 | NSS | NOT SOLD SEPARATE GASKET, INLET NEEDLE AND SEAT (6 required per assembly) |
| #13 | 7624 | NEEDLE/SEAT KIT INLET (WH-9) (6 required per assembly) |
  |
|
1395-7624 - Inlet Needle [ More info ]
|
| #13 | 7824 | NEEDLE/SEAT ASSEMBLY INLET (6 required per assembly) |
  |
|
1395-7824 - Inlet Needle And Seat Assembly [ More info ]
|
  |
|
18-7233 - Needle And Seat 1395-7824 [ More info ]
|
| #14 | NSS | NOT SOLD SEPARATE GASKET, NOZZLE BOSS (6 required per assembly) |
| #15 | 9267 | FLOAT (6 required per assembly) — Replaces: 7623 |
  |
|
1395-9267 - Float, NLA [ More info ] Unavailable |
  |
|
18-36956 - Float 1395-9267 [ More info ]
|
| #16 | NSS | NOT SOLD SEPARATE PIN, FLOAT LEVER (6 required per assembly) |
| #17 | NSS | NOT SOLD SEPARATE GASKET, FUEL BOWL (3 required per assembly) |
| #18 | 4541 | SCREW IDLE AIR BLEED JET (6 required per assembly) |
  |
|
1395-4541 - Plug Screw - Priced Individually [ More info ]
|
| #19 | NSS | NOT SOLD SEPARATE GASKET, BLEED JET PLUG (6 required per assembly) |
| #20 | 6359 | JET (.052) IDLE AIR BLEED (6 required per assembly) |
| #20 | 6487 | JET MAIN (.060) IDLE AIR BLEED (6 required per assembly) |
  |
|
1395-6487 - Jet -.060 [ More info ]
|
| #20 | 5225 | JET MAIN (.054) IDLE AIR BLEED (6 required per assembly) |
| #20 | 5213 | JET MAIN (.056) IDLE AIR BLEED (6 required per assembly) |
  |
|
1399-5213 - Jet -.056 [ More info ]
|
| #21 | 6027 | SCREW THROTTLE LEVER (3 required per assembly) |
  |
|
1395-6027 - Screw [ More info ] Unavailable |
| #22 | 67752 | LEVER (3 required per assembly) |
  |
|
67752 - Throttle Lever, NLA [ More info ] Unavailable |
| #23 | NSS | NOT SOLD SEPARATE SPRING, THROTTLE RETURN (3 required per assembly) |
| #24 | 6031 | SPACER THROTTLE LEVER (3 required per assembly) |
  |
|
1395-6031 - Spacer [ More info ]
|
| #25 | 6022 | SHAFT (3 required per assembly) |
  |
|
1395-6022 - Throttle Shaft,NLA [ More info ]
|
| #26 | NSS | NOT SOLD SEPARATE RING, RETAINER - THROTTLE SHAFT (3 required per assembly) |
| #27 | NLA | NO LONGER AVAILABLE THROTTLE VALVE (WH-2) (6 required per assembly) |
| #27 | 7626 | VALVE THROTTLE (WH-9/WH-12) (6 required per assembly) |
  |
|
1395-7626 - Throttle Valve,NLA [ More info ]
|
| #27 | 6023 | VALVE THROTTLE (6 required per assembly) |
  |
|
1395-6023 - Throttle Valve, NLA [ More info ]
|
| #28 | NSS | NOT SOLD SEPARATE SCREW, THROTTLE VALVE (12 required per assembly) |
