Parts for 115 DFI (3 Cyl.) (1.5L) 2-Stroke DFI Mercury Optimax Outboard Motor Water Hoses

Revise Search: Outboard > 2-Stroke DFI Mercury Optimax Outboard > 115 DFI (3 Cyl.) (1.5L) > 1B417702 - 1B736885 - USA > Water Hoses

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

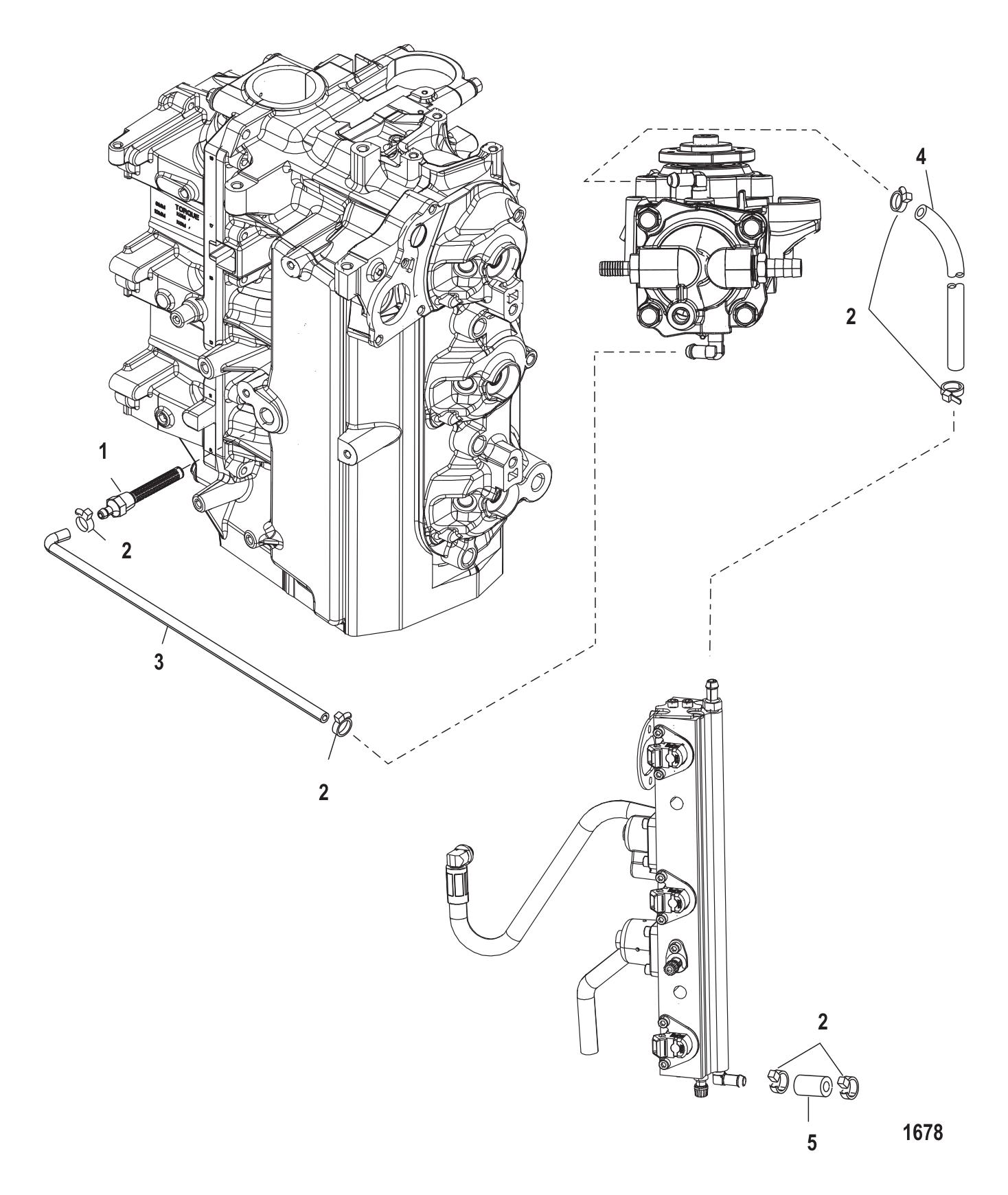

Water Hoses

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	8348084	STRAINER (1 required per assembly)
		35-834808 4 - Strainer [ More info ] $21.29 Available to Order: Shipping delay up to 10 days.
#2	816311T	TIE STRAP @100 (AR required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#3	883060001	HOSE (1 required per assembly)
		32-883060001 - Hose [ More info ] $31.59 Available to Order: Shipping delay up to 10 days.
#4	85833939	HOSE (17.00 INCHES BULK) CUT TO 10-1/2 INCHES (1 required per assembly)
		32-858339 39 - Hose -17 Inch [ More info ] $13.09 Available to Order: Shipping delay up to 10 days.
#5	85833939	HOSE (17.00 INCHES BULK) CUT TO 6-1/2 INCHES - TO TELLTALE (1 required per assembly)
