Parts for 115 DFI (3 Cyl.) (1.5L) 2-Stroke DFI Mercury Optimax Outboard Motor Fuel Rail

Revise Search: Outboard > 2-Stroke DFI Mercury Optimax Outboard > 115 DFI (3 Cyl.) (1.5L) > 1B417702 - 1B736885 - USA > Fuel Rail

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

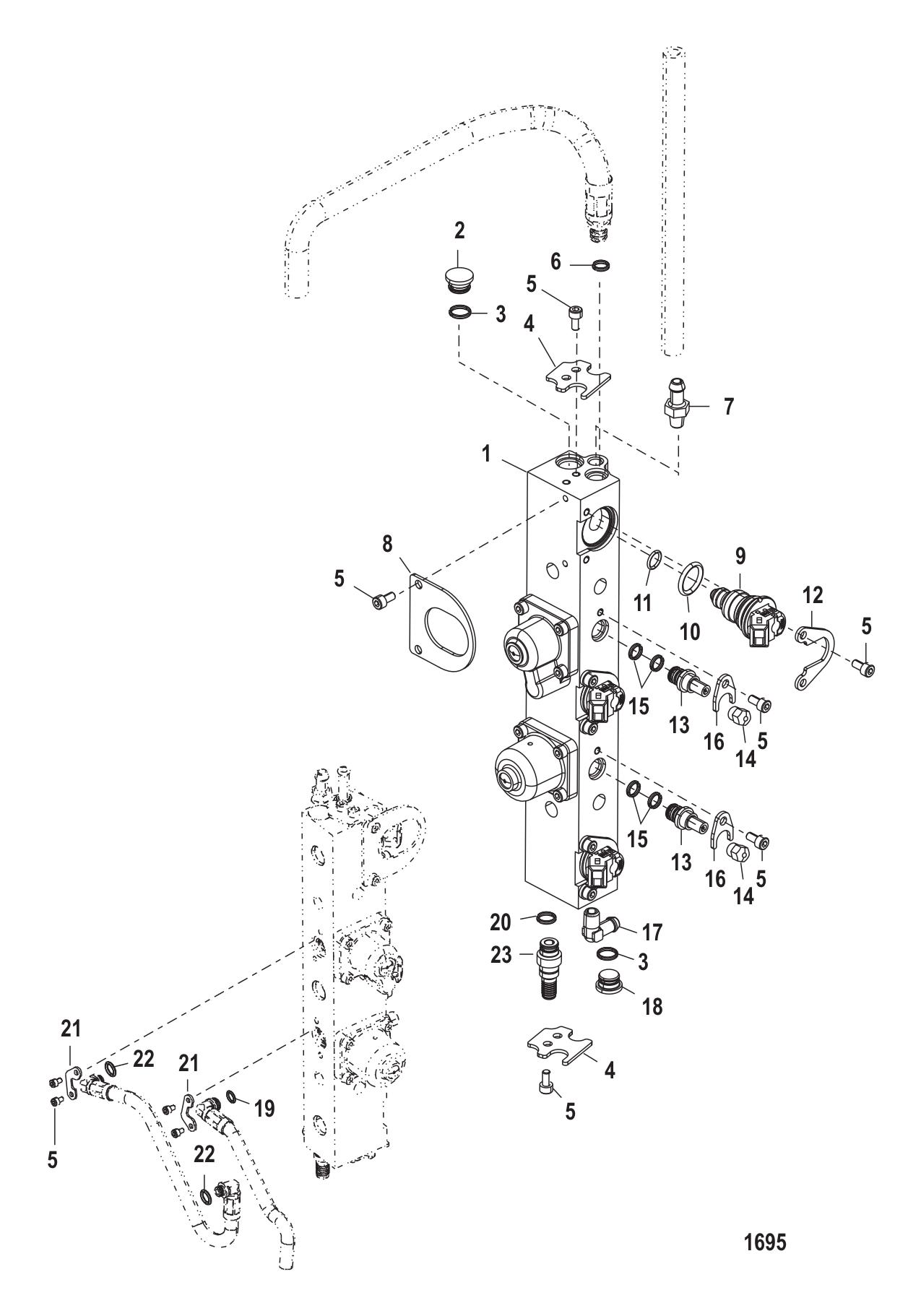

Fuel Rail

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	8M6002988	DIAPHRAM KIT For Fuel and Air Regulator Kits (2 required per assembly)
		98-8M6002988 - Diaphragm [ More info ] $277.49 $235.99 10+ In Stock.
#-	8M6002989	FUEL REGULATOR (1 required per assembly)
		98-8M6002989 - Fuel Regulator Kit [ More info ] $306.99 Available to Order: Shipping delay up to 10 days.
#-	8M6002990	FUEL REGULATOR (1 required per assembly)
		98-8M6002990 - Fuel Regulator Kit [ More info ] $261.49 Available to Order: Shipping delay up to 10 days.
#-	8M6002991	AIR REGULATOR (1 required per assembly)
		98-8M6002991 - AIR Regulator Kit [ More info ] $396.49 Available to Order: Shipping delay up to 10 days.
#1	8M0055702	FUEL RAIL ASSY (1 required per assembly) — Replaces: 895750T02, 895750T03
		8M0055702 - Fuel Rail Assembly [ More info ] Unavailable
		8M0135400 - Fuel Rail [ More info ] Unavailable
		8M0185151 - FUEL RAIL ASSY [ More info ] $1,327.49 Available to Order: Shipping delay up to 10 days.
#2	804834	PLUG (1 required per assembly)
		19-804834 - Plug [ More info ] $23.79 Available to Order: Shipping delay up to 10 days.
#3	804532	O-RING KIT (2 required per assembly)
		804532 - O-ring Kit (16 Per Kit) [ More info ] $30.49 Available to Order: Shipping delay up to 10 days.
#4	804830	CLAMP (2 required per assembly)
		54-804830 - Clamp [ More info ] $19.89 Available to Order: Shipping delay up to 10 days.
#5	8M0041100	SCREW (M5 X 10) (9 required per assembly) — Replaces: 804525001
		108M0041100 - Screw [ More info ] $34.49 Available to Order: Shipping delay up to 10 days.
#6	804840	O-RING KIT (1 required per assembly)
		25-804840 - O-Ring Kit [ More info ] $44.49 Available to Order: Shipping delay up to 10 days.
#7	291112	FITTING (1 required per assembly)
		0291112 - Exhaust Gasket (291112) [ More info ] Unavailable
#8	891820	BRACKET (1 required per assembly)
		891820 - Bracket [ More info ] $44.49 Available to Order: Shipping delay up to 10 days.
#9	804528	INJECTOR (3 required per assembly)
		804528 - Fuel Injector, See Detail Page for Information [ More info ] $169.99 10+ In Stock.
		8M0222157 - FUEL INJECTOR [ More info ] $313.49 Available to Order: Shipping delay up to 10 days.
#10	804530	O-RING KIT CONTAINS 6 PCS (1 required per assembly)
		25-804530 - O-ring Kit (large) 6 Per Kit [ More info ] $56.99 Available to Order: Shipping delay up to 10 days.
#11	804529	O-RING KIT CONTAINS 6 PCS (1 required per assembly)
		25-804529 - O-ring Kit (small) 6 Per Kit [ More info ] $39.93 1 In Stock.
#12	804522	CLAMP (3 required per assembly)
		804522 - Retainer [ More info ] $15.60 $12.48 6 In Stock.
#13	8M0047053	VALVE KIT SHRADER SCHRADER (2 required per assembly) — Replaces: 883542
		8M0047053 - Valve Kit [ More info ] $135.49 Available to Order: Shipping delay up to 10 days.
#14	8M0046566	CAP (2 required per assembly) — Replaces: 805515
		19-8M0046566 - Cap [ More info ] $4.69 Available to Order: Shipping delay up to 10 days.
#15	804840	O-RING KIT (1 required per assembly)
#16	8M0041097	BRACKET (2 required per assembly) — Replaces: 880816
		8M0041097 - Bracket [ More info ] $18.79 Available to Order: Shipping delay up to 10 days.
#17	996642	FITTING ELBOW 90 DEGREE (.125-27 X .250) NYLON (1 required per assembly)
		22-99664 2 - Elbow [ More info ] $2.69 6 In Stock.
#18	804835	PLUG (1 required per assembly)
		19-804835 - Plug [ More info ] $23.79 Available to Order: Shipping delay up to 10 days.
#19	804532	O-RING KIT 16 PER KIT (1 required per assembly)
#20	804536	O-RING (1 required per assembly)
		25-804536 - O-Ring [ More info ] $11.79 Available to Order: Shipping delay up to 10 days.
#21	804832	CLAMP (2 required per assembly)
		54-804832 - Clamp [ More info ] $18.99 Available to Order: Shipping delay up to 10 days.
#22	804840	O-RING KIT (1 required per assembly)
#23	804836002	FITTING (1 required per assembly)
		22-804836002 - Fitting [ More info ] $52.31 1 In Stock.
