Parts for V-150-XR-2 2-Stroke Carbureted Mercury Outboard Motor Trim Cylinder (S/N USA-5503246 / Aus-8062734 & Below)

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > V-150-XR-2 > 4868998 - 0A904645 > Trim Cylinder (S/N USA-5503246 / Aus-8062734 & Below)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

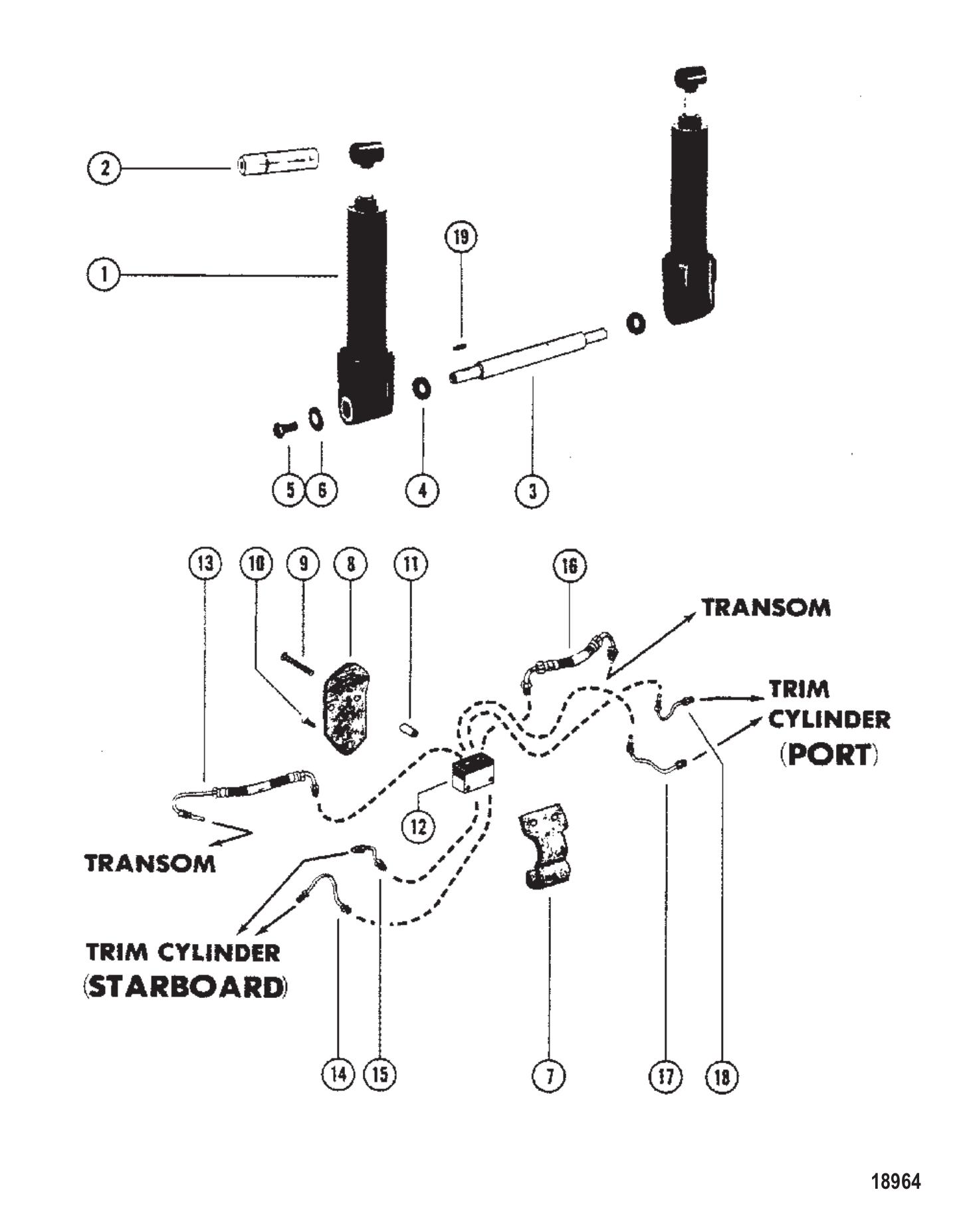

Trim Cylinder (S/N USA-5503246 / Aus-8062734 & Below)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	79114A4	TRIM CYLINDER (2 required per assembly)
		79114A 4 - Trim Cylinder, NLA [ More info ] Unavailable
#2	67694	PIN (2 required per assembly)
		67694 - Pin, NLA [ More info ] $10.78 3 In Stock.
#3	67701	SHAFT (1 required per assembly)
		67701 - Shaft, NLA [ More info ] $35.56 $30.12 1 In Stock.
#4	67745	WASHER (2 required per assembly)
		12-67745 - Washer, NLA [ More info ] Unavailable
#5	67756	SCREW (2 required per assembly)
		10-67756 - Screw, NLA [ More info ] $2.09 $1.77 8 In Stock.
#6	NLA	NO LONGER AVAILABLE WASHER (2 required per assembly)
		NLA - No Longer Availab [ More info ] Unavailable
#7	67698T	SPACER (1 required per assembly)
		67698T - Spacer, NLA [ More info ] Unavailable
#8	67700	COVER (1 required per assembly)
		67700 - Cover [ More info ] Unavailable
#9	35049	SCREW (2 required per assembly)
		10-35049 - Screw [ More info ] $3.09 2 In Stock.
#10	20665	SCREW @5 (1 required per assembly)
		10-20665 - Screw, NLA [ More info ] $2.49 $2.11 10+ In Stock.
#11	67671	SPACER (2 required per assembly)
		23-67671 - SPACER,NLA [ More info ] $8.00 $6.78 3 In Stock.
#12	67696	MANIFOLD (1 required per assembly)
		67696 - Manifold, NLA [ More info ] Unavailable
#13	67683	TUBE HYDRAULIC (STARBOARD) (1 required per assembly)
		32-67683 - Tubing [ More info ] $275.67 $152.00 8 In Stock.
#14	67681	TUBE HYDRAULIC (STARBOARD - DOWN) (1 required per assembly)
		32-67681 - Tubing, NLA [ More info ] $10.00 $8.47 2 In Stock.
#15	67678	TUBE HYDRAULIC (STARBOARD - UP) (1 required per assembly)
		32-67678 - Tubing, NLA [ More info ] $9.78 $8.29 4 In Stock.
#16	67682	TUBE HYDRAULIC (PORT) (1 required per assembly)
		32-67682 - Tubing [ More info ] $140.99 $135.20 4 In Stock.
#17	67680	TUBE HYDRAULIC (PORT-UP) (1 required per assembly)
		32-67680 - Tubing, NLA [ More info ] $14.00 $11.86 2 In Stock.
#18	67679	TUBE HYDRAULIC (PORT - DOWN) (1 required per assembly)
		32-67679 - Tubing, NLA [ More info ] Unavailable
#19	20094	KEY @5 (1 required per assembly)
		28-20094 - Key - Priced Individually [ More info ] $1.80 10+ In Stock.
