Parts for 115 DFI (3 Cyl.) (1.5L) 2-Stroke DFI Mercury Optimax Outboard Motor Electrical Components Pcm Mounting

Revise Search: Outboard > 2-Stroke DFI Mercury Optimax Outboard > 115 DFI (3 Cyl.) (1.5L) > 1B227000 - 1B417701 - USA > Electrical Components Pcm Mounting

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

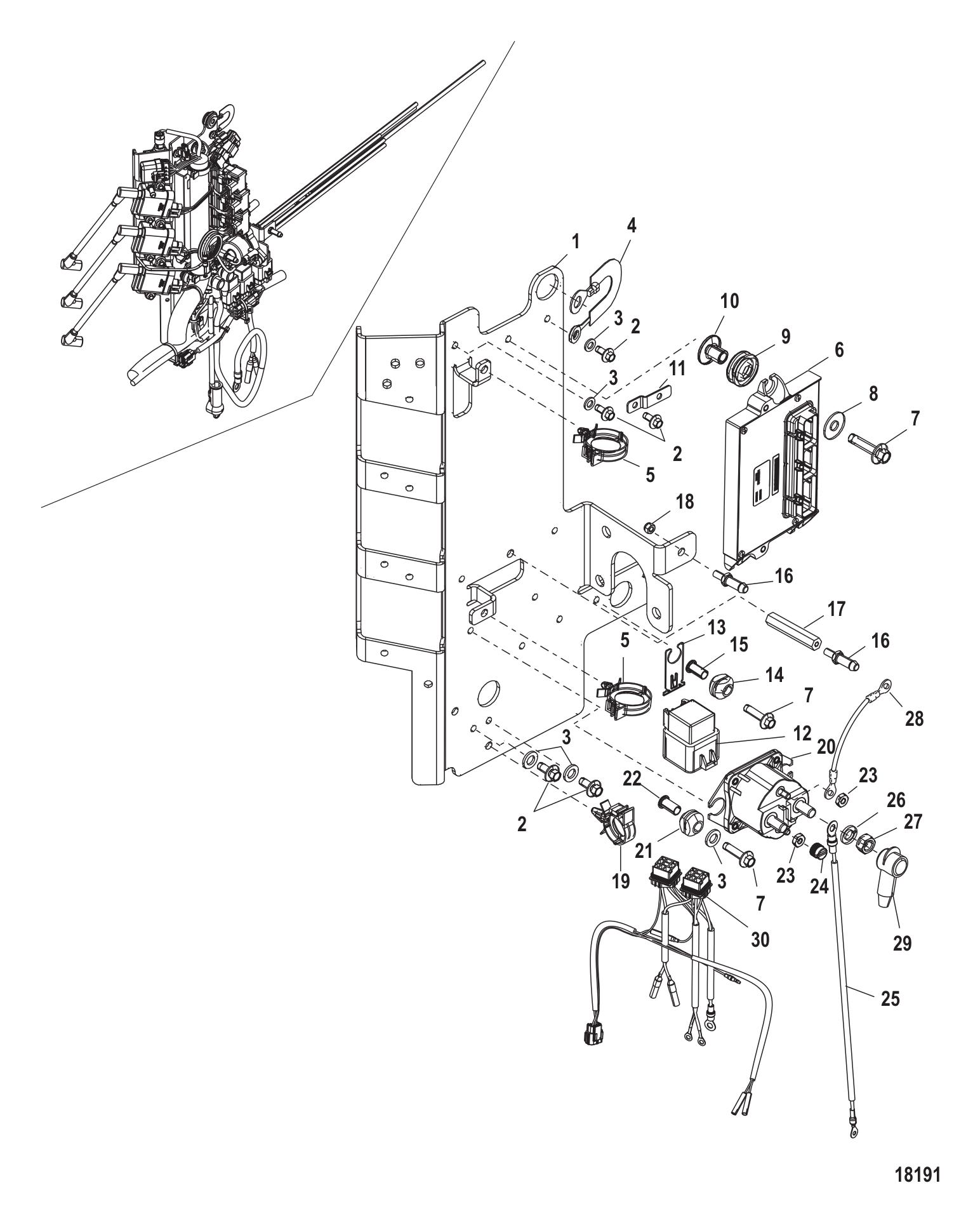

Electrical Components Pcm Mounting

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	NSS	NOT SOLD SEPARATE ELECTRICAL PLATE ASSEMBLY-COMPLETE (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#1	880190T03	PLATE-ELECTRICAL (1 required per assembly)
		880190T03 - Electrical Plate [ More info ] $102.49 Available to Order: Shipping delay up to 10 days.
#2	82129114	SCREW (5 required per assembly)
		10-821291 14 - Screw [ More info ] $2.49 Available to Order: Shipping delay up to 10 days.
#3	8M0204649	WASHER @10 (5 required per assembly) — Replaces: 29245
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 10+ In Stock.
#4	858414A1	CABLE ASSY (1 required per assembly)
		84-858414A 1 - Cable [ More info ] $19.49 Available to Order: Shipping delay up to 10 days.
#5	858755	CLIP (2 required per assembly)
		54-858755 - Clip [ More info ] $2.29 Available to Order: Shipping delay up to 10 days.
#6	89790640T	PCM (75) (1 required per assembly) — Replaces: 88555701S
		89790640T - PCM [ More info ] Unavailable
#6	89790641T	PCM (90) (1 required per assembly) — Replaces: 88555746S
		89790641T - PCM [ More info ] Unavailable
#6	89790642T	PCM (115) (1 required per assembly) — Replaces: 88555747S
		89790642T - PCM [ More info ] Unavailable
#7	82129125	SCREW (8 required per assembly)
		10-821291 25 - Screw [ More info ] Unavailable
#8	65567	WASHER @2 (3 required per assembly)
		12-65567 - Washer, (.265 X .750 X .048) Stainless Steel [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
#9	834985	GROMMET @5 (3 required per assembly)
		25-834985 - Grommet [ More info ] $3.00 2 In Stock.
		25-8M0190980 - GROMMET Note: Must be ordered in multiples of 5 [ More info ] $3.89 Available to Order: Shipping delay up to 10 days.
#10	856954	BUSHING (3 required per assembly)
		23-856954 - Bushing [ More info ] $6.99 Available to Order: Shipping delay up to 10 days.
#11	858953	BRACKET (1 required per assembly)
		858953 - Bracket [ More info ] $3.89 Available to Order: Shipping delay up to 10 days.
#12	882751A1	RELAY ASSY-TRIM (3 required per assembly)
		882751A 1 - Relay - 8M0207773 [ More info ] Unavailable
		18-5849 - Relay, 882751A1 [ More info ] $20.16 10+ In Stock.
		300-01562 - Power Trim Relay, 882751A1 [ More info ] $16.99 10 In Stock.
		R151 - Relay [ More info ] $20.40 $19.55 In Stock
#13	8M0207771	BRACKET (3 required per assembly) — Replaces: 828102
		8M0207771 - BRACKET [ More info ] Unavailable
#14	8M0207785	GROMMET (3 required per assembly) — Replaces: 818967
		258M0207785 - Grommet [ More info ] $9.89 Available to Order: Shipping delay up to 10 days.
#15	818968	BUSHING (3 required per assembly)
		23-818968 - Bushing [ More info ] Unavailable
		238M0214955 - Bushing [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
#16	8215832	PIN (SPECIAL) (2 required per assembly)
		821583 2 - Pin (Special) [ More info ] $17.09 Available to Order: Shipping delay up to 10 days.
#17	889600	SPACER (1 required per assembly)
		889600 - Spacer [ More info ] $8.29 Available to Order: Shipping delay up to 10 days.
#18	401376	NUT (1 required per assembly)
		11-40137 6 - Nut [ More info ] $3.29 Available to Order: Shipping delay up to 10 days.
#19	858954	CLIP (1 required per assembly)
		54-858954 - Clip [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
#20	817109A2	SOLENOID KIT (1 required per assembly)
		89-817109A 2 - Solenoid Kit [ More info ] $64.49 $63.47 In Stock
		18-5834 - Solenoid, 89-817109A2 [ More info ] $54.19 3 In Stock.
		SW109 - Solenoid [ More info ] $41.40 $40.71 2 In Stock.
#21	822179	GROMMET (2 required per assembly)
		25-822179 - Grommet [ More info ] $4.49 $3.60 1 In Stock.
#22	818968	BUSHING (2 required per assembly)
#23	45076	NUT @10 (2 required per assembly)
		11-45076 - Nut (#10-32) (brass) [ More info ] $1.80 10+ In Stock.
#24	813938	CAPNUT (1 required per assembly)
		11-813938 - Capnut [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#25	883726A1	CABLE (1 required per assembly)
		84-883726A 1 - Cable [ More info ] $13.89 Available to Order: Shipping delay up to 10 days.
#26	53166	LOCKWASHER @5 (2 required per assembly)
		13-53166 - LockWasher - Priced Individually [ More info ] $1.80 10+ In Stock.
#27	8M0204668	NUT @5 (2 required per assembly) — Replaces: 68292
		11-8M0204668 - NUT @5 [ More info ] Unavailable
#28	88807A16	CABLE ASSY (1 required per assembly)
		84-88807A16 - Cable Assembly [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#29	8500673	BOOT (YELLOW) (1 required per assembly)
		85-850067 3 - Boot (Yellow) [ More info ] $6.09 Available to Order: Shipping delay up to 10 days.
#30	819514T18	HARNESS-TRIM (1 required per assembly)
		84-819514T18 - Trim Harness [ More info ] $112.99 Available to Order: Shipping delay up to 10 days.
