Parts for V-150-XR-2 2-Stroke Carbureted Mercury Outboard Motor Exhaust Manifold & Exhaust Plate

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > V-150-XR-2 > 4868998 - 0A904645 > Exhaust Manifold & Exhaust Plate

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

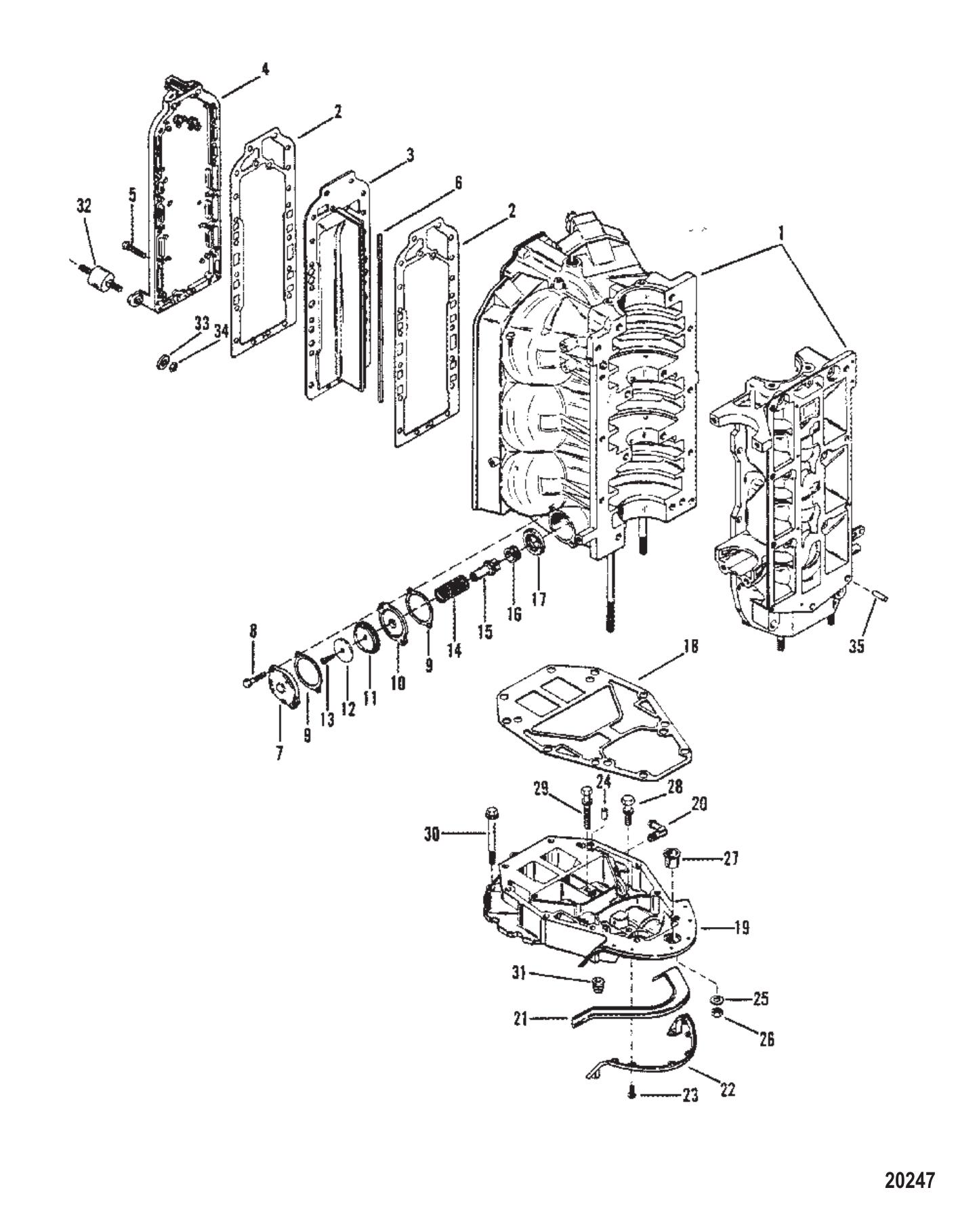

Exhaust Manifold & Exhaust Plate

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	90484A88	GASKET SET [ME-6042946/MA-6038681] & Up (1 required per assembly)
		27-90484A88 - Gasket Set [ More info ] Unavailable
#-	79583A81	GASKET SET [5866777] THRU [6042945] (1 required per assembly)
		27-79583A81 - Engine Gasket Set [ More info ] Unavailable
#-	NLA	NO LONGER AVAILABLE GASKET SET (Service Bulletin 81-8) [ME-5866776/MA-6038680] & Below (1 required per assembly)
		NLA - No Longer Availab [ More info ] Unavailable
#1	8133A3	CYLINDER BLOCK [ME-6042945/MA-6038680] & Below (1 required per assembly)
		858-8133A 3 - Cylinder Block,NLA [ More info ] Unavailable
#1	8711T19	CYLINDER BLOCK [ME-6042946/MA-6038681] & Up (1 required per assembly) — Replaces: 8711A19
		858-8711T19 - Cylinder Block,NLA [ More info ] Unavailable
#2	904841	GASKET @2 [5432022] & Up (2 required per assembly)
		27-90484 1 - Gasket - Priced Individually [ More info ] $22.96 5 In Stock.
#2	76636	GASKET @2 [5432021] & Below (2 required per assembly)
		27-76636 - Divider Plate Gasket [ More info ] $18.99 Available to Order: Shipping delay up to 10 days.
#3	87321T	PLATE [5432022] & Up (1 required per assembly) — Replaces: 87321
		87321T - Plate [ More info ] $282.99 Available to Order: Shipping delay up to 10 days.
#3	78305A1	PLATE ASSY [5432021] & Below (1 required per assembly)
		78305A 1 - Plate Assembly, NLA [ More info ] Unavailable
#4	95067	COVER [5432022] & Up (1 required per assembly)
		95067 - Exhaust Manifold Cover [ More info ] $93.99 $79.60 10+ In Stock.
#4	67340	COVER [5432021] & Below (1 required per assembly) — Replaces: 67340T
		67340 - Cover, NLA [ More info ] Unavailable
#5	74824	SCREW @5 [5432022] & Up (21 required per assembly)
		10-74824 - Screw - Priced Individually [ More info ] $1.80 3 In Stock.
#5	35386	SCREW @5 [5432021] & Below (17 required per assembly)
		10-35386 - Screw - Priced Individually [ More info ] $1.10 7 In Stock.
#6	814754	SEAL (1 required per assembly) — Replaces: 69668
		26-814754 - Seal [ More info ] $11.09 1 In Stock.
#7	8M0039767	COVER RELIEF VALVE [ME-6042945/MA-6038680] & Below (1 required per assembly) — Replaces: 68729, 687291
		8M0039767 - Cover [ More info ] $54.99 Available to Order: Shipping delay up to 10 days.
#7	65663A2	COVER ASSEMBLY RELIEF VALVE [ME-6042946/MA-6038681] & Up (1 required per assembly) — Replaces: 65663A1
		65663A 2 - Cover Assembly [ More info ] Unavailable
#8	38837	SCREW (.312-18 X 1.12) COVER (AR required per assembly)
		10-38837 - Screw - Priced Individually [ More info ] $3.19 $1.79 10+ In Stock.
#9	78690002	GASKET RELIEF VALVE PLATE [ME-6042945/MA-6038680] & Below (2 required per assembly) — Replaces: 78690
		27-78690002 - Relief Valve Cover Gasket [ More info ] $4.09 8 In Stock.
		18-0936-9 - Gasket 27-78690 2-Pack [ More info ] $5.37 Available to Order: Shipping delay up to 10 days.
#9	88907003	GASKET RELIEF VALVE PLATE [ME-6042946/MA-6038681] & Up (2 required per assembly) — Replaces: 88907
		27-88907003 - Relief Valve Plate Gasket [ More info ] $3.79 6 In Stock.
#10	65664	PLATE [ME-6042945/MA-6038680] & Below (1 required per assembly)
		65664 - Relief Valve Plate, NLA [ More info ] Unavailable
#10	65664A1	PLATE ASSY [ME-6042946/MA-6038681] & Up (1 required per assembly)
		65664A 1 - Plate Assembly [ More info ] $30.64 2 In Stock.
#11	648771	DIAPHRAGM (1 required per assembly) — Replaces: 64877
		64877 1 - Diaphragm [ More info ] $11.79 10 In Stock.
#12	76451	WASHER @2 (1 required per assembly)
		12-76451 - Washer, Diaphragm [ More info ] $2.79 4 In Stock.
#13	69570	SCREW (1 required per assembly)
		10-69570 - Screw [ More info ] $1.80 9 In Stock.
#14	64878	SPRING (1 required per assembly)
		24-64878 - Spring, Compresion Poppet Valve [ More info ] $6.79 10 In Stock.
#15	86596	POPPET (1 required per assembly)
		86596 - Poppet Valve [ More info ] $11.29 4 In Stock.
#16	65848	CARRIER (1 required per assembly)
		65848 - Carrier [ More info ] $3.59 2 In Stock.
#17	64872	GROMMET @2 (1 required per assembly)
		25-64872 - Grommet, Poppet Relief Valve [ More info ] $3.59 10+ In Stock.
#18	8231422	GASKET EXHAUST PLATE [ME-6042945/MA-6038680] & Below (1 required per assembly) — Replaces: 78069, 8231421
		27-823142 2 - Gasket [ More info ] $42.69 Available to Order: Shipping delay up to 10 days.
#18	997761	GASKET EXHAUST PLATE [ME-6042946/MA-6038681] & Up (1 required per assembly)
		27-99776 1 - Gasket [ More info ] $19.69 1 In Stock.
#19	41944A5	EXHAUST EXT PLATE [ME-6042945/MA-6038680] & Below (1 required per assembly)
		41944A 5 - Exhaust Extension Plate, NLA [ More info ] Unavailable
#19	43029A5	EXHAUST EXT PLATE [ME-6042946/MA-6038681] & Up (1 required per assembly)
		43029A 5 - EXHAUST EXT PLAT,NLA [ More info ] Unavailable
#20	996642	FITTING ELBOW 90 DEGREE (.125-27 X .250) NYLON (1 required per assembly) — Replaces: 99664, 996641
		22-99664 2 - Elbow [ More info ] $2.69 6 In Stock.
#21	707482	SEAL (1 required per assembly)
		70748 2 - Seal, NLA [ More info ] $10.76 10+ In Stock.
#22	680101	BRACKET (1 required per assembly) — Replaces: 68010
		68010 1 - Bracket [ More info ] $11.19 Available to Order: Shipping delay up to 10 days.
#23	48408	SCREW (#10-16 X .500) (8 required per assembly)
		10-48408 - Screw - Priced Individually [ More info ] $2.29 Available to Order: Shipping delay up to 10 days.
#24	43044	PIN DOWEL - WITHOUT HOLE (.375 X .625) (2 required per assembly) — Replaces: 20033
		17-43044 - Pin -Dowel-solid [ More info ] $2.49 Available to Order: Shipping delay up to 10 days.
#25	20553	WASHER @5 (2 required per assembly) — Replaces: 25970
		12-20553 - Washer - Priced Individually [ More info ] $1.50 8 In Stock.
#26	8M0042636	NUT-BRASS @3 (2 required per assembly) — Replaces: 34863, 826709113
		11-8M0042636 - Nut - Brass , Priced Individually [ More info ] Unavailable
		118M0204726 - NUT-BRASS Note: Priced Individually [ More info ] $1.80 10 In Stock.
#27	27132	BUSHING (1 required per assembly)
		23-27132 - Bushing [ More info ] $4.85 2 In Stock.
#28	66727	SCREW @5 (1 required per assembly)
		10-66727 - Screw - Priced Individually [ More info ] $2.99 2 In Stock.
#29	68783	SCREW @3 (1 required per assembly)
		10-68783 - Screw - Priced Individually [ More info ] $6.69 Available to Order: Shipping delay up to 10 days.
#30	898833	SCREW (3 required per assembly) — Replaces: 66725
		10-898833 - Screw [ More info ] Unavailable
#31	12602002	GROMMET (1 required per assembly) — Replaces: 12602, 126021
		25-12602002 - Grommet (.44 I.d.) [ More info ] $4.59 Available to Order: Shipping delay up to 10 days.
#32	90435	MOUNT [ME-6042945/MA-6038680] & Up (3 required per assembly)
		90435 - Rubber Mount [ More info ] $61.44 1 In Stock.
#33	21249	WASHER @5 [ME-6042945/MA-6038680] & Below (6 required per assembly)
		12-21249 - Washer - Priced Individually [ More info ] $8.49 $1.70 10+ In Stock.
#34	8267089	NUT @5 [ME-6042945/MA-6038680] & Below (6 required per assembly) — Replaces: 20361
		11-826708 9 - Nut - Priced Individually [ More info ] $1.50 10 In Stock.
		18-3722-9 - Lock Nut, 121731, 11-35888, Pack of 5 [ More info ] $11.99 $8.16 Available to Order: Shipping delay up to 10 days.
#35	42657A3	VALVE ASSY-CHECK [ME-6042946/MA-6038681] & Up (1 required per assembly) — Replaces: 42657A1
		21-42657A 3 - Check Valve Assembly [ More info ] $7.29 Available to Order: Shipping delay up to 10 days.
