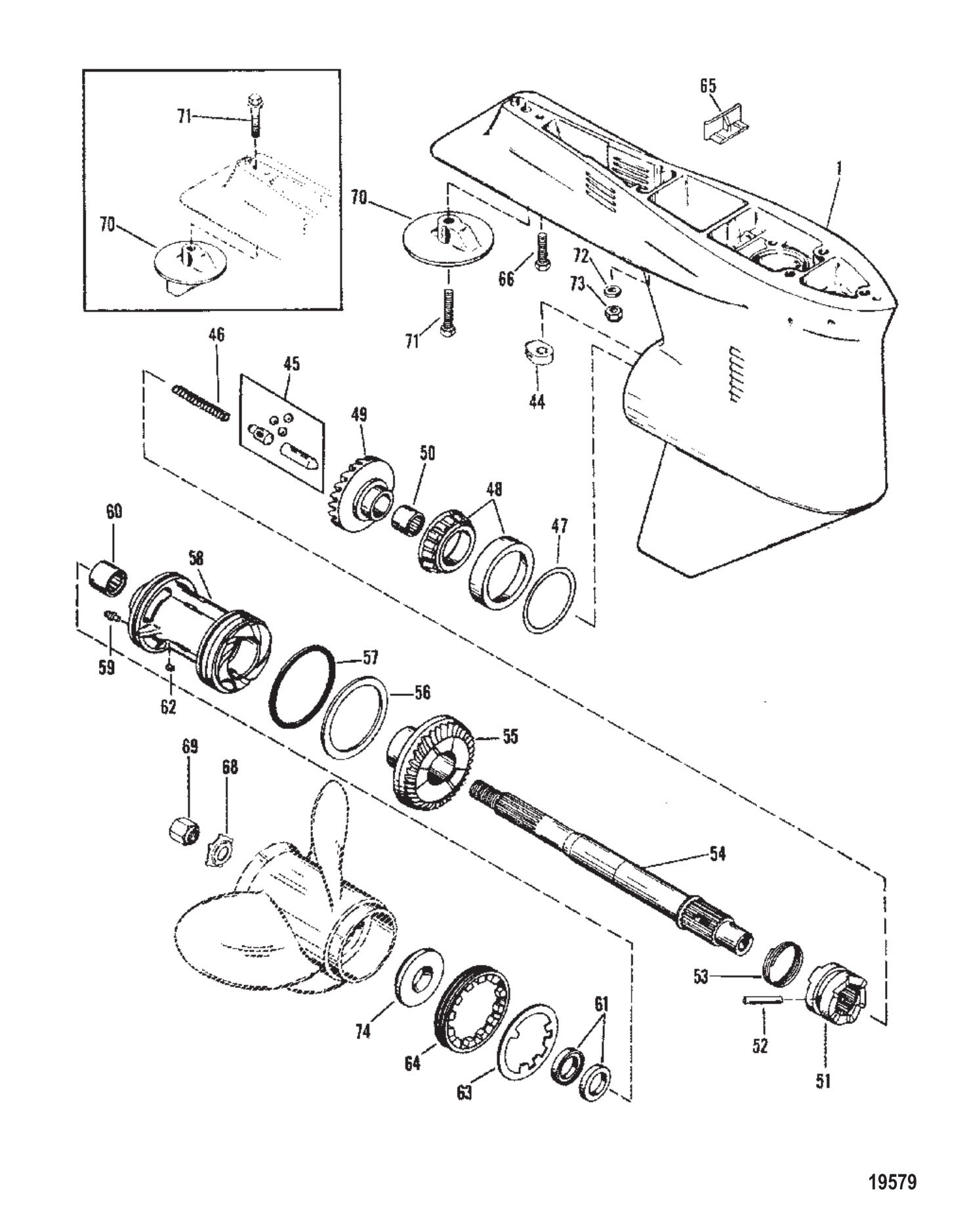

Gear Housing Propeller Shaft - XR4 / Magnum II

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	814247T3	GEAR HSG. BOXED COMPLETE (1 required per assembly) — Replaces: 814247A3, 814247A4, 814247T4
		1674-814247T 3 - GEAR HSG. BOXED [ More info ] Unavailable
#-	89238A2	SEAL KIT (1 required per assembly)
		26-89238A 2 - Seal Kit [ More info ] $97.49 In Stock
		18-2655 - Seal Kit, 26-89238A2 [ More info ] $75.40 10+ In Stock.
		26-00288-1 - Lower Gearcase Seal Kit Mercury Mariner V6 [ More info ] $74.99 $57.34 1 In Stock.
#-	815791A92	GASKET SET (200) (1 required per assembly) — Replaces: 815791A90, 815809A90, 815810A90
		27-815791A92 - Engine Gasket Set [ More info ] $207.49 1 In Stock.
		27-27673 - Gasket Set [ More info ] $164.99 $126.17 1 In Stock.
#1	814247T8	GEAR HSG (BLACK) BASIC (1 required per assembly) — Replaces: 814247A8
		1674-814247T 8 - GEAR Housing, NLA [ More info ] Unavailable
#1	814247T9	GEAR HSG (GRAY) BASIC (1 required per assembly) — Replaces: 814247A9
		1674-814247T 9 - GEAR Housing, NLA [ More info ] Unavailable
#1	814247T1	GEAR HOUSING ASSEMBLY BASIC-BLACK (1 required per assembly) — Replaces: 814247A1, 814247A2, 814247T2
		1674-814247T 1 - Gear Housing [ More info ] Unavailable
#44	760394	CAM SHIFT CONTROL (1 required per assembly) — Replaces: 76039
		76039 4 - Shift Cam - Priced Individually [ More info ] $39.08 6 In Stock.
#45	850315A1	FOLLOWER KIT CAM (1 required per assembly) — Replaces: 12239A1
		850315A 1 - Cam Follower Kit [ More info ] $54.79 3 In Stock.
#46	30622	SPRING COMPRESSION - CAM FOLLOWER (1 required per assembly)
		24-30622 - Spring, Cam Follower [ More info ] $6.69 10+ In Stock.
#47	8M0063266	SHIM SET (AR required per assembly) — Replaces: 44491A1
		15-8M0063266 - Shim Set [ More info ] $52.99 $50.80 10+ In Stock.
#48	30894A1	BEARING SET CUP AND CONE (1 required per assembly)
		31-30894A 1 - Tapered Roller Bearing [ More info ] $60.49 Available to Order: Shipping delay up to 10 days.
		31-01906 - Bearing, Mercury 30894A1, Honda 91051-ZW1-003 [ More info ] $48.94 In Stock
#49	16279A2	GEAR ASSEMBLY FORWARD (1 required per assembly)
		43-16279A 2 - Gear Set [ More info ] Unavailable
#50	30895T	BEARING NEEDLE (1 required per assembly) — Replaces: 30895
		31-30895T - Bearing - Roller [ More info ] $20.79 Available to Order: Shipping delay up to 10 days.
#51	822539T	CLUTCH (1 required per assembly) — Replaces: 814756, 822539
		52-822539T - Clutch [ More info ] $299.49 Available to Order: Shipping delay up to 10 days.
		18-2236 - Clutch Dog 52-822539T [ More info ] $276.42 2 In Stock.
#52	8M0084681	PIN CROSS (1 required per assembly) — Replaces: 30632, 8M0020941
		17-8M0084681 - Pin - Priced Individually [ More info ] Unavailable
		17-8M0100263 - Pin - Priced Individually [ More info ] $4.49 2 In Stock.
#53	30893	SPRING (1 required per assembly)
		24-30893 - Spring, Reatiner - Cross Pin [ More info ] $2.69 1 In Stock.
#54	12238T	PROPELLER SHAFT (1 required per assembly)
		44-12238T - Prop Shaft [ More info ] $599.49 1 In Stock.
#55	NSS	NOT SOLD SEPARATE REVERSE GEAR (PART OF 43-16279A2) (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#56	76358	THRUST WASHER BEARING CARRIER (1 required per assembly)
		12-76358 - Thrust Washer [ More info ] $32.79 1 In Stock.
#57	29976	O-RING BEARING CARRIER (1 required per assembly)
		25-29976 - O-Ring, Bearing Carrier [ More info ] $6.09 6 In Stock.
		18-7157 - O-Ring 25-29976 [ More info ] $5.66 $5.08 4 In Stock.
#58	41529T2	CARRIER ASSY (1 required per assembly) — Replaces: 41529A2
		41529T 2 - Carrier Assembly [ More info ] Unavailable
#59	8M0169588	FITTING (2 required per assembly) — Replaces: 98727
		22-8M0169588 - FITTING [ More info ] Unavailable
#60	30956T	BEARING NEEDLE BEARING CARRIER (1 required per assembly) — Replaces: 30956
		31-30956T - Roller Bearing [ More info ] $19.49 In Stock
#61	8M0204670	SEAL @5 (2 required per assembly) — Replaces: 76868
		26-8M0204670 - Gearcase Seal, Priced Individually [ More info ] $19.19 5 In Stock.
#62	30281	KEY LOCATING - BEARING CARRIER (1 required per assembly)
		28-30281 - Key - Priced Individually [ More info ] $2.99 9 In Stock.
#63	52700	TAB WASHER GEAR HOUSING COVER (1 required per assembly)
		14-52700 - Tab Washer - Priced Individually [ More info ] $27.23 10+ In Stock.
#64	52699	COVER GEAR HOUSING (1 required per assembly)
		52699 - Gear Housing Cover [ More info ] $43.10 10+ In Stock.
#65	8M0039169	FILLER BLOCK (1 required per assembly) — Replaces: 67891
		8M0039169 - Filler Block [ More info ] $31.99 Available to Order: Shipping delay up to 10 days.
#66	30206	SCREW (.375-16 X 1.00) STAINLESS STEEL (SOCKET HEAD) (1 required per assembly)
		10-30206 - Screw - Priced Individually [ More info ] $4.19 $0.85 10+ In Stock.
		18-2361-9 - Screw, 10-30206, 2PK [ More info ] $3.69 Available to Order: Shipping delay up to 10 days.
#66	65210	SCREW (.375-16 X 1.00) (HEX HEAD) (1 required per assembly)
		10-65210 - Screw - Priced Individually [ More info ] $2.89 3 In Stock.
#68	816629Q	TAB WASHER PROPELLER NUT (1 required per assembly) — Replaces: 816629
		14-816629Q - Tab Washer - Priced Individually [ More info ] $6.04 10 In Stock.
		18-3200-9 - Washer, 14-816629, 10PK [ More info ] $78.72 4 In Stock.
		14-816629K - Tab Washer - Priced Individually [ More info ] $6.08 10+ In Stock.
#69	52707Q1	PROP NUT KIT@2 (1 required per assembly) — Replaces: 52707A1
		11-52707Q 1 - Prop Nut Kit - Priced Individually [ More info ] $16.81 3 In Stock.
		18-3701 - Nut Kit, 11-52707A1 [ More info ] $24.71 10+ In Stock.
		18-3700 - Prop Nut Only, 11-52707 [ More info ] $15.31 In Stock
		11-52707T 1 - Prop Nut Kit - Priced Individually [ More info ] $16.81 2 In Stock.
		11-00122 - Prop Nut Kit [ More info ] $13.99 $11.16 Available to Order: Shipping delay up to 10 days.
#70	15300	ANODE PLATE(ZINC) (1 required per assembly)
		97-15300 - Anodic Plate [ More info ] $28.33 2 In Stock.
#70	316404	ANODE/TRIM TAB (2 required per assembly) — Replaces: 31640A1, 316403
		0316404 - L/P 167.90 [ More info ] Unavailable
#71	15797	SCREW ANODIC PLATE (1 required per assembly)
		10-15797 - Screw, NLA [ More info ] $4.50 10+ In Stock.
#71	66024	SCREW @2 (1 required per assembly)
		10-66024 - Screw - Priced Individually [ More info ] $9.69 6 In Stock.
#72	45176	WASHER (.453 X .812 X .105) STAINLESS STEEL DRIVE SHAFT HOUSING STUDS (2 required per assembly)
		12-45176 - Washer, (.453 X .812 X .105) [ More info ] $1.50 6 In Stock.
#73	8M0204653	NUT @10 DRIVE SHAFT HOUSING STUDS (2 required per assembly) — Replaces: 34933
		11-8M0204653 - Prop Lock Nut 7/16-20 , Priced Individually [ More info ] $5.29 9 In Stock.
		11-00118 - Nut, Sold Individually [ More info ] $3.59 $2.95 7 In Stock.
#74	13191Q01	THRUSTWASHER@2 (1 required per assembly) — Replaces: 13191A1
		13191Q01 - Thrust Washer - Priced Individually [ More info ] $29.70 9 In Stock.
		18-4221 - Washer 13191A1 [ More info ] $34.99 $34.11 2 In Stock.
		13191K01 - Thrust Washer - Priced Individually [ More info ] $29.70 Available to Order: Shipping delay up to 10 days.
