Parts for 150, XR-4 / Magnum II 2-Stroke Carbureted Mercury Outboard Motor Swivel Bracket & Steering Arm

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 150, XR-4 / Magnum II > 0B242885 - 0C100860 - USA > Swivel Bracket & Steering Arm

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

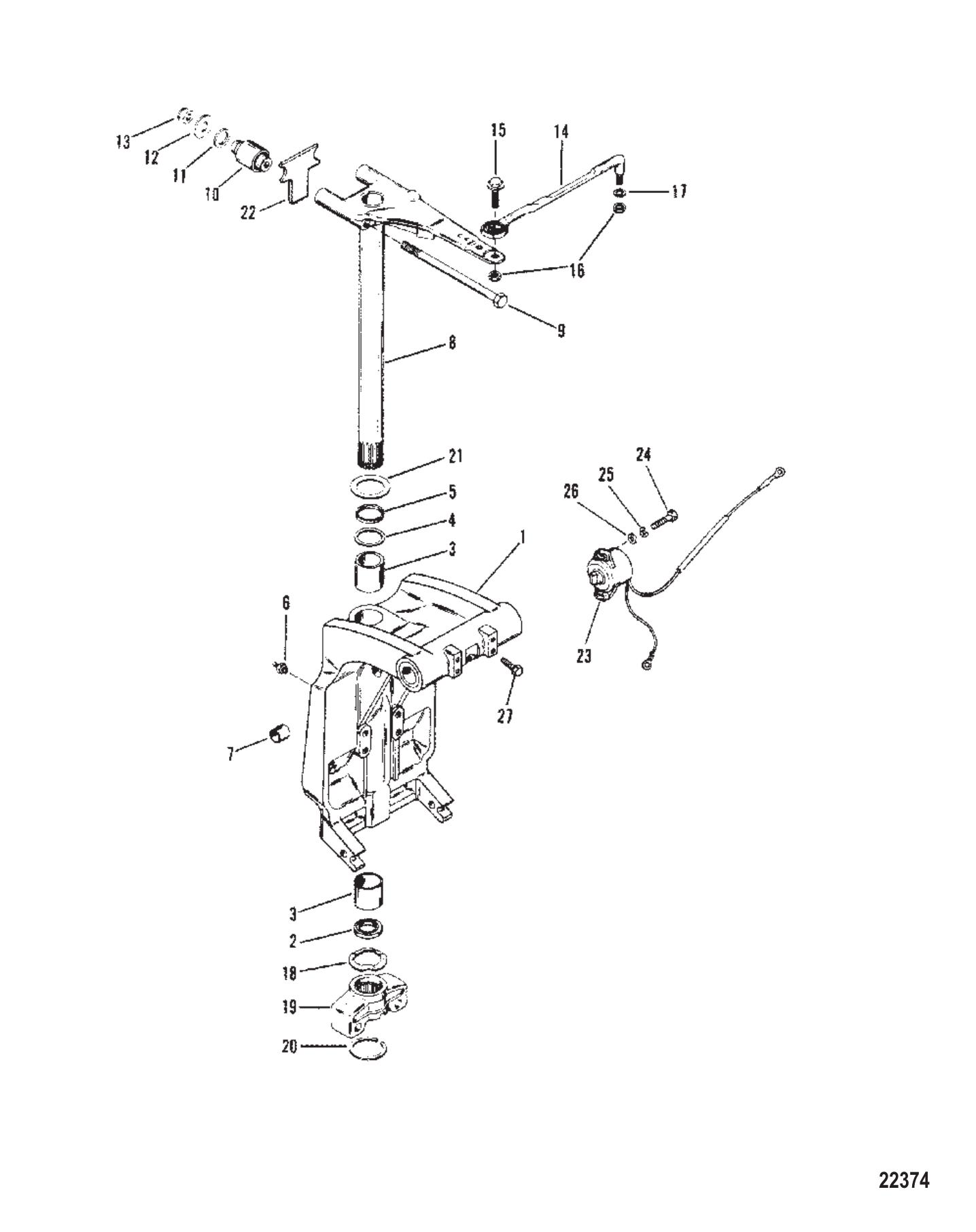

Swivel Bracket & Steering Arm

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	11338A88	GASKET SET (1 required per assembly)
		27-11338A88 - Engine Overhaul Gasket Set [ More info ] Unavailable
		18-4319 - Gasket, 27-11338A88 [ More info ] $225.16 $211.69 In Stock
#1	8710A20	SWIVEL BRACKET ASSEMBLY (BLACK) (1 required per assembly) — Replaces: 8710A4, 8710A17
		1499-8710A20 - Swivel Bracket-BL [ More info ] Unavailable
		1499-8710T20 - Swivel Bracket, Black [ More info ] Unavailable
		14998M0102865 - Swivel Bracket, Black [ More info ] $1,600.99 Available to Order: Shipping delay up to 10 days.
#1	8710A21	SWIVEL BRACKET ASSEMBLY (GRAY) (1 required per assembly) — Replaces: 8710A13, 8710A18
		1499-8710A21 - Swivel Bracket-GR [ More info ] Unavailable
		1499-8710T21 - Ord 1499-8710T20, NLA [ More info ] Unavailable
#2	87735	SEAL OIL SWIVEL BRACKET (LOWER) (1 required per assembly)
		26-87735 - Seal [ More info ] $30.64 2 In Stock.
#3	818764	BUSHING SWIVEL BRACKET (LOWER AND UPPER) (2 required per assembly) — Replaces: 67669
		23-818764 - Bushing [ More info ] $31.92 4 In Stock.
#4	33466	O-RING SWIVEL BRACKET (UPPER) (1 required per assembly)
		25-33466 - O-ring (1.362 I.d.) [ More info ] $3.19 $2.56 3 In Stock.
		18-7164-9 - O-Ring (PK5) 25-33466 [ More info ] $11.79 Available to Order: Shipping delay up to 10 days.
#5	67668	SPACER SWIVEL BRACKET (UPPER) (1 required per assembly)
		23-67668 - Spacer - Swivel Bracket - Upper [ More info ] Unavailable
#6	8M0169589	FITTING GREASE (2 required per assembly) — Replaces: 74036
		228M0169589 - Fitting Note: Priced Individually [ More info ] $4.79 1 In Stock.
#7	821207	BUSHING (2 required per assembly) — Replaces: 99608
		23-821207 - Bushing [ More info ] $12.79 4 In Stock.
#8	67706A55	SWIVEL PIN ASSEMBLY STEERING ARM (BLACK) (1 required per assembly) — Replaces: 67706A18, 67706A35
		17-67706A55 - ORD 17-826432A 2 [ More info ] Unavailable
#8	67706A56	SWIVEL PIN ASSEMBLY STEERING ARM (GRAY) (1 required per assembly) — Replaces: 67706A17, 67706A36
		17-67706A56 - SWIVEL PIN ASY-GR [ More info ] Unavailable
#9	8M0176309	SCREW STEERING ARM TO UPPER MOUNT (2 required per assembly) — Replaces: 78689, 8M0000491
		108M0176309 - SCREW [ More info ] $12.69 2 In Stock.
#10	77326	MOUNT RUBBER - UPPER (2 required per assembly)
		77326 - Mount [ More info ] $161.99 Available to Order: Shipping delay up to 10 days.
#11	66921	WASHER UPPER MOUNT BOLT (2 required per assembly)
		12-66921 - Washer, Upper Mount Bolt [ More info ] $5.69 Available to Order: Shipping delay up to 10 days.
#12	78688	WASHER UPPER MOUNT BOLT (2 required per assembly)
		12-78688 - Washer, Upper Mount Bolt [ More info ] $1.80 3 In Stock.
#13	8M0204653	NUT @10 UPPER MOUNT BOLT (2 required per assembly) — Replaces: 34933
		11-8M0204653 - Prop Lock Nut 7/16-20 , Priced Individually [ More info ] $5.29 9 In Stock.
		11-00118 - Nut, Sold Individually [ More info ] $3.59 $2.95 7 In Stock.
#14	92876A12	LINK ROD KIT (1 required per assembly) — Replaces: 92876A1, 92876A10
		92876A12 - Link Rod Assembly [ More info ] Unavailable
#15	849838	SCREW (.375-24 X 1.250) STEERING LINK TO STEERING ARM (1 required per assembly) — Replaces: 14000
		10-849838 - Screw [ More info ] $22.61 6 In Stock.
#16	8M0042636	NUT (.375-24) BRASS STEERING LINK SCREW (2 required per assembly) — Replaces: 34863, 826709113
		11-8M0042636 - Nut - Brass , Priced Individually [ More info ] Unavailable
		118M0204726 - NUT-BRASS Note: Priced Individually [ More info ] $1.80 10 In Stock.
#17	34931	WASHER (.406 X .734 X .063) STAINLESS STEEL STEERING LINK TO STEERING ARM (2 required per assembly)
		12-34931 - Washer, (.406 X .734 X .063 - Stainless Steel) [ More info ] $2.59 10+ In Stock.
#18	78854	WAVE WASHER BOTTOM YOKE (1 required per assembly)
		13-78854 - Wave Washer [ More info ] $13.89 3 In Stock.
#19	878182T01	YOKE BOTTOM (BLACK) (1 required per assembly) — Replaces: 86580A1, 878182T
		878182T01 - Yoke -bottom [ More info ] $152.49 Available to Order: Shipping delay up to 10 days.
#19	878182T	YOKE BOTTOM - STAINLESS STEEL (GRAY) (1 required per assembly) — Replaces: 86580A2, 86580A1
		878182T - BOTTOM YOKE-SS [ More info ] Unavailable
#20	67684	RING RETAINING BOTTOM YOKE (1 required per assembly)
		53-67684 - Ring - Retaining [ More info ] $4.49 6 In Stock.
#21	67670	WASHER THRUST - SWIVEL BRACKET (1 required per assembly)
		12-67670 - Washer, Thrust, Swivel Bracket, NLA [ More info ] $13.01 10+ In Stock.
#22	88882	BUMPER (1 required per assembly)
		88882 - Bumper [ More info ] $10.89 Available to Order: Shipping delay up to 10 days.
#23	821180A6	TRIM SENDER-BLACK (1 required per assembly) — Replaces: 95164A9, 821180A3
		821180A 6 - Sender Assembly [ More info ] Unavailable
		8M0074846 - Trim Sender [ More info ] Unavailable
		8M0098273 - Trim Sender - [ More info ] $81.83 Available to Order: Shipping delay up to 10 days.
#24	852368	SCREW (#10-24 X .750) TRIM SENDER (2 required per assembly) — Replaces: 56682
		10-852368 - Screw [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#25	26996	LOCKWASHER (#10) STAINLESS STEEL TRIM SENDER SCREW (2 required per assembly)
		13-26996 - LockWasher - Priced Individually [ More info ] $1.20 Available to Order: Shipping delay up to 10 days.
#26	89302	WASHER (.203 X .406 X .040) TRIM SENDER SCREW (2 required per assembly)
		12-89302 - Washer (.203 X .406 X .040) [ More info ] $1.80 10+ In Stock.
#27	64014	SCREW (.250-28 X .500) SWIVEL BRACKET (2 required per assembly)
		10-64014 - Screw [ More info ] $1.82 Available to Order: Shipping delay up to 10 days.
