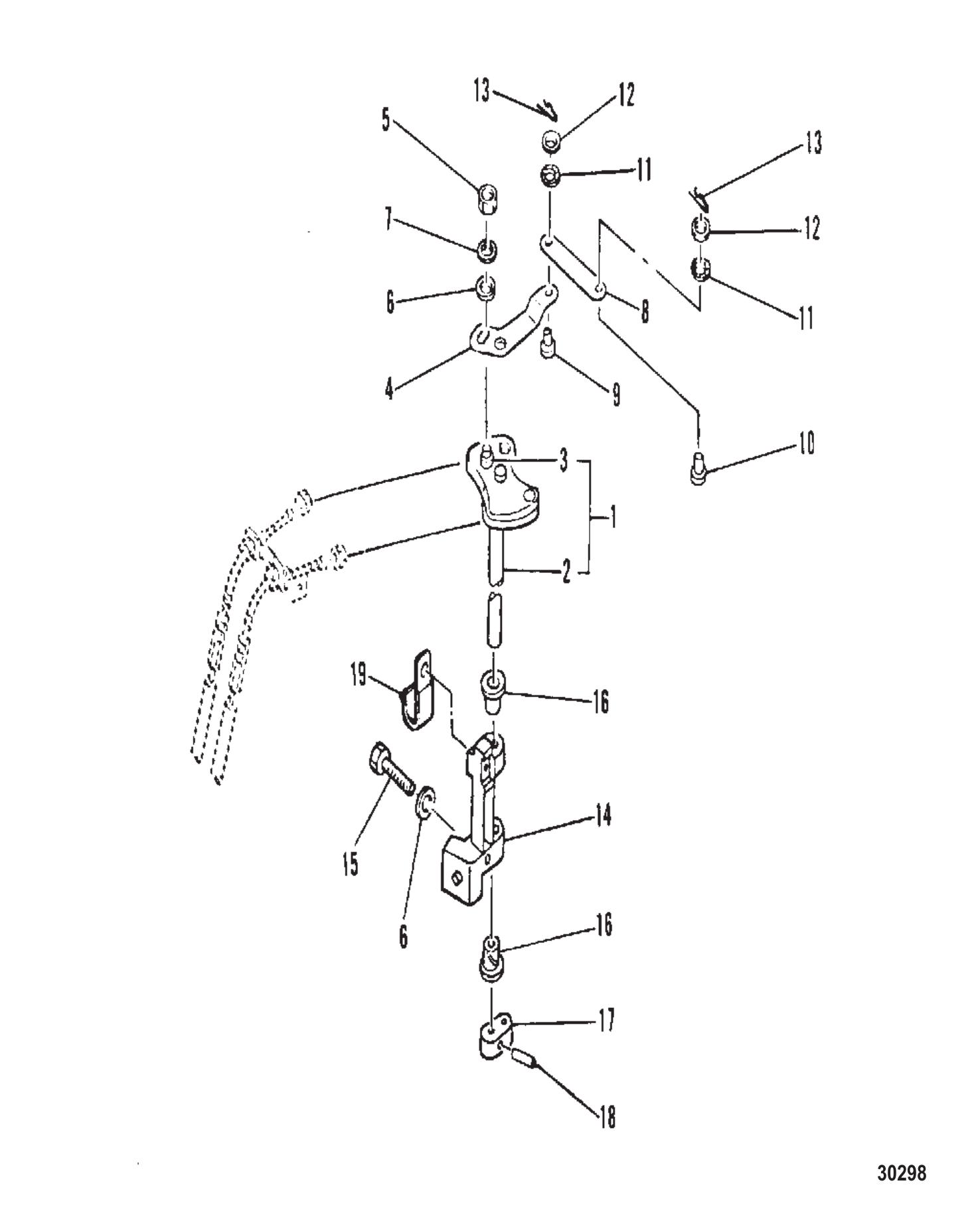

Parts for 8, W8 (w / Marathon) 2-Stroke Carbureted Mercury Outboard Motor Throttle Linkage
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 83070M | THROTTLE SHAFT (1 required per assembly) |
  |
|
83070M - Throttle Shaft [ More info ]
|
| #2 | 83070M | THROTTLE SHAFT ASSEMBLY LINK CONNECTOR (1 required per assembly) — Replaces: 82888M |
| #3 | 82872M | BOSS LEVER (1 required per assembly) |
  |
|
10-82872M - Screw, NLA [ More info ]
|
| #4 | 83267M | LEVER (1 required per assembly) |
  |
|
83267M - Lever [ More info ] Unavailable |
| #5 | 82389M | NUT @2 (1 required per assembly) — Replaces: 82380M |
  |
|
11-82389M - Nut, NLA [ More info ] Unavailable |
| #6 | 82214M | WASHER @5 (3 required per assembly) |
  |
|
12-82214M - Washer - Priced Individually [ More info ]
|
| #7 | 82212M | LOCKWASHER @5 (1 required per assembly) |
  |
|
13-82212M - LockWasher - Priced Individually [ More info ]
|
| #8 | 83268M | LEVER MAGNETO CONTROL (1 required per assembly) |
  |
|
83268M - LEVER,NLA [ More info ] Unavailable |
| #9 | 80501M | PIN CLEVIS MAGNETO CONTROL (1 required per assembly) |
  |
|
17-80501M - Clevis Pin, NLA [ More info ]
|
| #10 | 81878M | PIN (1 required per assembly) |
  |
|
17-81878M - Pin, NLA [ More info ] Unavailable |
| #11 | 81865M | WASHER WAVE (2 required per assembly) |
  |
|
13-81865M - Wave Washer - Priced Individually [ More info ]
|
| #12 | 82209M | WASHER @5 (2 required per assembly) |
  |
|
12-82209M - Washer, NLA [ More info ]
|
| #13 | 82051M | PIN-COTTER @5 (2 required per assembly) |
  |
|
18-82051M - Cotter Pin - Priced Individually [ More info ]
|
| #14 | 83269M | BRACKET (1 required per assembly) |
  |
|
83269M - Bracket, NLA [ More info ] Unavailable |
| #15 | 83285M | SCREW @5 (2 required per assembly) |
  |
|
10-83285M - Screw - Priced Individually [ More info ]
|
| #16 | 81945M | BUSHING @2 (2 required per assembly) |
  |
|
23-81945M - Bushing, NLA [ More info ]
|
| #17 | 81091M | CAM (1 required per assembly) |
  |
|
81091M - Cam, NLA [ More info ] Unavailable |
| #18 | 14264M | PIN (1 required per assembly) |
  |
|
17-14264M - PIN Roll NLA [ More info ] Unavailable |
| #19 | 82040M | CLAMP (1 required per assembly) |
  |
|
54-82040M - CLAMP,NLA [ More info ] Unavailable |
