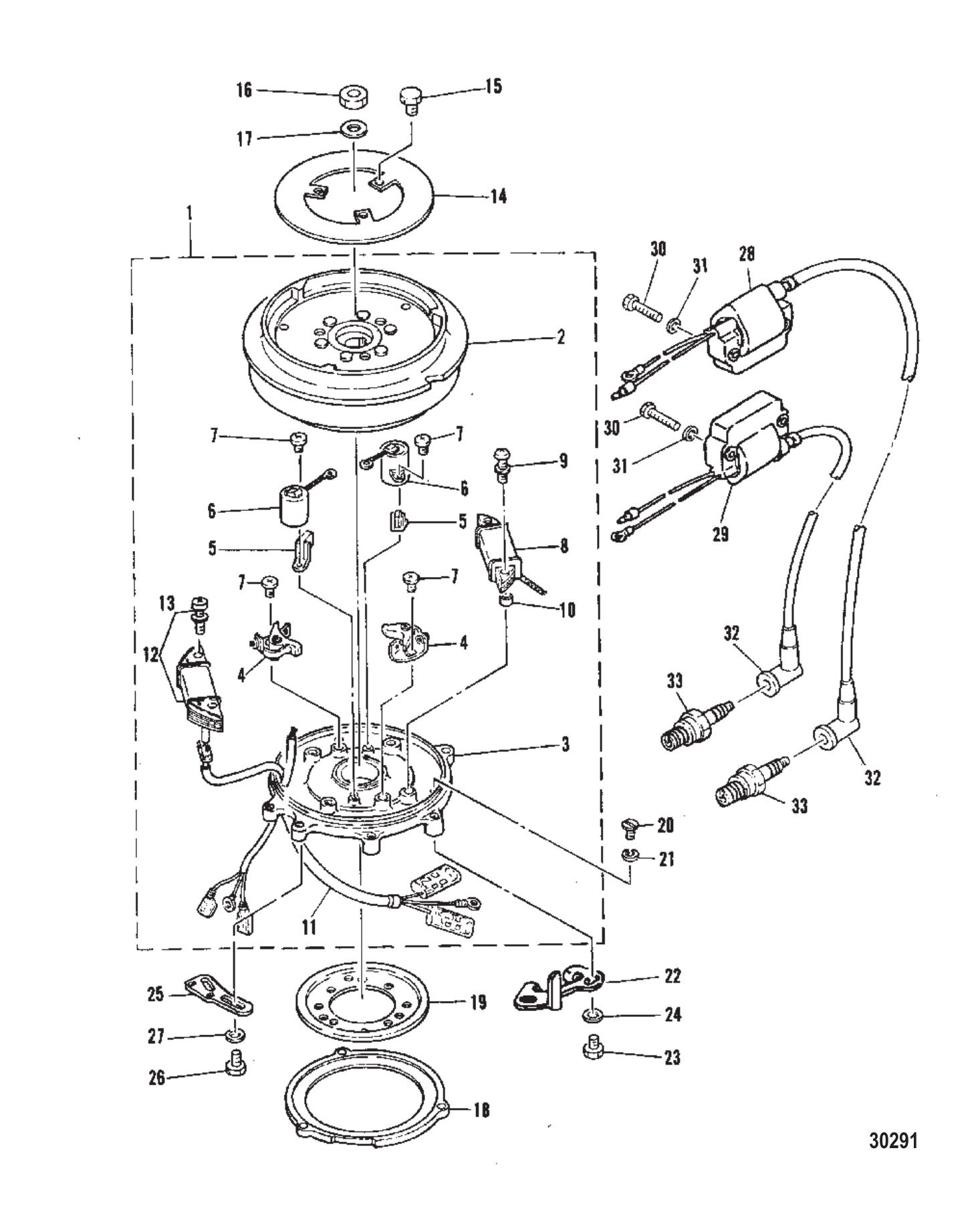

Parts for 8, W8 (w / Marathon) 2-Stroke Carbureted Mercury Outboard Motor Flywheel Magneto
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 8051M | FLYWHEEL (1 required per assembly) |
  |
|
253-8051M - FLYWHEEL MAGNETO NLA [ More info ] Unavailable |
| #2 | 94659M | FLYWHEEL ASSEMBLY (1 required per assembly) |
  |
|
94659M - ROTOR,NLA [ More info ] Unavailable |
| #3 | 94658M | BASE MAGNETO (1 required per assembly) |
  |
|
94658M - Base, NLA [ More info ] Unavailable |
| #4 | 80930M | BREAKER POINT ASSEMBLY (2 required per assembly) |
  |
|
80930M - Breaker Point Assembly, Priced Individually [ More info ]
|
| #5 | 80025M | LUBRICATOR (2 required per assembly) |
  |
|
80025M - Lubricator - Priced Individually, NLA [ More info ]
|
| #6 | 80558M | CONDENSER (2 required per assembly) |
  |
|
80558M - Condenser [ More info ]
|
| #7 | 82500M | SCREW (M4 X 8) (4 required per assembly) — Replaces: 80023M |
  |
|
10-82500M - Screw, NLA [ More info ]
|
| #8 | 83281T | IGNITION COIL PRIMARY IGNITION (1 required per assembly) — Replaces: 83281M |
  |
|
83281T - Ignition Coil [ More info ]
|
| #9 | 82522M | SCREW (2 required per assembly) — Replaces: 80557M, 82503M |
  |
|
10-82522M - Screw, NLA [ More info ] Unavailable |
| #10 | 80555M | SPACER (2 required per assembly) |
  |
|
23-80555M - Spacer - Coil - NLA [ More info ]
|
| #11 | 95591M | LEAD WIRE ASSEMBLY (1 required per assembly) |
  |
|
84-95591M - Lead Wire, NLA [ More info ] Unavailable |
| #12 | 83315M | COIL LIGHTING (80W) (1 required per assembly) |
  |
|
83315M - Coil, NLA [ More info ]
|
| #13 | 82522M | SCREW (2 required per assembly) — Replaces: 80557M, 82503M |
| #14 | 82877M | COVER (1 required per assembly) |
  |
|
82877M - Cover [ More info ] Unavailable |
| #15 | 84088M | BOLT (3 required per assembly) — Replaces: 84315M |
  |
|
10-84088M - Bolt [ More info ]
|
| #16 | 81769M | NUT (1 required per assembly) |
  |
|
11-81769M - Nut, Flywheel ,NLA [ More info ]
|
| #17 | 81805M | WASHER @2 (1 required per assembly) |
  |
|
12-81805M - Washer, Flywheel Nut, NLA [ More info ]
|
| #18 | 84667M | RETAINER MAGNETO BASE (1 required per assembly) |
  |
|
84667M - Retainer, NLA [ More info ] Unavailable |
| #19 | 84668M | RETAINER MAGNETO BASE (1 required per assembly) |
  |
|
84668M - Retainer, NLA [ More info ] Unavailable |
| #20 | 83523M | SCREW @2 (3 required per assembly) |
  |
|
10-83523M - Screw, NLA [ More info ]
|
| #21 | 82214M | WASHER @5 (3 required per assembly) |
  |
|
12-82214M - Washer - Priced Individually [ More info ]
|
| #22 | 83266M | STOPPER MAGNETO BASE (1 required per assembly) |
  |
|
83266M - Stop, NLA [ More info ] Unavailable |
| #23 | 826957M | BOLT (2 required per assembly) — Replaces: 84247M, 91725M |
  |
|
10-826957M - Bolt, NLA [ More info ]
|
| #24 | 82214M | WASHER @5 (2 required per assembly) |
| #25 | 83264M | CAM ACCEL (1 required per assembly) |
  |
|
83264M - Cam, NLA [ More info ] Unavailable |
| #26 | 82879M | BOLT @2 (2 required per assembly) |
  |
|
10-82879M - Bolt, NLA [ More info ]
|
| #27 | 82211M | WASHER @5 (2 required per assembly) |
  |
|
12-82211M - Washer - Priced Individually [ More info ]
|
| #28 | 94777M | IGNITION COIL PRIMARY (1 required per assembly) — Replaces: 96569M |
  |
|
94777M - Secondary Ignition Coil #1 [ More info ]
|
| #29 | 94778M | COIL-IGNITION SECONDARY (1 required per assembly) — Replaces: 96570M, 96570T |
  |
|
94778M - Secondary Ignition Coil #2 [ More info ]
|
| #30 | 83285M | SCREW @5 (4 required per assembly) — Replaces: 84237M |
  |
|
10-83285M - Screw - Priced Individually [ More info ]
|
| #31 | 82214M | WASHER @5 (4 required per assembly) |
| #32 | 63709A1 | BOOT/TERMINAL KIT (OPT) (2 required per assembly) — Replaces: 84319M, 82788M |
  |
|
85-63709A 1 - Boot Kit - Black - Priced Individually [ More info ]
|
| #33 | 8M0114739 | S PLUG B7HS @4 (AC#M42FF) (2 required per assembly) — Replaces: 53098, 82371M |
  |
|
33-8M0114739 - Spark Plug B7HS-82 - Priced Individually [ More info ]
|
