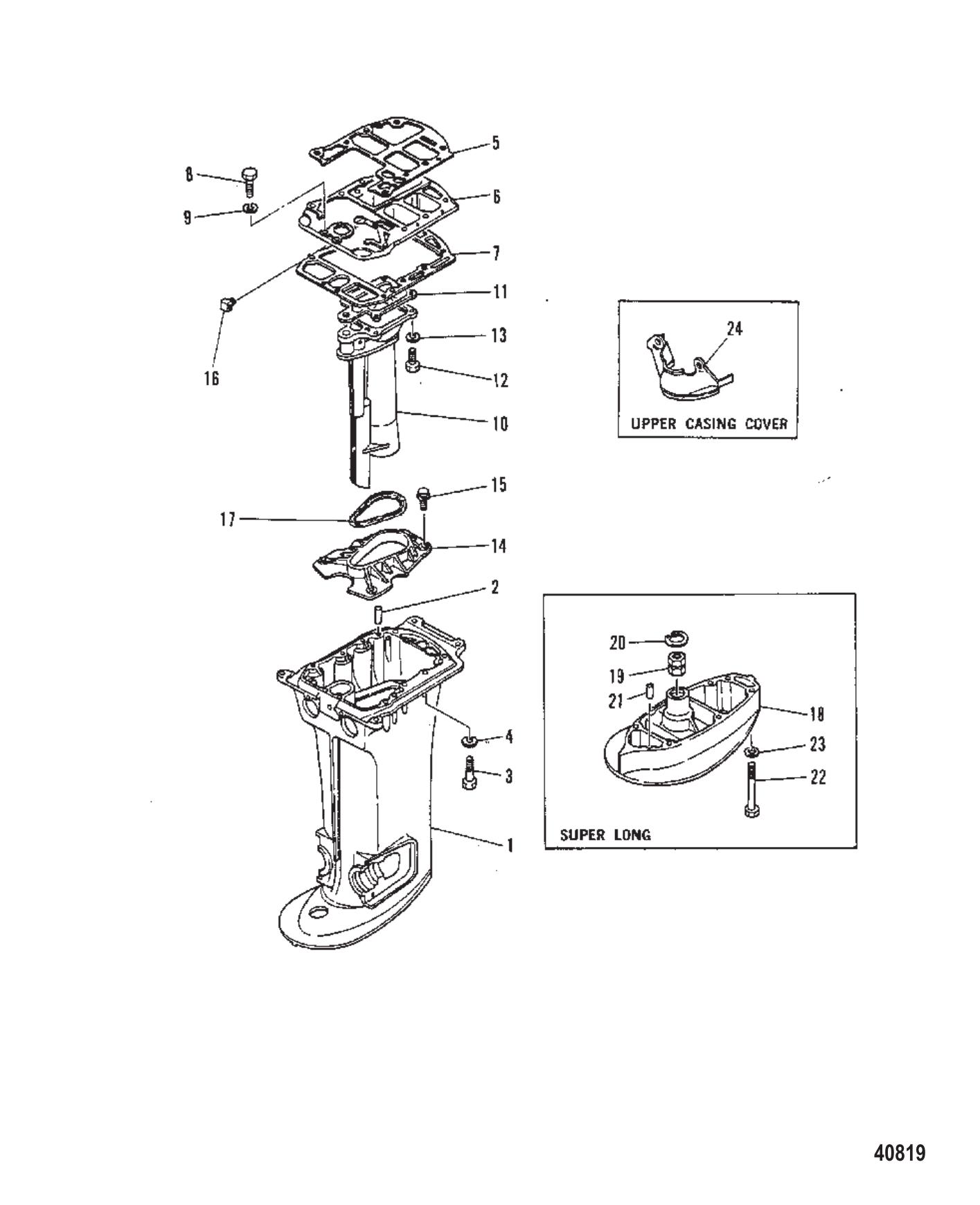

Parts for 40, W40 (w / Marathon) 2-Stroke Carbureted Mercury Outboard Motor Driveshaft Housing
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 11764M | GASKET SET (1 required per assembly) |
  |
|
27-11764M - Gasket Set [ More info ] Unavailable |
| #- | 99982M | GASKET SET (1 required per assembly) |
  |
|
27-99982M - Gasket Set [ More info ] Unavailable |
| #1 | 8584M | DRIVE SHAFT HSG (SHORT SHAFT) (1 required per assembly) |
  |
|
1587-8584M - Drive Shaft Housing, NLA [ More info ]
|
| #1 | 8585M | DRIVE SHAFT HSG (LONG/SUPER LONG SHAFT) (1 required per assembly) |
  |
|
1587-8585M - Drive Shaft Housing, NLA [ More info ] Unavailable |
| #2 | 83379M | PIN-DOWEL (2 required per assembly) |
  |
|
17-83379M - Pin -Dowel, NLA [ More info ]
|
| #3 | 97749M | BOLT (8 required per assembly) |
  |
|
10-97749M - Bolt, NLA [ More info ]
|
| #4 | 82215M | LOCKWASHER @5 (8 required per assembly) |
  |
|
13-82215M - LockWasher - Priced Individually [ More info ]
|
| #5 | 11885 | GASKET (1 required per assembly) — Replaces: 11885M |
  |
|
27-11885 - Exhaust Plate Gasket [ More info ]
|
| #6 | 815114M | EXHAUST PLATE [M-015220/ML-327507] & Below (1 required per assembly) — Replaces: 11886M |
  |
|
815114M - Exhaust Plate, NLA [ More info ] Unavailable |
| #7 | 19175 | GASKET [M-015220/ML-327507] & Below (1 required per assembly) — Replaces: 19175M, 97751M |
  |
|
27-19175 - Exhaust Plate Gasket [ More info ]
|
| #8 | 82405M | SCREW @2 (3 required per assembly) |
  |
|
10-82405M - Screw, NLA [ More info ]
|
| #9 | 82212M | LOCKWASHER @5 (3 required per assembly) |
  |
|
13-82212M - LockWasher - Priced Individually [ More info ]
|
| #10 | 815115M | MANIFOLD EXHAUST [M-015220/ML-327507] & Below (1 required per assembly) — Replaces: 11960M |
  |
|
815115M - Exhaust Manifold [ More info ] Unavailable |
| #11 | 83383M | GASKET (1 required per assembly) |
  |
|
27-83383M - Exhaust Manifold Gasket [ More info ] Unavailable |
| #12 | 84058M | BOLT (4 required per assembly) |
  |
|
10-84058M - Bolt [ More info ]
|
| #13 | 82212M | LOCKWASHER @5 (4 required per assembly) |
| #14 | 815116M | PLATE (1 required per assembly) |
  |
|
815116M - Plate [ More info ] Unavailable |
| #15 | 82476M | BOLT @5 (4 required per assembly) |
  |
|
10-82476M - Bolt, NLA [ More info ]
|
| #16 | 11888M | ELBOW (1 required per assembly) |
  |
|
22-11888M - Elbow [ More info ] Unavailable |
| #17 | 83384M | SEAL (1 required per assembly) |
  |
|
83384M - SEAL,NLA [ More info ]
|
| #18 | 83891M | EXTENSION (1 required per assembly) |
  |
|
83891M - Extension, NLA [ More info ] Unavailable |
| #19 | 83892M | BUSHING SUPER LONG SHAFT (1 required per assembly) |
  |
|
23-83892M - Bushing,NLA [ More info ] Unavailable |
| #20 | 83758M | RING SNAP SUPER LONG SHAFT (1 required per assembly) |
  |
|
53-83758M - Circlip, NLA [ More info ]
|
| #21 | 82364M | PIN DOWEL SUPER LONG SHAFT (2 required per assembly) |
  |
|
17-82364M - Pin -Dowel - Priced Individually [ More info ]
|
| #22 | 82472M | BOLT SUPER LONG SHAFT (6 required per assembly) |
  |
|
10-82472M - Bolt, NLA [ More info ]
|
| #23 | 82215M | LOCKWASHER SUPER LONG SHAFT (6 required per assembly) |
| #24 | 92617M | COVER (SHORT) (1 required per assembly) |
  |
|
92617M - Cover [ More info ] Unavailable |
| #24 | 92618M | COVER (LONG) (1 required per assembly) |
  |
|
92618M - Cover [ More info ] Unavailable |
