Parts for V-200 2-Stroke Carbureted Mercury Outboard Motor Reed Block

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > V-200 > 5239232 - 0C100860 > Reed Block

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

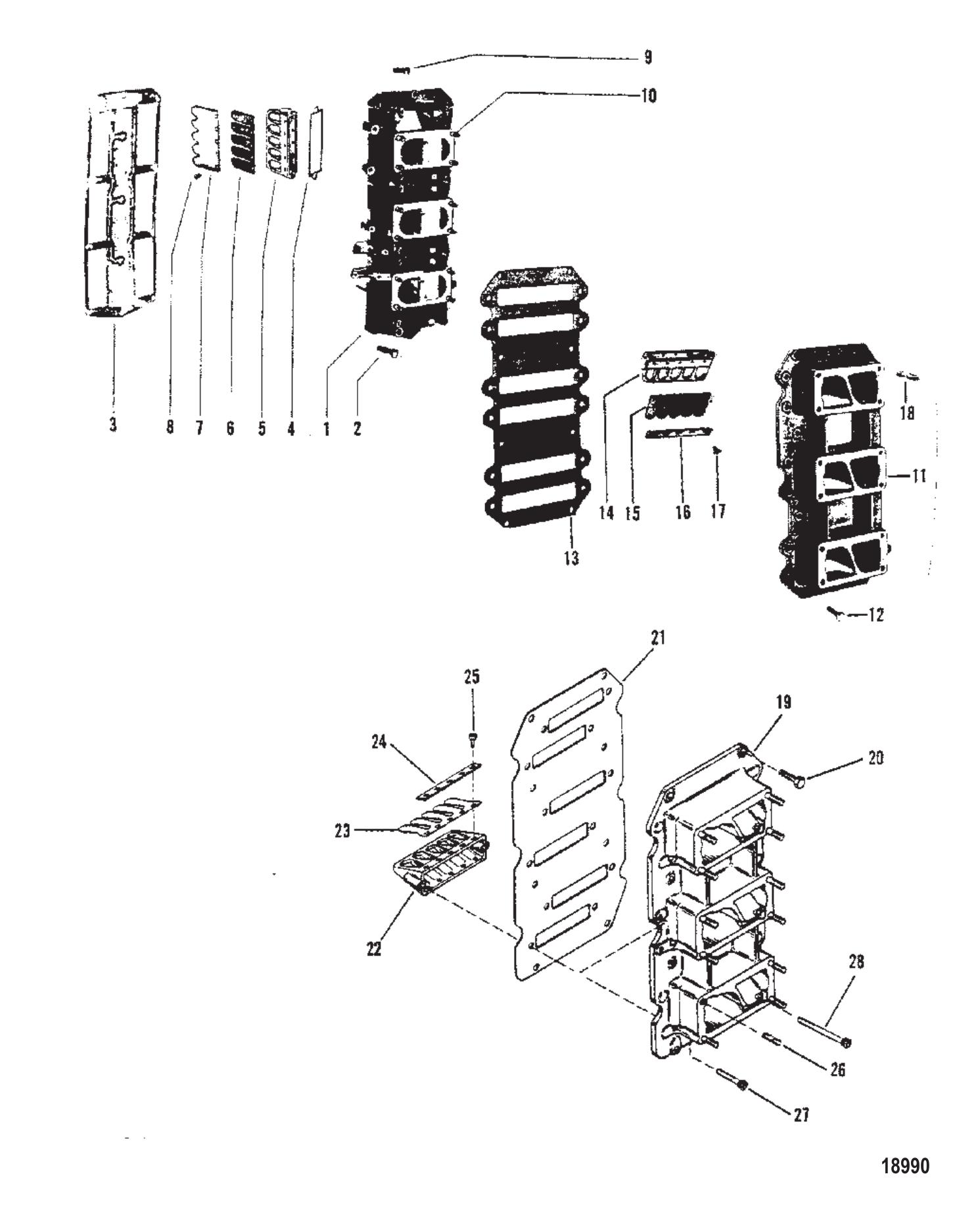

Reed Block

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	89221A88	GASKET SET [Merc-6203991/Mariner-6201970] & Up (1 required per assembly)
		27-89221A88 - Gasket Set [ More info ] Unavailable
		18-4319 - Gasket, 27-11338A88 [ More info ] $225.16 $211.69 In Stock
#-	89221A80	GASKET SET [Merc-6073192/Mariner-6055033] THRU [Merc-6203990/Mariner-6201969] (1 required per assembly)
		27-89221A80 - Gasket Set [ More info ] $335.49 Available to Order: Shipping delay up to 10 days.
#1	NLA	NO LONGER AVAILABLE HOUSING-REED BLOCK (VERTICAL 5 PETAL REED) (1 required per assembly)
		NLA - No Longer Availab [ More info ] Unavailable
#2	24878	SCREW @5 (VERTICAL 5 PETAL REED) (10 required per assembly)
		10-24878 - Screw, NLA [ More info ] $1.80 10+ In Stock.
#2	69093	SCREW (VERTICAL 5 PETAL REED) (10 required per assembly)
		10-69093 - Screw, NLA [ More info ] $1.91 10+ In Stock.
#3	935361	GASKET @2 (VERTICAL 5 PETAL REED) (1 required per assembly)
		27-93536 1 - Gasket - Priced Individually [ More info ] $12.39 $9.92 7 In Stock.
#4	657443	GASKET (VERTICAL 5 PETAL REED) (6 required per assembly)
		27-65744 3 - Gasket [ More info ] $7.09 Available to Order: Shipping delay up to 10 days.
#5	75953	REED BLOCK (VERTICAL 5 PETAL REED) (6 required per assembly)
		75953 - Reed Block [ More info ] $130.64 1 In Stock.
#6	75362A1	REED KIT (VERTICAL 5 PETAL REED) (6 required per assembly)
		34-75362A 1 - Reed Kit [ More info ] Unavailable
#7	67298	REED STOP (VERTICAL 5 PETAL REED) (12 required per assembly)
		34-67298 - Reed Stop, NLA [ More info ] $2.50 $2.13 10+ In Stock.
#8	76497	SCREW (3/8&QUOT;) (VERTICAL 5 PETAL REED) (60 required per assembly)
		10-76497 - Screw, NLA [ More info ] $1.25 $1.06 10+ In Stock.
#9	65746	SCREW W/LW @2 (VERTICAL 5 PETAL REED) (12 required per assembly)
		10-65746 - Screw w/ Lw - Priced Individually [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#10	270372	STUD (.250-28 X 1.125) CARB MOUNTING (VERTICAL 5 PETAL REED) (12 required per assembly) — Replaces: 27037
		16-27037 2 - Stud [ More info ] $4.29 Available to Order: Shipping delay up to 10 days.
#11	87628F2	PLATE (HORIZONTAL 7 PETAL REED) (1 required per assembly)
		87628F 2 - PLATE,NLA [ More info ] Unavailable
#12	28668	SCREW @5 (HORIZONTAL 7 PETAL REED) (20 required per assembly)
		10-28668 - Screw - Priced Individually [ More info ] $1.70 4 In Stock.
#13	127754	GASKET (HORIZONTAL 7 PETAL REED) (1 required per assembly)
		27-12775 4 - Gasket [ More info ] $37.37 1 In Stock.
#14	87692T3	REED BLOCK (HORIZONTAL 7 PETAL REED) (6 required per assembly) — Replaces: 876922
		87692T 3 - Reed Block [ More info ] $123.08 1 In Stock.
#15	19719A1	REED KIT (HORIZONTAL 7 PETAL REED) (6 required per assembly)
		34-19719A 1 - Reed Kit [ More info ] $33.29 $31.92 10 In Stock.
#16	903911	CLAMP-REED (HORIZONTAL 7 PETAL REED) (12 required per assembly)
		[ More info ] Unavailable
#17	57583T	SCREW @5 (HORIZONTAL 7 PETAL REED) (84 required per assembly) — Replaces: 57583
		10-57583T - Screw - Priced Individually [ More info ] $1.40 Available to Order: Shipping delay up to 10 days.
#18	270372	STUD (.250-28 X 1.125) CARB MOUNTING (HORIZONTAL 7 PETAL REED) (12 required per assembly) — Replaces: 27037
#19	43517T	PLATE (HORIZONTAL 5 PETAL REED) (1 required per assembly)
		43517T - Reed Block Housing, NLA [ More info ] Unavailable
#20	28668	SCREW @5 (HORIZONTAL 5 PETAL REED) (8 required per assembly)
#21	967611	GASKET (HORIZONTAL 5 PETAL REED) (1 required per assembly)
		27-96761 1 - Gasket [ More info ] $13.09 $10.48 5 In Stock.
#22	75953	REED BLOCK (HORIZONTAL 5 PETAL REED) (6 required per assembly)
#23	75362A1	REED KIT (HORIZONTAL 5 PETAL REED) (6 required per assembly)
#24	961832	CLAMP-REED (HORIZONTAL 5 PETAL REED) (12 required per assembly)
		96183 2 - Clamp - Reed [ More info ] $9.69 $7.76 10+ In Stock.
#25	57583T	SCREW @5 (HORIZONTAL 5 PETAL REED) (60 required per assembly) — Replaces: 57583
#26	270372	STUD (.250-28 X 1.125) CARB MOUNTING (HORIZONTAL 5 PETAL REED) (12 required per assembly) — Replaces: 27037
#27	92160	SCREW (HORIZONTAL 5 PETAL REED) (6 required per assembly)
		10-92160 - Screw [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.
#28	96529	SCREW (HORIZONTAL 5 PETAL REED) (6 required per assembly)
		10-96529 - Screw [ More info ] Unavailable
