Parts for V-200 2-Stroke Carbureted Mercury Outboard Motor Cowls & Front Cover

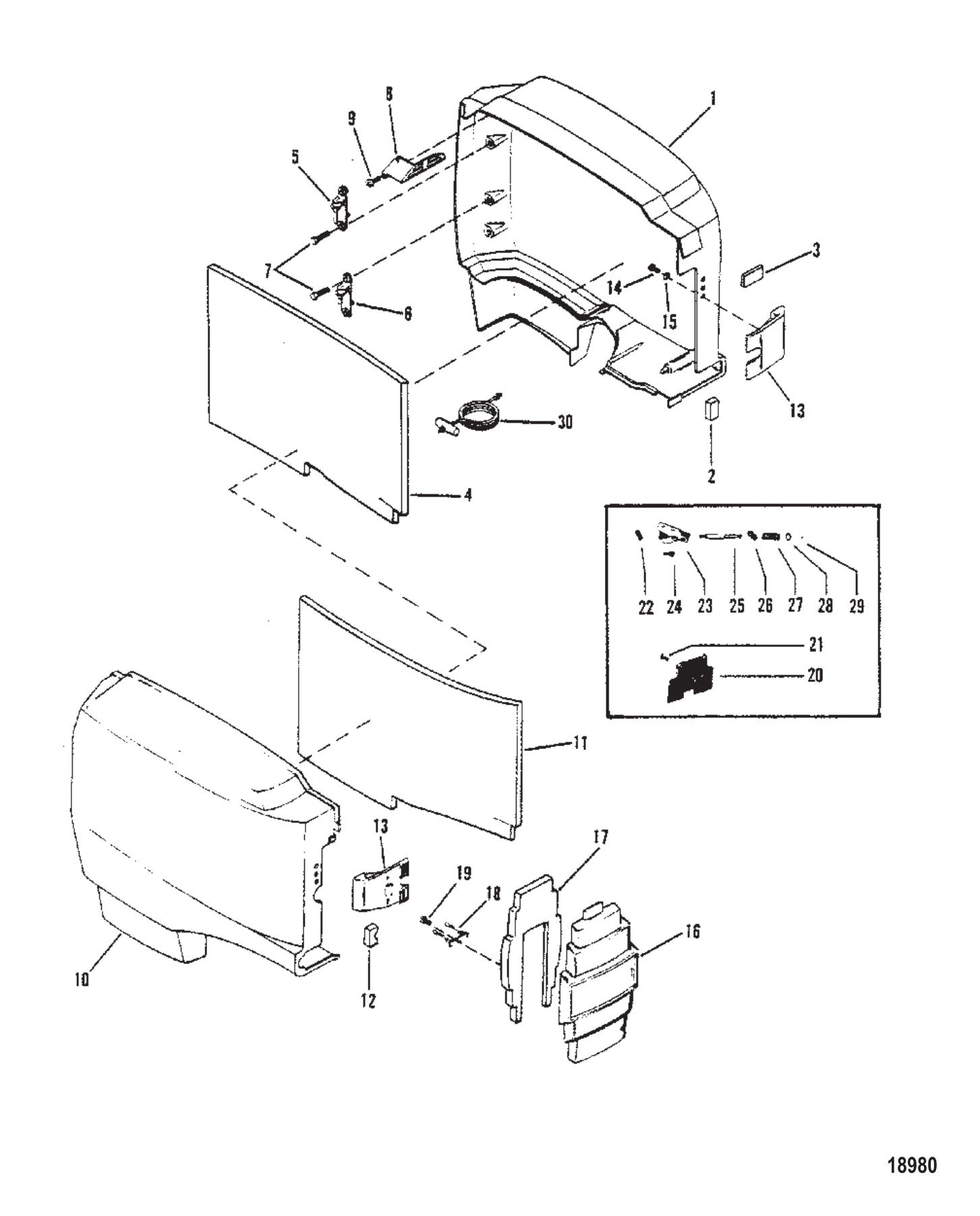

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 7620A4 | TOP COWL ASSEMBLY (BLACK) (USE WITH DESIGN "A" LATCH) (1 required per assembly) |
  |
|
2151-7620A 4 - COWL,NLA [ More info ] Unavailable |
| #1 | 7620A22 | TOP COWL ASSEMBLY (GRAY) (USE WITH DESIGN "A" LATCH) (1 required per assembly) |
  |
|
2151-7620A22 - COWL ASSY,NLA [ More info ] Unavailable |
| #1 | 7523A2 | COWL ASSEMBLY PORT (BLACK) (USE WITH DESIGN "B" LATCH) (1 required per assembly) |
  |
|
2151-7523A 2 - COWL,NLA [ More info ] Unavailable |
| #1 | 7523A18 | COWL ASSEMBLY PORT (GRAY) (USE WITH DESIGN "B" LATCH) (1 required per assembly) |
  |
|
2151-7523A18 - COWL ASSY,NLA [ More info ] Unavailable |
| #2 | 67260 | SEAL (1 required per assembly) |
  |
|
67260 - Seal, NLA [ More info ]
|
| #3 | 67258 | PAD (1 required per assembly) |
  |
|
67258 - Pad, Cowl to Front Cover, NLA [ More info ]
|
| #4 | 88227 | BLANKET (1 required per assembly) |
  |
|
88227 - Sound Blanket,NLA [ More info ] Unavailable |
| #5 | 879871 | BRACKET UPPER (2 required per assembly) — Replaces: 87987 |
  |
|
87987 1 - Bracket [ More info ] Unavailable |
| #6 | 879851 | BRACKET LOWER (2 required per assembly) |
  |
|
879851 - BRACKET NLA [ More info ] Unavailable |
| #7 | 37562 | SCREW @5 (8 required per assembly) |
  |
|
10-37562 - Screw - Priced Individually [ More info ] Unavailable |
| #8 | 68049 | SHIELD (STARBOARD) (1 required per assembly) |
  |
|
68049 - Shield, NLA [ More info ]
|
| #8 | 68048 | SHIELD (PORT) (1 required per assembly) |
  |
|
68048 - Shield, NLA [ More info ] Unavailable |
| #9 | 48409 | SCREW @2 (4 required per assembly) |
  |
|
10-48409 - Screw - Priced Individually [ More info ]
|
| #10 | 7619A1 | COWL (BLACK)(USE WITH DESIGN "A" LATCH) (1 required per assembly) |
  |
|
2150-7619A 1 - COWL,NLA [ More info ] Unavailable |
| #10 | 7619A5 | COWL ASSY (GRAY)(USE WITH DESIGN "A" LATCH) (1 required per assembly) |
  |
|
2150-7619A 5 - COWL ASSY,NLA [ More info ] Unavailable |
| #10 | 7524A4 | COWL ASSY (GRAY)(USE WITH DESIGN "B" LATCH) (1 required per assembly) |
  |
|
2150-7524A 4 - COWL ASSY,NLA [ More info ] Unavailable |
| #10 | 7524A1 | COWL (BLACK)(USE WITH DESIGN "B" LATCH) (1 required per assembly) |
  |
|
2150-7524A 1 - COWL,NLA [ More info ] Unavailable |
| #11 | 88227 | BLANKET (1 required per assembly) |
| #12 | 99444 | SEAL (1 required per assembly) — Replaces: 67257 |
  |
|
99444 - SEAL,NLA [ More info ] Unavailable |
| #13 | 97461A2 | LATCH (PORT/STARBOARD) (DESIGN "B" LATCH) (1 required per assembly) |
  |
|
97461A 2 - Latch Assembly [ More info ] Unavailable |
| #14 | 48409 | SCREW @2 (DESIGN "B" LATCH) (6 required per assembly) |
| #15 | 72761 | WASHER (DESIGN "B" LATCH) (6 required per assembly) |
  |
|
12-72761 - Washer, (.203 X .562 X .060) Stainless Steel [ More info ]
|
| #16 | 7532A2 | COWL FRONT COVER (BLACK)(DESIGN "B" LATCH) (1 required per assembly) |
  |
|
2149-7532A 2 - Cowl Front Cover, NLA [ More info ] Unavailable |
| #16 | 7532A23 | COWL FRONT COVER (GRAY)(DESIGN "B" LATCH) (1 required per assembly) |
  |
|
2149-7532A23 - COWL FRONT Cover, NLA [ More info ] Unavailable |
| #16 | 5399A3 | FRONT COVER (BLACK) (DESIGN "A" LATCH) (1 required per assembly) |
  |
|
2149-5399A 3 - Cowl Front Cover, NLA [ More info ] Unavailable |
| #16 | 5399A16 | FRONT COVER (GRAY) (DESIGN "A" LATCH) (1 required per assembly) |
  |
|
2149-5399A16 - COWL FRONT Cover, NLA [ More info ] Unavailable |
| #17 | 90984 | SOUND BLANKET (DESIGN "B" LATCH) (1 required per assembly) |
  |
|
90984 - Blanket, NLA [ More info ] Unavailable |
| #17 | 67615 | BLANKET (DESIGN "A" LATCH) (1 required per assembly) |
  |
|
67615 - Blanket, NLA [ More info ] Unavailable |
| #18 | 87907 | HOOK (DESIGN "B" LATCH) (1 required per assembly) |
  |
|
87907 - Cowl Front Cover Hook, NLA [ More info ]
|
| #18 | 61158T | HOOK (DESIGN "A" LATCH) (1 required per assembly) |
  |
|
61158T - Hook, NLA [ More info ]
|
| #19 | 95700 | SCREW (#10-16 X .50) (DESIGN "B" LATCH) (1 required per assembly) — Replaces: 70332 |
  |
|
10-95700 - Screw [ More info ]
|
| #19 | 75162 | SCREW (DESIGN "A" LATCH) (1 required per assembly) |
  |
|
10-75162 - Screw,NLA [ More info ]
|
| #20 | 67261 | SHIELD (DESIGN "A" LATCH) (1 required per assembly) |
  |
|
67261 - Shield, NLA [ More info ] Unavailable |
| #21 | 35519 | SCREW (#10-16 X .500) (DESIGN "A" LATCH) (2 required per assembly) |
  |
|
10-35519 - Screw, NLA [ More info ]
|
| #22 | 62628 | BARREL (DESIGN "A" LATCH) (2 required per assembly) |
  |
|
62628 - Cowl Latch Barrel [ More info ] Unavailable |
| #23 | 46785A5 | LATCH ASSY (DESIGN "A" LATCH) (2 required per assembly) |
  |
|
46785A 5 - Latch Assembly, NLA [ More info ] Unavailable |
| #24 | 31312 | SCREW (DESIGN "A" LATCH) (2 required per assembly) |
  |
|
10-31312 - Screw, NLA [ More info ]
|
| #25 | 15222 | ADJUSTING BAR (DESIGN "A" LATCH) (2 required per assembly) |
  |
|
15222 - Cowl Latch Adjusting Bar, NLA [ More info ]
|
| #26 | 62629 | BARREL (DESIGN "A" LATCH) (2 required per assembly) |
  |
|
62629 - Cowl Latch Barrel [ More info ]
|
| #27 | 62624 | SPRING (DESIGN "A" LATCH) (2 required per assembly) |
  |
|
24-62624 - Spring, Cowl Latch,NLA [ More info ]
|
| #28 | 30164 | WASHER @3 (DESIGN "A" LATCH) (2 required per assembly) |
  |
|
12-30164 - Washer, (.192 X .375 X .0312) [ More info ]
|
| #29 | 859124 | NUT @2 (DESIGN "A" LATCH) (2 required per assembly) — Replaces: 45812 |
  |
|
11-859124 - Nut, (#10-32) Stainless Steel, Nylon Insert [ More info ]
|
| #30 | 47341A11 | ROPE AND HANDLE KIT MANUAL STARTING (MANUAL STARTING) (1 required per assembly) — Replaces: 47341A1 |
  |
|
47341A11 - Manual Start Rope And Handle [ More info ]
|
