Parts for V-150 Work 2-Stroke Carbureted Mercury Outboard Motor Gear Housing (Driveshaft) (Without A Driveshaft Nut)

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > V-150 Work > 4868998 - 0A904645 > Gear Housing (Driveshaft) (Without A Driveshaft Nut)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

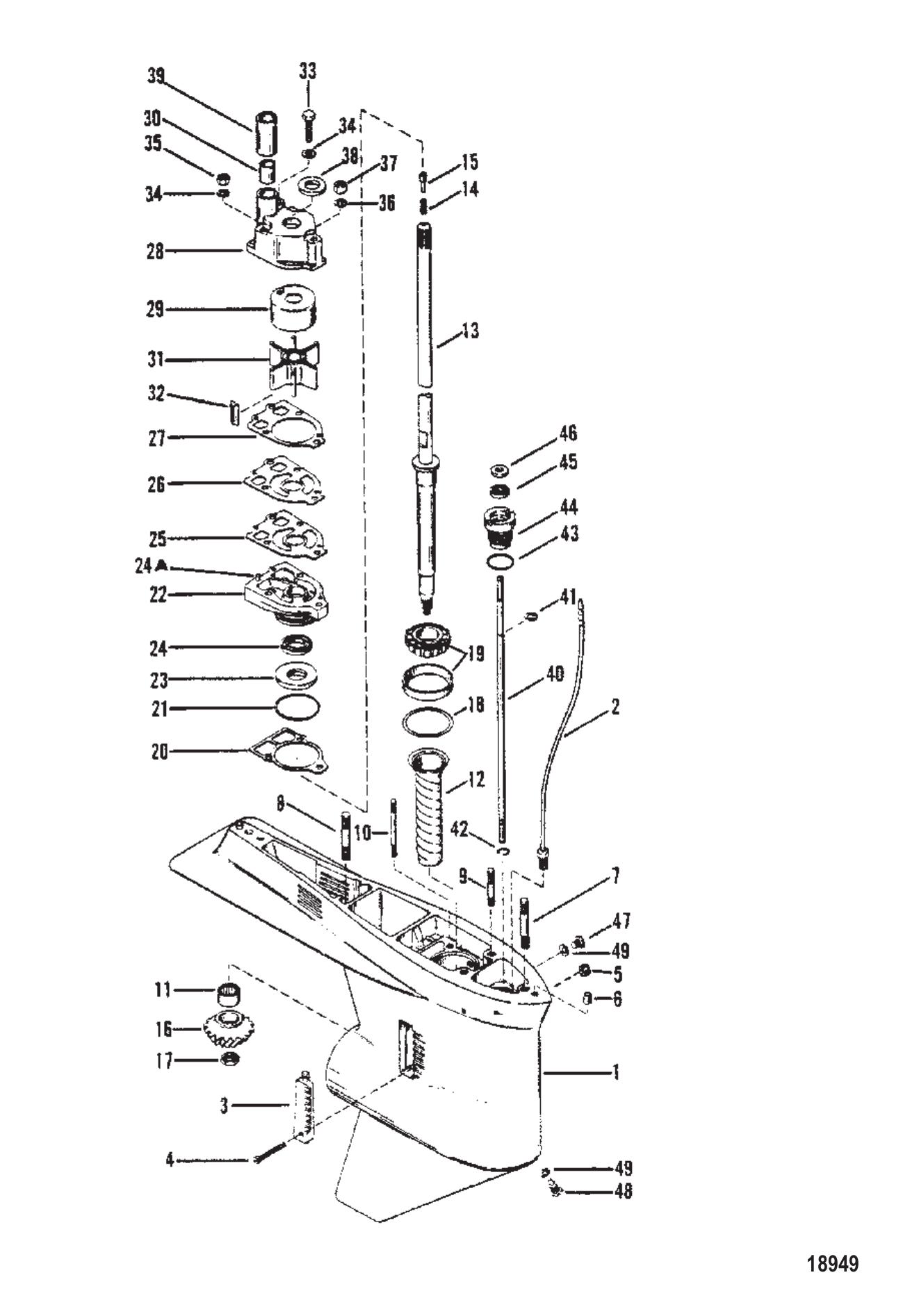

Gear Housing (Driveshaft) (Without A Driveshaft Nut)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	96148A8	PUMP KIT-WATER (1 required per assembly) — Replaces: 96148A5
		46-96148A 8 - Water Pump Kit, No Base [ More info ] $71.99 5 In Stock.
		18-3517 - Water Pump Kit, No Base, 46-96148A8 [ More info ] $54.29 $54.25 10+ In Stock.
		18-3317 - Mercury Water Pump Kit, With Base 18-3417 [ More info ] $69.61 In Stock
		46-96148T 8 - Water Pump Kit, No Base [ More info ] $83.49 1 In Stock.
		46-00090 - Water Pump Kit, No Base, 46-96148A8 [ More info ] $49.99 $46.62 10+ In Stock.
		46-00048 - Water Pump Kit w/Base, base is OEM 46-44292A3 equivalent [ More info ] $57.99 $51.04 6 In Stock.
		46-00047 - Water Pump Kit with Base 96148A8, uses base matching 46-57234A1 [ More info ] $53.99 $48.17 Available to Order: Shipping delay up to 10 days.
#-	55682A1	SEAL KIT (1 required per assembly)
		26-55682A 1 - Seal Kit [ More info ] $126.49 Available to Order: Shipping delay up to 10 days.
		18-2653 - Seal Kit, 26-55682A1 [ More info ] $116.65 5 In Stock.
		26-00146 - Seal Kit, 26-55682A1 [ More info ] $97.90 $84.23 5 In Stock.
#-	90484A88	GASKET SET [ME-6042946/MA-6038681] & Up (1 required per assembly)
		27-90484A88 - Gasket Set [ More info ] Unavailable
#-	79583A81	GASKET SET [5866777] THRU [6042945] (1 required per assembly)
		27-79583A81 - Engine Gasket Set [ More info ] Unavailable
#-	NLA	NO LONGER AVAILABLE GASKET SET (Service Bulletin 81-8 [ME-5866776/MA-6038680] & Below (1 required per assembly)
		NLA - No Longer Availab [ More info ] Unavailable
#0	9148A81	GEAR HSG-L-BLK (LONG)(BLACK) (1 required per assembly) — Replaces: 9148A18, 9148A65
		1647-9148A81 - Gear Housing Assembly [ More info ] Unavailable
		1647-9148T81 - Gear Housing Assembly [ More info ] Unavailable
		90-206-B20 - SE206 Lower Unit Mercury 2.0, 2.4, 2.5L, 2.0 to 1, 20 Inch [ More info ] $1195.00 $1195.00 Available to Order
#0	9148A87	GEAR HSG.-GR-L (LONG)(GRAY) (1 required per assembly) — Replaces: 9148A20, 9148A66
		1647-9148A87 - Gear Housing Assembly [ More info ] Unavailable
		1647-9148T87 - ORD1647- 9148T81, NLA [ More info ] Unavailable
#0	9148A82	GEAR HSG-XL-BLK (X-LONG)(BLACK) (1 required per assembly) — Replaces: 9148A19, 9148A67
		1647-9148A82 - Gear Housing Assembly [ More info ] Unavailable
		1647-9148T82 - Gear Housing Assembly [ More info ] Unavailable
		90-206-B25 - SE206 Lower Unit Mercury 2.0, 2.4, 2.5L, 2.0 to 1, 25 Inch [ More info ] $1195.00 $1195.00 Available to Order
#0	9148A88	GEAR HSG.-GR-XL (X-LONG)(GRAY) (1 required per assembly) — Replaces: 9148A21, 9148A68
		1647-9148A88 - Gear Housing Assembly [ More info ] Unavailable
		1647-9148T88 - Ord 1647-9148T82 [ More info ] Unavailable
#1	7321A11	GEAR HOUSING ASSEMBLY (BASIC) (BLACK)(CASTING #1647-6670C) (1 required per assembly)
		1647-7321A11 - GEAR Housing, NLA [ More info ] Unavailable
#1	8688T9	GEAR HSG-BASIC-BL (BASIC) (BLACK)(CASTING #1647-8675C) (1 required per assembly) — Replaces: 7350A4, 8688A9
		1647-8688T 9 - Gear Housing - Basic-bl, NLA [ More info ] $625.00 $529.38 2 In Stock.
#1	8688T10	GEAR HSG-BASIC-GR (BASIC) (GRAY) (1 required per assembly) — Replaces: 7350A62, 8688A10
		1647-8688T10 - Gear Housing-BASIC-G,NLA [ More info ] Unavailable
#2	85822A10	CONNECTOR ASSEMBLY (1 required per assembly) — Replaces: 85822A1
		22-85822A10 - Connector Assembly [ More info ] $21.16 4 In Stock.
#3	66885	INSERT (STARBOARD )(Use where Applicable) (1 required per assembly)
		66885 - Water Pickup Insert [ More info ] $6.40 $3.58 10+ In Stock.
#3	66884	INSERT (PORT)(Use where Applicable) (1 required per assembly)
		66884 - Water Pickup Insert [ More info ] $18.31 10 In Stock.
#4	76156	SCREW (#10-32 X 1.88) (Use where Applicable) (1 required per assembly)
		10-76156 - Screw [ More info ] $3.39 10+ In Stock.
#5	859124	NUT (#10-32) STAINLESS STEEL (Use where Applicable) (1 required per assembly) — Replaces: 45812
		11-859124 - Nut, (#10-32) Stainless Steel, Nylon Insert [ More info ] $18.69 10+ In Stock.
#6	43044	PIN DOWEL - WITHOUT HOLE (.375 X .625) (2 required per assembly) — Replaces: 20033
		17-43044 - Pin -Dowel-solid [ More info ] $2.49 1 In Stock.
#7	786382	STUD (.437-14/.437-20 X 3.120) (LONG) (1 required per assembly) — Replaces: 78638
		0786382 - L/P 329.26 [ More info ] Unavailable
#7	78639	STUD (9"- X-LONG) (1 required per assembly)
		16-78639 - Stud, NLA [ More info ] $18.31 10+ In Stock.
#8	579203	STUD (.437-14/.437-20 X 2.060) (LONG) (2 required per assembly) — Replaces: 57920, 579201
		16-57920 3 - Stud [ More info ] Unavailable
		168M0133358 - Stud [ More info ] $17.29 Available to Order: Shipping delay up to 10 days.
#8	74730	STUD (7-1/16"-X-LONG) (2 required per assembly)
		16-74730 - Stud, NLA [ More info ] $10.76 10+ In Stock.
#9	8M0034463	STUD (.312-24 X 3.38) (1 required per assembly) — Replaces: 56297, 562972
		16-8M0034463 - Stud [ More info ] $17.89 Available to Order: Shipping delay up to 10 days.
#10	306671	STUD (2 required per assembly) — Replaces: 30667
		16306671 - Stud [ More info ] $10.19 Available to Order: Shipping delay up to 10 days.
#11	35934A1	BEARING ASSEMBLY ROLLER (1 required per assembly)
		31-35934A 1 - Roller Bearing [ More info ] $20.00 $4.80 10 In Stock.
#12	98621	SCREW (.375-16 X .750) (1 required per assembly)
		23-98621 - Sleeve [ More info ] $11.72 10+ In Stock.
#13	98682A1	DRIVESHAFT (LONG) (1 required per assembly)
		45-98682A 1 - Drive Shaft, NLA [ More info ] Unavailable
#13	41509A2	DRIVESHAFT ASSEMBLY (X-LONG) (1 required per assembly)
		45-41509A 2 - Drive Shaft, NLA [ More info ] Unavailable
#14	34576	SPRING (1 required per assembly)
		24-34576 - Spring, Compression - Drive Shaft,NLA [ More info ] $9.89 10+ In Stock.
#15	30545	PIN (1 required per assembly)
		17-30545 - Pin - Priced Individually [ More info ] $1.90 7 In Stock.
#16	78081T1	GEAR-PINION (1 required per assembly) — Replaces: 78081, 780811
		43-78081T 1 - Pinion Gear [ More info ] Unavailable
#17	35921	NUT (.625-18) (1 required per assembly)
		11-35921 - Nut, (.625-18) [ More info ] $7.99 10+ In Stock.
		18-3719 - Nut, 11-35921, 314730 [ More info ] $5.19 1 In Stock.
		18-2359 - Nut Kit [ More info ] $5.19 $3.51 Available to Order: Shipping delay up to 10 days.
#18	57007A1	SHIM (AR required per assembly)
		15-57007A 1 - Shim Set [ More info ] $48.83 $41.36 4 In Stock.
#19	53079A1	BEARING ASSEMBLY TAPERED ROLLER (1 required per assembly)
		31-53079A 1 - Tapered Roller Bearing - Dirve Shaft [ More info ] $39.99 $9.60 10+ In Stock.
#20	856704	GASKET (1 required per assembly) — Replaces: 856101
		27-856704 - Water Pump To Gear Housing Gasket [ More info ] $8.35 5 In Stock.
		27-8M0214962 - GASKET @5 [ More info ] Unavailable
#21	33145	O-RING (1.984 X .139) (1 required per assembly)
		25-33145 - O-ring, (1.984 X .139) [ More info ] Unavailable
		18-7162-9 - (PK5) O-Ring 25-33145 [ More info ] $17.00 Available to Order: Shipping delay up to 10 days.
		25-8M0214923 - O RING, sold individually [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
#22	96146A6	BASE ASSEMBLY WATER PUMP (1 required per assembly)
		46-96146A 6 - Water Pump Base [ More info ] $55.49 Available to Order: Shipping delay up to 10 days.
		18-3416 - Water Pump Base 46-96146A6 [ More info ] $45.99 $30.18 In Stock
#23	89238	SEAL OIL (1 required per assembly)
		26-89238 - Seal [ More info ] $21.19 In Stock
		18-2014 - Seal 26-89238, 26F69430 [ More info ] $18.86 5 In Stock.
		26-00171 - Seal 26-89238, 26F694305 [ More info ] $16.99 $14.00 Available to Order: Shipping delay up to 10 days.
#24	16977	SEAL OIL (1 required per assembly)
		26-16977 - Seal [ More info ] $18.69 In Stock
		18-2026 - Seal, 321453 [ More info ] $15.99 $15.82 10+ In Stock.
		18-2013 - Seal, 26-16977 [ More info ] $15.99 $14.81 2 In Stock.
#25	8M0090319	GASKET @5 (1 required per assembly) — Replaces: 856081
		27-8M0090319 - Water Pump Gasket - Priced Individually [ More info ] $4.19 7 In Stock.
		18-2914-9 - Gasket 27-85608 2-Pack [ More info ] $6.27 Available to Order: Shipping delay up to 10 days.
#26	8M0204677	PLATE-FACE (1 required per assembly) — Replaces: 32435, 324351
		8M0204677 - Wear Plate [ More info ] $9.29 1 In Stock.
#27	858524	GASKET (1 required per assembly) — Replaces: 856091
		27-858524 - Water Pump Base Gasket [ More info ] $4.09 9 In Stock.
		18-2915-9 - Gasket 27-858524 2-Pack [ More info ] $6.14 Available to Order: Shipping delay up to 10 days.
#28	96148T1	BODY ASSEMBLY WATER PUMP (1 required per assembly) — Replaces: 96148A1
		46-96148T 1 - Water Pump Body [ More info ] $51.99 In Stock
		18-3116 - Housing 46-96148A1 [ More info ] $49.09 4 In Stock.
#29	48752T	INSERT (1 required per assembly) — Replaces: 48752
		48752T - Water Pump Insert - Priced Individually [ More info ] $12.39 4 In Stock.
		18-3114 - SS Cup, 48752 [ More info ] $3.39 Available to Order: Shipping delay up to 10 days.
#30	38970	SEAL (1 required per assembly)
		26-38970 - Seal - Priced Individually [ More info ] $5.09 10+ In Stock.
		18-3110 - Seal, 26-38970 [ More info ] $3.49 $3.43 5 In Stock.
#31	899844	IMPELLER (1 required per assembly) — Replaces: 89984, 899842
		47-89984 4 - Impeller [ More info ] Unavailable
		47-89984T 4 - Impeller [ More info ] $49.49 4 In Stock.
		18-3017 - Impeller 47-89984 [ More info ] $39.99 $23.95 10+ In Stock.
		47-00001 - Water Pump Impeller Mercury Force 47-89984T 4 [ More info ] $20.89 $20.72 10+ In Stock.
#32	8M0032834	KEY (1 required per assembly) — Replaces: 56654
		28-8M0032834 - Key - Priced Individually [ More info ] $4.40 10+ In Stock.
		28-8M0214992 - KEY @5 [ More info ] Unavailable
#33	96411	SCREW (#14-8 X 2.25) (1 required per assembly)
		10-96411 - Screw [ More info ] $2.00 10+ In Stock.
		10-8M0215009 - SCREW [ More info ] Unavailable
#34	8M0204649	WASHER @10 (3 required per assembly) — Replaces: 29245
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 10+ In Stock.
#35	35888	NUT (.250-28) STAINLESS STEEL (2 required per assembly)
		11-35888 - Nut (1/4-28) [ More info ] $6.89 $3.04 10+ In Stock.
		18-3722-9 - Lock Nut, 121731, 11-35888, Pack of 5 [ More info ] $11.99 $8.16 Available to Order: Shipping delay up to 10 days.
#36	36001	WASHER (1 required per assembly)
		12-36001 - Washer - Priced Individually [ More info ] $1.50 10+ In Stock.
		18-4270 - Washer 12-36001 [ More info ] $1.25 $0.91 2 In Stock.
#37	826709111	NUT (.312-24) STAINLESS STEEL (1 required per assembly) — Replaces: 45592
		11-826709111 - Nut, (.312-24) Stainless Steel [ More info ] $4.49 $3.60 6 In Stock.
		18-3723-9 - Lock Nut, 11-45592, 5PK [ More info ] $16.66 Available to Order: Shipping delay up to 10 days.
#38	NLA	NO LONGER AVAILABLE RING-RUBBER (1 required per assembly)
#39	29804T	SLEEVE (1 required per assembly) — Replaces: 29804
		23-29804T - Sleeve - Priced Individually [ More info ] $8.99 9 In Stock.
		18-3109 - Tube 23-29804 [ More info ] $6.21 1 In Stock.
#40	76041	SHIFT SHAFT LOWER (HOUSING CASTING #1647-6670C) (1 required per assembly)
		76041 - Shift Shaft, NLA [ More info ] $21.56 2 In Stock.
#40	789022	SHIFT SHAFT (HOUSING CASTING #1647-8675C) (1 required per assembly) — Replaces: 78902
		78902 2 - Shift Shaft - Lower [ More info ] $86.96 4 In Stock.
#41	29641	E RING (1 required per assembly)
		53-29641 - E Ring - Priced Individually [ More info ] $1.80 8 In Stock.
#42	78907	RING RETAINING (1 required per assembly)
		53-78907 - Retaining Ring, NLA [ More info ] $1.62 10+ In Stock.
#43	25439	O-RING (.862 X .103) (1 required per assembly)
		25-25439 - O-Ring, Shaft Shaft Bushing [ More info ] $1.99 10+ In Stock.
#44	77631A2	BUSHING ASSEMBLY (1 required per assembly)
		23-77631A 2 - Bushing Assembly [ More info ] $30.21 4 In Stock.
		18-2155 - Bushing, 23-77631A2 [ More info ] $25.59 10 In Stock.
		23-00516 - Shift Bushing 23-77631A 2 [ More info ] $22.99 $22.10 1 In Stock.
#45	8M0204708	SEAL (1 required per assembly) — Replaces: 816464, 8164641
		26-8M0204708 - Shift Shaft Oil Seal-O/B [ More info ] $16.99 Available to Order: Shipping delay up to 10 days.
		26-8M0246145 - SHIFT SHAFT OIL SEAL O/B [ More info ] $16.99 10 In Stock.
#46	77674	WASHER (1 required per assembly)
		12-77674 - Washer, Rubber [ More info ] $1.80 4 In Stock.
		18-2316-9 - Washer, 12-77674, 5PK [ More info ] $4.69 $4.68 Available to Order: Shipping delay up to 10 days.
#47	79953Q2	SCREW KIT (.375-16 X .250) DRAIN (1 required per assembly) — Replaces: 79953, 79953A2
		10-79953Q 2 - Screw Kit - Priced Individually [ More info ] Unavailable
		10-79953Q04 - Screw Kit - Priced Individually [ More info ] $7.49 8 In Stock.
		18-2244 - Plug Kit, 10-79953A2 [ More info ] $3.79 10+ In Stock.
		10-79953K04 - Drain Screw - Priced Individually [ More info ] $8.19 10+ In Stock.
#48	67892A05	PLUG KIT DRAIN (MAGNETIC) (1 required per assembly) — Replaces: 67892, 67892A1
		22-67892A05 - Drain Plug Kit [ More info ] Unavailable
		22-67892A06 - Drain Plug Kit [ More info ] Unavailable
		22-8M0058389 - Screw Kit - Priced Individually [ More info ] $11.69 6 In Stock.
		18-23751-9 - Drain Screw , Package of 50 [ More info ] $346.09 In Stock
		18-2375 - Plug, 22-67892A1 [ More info ] $7.16 10+ In Stock.
		10-02683 - Drain Screw [ More info ] $6.39 $6.03 2 In Stock.
#49	191833	SEAL (2 required per assembly) — Replaces: 19183, 191832
		12-19183 3 - Seal -Blue - Priced Individually [ More info ] Unavailable
		18-2945-9 - Gasket 12-19183 2-Pack [ More info ] $2.41 10+ In Stock.
		12-19183Q02 - Seals, Pack of 4 (yes this is actually a pack of 4) [ More info ] $6.69 5 In Stock.
		12-19183K02 - Seal, Pack of 4 [ More info ] $7.29 8 In Stock.
		12-8M0187157 - SEAL-BLUE, Sold Individually [ More info ] $1.49 10+ In Stock.
		12-02108-1 - Drain Gasket (1 piece) [ More info ] $1.20 $0.85 10+ In Stock.
#24A	35973	PIN DOWEL (Use where Applicable) (1 required per assembly)
		17-35973 - Pin -Dowel - Priced Individually [ More info ] $1.80 10+ In Stock.
