Parts for V-150 Work 2-Stroke Carbureted Mercury Outboard Motor Cowl Mounting Brackets

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > V-150 Work > 4868998 - 0A904645 > Cowl Mounting Brackets

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Cowl Mounting Brackets

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	76258A2	BRACKET REAR COWL (BLACK) (1 required per assembly)
		76258A 2 - Bracket, NLA [ More info ] Unavailable
#1	76258A3	BRACKET REAR COWL (GRAY) (1 required per assembly)
		76258A 3 - Bracket, NLA [ More info ] Unavailable
#2	76256	FITTING (1 required per assembly)
		22-76256 - Fitting [ More info ] Unavailable
#3	67984	SEAL (1 required per assembly)
		67984 - Seal, NLA [ More info ] Unavailable
#4	67228	SEAL (1 required per assembly)
		67228 - Seal, NLA [ More info ] Unavailable
#5	67999	SEAL (2 required per assembly)
		67999 - Seal, Read Cowl Bracket to Cowl, NLA [ More info ] Unavailable
#6	8M0047428	HOSE (.25 INCH ID, 57.00 INCHES BULK) TELL TALE (2 required per assembly) — Replaces: 99127109, 830756109
		32-8M0047428 - Hose -57 Inch [ More info ] Unavailable
		32-8M0108355 - Hose, 57 Inch [ More info ] $52.49 1 In Stock.
#7	90824001	TEE FITTING [ME-586677/MA-5940581] & Up (1 required per assembly) — Replaces: 90824
		22-90824001 - Tee Fitting [ More info ] $17.89 Available to Order: Shipping delay up to 10 days.
#8	61990	TIE STRAP @10 (2 required per assembly)
		61990 - Tie Strap - Priced Individually [ More info ] $0.70 4 In Stock.
#9	86386A1	BRACKET ASSY (1 required per assembly)
		86386A 1 - Bracket, NLA [ More info ] Unavailable
#10	66687	SCREW @3 (4 required per assembly)
		10-66687 - Screw - Priced Individually [ More info ] $1.82 Available to Order: Shipping delay up to 10 days.
#11	85651	HOUSING (PORT) (2 required per assembly)
		85651 - Housing, NLA [ More info ] $17.92 $15.18 6 In Stock.
#11	85650	HOUSING (STARBOARD) (2 required per assembly)
		85650 - Housing, NLA [ More info ] $8.89 $7.53 6 In Stock.
#12	64278	SCREW (.250-28 X 1.00) (1&QUOT;) (8 required per assembly) — Replaces: 31294
		10-64278 - Screw, NLA [ More info ] $1.98 $1.68 10+ In Stock.
#13	20583	WASHER @5 (8 required per assembly)
		12-20583 - Washer - Priced Individually [ More info ] $1.50 10+ In Stock.
#14	8267089	NUT @5 (8 required per assembly) — Replaces: 20361
		11-826708 9 - Nut - Priced Individually [ More info ] $1.50 10 In Stock.
		18-3722-9 - Lock Nut, 121731, 11-35888, Pack of 5 [ More info ] $11.99 $8.16 Available to Order: Shipping delay up to 10 days.
#15	88623A1	BRACKET ASSY [ME-5866776/MA-5940580] & Below (1 required per assembly)
		88623A 1 - Bracket Assembly, NLA [ More info ] $59.29 1 In Stock.

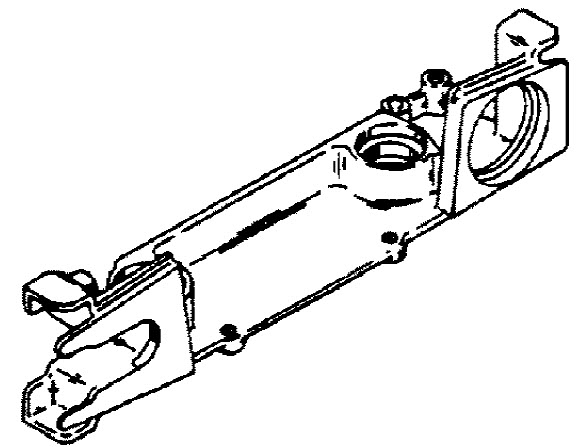

#15	92009T	BRACKET [ME-5866777/MA-5940581] THRU [ME-6443212/MA-6443817] (1 required per assembly)
		92009T - Bracket, NLA [ More info ] Unavailable
#15	99424	BRACKET [ME-6443213/MA-6443818] & Up (1 required per assembly)
		99424 - Bracket, NLA [ More info ] Unavailable
#16	88621	RETAINER [6616990] & Below (1 required per assembly)
		88621 - Retainer, NLA [ More info ] $8.70 $7.38 10+ In Stock.
#16	99447	RETAINER [6616991] & Up (1 required per assembly) — Replaces: 99447T
		99447 - Cable Retainer, NLA [ More info ] Unavailable
#17	89900	SCREW (2 required per assembly)
		10-89900 - Screw, NLA [ More info ] $1.50 $1.28 1 In Stock.
#18	67260	SEAL (1 required per assembly)
		67260 - Seal, NLA [ More info ] $12.99 $11.00 10+ In Stock.
#19	90435	MOUNT (3 required per assembly)
		90435 - Rubber Mount [ More info ] $61.44 1 In Stock.
#20	21249	WASHER @5 (6 required per assembly)
		12-21249 - Washer - Priced Individually [ More info ] $8.49 $1.70 10+ In Stock.
#21	8267089	NUT @5 (6 required per assembly) — Replaces: 20361
#22	67241	HOUSING (1 required per assembly)
		67241 - Cowl Latch Housing [ More info ] $22.61 2 In Stock.
#23	92051	SCREW (2 required per assembly)
		10-92051 - Screw [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#24	76264	LATCH [ME-6443212/MA-6443817] & Below (1 required per assembly)
		76264 - Latch, NLA [ More info ] $16.48 10+ In Stock.
#24	87608	LEVER [ME-6443213/MA-6443818] & Up (1 required per assembly)
		87608 - Cowl Latch [ More info ] $18.00 1 In Stock.
#25	60295	SPRING (1 required per assembly)
		24-60295 - Spring [ More info ] Unavailable
#26	88622	PLATE [ME-6443213/MA-6443818] & Up (1 required per assembly)
		88622 - Plate [ More info ] $12.99 $11.00 10 In Stock.
#27	99391	RETAINER [ME-6443213/MA-6443818] & Up (1 required per assembly)
		99391 - Retainer, NLA [ More info ] $4.99 $4.22 10+ In Stock.
#28	69067	SCREW @5 [ME-6443213/MA-6443818] & Up (2 required per assembly)
		10-69067 - Screw - Priced Individually [ More info ] $3.19 10+ In Stock.
#29	69057	WASHER (.281 X .734 X .063) (SMALL) [ME-6443213/MA-6443818] & Up (4 required per assembly) — Replaces: 20346
		12-69057 - Washer, (.281 X .734 X .063) [ More info ] $1.80 2 In Stock.
#30	35280	WASHER (.255 X .620 X .030) STAINLESS STEEL (LARGE) [ME-6443213/MA-6443818] & Up (4 required per assembly) — Replaces: 57427
		12-35280 - Washer, (.255 X .620 X .030) Stainless Steel [ More info ] $3.19 $2.56 10+ In Stock.
#31	88180	BUSHING [ME-6443213/MA-6443818] & Up (2 required per assembly)
		23-88180 - Bushing, NLA [ More info ] Unavailable
#32	88033	GROMMET [ME-6443213/MA-6443818] & Up (2 required per assembly)
		25-88033 - Grommet, Bracket,NLA [ More info ] $1.50 $1.28 10+ In Stock.
#33	26907	WASHER [ME-6443213/MA-6443818] & Up (2 required per assembly) — Replaces: 28927
		12-26907 - Washer (5/8 In. O.d.) NLA [ More info ] $1.38 $1.17 10+ In Stock.
#34	67272	GROMMET [ME-6443212/MA-6443817] & Below (2 required per assembly)
		25-67272 - Grommet, NLA [ More info ] Unavailable
#35	87743	GROMMET [ME-5866776/MA-5940580] & Below (1 required per assembly)
		25-87743 - Grommet, NLA [ More info ] Unavailable
#36	67739	SEAL [ME-5432021] & Below (1 required per assembly)
		67739 - Seal, NLA [ More info ] Unavailable
