Parts for V-175 2-Stroke Carbureted Mercury Outboard Motor Cowls (Oyster - Bucket Style)

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > V-175 > 4301235 - 0C100860 - USA > Cowls (Oyster - Bucket Style)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

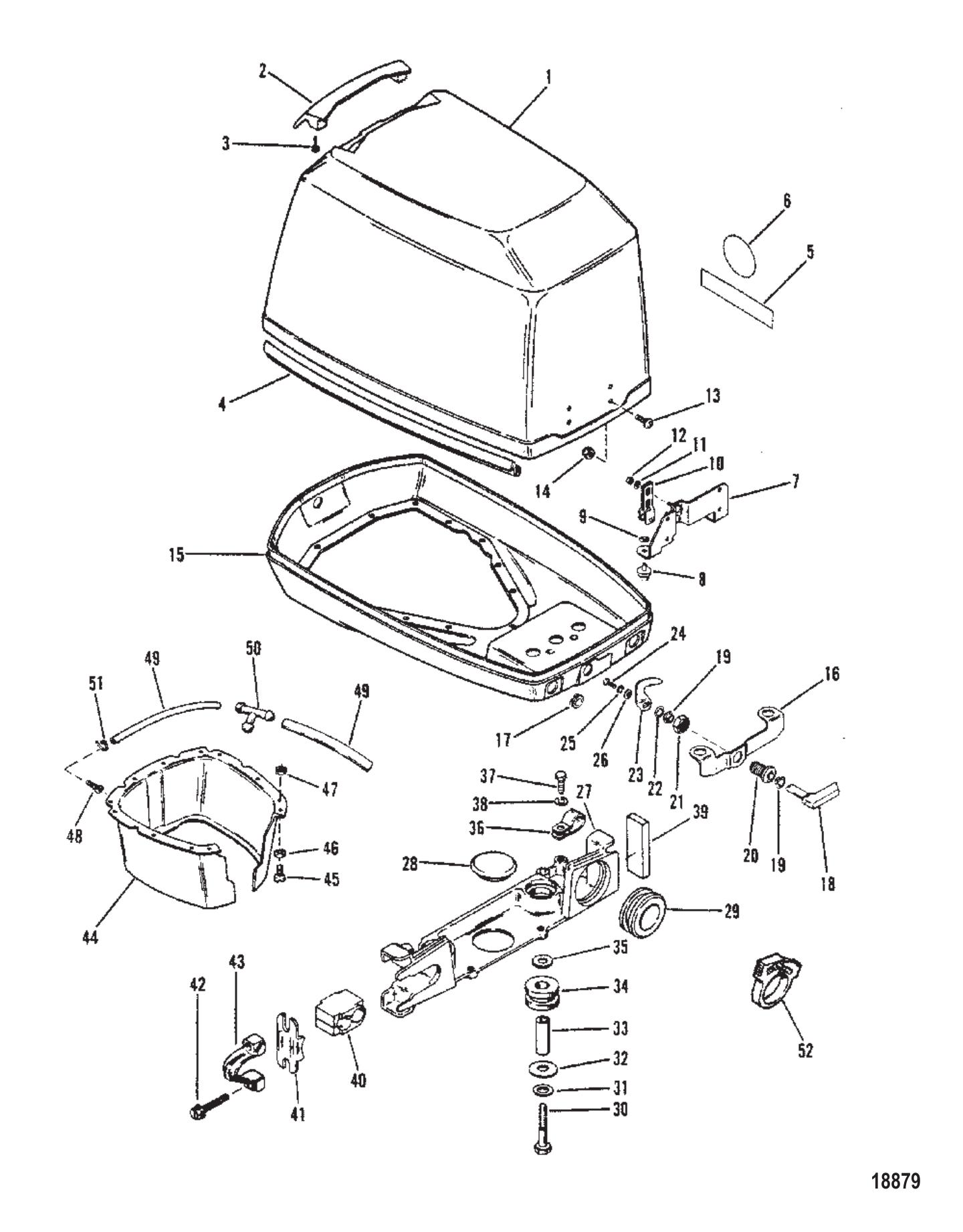

Cowls (Oyster - Bucket Style)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	9735A2	TOP COWL (1 required per assembly)
		2194-9735A 2 - Top Cowl,NLA [ More info ] Unavailable
#2	18036A1	LOUVER ASSEMBLY (1 required per assembly)
		18036A 1 - LOUVER ASSY,NLA [ More info ] Unavailable
#3	48409	SCREW (#10-16 X .625) STAINLESS STEEL (3 required per assembly)
		10-48409 - Screw - Priced Individually [ More info ] $2.49 9 In Stock.
#4	NLA	NO LONGER AVAILABLE SEAL (1 required per assembly)
		NLA - No Longer Availab [ More info ] Unavailable
#5	17996	PLATE (2 required per assembly)
		38-17996 - PLATE,NLA [ More info ] Unavailable
#6	179061	EMBLEM (2 required per assembly)
		37-17906 1 - EMBLEM,NLA [ More info ] Unavailable
#7	18189A1	BRACKET ASSY (FRONT ) (1 required per assembly)
		18189A 1 - Bracket, NLA [ More info ] Unavailable
#7	18190A1	BRACKET ASSY (REAR ) (1 required per assembly)
		18190A 1 - Bracket, NLA [ More info ] Unavailable
#8	18170A1	GUIDE MOUNT (4 required per assembly)
		18170A 1 - MOUNT ASSY,NLA [ More info ] Unavailable
#9	18193	CLIP (4 required per assembly)
		54-18193 - Clip, NLA [ More info ] $1.25 $1.06 10+ In Stock.
#10	893763	BRACKET ROLLER LATCH (2 required per assembly) — Replaces: 18173
		893763 - Roller Latch Bracket [ More info ] $31.79 Available to Order: Shipping delay up to 10 days.
#11	53166	LOCKWASHER (.312) (4 required per assembly)
		13-53166 - LockWasher - Priced Individually [ More info ] $1.80 10+ In Stock.
#12	82670910	NUT (.312-18) STAINLESS STEEL (4 required per assembly) — Replaces: 67980
		11-826709 10 - Nut, (.312-18) Stainless Steel [ More info ] $7.19 1 In Stock.
#13	18192	SCREW (8 required per assembly)
		10-18192 - Screw, NLA [ More info ] Unavailable
#14	8267098	NUT @2 (8 required per assembly) — Replaces: 56374
		11-826709 8 - Nut - Priced Individually [ More info ] $6.89 $1.38 10+ In Stock.
#15	9734T10	BOTTOM COWL (1 required per assembly)
		2194-9734T10 - BOTTOM COWL,NLA [ More info ] Unavailable
#16	18183	BRACKET (2 required per assembly)
		18183 - Bracket, NLA [ More info ] Unavailable
#17	18182	GROMMET (2 required per assembly)
		25-18182 - Grommet, NLA [ More info ] Unavailable
#18	18168A1	HANDLE ASSY (2 required per assembly)
		18168A 1 - Handle Assembly,NLA [ More info ] Unavailable
#19	812707	BUSHING (4 required per assembly)
		23-812707 - Bushing [ More info ] $8.29 2 In Stock.
#20	18172	BUSHING (2 required per assembly)
		23-18172 - Bushing, NLA [ More info ] $7.00 $5.93 10+ In Stock.
#21	18304	NUT (2 required per assembly)
		11-18304 - Nut, NLA [ More info ] $7.39 $1.49 10+ In Stock.
#22	69708	WASHER-WAVE (2 required per assembly)
		13-69708 - Wave Washer [ More info ] $2.69 2 In Stock.
#23	18169	CAM (2 required per assembly)
		18169 - Cam, NLA [ More info ] $1.25 $1.06 2 In Stock.
#24	28635	SCREW @5 (2 required per assembly)
		10-28635 - Screw - Priced Individually [ More info ] $1.80 10+ In Stock.
#25	26992	LOCKWASHER @5 (2 required per assembly)
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#26	8M0204649	WASHER @10 (2 required per assembly) — Replaces: 29245
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 10+ In Stock.
#27	994241	BRACKET (1 required per assembly)
		99424 1 - Bracket, NLA [ More info ] Unavailable
#28	18219	PLUG (1 required per assembly)
		19-18219 - PLUG,NLA [ More info ] Unavailable
#29	13467	GROMMET (1 required per assembly)
		25-13467 - Grommet, (.88 Inside Diameter) [ More info ] $6.69 Available to Order: Shipping delay up to 10 days.
#30	70732	SCREW @5 (2 required per assembly)
		10-70732 - Screw - Priced Individually [ More info ] $3.69 2 In Stock.
#31	69057	WASHER (4 required per assembly) — Replaces: 20346
		12-69057 - Washer, (.281 X .734 X .063) [ More info ] $1.80 2 In Stock.
#32	35280	WASHER (4 required per assembly)
		12-35280 - Washer, (.255 X .620 X .030) Stainless Steel [ More info ] $3.19 $2.56 10+ In Stock.
#33	18194	BUSHING (2 required per assembly)
		23-18194 - Bushing,NLA [ More info ] Unavailable
#34	88033	GROMMET (4 required per assembly)
		25-88033 - Grommet, Bracket,NLA [ More info ] $1.50 $1.28 10+ In Stock.
#35	26907	WASHER (2 required per assembly) — Replaces: 28927
		12-26907 - Washer (5/8 In. O.d.) NLA [ More info ] $1.38 $1.17 10+ In Stock.
#36	18479	CLAMP (1 required per assembly)
		54-18479 - CLAMP,NLA [ More info ] Unavailable
#37	28635	SCREW @5 (1 required per assembly)
#38	26992	LOCKWASHER @5 (1 required per assembly)
#39	67260	SEAL (1 required per assembly)
		67260 - Seal, NLA [ More info ] $12.99 $11.00 10+ In Stock.
#40	99391	RETAINER (1 required per assembly)
		99391 - Retainer, NLA [ More info ] $4.99 $4.22 10+ In Stock.
#41	88622	PLATE (1 required per assembly)
		88622 - Plate [ More info ] $12.99 $11.00 10 In Stock.
#42	68918	SCREW (2 required per assembly) — Replaces: 22411
		10-68918 - Screw [ More info ] $3.20 $1.79 10+ In Stock.
#43	99447	RETAINER (1 required per assembly) — Replaces: 99447T
		99447 - Cable Retainer, NLA [ More info ] Unavailable
#44	18037T10	TRIM COVER (1 required per assembly)
		18037T10 - TRIM Cover, NLA [ More info ] Unavailable
#45	18124	SCREW (12 required per assembly)
		10-18124 - Screw [ More info ] Unavailable
#46	89302	WASHER @5 (6 required per assembly)
		12-89302 - Washer (.203 X .406 X .040) [ More info ] $1.80 10+ In Stock.
#47	8M0204718	NUT (12 required per assembly) — Replaces: 29488, 826709106
		11-8M0204718 - NUT [ More info ] $4.69 Available to Order: Shipping delay up to 10 days.
#48	18195	FITTING (1 required per assembly)
		22-18195 - Fitting, NLA [ More info ] Unavailable
#49	8M0047428	HOSE-57 INCH (2 required per assembly) — Replaces: 99127109, 830756109
		32-8M0047428 - Hose -57 Inch [ More info ] Unavailable
		32-8M0108355 - Hose, 57 Inch [ More info ] $52.49 1 In Stock.
#50	90824001	TEE FITTING (2 required per assembly) — Replaces: 90824
		22-90824001 - Tee Fitting [ More info ] $17.89 Available to Order: Shipping delay up to 10 days.
#51	816311T	TIE STRAP @100 (AR required per assembly) — Replaces: 816311
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#52	4158210	CLAMP (1 required per assembly)
		54-41582 10 - CLAMP [ More info ] Unavailable
