Parts for V-150 Marathon 2-Stroke Carbureted Mercury Outboard Motor Hydraulic Pump (S/N 5432021 & Below)

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > V-150 Marathon > 5600162 - 0A904645 > Hydraulic Pump (S/N 5432021 & Below)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

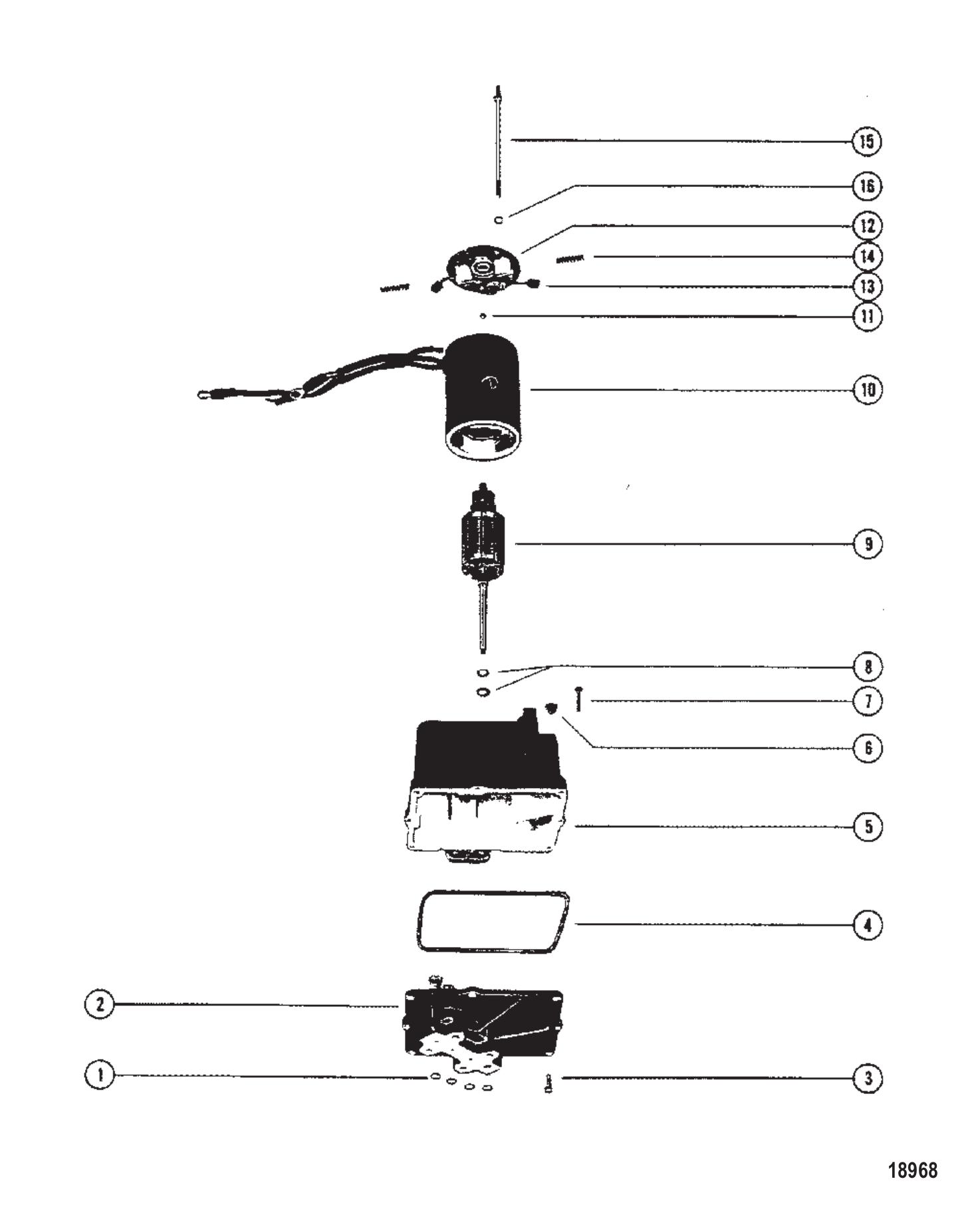

Hydraulic Pump (S/N 5432021 & Below)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	92975A32	PUMP KIT-TRIM (1 required per assembly) — Replaces: 67914A2, 92975A28
		92975A32 -Trim Pump Kit [ More info ] $1,073.49 Available to Order: Shipping delay up to 10 days.
		300-06763 - Trim Motor Reservoir, 67914A2 [ More info ] $277.16 In Stock
#1	48171	O-RING (.364. X .070) (4 required per assembly)
		25-48171 - O-Ring - Priced Individually [ More info ] $1.70 8 In Stock.
		18-7168-9 - O-Ring (PK5) 202893, 25-48171 [ More info ] $5.64 Available to Order: Shipping delay up to 10 days.
#2	NLA	NO LONGER AVAILABLE VALVE BODY AND GEAR ASSEMBLY (1 required per assembly)
		NLA - No Longer Availab [ More info ] Unavailable
#3	20411	SCREW (.190-24 X .62) (8 required per assembly)
		10-20411 - Screw, NLA [ More info ] $3.25 10+ In Stock.
#4	7735	SEAL (1 required per assembly)
		392-7735 - Seal Ring, NLA [ More info ] Unavailable
#5	6251	RESERVOIR (1 required per assembly)
		392-6251 - Reservoir, NLA [ More info ] Unavailable
#6	62269	SCREW (#10-32 X .437) (1 required per assembly)
		10-62269 - Screw, NLA [ More info ] Unavailable
#7	NLA	NO LONGER AVAILABLE FILLER SCREW (1 required per assembly)
#8	2623	WASHER (AR required per assembly)
		392-2623 - Washer, Armature, NLA [ More info ] $4.99 $4.22 10+ In Stock.
#9	2943	ARMATURE (1 required per assembly)
		392-2943 - Armature [ More info ] $157.42 2 In Stock.
#10	NLA	NO LONGER AVAILABLE FIELD AND FRAME (1 required per assembly)
#11	2944	BALL (1 required per assembly)
		392-2944 - Ball, NLA [ More info ] $12.07 $10.23 10+ In Stock.
#12	2940	PLATE ASSEMBLY (1 required per assembly)
		392-2940 - Commutator Head [ More info ] Unavailable
		TR217 - Head Assembly, 392-9250 [ More info ] $67.28 $64.20 In Stock
#13	8989	BRUSH KIT (1 required per assembly)
		392-8989 - Brush Set for 3 - Wire Motors Only. [ More info ] $14.99 2 In Stock.
#14	2529	SPRING SET (1 required per assembly)
		392-2529 - Spring Set, Brush Tension,NLA [ More info ] $11.70 10+ In Stock.
#15	NLA	NO LONGER AVAILABLE THRU BOLT SET (1 required per assembly)
#16	26996	LOCKWASHER (#10) STAINLESS STEEL (2 required per assembly)
		13-26996 - LockWasher - Priced Individually [ More info ] $1.20 Available to Order: Shipping delay up to 10 days.
