Parts for V-150 Magnum 2-Stroke Carbureted Mercury Outboard Motor Transom Brackets (S/N USA-5503246 / Aus-8062734 & Below)

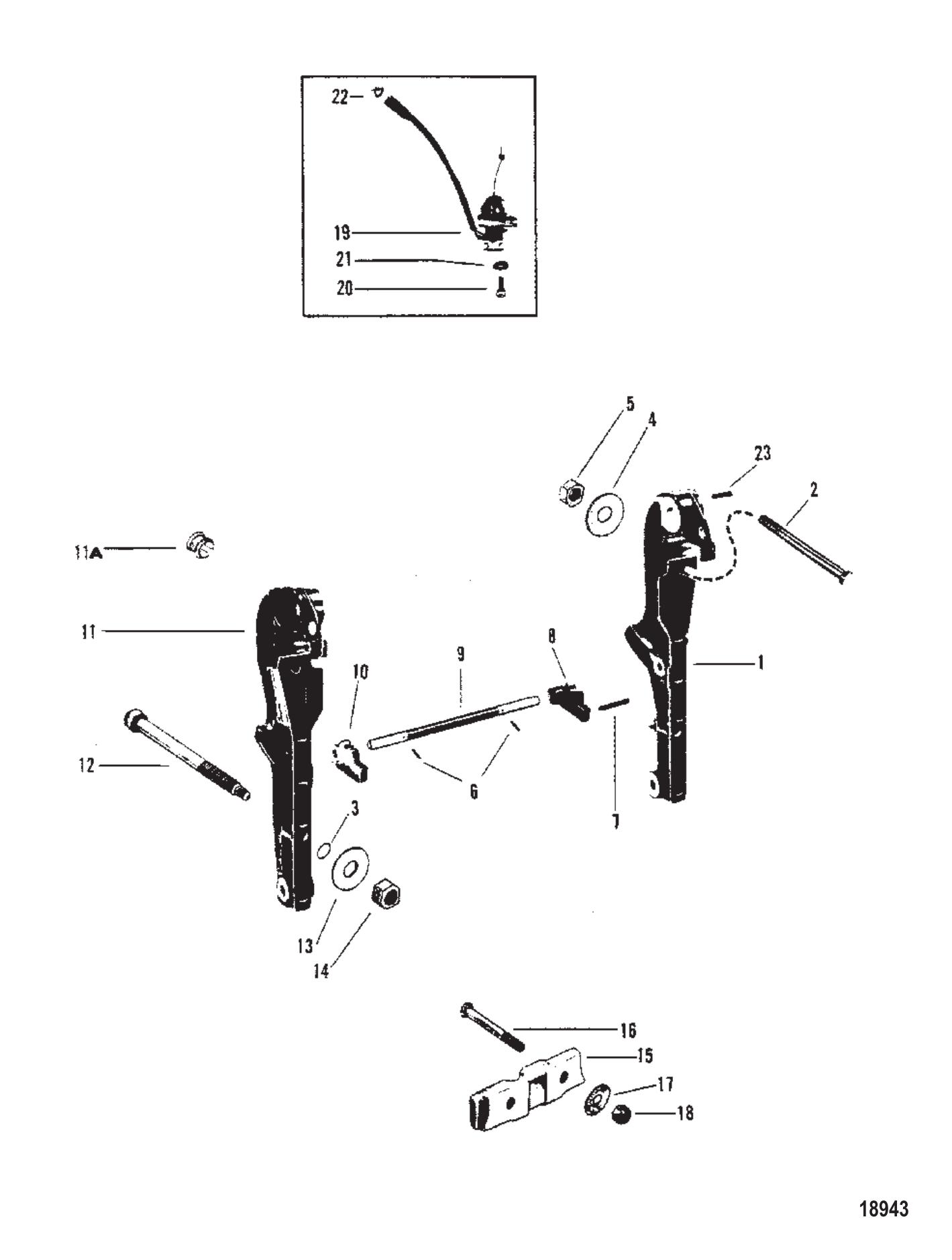

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 7076 | BRACKET (1 required per assembly) |
  |
|
1474-7076 - Bracket, NLA [ More info ] Unavailable |
| #2 | 677552 | SCREW (2 required per assembly) |
  |
|
10-67755 2 - Screw [ More info ]
|
| #3 | 75320 | O RING @2 (2 required per assembly) |
  |
|
25-75320 - O-Ring - Priced Individually [ More info ]
|
| #4 | 8M0204648 | WASHER @5 (2 required per assembly) — Replaces: 28421 |
  |
|
12-8M0204648 - ENGINE MOUNTING WASHER Note: Must be ordered in multiples of 5 O/B [ More info ]
|
| #5 | 35000 | NUT @2 (2 required per assembly) |
  |
|
11-35000 - Nut,(1/2-20 ) [ More info ]
|
| #6 | 25810 | PIN-ROLL @5 (2 required per assembly) |
  |
|
17-25810 - Pin -roll - Priced Individually [ More info ]
|
| #7 | 75319 | PIN-ROLL (1 required per assembly) |
  |
|
17-75319 - Roll Pin, NLA [ More info ] Unavailable |
| #8 | 75293 | TRIM STOP (1 required per assembly) |
  |
|
75293 - Trim Stop, NLA [ More info ] Unavailable |
| #9 | 75292 | SHAFT (1 required per assembly) |
  |
|
75292 - Shaft, NLA [ More info ] Unavailable |
| #10 | 67718 | TRIM STOP (1 required per assembly) |
  |
|
67718 - Trim Stop, NLA [ More info ] Unavailable |
| #11 | NLA | NO LONGER AVAILABLE TRANSOM BRACKET-STARBOARD (1 required per assembly) |
  |
|
NLA - No Longer Availab [ More info ] Unavailable |
| #12 | 67666 | CONNECTOR (STARBOARD ) (1 required per assembly) |
  |
|
22-67666 - Connector, NLA [ More info ]
|
| #12 | 67667 | CONNECTOR (PORT ) (1 required per assembly) |
  |
|
22-67667 - Connector, NLA [ More info ]
|
| #13 | 8M0204648 | WASHER @5 (2 required per assembly) — Replaces: 28421 |
| #14 | 35000 | NUT @2 (2 required per assembly) |
| #15 | 76990 | PAD (1 required per assembly) |
  |
|
76990 - PAD ,NLA [ More info ] Unavailable |
| #16 | 76841 | SCREW @2 (2 required per assembly) |
  |
|
10-76841 - Screw, NLA [ More info ]
|
| #17 | 8M0204648 | WASHER @5 (2 required per assembly) — Replaces: 28421 |
| #18 | 35000 | NUT @2 (2 required per assembly) |
| #19 | 75290A1 | TILT SENDER (1 required per assembly) |
  |
|
75290A 1 - Tilt Sender, NLA [ More info ]
|
| #20 | 37656 | SCREW (4 required per assembly) |
  |
|
10-37656 - Screw, NLA [ More info ] Unavailable |
| #21 | 30164 | WASHER @3 (4 required per assembly) |
  |
|
12-30164 - Washer, (.192 X .375 X .0312) [ More info ]
|
| #22 | 75343 | CLAMP (1 required per assembly) |
  |
|
54-75343 - Clamp, NLA [ More info ]
|
| #23 | 75688 | PIN (1 required per assembly) |
  |
|
17-75688 - Pin, Locating, NLA [ More info ] Unavailable |
| #11A | 79279 | CLAMP (1 required per assembly) |
  |
|
79279 - Clamp [ More info ] Unavailable |
