Parts for Mercury 90 (Powerhead - Oil Injection) Remote Control
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 808644 | REMOTE CONTROL (RH - Aft Cable Entry) (1 required per assembly) |
  |
|
808644 - Remote Control,NLA [ More info ] Unavailable |

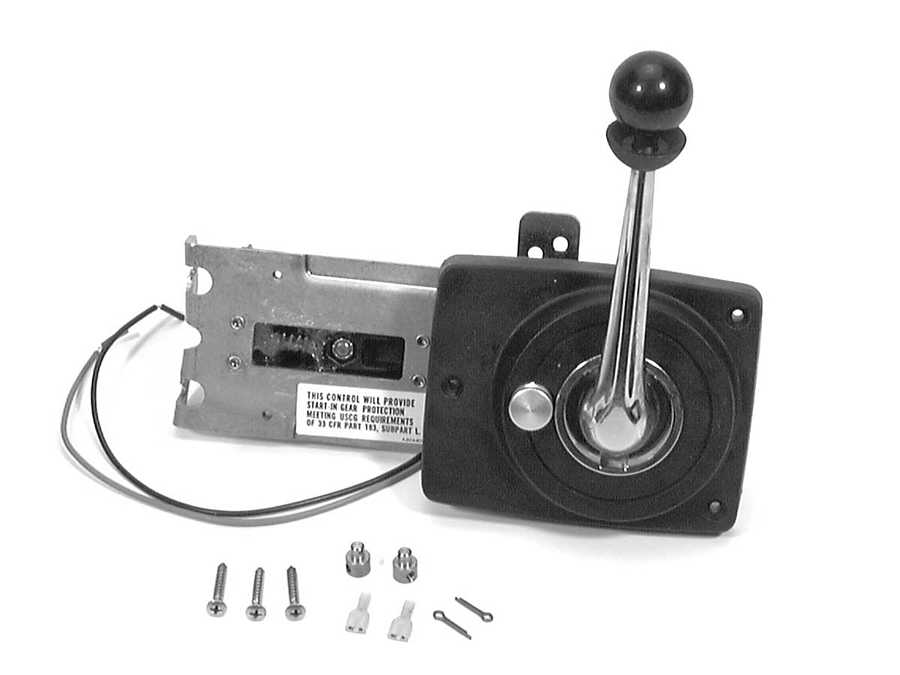

| #1 | 808643 | REMOTE CONTROL (RH - Forward Cable Entry) (1 required per assembly) |
  |
|
808643 - Remote Control,NLA [ More info ] Unavailable |
| #2 | 820682T | LEVER ASSY HAND (1 required per assembly) — Replaces: 820682 |
  |
|
820682T - LEVER ASSY [ More info ] Unavailable |
| #3 | F455690 | SET SCREW (.312-18 X .3125) SET (1 required per assembly) |
  |
|
10-F455690 - Screw -set, NLA [ More info ]
|
| #4 | F17081 | BALL BLACK BLACK (1 required per assembly) |
  |
|
F17081 - Knob - Black [ More info ]
|
| #5 | 820683 | HANGER ASSEMBLY (1 required per assembly) |
  |
|
820683 - HANGER ASSY,NLA [ More info ] Unavailable |
| #6 | F8058 | LOCKWASHER INTERNAL (#10) (4 required per assembly) |
  |
|
13-F8058 - LockWasher, NLA [ More info ]
|
| #7 | 820684 | SCREW (#10-32 X 1.500) (4 required per assembly) |
  |
|
10-820684 - Screw [ More info ] Unavailable |
| #8 | 820685 | SCREW (.250-28 X .875) (1 required per assembly) |
  |
|
10-820685 - Screw [ More info ] Unavailable |
| #9 | 820686 | WASHER (1 required per assembly) |
  |
|
12-820686 - Washer [ More info ] Unavailable |
| #10 | 820687 | SWIVEL BRACKET SWIVEL (1 required per assembly) |
  |
|
820687 - Bracket [ More info ] Unavailable |
| #11 | 820688 | BLOCK DWELL (1 required per assembly) |
  |
|
820688 - Block - Dwell [ More info ] Unavailable |
| #12 | 8267119 | NUT (.250-28) (1 required per assembly) — Replaces: 13438 |
  |
|
11-826711 9 - Nut [ More info ]
|
| #13 | 820689 | SPRING DWELL BLOCK (1 required per assembly) |
  |
|
24-820689 - Spring, Dwell Block [ More info ] Unavailable |
| #14 | 820690 | ARM SHIFT (1 required per assembly) |
  |
|
820690 - Arm - Shift [ More info ]
|
| #15 | 820691 | CAM SWITCH ACTUATION (1 required per assembly) |
  |
|
820691 - Cam [ More info ] Unavailable |
| #16 | F17036 | WASHER (2 required per assembly) |
  |
|
F17036 - Washer, NLA [ More info ]
|
| #17 | F17155 | BOLT (.250-28 X .500) (2 required per assembly) |
  |
|
F17155 - Screw [ More info ] Unavailable |
| #18 | F17016 | PIVOT CABLE TERMINAL (2 required per assembly) |
  |
|
F17016 - Cable Terminal Pivot [ More info ]
|
  |
|
031029 - Pivot 30 Series [ More info ]
|
| #19 | F17149 | COTTER PIN COTTER (2 required per assembly) |
  |
|
F17149 - Cotter Pin [ More info ]
|
| #20 | 820692 | ARM THROTTLE (1 required per assembly) |
  |
|
820692 - Throttle Arm [ More info ] Unavailable |
| #21 | 820693 | SWITCH ASSEMBLY (1 required per assembly) |
  |
|
87-820693 - Switch Assembly [ More info ] Unavailable |
| #22 | 820694 | LOCKWASHER INTERNAL (#4) INTERNAL (2/3 required per assembly) |
  |
|
13-820694 - LockWasher [ More info ] Unavailable |
| #23 | 820695 | SCREW (#10 X 1.250) (3 required per assembly) |
  |
|
10-820695 - SCREW,NLA [ More info ] Unavailable |
| #24 | 820696 | INSERT INTERLOCK (1 required per assembly) |
  |
|
820696 - INSERT,NLA [ More info ] Unavailable |
| #25 | 820697 | BRACKET SWITCH MOUNTING (1 required per assembly) |
  |
|
820697 - Bracket [ More info ] Unavailable |
| #26 | 820698 | SCREW (#4-40 X .750) (2 required per assembly) |
  |
|
10-820698 - Screw [ More info ] Unavailable |
| #27 | 820699 | SCREW (#4-40 X .312) (1 required per assembly) |
  |
|
10-820699 - Screw [ More info ] Unavailable |
| #28 | 820701 | SCREW (#4-40 X .375) (1 required per assembly) |
  |
|
10-820701 - Screw [ More info ] Unavailable |
| #29 | 63683 | NUT (.112-40) (3 required per assembly) |
  |
|
11-63683 - Nut, (.112-40) NLA [ More info ]
|
| #30 | 820705 | SCREW (#4 X .625) (2 required per assembly) |
  |
|
10-820705 - Screw [ More info ]
|
| #31 | 820700 | HARDWARE PACKAGE (With Template And Manual) (1 required per assembly) |
  |
|
820700 - Hardware Package [ More info ] Unavailable |
