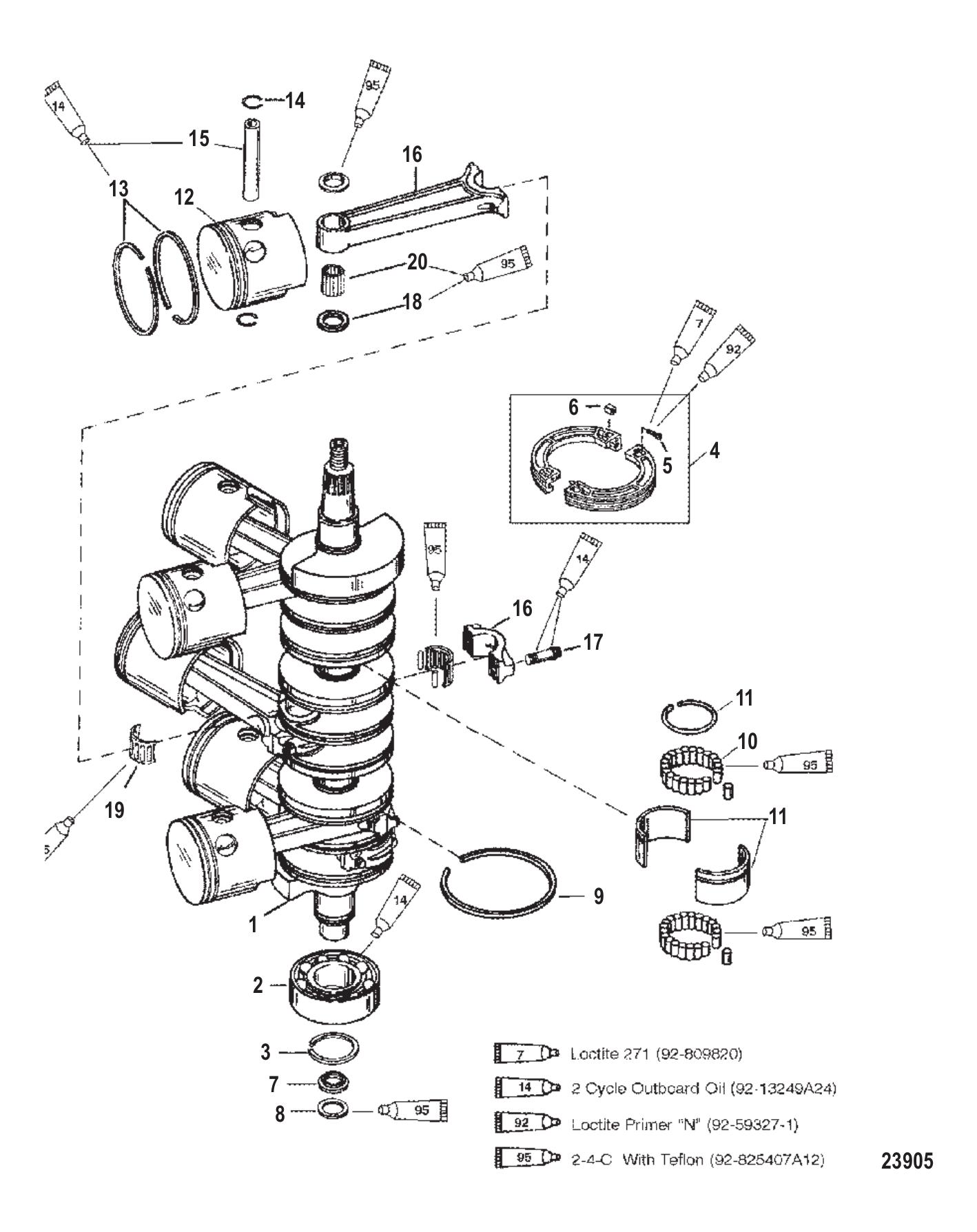

Parts for V-135 2-Stroke Carbureted Mercury Outboard Motor Crankshaft, Pistons & Connecting Rods
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 815791A92 | GASKET SET (1 required per assembly) |
  |
|
27-815791A92 - Engine Gasket Set [ More info ]
|
  |
|
27-27673 - Gasket Set [ More info ]
|
| #- | 812815R97 | PH 135/150 2.0-RM (135) (1 required per assembly) — Replaces: 812815T97, 878365T00 |
  |
|
812815R97 - Powerhead 135/150 2.0-R [ More info ] Unavailable |
| #- | 823434R97 | PH 150 EFI -RM (150/XR6/MAGNUM III) (1 required per assembly) — Replaces: 823434T97 |
  |
|
823434R97 - Powerhead 150 EFI -rm [ More info ] Unavailable |
| #- | 812817R97 | PH 175 -RM (175) (1 required per assembly) — Replaces: 812817T97 |
  |
|
812817R97 - Powerhead 175 -rm [ More info ] Unavailable |
| #- | 813043R97 | PH 200 -RM (200) (1 required per assembly) — Replaces: 813043T97 |
  |
|
813043R97 - Powerhead 200 -rm [ More info ] Unavailable |
| #1 | 9536T4 | CRANKSHAFT ASSY (1 required per assembly) |
  |
|
455-9536T 4 - CrankShaft Assembly [ More info ] Unavailable |
| #2 | 67923T | BEARING BALL (LOWER) (1 required per assembly) — Replaces: 67923 |
  |
|
30-67923T - Ball Bearing [ More info ]
|
| #3 | 67446 | RING (1 required per assembly) |
  |
|
53-67446 - Ring - Retaining [ More info ]
|
| #4 | 14513A09 | GEAR SEGMENT KIT DRIVE (1 required per assembly) — Replaces: 14513A3, 14513A2 |
  |
|
43-14513A09 - Drive Gear Assembly [ More info ]
|
| #5 | 854812 | SCREW (#6-32 X .630) SOCKET BUTTON HEAD (2 required per assembly) |
  |
|
10-854812 - Screw [ More info ]
|
| #6 | 854811 | NUT SPECIAL (#6-32) (2 required per assembly) |
  |
|
11-854811 - Nut, (#6-32 Special) [ More info ]
|
| #7 | 54196A6 | CARRIER ASSEMBLY (1 required per assembly) |
  |
|
54196A 6 - Carrier Assembly [ More info ]
|
| #8 | 65800 | PACKING (1 required per assembly) |
  |
|
|
| #9 | 67377T | RING SEALING CRANKSHAFT (7 required per assembly) — Replaces: 67377 |
  |
|
39-67377T - Seal Ring - Priced Individually [ More info ]
|
| #10 | 16756A6 | BEARING KIT (2 required per assembly) |
  |
|
31-16756A 6 - Bearing Kit [ More info ]
|
| #11 | NSS | NOT SOLD SEPARATE BEARING (2 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #12 | 7441T32 | PISTON-STBD-STD (STARBOARD-STANDARD) 135 (3 required per assembly) — Replaces: 7441A32 |
  |
|
765-7441T32 - Piston- Stbd-STD [ More info ]
|
| #12 | 7443A11 | PISTON-STBD-.015 (STARBOARD-.015 O.S.) 135 (AR required per assembly) |
  |
|
765-7443A11 - Piston - Stbd - .015 [ More info ]
|
| #12 | 7445T11 | PISTON-STBD-.030 (STARBOARD-.030 OS.) 135 (AR required per assembly) — Replaces: 7445A11 |
  |
|
765-7445T11 - Piston - Stbd - .030 [ More info ]
|
| #12 | 7442T32 | PISTON-PORT-STD (PORT-STANDARD) 135 (3 required per assembly) — Replaces: 7442A32 |
  |
|
765-7442T32 - Piston - Port - Std [ More info ]
|
| #12 | 7444A11 | PISTON-PORT-.015 (PORT-.015 O.S.) 135 (AR required per assembly) |
  |
|
765-7444A11 - Piston-.015 [ More info ]
|
| #12 | 7446A11 | PISTON-PORT-.030 (PORT-.030 O.S.) 135 (AR required per assembly) |
  |
|
765-7446A11 - Piston - Port - .030 [ More info ]
|
| #12 | 9738T9 | PISTON ASSY-STBD (STARBOARD-STANDARD) 150/XR6 MAGNUM III 175/200 (3 required per assembly) — Replaces: 9738A9 |
  |
|
785-9738T 9 - Piston Assembly - Stbd [ More info ]
|
| #12 | 9738T10 | PISTON-STBD-.015 (STARBOARD-.015 O.S.) 150/XR6 MAGNUM III 175/200 (AR required per assembly) — Replaces: 9738A10 |
  |
|
785-9738T10 - Piston - Stbd - .015 [ More info ]
|
| #12 | 9737T9 | PISTON ASSY-PORT (PORT-STANDARD) 150/XR6 MAGNUM III 175/200 (3 required per assembly) — Replaces: 9737A9 |
  |
|
785-9737T 9 - Piston Assembly - Port [ More info ]
|
| #12 | 9737A10 | PISTON-PORT-.015 (PORT-.015 O.S.) 150/XR6 MAGNUM III 175/200 (AR required per assembly) |
  |
|
785-9737A10 - Piston - Port - .015 [ More info ] Unavailable |
| #13 | 93481A12 | RING SET PISTON - STANDARD (STANDARD) 135 (1 required per assembly) |
  |
|
39-93481A12 - Rings - Standard [ More info ]
|
| #13 | 78918A4 | RING SET PISTON - .015 OVERSIZE (.015 O.S.) 135 (AR required per assembly) |
  |
|
39-78918A 4 - Piston Rings (4) .015 Oversize [ More info ]
|
| #13 | 85636A4 | RING SET PISTON - .030 OVERSIZE (.030 O.S.) 135 (AR required per assembly) |
  |
|
39-85636A 4 - Rings - .030 Oversize [ More info ]
|
| #13 | 822321A12 | RING KIT PISTON - STANDARD (STD.) 150/XR6 MAGNUM III 175/200 (1 required per assembly) |
  |
|
39-822321A12 - Rings - Standard [ More info ]
|
  |
|
18-3982 - Piston Rings, 39-822321A12 [ More info ]
|
| #13 | 822321A1 | RING KIT PISTON - .015 OVERSIZE (.015 O.S.) 150/XR6 MAGNUM III 175/200 (2 required per assembly) |
  |
|
39-822321A 1 - Rings - .015 [ More info ]
|
| #14 | 857196 | LOCK RING (12 required per assembly) — Replaces: 52035 |
  |
|
53-857196 - Lock Ring - Priced Individually [ More info ]
|
| #15 | NSS | NOT SOLD SEPARATE PISTON PIN (6 required per assembly) |
| #16 | 818141A13 | CONN ROD ASSY (6 required per assembly) — Replaces: 818141A2 |
  |
|
644-818141A13 - Connecting Rod Kit [ More info ]
|
| #17 | 763491 | SCREW (.312-24 X .875) (12 required per assembly) |
  |
|
0763491 - Speedometer Cap/Jumper (763491) [ More info ]
|
| #18 | 8M0012298 | THRUST WASHER (12 required per assembly) — Replaces: 812876 |
  |
|
12-8M0012298 - Thrust Washer [ More info ]
|
| #19 | 8M0045428 | BEARING KIT (6 required per assembly) — Replaces: 17514A2 |
  |
|
31-8M0045428 - 31-8M0045428 - BEARING KIT [ More info ] Unavailable Replaced by -8M0234886 |
  |
|
8M0234886 CAGE BEARING [ More info ]
|
| #20 | 8M0204691 | BRG-NEEDLE @200 (174 required per assembly) — Replaces: 822553 |
  |
|
298M0204691 - Bearing needle [ More info ]
|
