Parts for V-135 2-Stroke Carbureted Mercury Outboard Motor Reed Block & Cylinder Head

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > V-135 > 0G303046 - 0G760299 - USA > Reed Block & Cylinder Head

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Reed Block & Cylinder Head

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	815791A92	GASKET SET (1 required per assembly)
		27-815791A92 - Engine Gasket Set [ More info ] $207.49 Available to Order: Shipping delay up to 10 days.
#-	878365T00	ORD 812815R97 (135/150) (1 required per assembly) — Replaces: 812815A97, 812815T97
		878365T00 - Ord 812815R97, NLA [ More info ] Unavailable

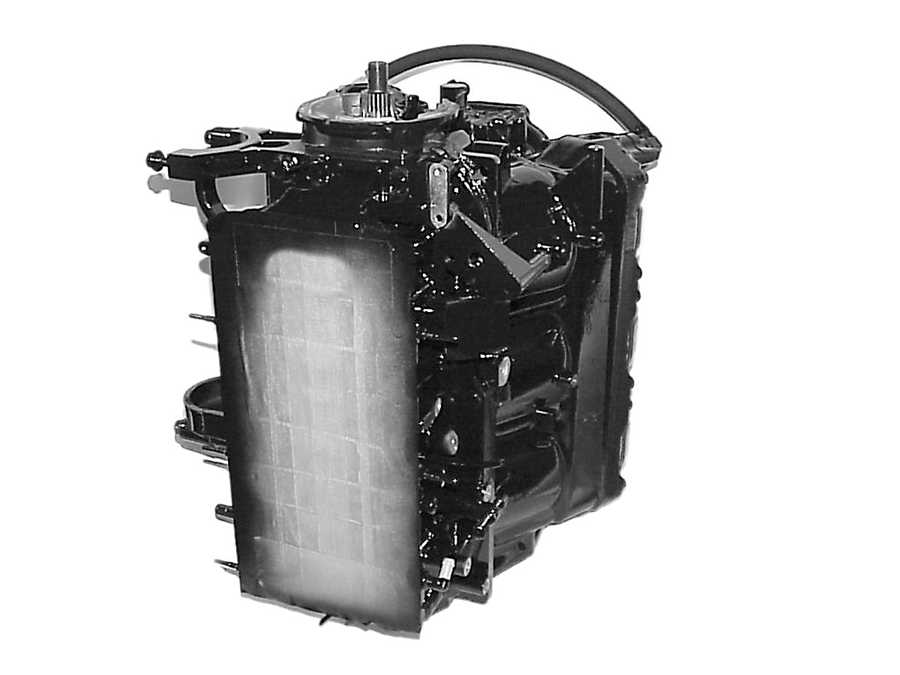

#-	823434R97	PH 150 EFI -RM (XR6/Magnum III) (1 required per assembly) — Replaces: 823434A97, 823434T97
		823434R97 - Powerhead 150 EFI -rm [ More info ] Unavailable
#-	812817R97	PH 175 -RM (175) (1 required per assembly) — Replaces: 812817A97, 812817T97
		812817R97 - Powerhead 175 -rm [ More info ] Unavailable
#-	813043R97	PH 200 -RM (200) (1 required per assembly) — Replaces: 813043A97, 813043T97
		813043R97 - Powerhead 200 -rm [ More info ] Unavailable
#1	18787A18	HEAD KIT-CYLINDER (135/150) (2 required per assembly) — Replaces: 18787F1
		18787A18 - Cylinder Head Kit [ More info ] Unavailable
#1	8M0143213	HEAD CYLINDER (XR6/ Magnum III 175) (2 required per assembly) — Replaces: 18488F1
		9008M0143213 - Cylinder Head [ More info ] $409.99 Available to Order: Shipping delay up to 10 days.
#1	18488F2	HEAD-CYLINDER (200) (2 required per assembly)
		18488F 2 - Cylinder Head,NLA [ More info ] Unavailable
#2	18785T	GASKET (135/150) (2 required per assembly) — Replaces: 187851
		27-18785T - Gasket [ More info ] $70.99 Available to Order: Shipping delay up to 10 days.
		18-3861 - Head Gasket 27-18785-1 [ More info ] $51.99 $51.29 4 In Stock.
#2	822844T05	GASKET (200) (2 required per assembly) — Replaces: 8228441, 822844T04
		27-822844T05 - Gasket [ More info ] $64.77 1 In Stock.
		18-3864 - Head Gasket 27-822844 [ More info ] $55.54 In Stock
#3	98534	SCREW (24 required per assembly)
		10-98534 - Screw [ More info ] Unavailable
#4	63779	PIN-DOWEL @3 (4 required per assembly)
		17-63779 - Pin, Dowel (.250 X .625) [ More info ] $5.09 1 In Stock.
#5	8M0204714	GASKET @4 (2 required per assembly) — Replaces: 62386, 62386001
		27-8M0204714 - Thermostat Gasket, Priced Individually [ More info ] $2.89 10+ In Stock.
#6	90390A1	COVER KIT-THERMO (2 required per assembly)
		90390A 1 - Thermostat Cover Kit [ More info ] $52.48 3 In Stock.
#7	75692	THERMOSTAT-143 (2 required per assembly)
		75692 - Thermostat, 147 Degrees [ More info ] $31.59 $26.99 10+ In Stock.
		18-3553 - Thermostat, 143 Degrees, 75692 [ More info ] $25.99 $23.96 10+ In Stock.
		75-00403 - Thermostat, 5005440 [ More info ] $23.99 $18.35 10+ In Stock.
#8	35386	SCREW @5 (4 required per assembly)
		10-35386 - Screw - Priced Individually [ More info ] $1.10 7 In Stock.
#9	687271	FITTING (1 required per assembly) — Replaces: 68727
		22-68727 1 - Fitting [ More info ] $32.68 1 In Stock.
#10	97465	SENDER TEMPERATURE STARBOARD (1 required per assembly)
		97465 - Temperature Sender [ More info ] $120.06 3 In Stock.
#11	814612	VACUUM VALVE (1 required per assembly)
		814612 - Vacuum Valve [ More info ] Unavailable
#12	77653101	HOSE (48.00 INCHES BULK) (CUT TO 12.75 INCH LENGTH) (1 required per assembly) — Replaces: 77653112, 7765378
		32-77653101 - Hose -48 Inch [ More info ] $61.99 Available to Order: Shipping delay up to 10 days.
#13	68728	FITTING (1 required per assembly)
		22-68728 - Fitting [ More info ] Unavailable
#14	816311T	TIE STRAP @100 (10 required per assembly) — Replaces: 816311
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#15	77653101	HOSE (48.00 INCHES BULK) (CUT TO 11.50 INCH LENGTH) (1 required per assembly) — Replaces: 77653112, 7765378
#16	815914	FITTING (1 required per assembly)
		22-815914 - Fitting [ More info ] $20.65 1 In Stock.
#17	13536A7	SENSOR ASSEMBLY TEMPERATURE PORT, 2-WIRE (1 required per assembly)
		13536A 7 - Temperature Sensor Assembly [ More info ] $61.36 3 In Stock.
#18	137151	RETAINER (2 required per assembly)
		13715 1 - Retainer [ More info ] $4.29 Available to Order: Shipping delay up to 10 days.
#19	98257	SCREW (2 required per assembly)
		10-98257 - Screw [ More info ] $1.10 9 In Stock.
#20	77653101	HOSE (48.00 INCHES BULK) (CUT TO 7.50 INCH LENGTH) (1 required per assembly) — Replaces: 77653112, 7765378
#21	43517A9	PLATE ASY-ADAPTOR (1 required per assembly)
		43517A 9 - Adaptor Plate Assembly [ More info ] $79.99 $67.74 10+ In Stock.
#22	28668	SCREW @5 (8 required per assembly)
		10-28668 - Screw - Priced Individually [ More info ] $1.70 4 In Stock.
#23	146972	GASKET (1 required per assembly)
		27-14697 2 - Gasket [ More info ] $17.09 Available to Order: Shipping delay up to 10 days.
		18-0644 - Gasket, 27-14697 2 [ More info ] $14.18 1 In Stock.
#24	855952T	REED BLOCK ASSY (6 required per assembly) — Replaces: 116453, 11645T3
		855952T - Reed Block Assembly [ More info ] Unavailable
		855952T 3 - Reed Block Assembly [ More info ] $155.49 7 In Stock.
#25	55098	J CLIP @5 (1 required per assembly)
		54-55098 - J Clip - Priced Individually [ More info ] $4.90 5 In Stock.
		54-8M0024808 - J-CLIP [ More info ] Unavailable
#26	23567	CLIP (1 required per assembly)
		54-23567 - Clip [ More info ] $5.79 $1.17 10+ In Stock.
#27	8M0084613	WASHER (1 required per assembly) — Replaces: 69205
		8M0084613 - Washer [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#28	878608	SCREW @2 (1 required per assembly) — Replaces: 812832
		10-878608 - Screw [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#29	55715	SCREW @2 (6 required per assembly)
		10-55715 - Screw - Priced Individually [ More info ] $2.79 $2.24 10+ In Stock.
#30	96529	SCREW (6 required per assembly)
		10-96529 - Screw [ More info ] Unavailable
