Parts for K 40 HP 2-Stroke Carbureted Mercury Outboard Motor Remote Control Attaching Kit

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > K 40 HP > 6f5-301827 & Up - Belgium > Remote Control Attaching Kit

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

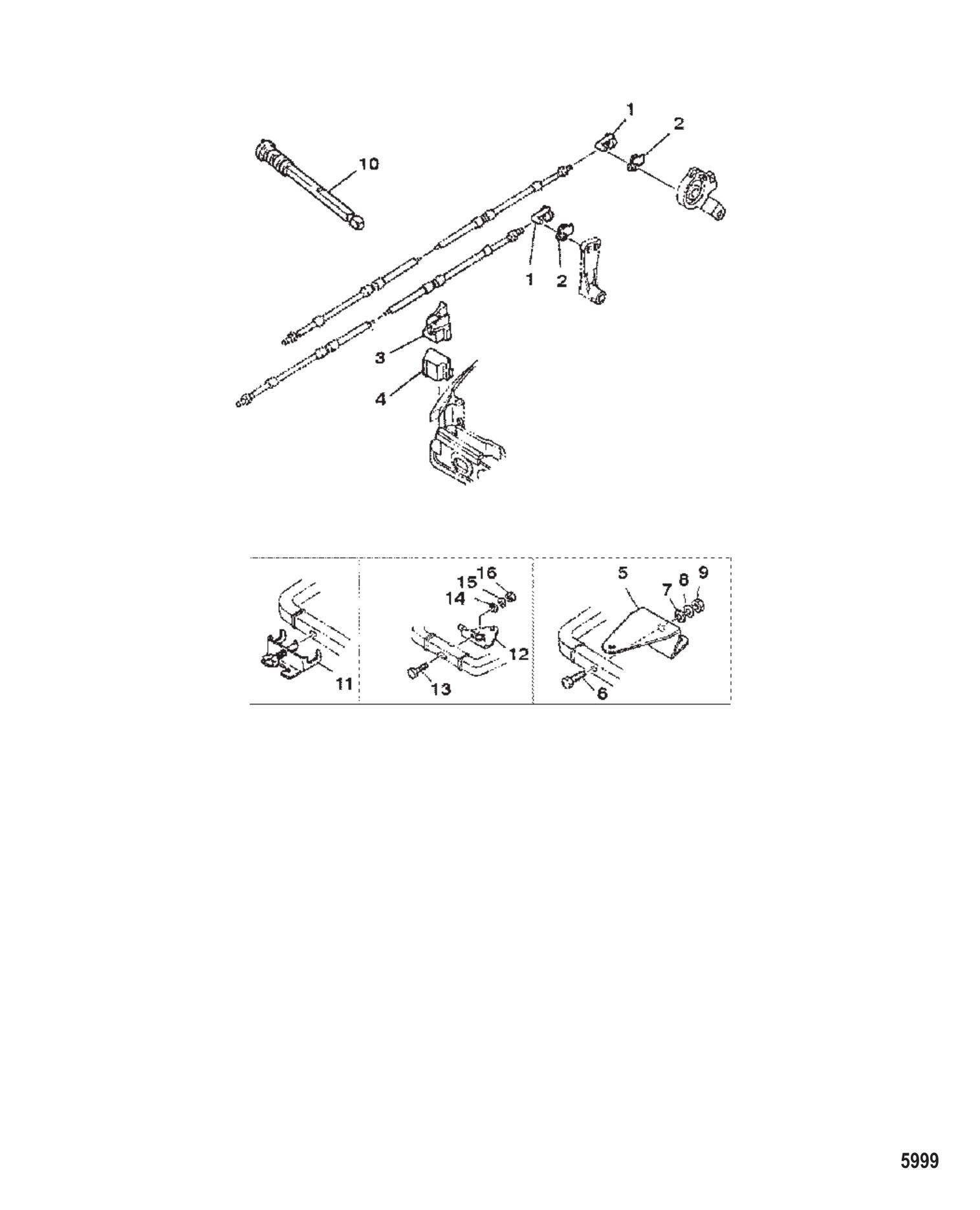

Remote Control Attaching Kit

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	11900A1	ATTACHING KIT (1 required per assembly)
		11900A 1 - Attaching Kit [ More info ] Unavailable
#1	11880M	CONNECTOR (2 required per assembly)
		11880M - Connector, NLA [ More info ] $6.00 $5.08 10+ In Stock.
#2	97742M	LINK (2 required per assembly) — Replaces: 11901M
		97742M - Retainer, NLA [ More info ] Unavailable
#3	11881M	CLAMP (1 required per assembly)
		11881M - Clamp [ More info ] $6.00 $5.08 10+ In Stock.
#4	11882M	GROMMET (1 required per assembly)
		25-11882M - Grommet,NLA [ More info ] Unavailable
#5	NSS	NOT SOLD SEPARATE BRACKET (STEERING GUIDE TYPE) (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#6	91636M	BOLT (STEERING GUIDE TYPE) (1 required per assembly)
		10-91636M - Screw, NLA [ More info ] $7.33 10+ In Stock.
#7	82220M	WASHER (STEERING GUIDE TYPE) (1 required per assembly)
		12-82220M - Washer - Priced Individually [ More info ] Unavailable
#8	82218M	LOCKWASHER (STEERING GUIDE TYPE)(USE WHERE APPLICABLE) (1 required per assembly)
		13-82218M - LockWasher - Priced Individually [ More info ] $4.30 10+ In Stock.
#9	81785M	LOCKNUT (STEERING GUIDE TYPE) (1 required per assembly)
		11-81785M - Nut, Nylon,NLA [ More info ] $6.51 10+ In Stock.
#10	11884M	HANDLE (1 required per assembly)
		11884M - HANDLE NLA [ More info ] Unavailable
#11	83727M	BRACKET (ROPE TYPE) [ML-306212] & Below (1 required per assembly)
		83727M - Bracket, NLA [ More info ] Unavailable
#12	11670T	BRACKET (BALL POST TYPE) (1 required per assembly) — Replaces: 11670M
		11670T - Bracket [ More info ] Unavailable
#13	91636M	BOLT (BALL POST TYPE) (1 required per assembly)
#14	82220M	WASHER (BALL POST TYPE) (1 required per assembly)
#15	82218M	LOCKWASHER (BALL POST TYPE)(USE WHERE APPLICABLE) (1 required per assembly)
#16	81785M	LOCKNUT (BALL POST TYPE) (1 required per assembly)
