Parts for 90, 900 (6 Cyl.) 2-Stroke Carbureted Mercury Outboard Motor Gear Housing (Driveshaft)

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 90, 900 (6 Cyl.) > 8071020 & Up - Australia > Gear Housing (Driveshaft)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

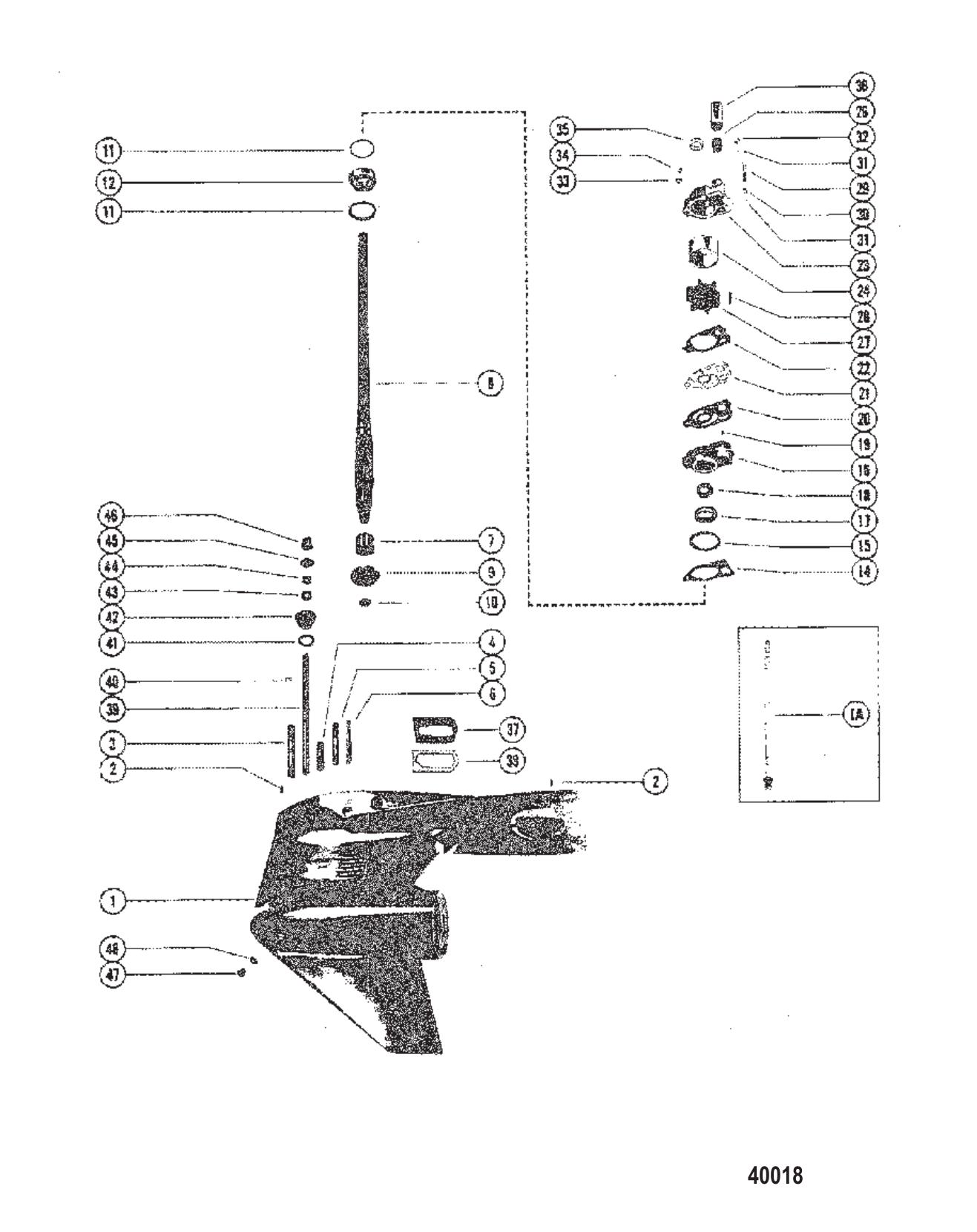

Gear Housing (Driveshaft)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	96148A8	PUMP KIT-WATER (1 required per assembly) — Replaces: 73804A3, 96148A5
		46-96148A 8 - Water Pump Kit, No Base [ More info ] $71.99 5 In Stock.
		18-3517 - Water Pump Kit, No Base, 46-96148A8 [ More info ] $54.29 $54.25 10+ In Stock.
		18-3317 - Mercury Water Pump Kit, With Base 18-3417 [ More info ] $69.61 In Stock
		46-96148T 8 - Water Pump Kit, No Base [ More info ] $83.49 1 In Stock.
		46-00090 - Water Pump Kit, No Base, 46-96148A8 [ More info ] $49.99 $46.62 10+ In Stock.
		46-00048 - Water Pump Kit w/Base, base is OEM 46-44292A3 equivalent [ More info ] $57.99 $51.04 6 In Stock.
		46-00047 - Water Pump Kit with Base 96148A8, uses base matching 46-57234A1 [ More info ] $53.99 $48.17 Available to Order: Shipping delay up to 10 days.
#-	55682A1	SEAL KIT (1 required per assembly)
		26-55682A 1 - Seal Kit [ More info ] $126.49 Available to Order: Shipping delay up to 10 days.
		18-2653 - Seal Kit, 26-55682A1 [ More info ] $116.65 5 In Stock.
		26-00146 - Seal Kit, 26-55682A1 [ More info ] $97.90 $84.23 5 In Stock.
#-	53168A1	PUMP KIT-HD WATER (1 required per assembly)
		53168A 1 - Chrome Heavy Duty Water Pump Kit, NLA [ More info ] Unavailable
#-	85653A87	GASKET SET (1 required per assembly) — Replaces: 85653A32
		27-85653A87 - Gasket Set [ More info ] $144.99 Available to Order: Shipping delay up to 10 days.
#1	7333T23	GEAR HOUSING (1 required per assembly) — Replaces: 7333A23
		1655-7333T23 - Gear Housing [ More info ] Unavailable
#2	8M0084726	PIN DOWEL GEAR HOUSING LOCATING (2 required per assembly) — Replaces: 46912, 85500
		178M0084726 - Pin - Dowel [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#3	57921	STUD (.437-14/.437-20 X 4.00) GEAR HOUSING (1 required per assembly)
		16-57921 - Stud [ More info ] $11.79 $6.61 6 In Stock.
#4	579203	STUD (.437-14/.437-20 X 2.060) GEAR HOUSING (2 required per assembly) — Replaces: 57920, 579201
		16-57920 3 - Stud [ More info ] Unavailable
		168M0133358 - Stud [ More info ] $17.29 Available to Order: Shipping delay up to 10 days.
#5	8M0034463	STUD (.312-24 X 3.38) WATER PUMP (1 required per assembly) — Replaces: 56297, 562972
		16-8M0034463 - Stud [ More info ] $17.89 Available to Order: Shipping delay up to 10 days.
#6	69501	STUD WATER PUMP (3-1/8&QUOT;) (2 required per assembly)
		16-69501 - Stud [ More info ] $3.59 2 In Stock.
#7	32898T	BEARING DRIVESHAFT (1 required per assembly) — Replaces: 32898
		31-32898T - Bearing [ More info ] Unavailable
#8	42646	DRIVESHAFT (1 required per assembly) — Replaces: 76036
		45-42646 - Drive Shaft, NLA [ More info ] Unavailable
#9	685483	GEAR PINION DRIVESHAFT (1 required per assembly) — Replaces: 68548, 685481
		43-68548 3 - Pinion Gear [ More info ] Unavailable
		43-68548T 3 - Pinion Gear [ More info ] $249.99 Available to Order: Shipping delay up to 10 days.
#10	35921	NUT (.625-18) PINION GEAR TO DRIVESHAFT (1 required per assembly)
		11-35921 - Nut, (.625-18) [ More info ] $7.99 10+ In Stock.
		18-3719 - Nut, 11-35921, 314730 [ More info ] $5.19 1 In Stock.
		18-2359 - Nut Kit [ More info ] $5.19 $3.51 Available to Order: Shipping delay up to 10 days.
#11	70412	SPACER BALL BEARING (1 required per assembly)
		23-70412 - Spacer - Bearing To Water Pump [ More info ] $18.23 9 In Stock.
#11	57007A1	SHIM BALL BEARING (AR required per assembly)
		15-57007A 1 - Shim Set [ More info ] $48.83 $41.36 4 In Stock.
#12	69220T	BEARING DRIVESHAFT (1 required per assembly) — Replaces: 69220
		31-69220T - Bearing [ More info ] $100.49 Available to Order: Shipping delay up to 10 days.
#14	856101	GASKET WATER PUMP (1 required per assembly) — Replaces: 33146, 85610
		27-85610 1 - Gasket - Priced Individually [ More info ] $2.77 10+ In Stock.
		27-856704 - Water Pump To Gear Housing Gasket [ More info ] $8.35 5 In Stock.
		27-8M0214962 - GASKET @5 [ More info ] Unavailable
#15	33145	O-RING (1.984 X .139) WATER PUMP (1 required per assembly)
		25-33145 - O-ring, (1.984 X .139) [ More info ] Unavailable
		18-7162-9 - (PK5) O-Ring 25-33145 [ More info ] $17.00 Available to Order: Shipping delay up to 10 days.
		25-8M0214923 - O RING, sold individually [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
#16	96146A5	BASE ASSEMBLY WATER PUMP (1 required per assembly)
		46-96146A 5 - Base Assembly [ More info ] $62.99 Available to Order: Shipping delay up to 10 days.
		46-00053 - Water Pump Base, EMP [ More info ] $49.99 $38.23 3 In Stock.
#17	94038	SEAL OIL WATER PUMP (1 required per assembly)
		26-94038 - Seal - Priced Individually [ More info ] $18.49 $17.76 9 In Stock.
		18-2007 - Seal 26-94038 [ More info ] $15.99 $14.69 2 In Stock.
#18	16977	SEAL OIL WATER PUMP (1 required per assembly) — Replaces: 79884
		26-16977 - Seal [ More info ] $18.69 In Stock
		18-2026 - Seal, 321453 [ More info ] $15.99 $15.82 10+ In Stock.
		18-2013 - Seal, 26-16977 [ More info ] $15.99 $14.81 2 In Stock.
#19	35973	PIN DOWEL WATER PUMP (AR required per assembly)
		17-35973 - Pin -Dowel - Priced Individually [ More info ] $1.80 10+ In Stock.
#20	856081	GASKET LOWER - WATER PUMP TO FACE PLATE (1 required per assembly) — Replaces: 32433, 85608
		27-85608 1 - Gasket - Priced Individually [ More info ] $6.18 10+ In Stock.
		18-2914-9 - Gasket 27-85608 2-Pack [ More info ] $6.27 Available to Order: Shipping delay up to 10 days.
		27-8M0090319 - Water Pump Gasket - Priced Individually [ More info ] $4.19 7 In Stock.
#21	8M0204677	PLATE-FACE (1 required per assembly) — Replaces: 32435, 324351
		8M0204677 - Wear Plate [ More info ] $9.29 1 In Stock.
#22	856091	GASKET UPPER - FACE PLATE TO WATER PUMP (1 required per assembly) — Replaces: 32434, 85609
		27-85609 1 - Gasket , Priced Individually [ More info ] Unavailable
		27-858524 - Water Pump Base Gasket [ More info ] $4.09 9 In Stock.
		18-2915-9 - Gasket 27-858524 2-Pack [ More info ] $6.14 Available to Order: Shipping delay up to 10 days.
#23	96148T1	BODY ASSEMBLY WATER PUMP (1 required per assembly) — Replaces: 96148A1
		46-96148T 1 - Water Pump Body [ More info ] $51.99 In Stock
		18-3116 - Housing 46-96148A1 [ More info ] $49.09 4 In Stock.
#24	48752T	INSERT WATER PUMP (1 required per assembly) — Replaces: 48752
		48752T - Water Pump Insert - Priced Individually [ More info ] $12.39 4 In Stock.
		18-3114 - SS Cup, 48752 [ More info ] $3.39 Available to Order: Shipping delay up to 10 days.
#26	38970	SEAL RUBBER - WATER INLET TUBE (1 required per assembly)
		26-38970 - Seal - Priced Individually [ More info ] $5.09 10+ In Stock.
		18-3110 - Seal, 26-38970 [ More info ] $3.49 $3.43 5 In Stock.
#27	899844	IMPELLER WATER PUMP (1 required per assembly) — Replaces: 89984, 899842
		47-89984 4 - Impeller [ More info ] Unavailable
		47-89984T 4 - Impeller [ More info ] $49.49 4 In Stock.
		18-3017 - Impeller 47-89984 [ More info ] $39.99 $23.95 10+ In Stock.
		47-00001 - Water Pump Impeller Mercury Force 47-89984T 4 [ More info ] $20.89 $20.72 10+ In Stock.
#28	8M0032834	KEY IMPELLER DRIVE (1 required per assembly) — Replaces: 56654
		28-8M0032834 - Key - Priced Individually [ More info ] $4.40 10+ In Stock.
		28-8M0214992 - KEY @5 [ More info ] Unavailable
#29	30720	SCREW (.250-20 X 2.25) WATER PUMP (AR required per assembly)
		10-30720 - Screw, NLA [ More info ] $5.37 10+ In Stock.
#29	96411	SCREW (#14-8 X 2.25) WATER PUMP (AR required per assembly)
		10-96411 - Screw [ More info ] $2.00 10+ In Stock.
		10-8M0215009 - SCREW [ More info ] Unavailable
#30	26992	LOCKWASHER (.250) STAINLESS STEEL WATER PUMP SCREW (1 required per assembly)
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#31	8M0204649	WASHER @10 WATER PUMP SCREW AND STUD (3 required per assembly) — Replaces: 29245
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 10+ In Stock.
#32	35888	NUT (.250-28) STAINLESS STEEL WATER PUMP SCREW (2 required per assembly)
		11-35888 - Nut (1/4-28) [ More info ] $6.89 $3.04 10+ In Stock.
		18-3722-9 - Lock Nut, 121731, 11-35888, Pack of 5 [ More info ] $11.99 $8.16 Available to Order: Shipping delay up to 10 days.
#33	36001	WASHER WATER PUMP STUD (1 required per assembly)
		12-36001 - Washer - Priced Individually [ More info ] $1.50 10+ In Stock.
		18-4270 - Washer 12-36001 [ More info ] $1.25 $0.91 2 In Stock.
#34	82670911	NUT (.312-24) STAINLESS STEEL NUT, WATER PUMP STUD (1 required per assembly) — Replaces: 35814
		11-826709 11 - Nut (5/16-24) [ More info ] $4.99 Available to Order: Shipping delay up to 10 days.
#35	30271	RING RUBBER DRIVESHAFT (1 required per assembly)
		25-30271 - Ring - Priced Individually [ More info ] $1.90 2 In Stock.
		18-7426-9 - O-Ring (PK2) 25-30271 [ More info ] $4.39 Available to Order: Shipping delay up to 10 days.
		25-8M0214918 - WATER PUMP HSG RUBBER RING O/B [ More info ] $1.99 6 In Stock.
#36	29804T	SLEEVE GUIDE - WATER INLET TUBE (1 required per assembly) — Replaces: 29804
		23-29804T - Sleeve - Priced Individually [ More info ] $8.99 9 In Stock.
		18-3109 - Tube 23-29804 [ More info ] $6.21 1 In Stock.
#37	37641001	SEAL @2 EXHAUST (1 required per assembly) — Replaces: 37641
		37641001 - Seal - Priced Individually [ More info ] Unavailable
#38	38051	PLATE SUPPORT - EXHAUST TUBE SEAL (1 required per assembly)
		38051 - Support, Exhaust Tube Seal Plate [ More info ] Unavailable
#39	76062A1	SHAFT ASSEMBLY SHIFT - LOWER (1 required per assembly)
		76062A 1 - Shift Shaft Assembly(Long) PNLA [ More info ] $53.88 1 In Stock.
#40	29641	E RING RETAINING - SHIFT SHAFT (1 required per assembly)
		53-29641 - E Ring - Priced Individually [ More info ] $1.80 8 In Stock.
#41	25439	O-RING (.862 X .103) SHIFT SHAFT BUSHING (1 required per assembly)
		25-25439 - O-Ring, Shaft Shaft Bushing [ More info ] $1.99 10+ In Stock.
#42	77631A2	BUSHING ASSEMBLY SHIFT SHAFT (1 required per assembly)
		23-77631A 2 - Bushing Assembly [ More info ] $30.21 4 In Stock.
		18-2155 - Bushing, 23-77631A2 [ More info ] $25.59 10 In Stock.
		23-00516 - Shift Bushing 23-77631A 2 [ More info ] $22.99 $22.10 1 In Stock.
#43	8164641	SEAL OIL SHIFT SHAFT BUSHING (1 required per assembly) — Replaces: 76384, 816464
		26-816464 1 - Seal [ More info ] Unavailable
		18-2054 - Oil Seal Mercury [ More info ] $12.60 8 In Stock.
		26-8M0204708 - Shift Shaft Oil Seal-O/B [ More info ] $16.99 Available to Order: Shipping delay up to 10 days.
		26-8M0246145 - SHIFT SHAFT OIL SEAL O/B [ More info ] $16.99 10 In Stock.
#44	77674	WASHER RUBBER - SHIFT SHAFT BUSHING (1 required per assembly)
		12-77674 - Washer, Rubber [ More info ] $1.80 4 In Stock.
		18-2316-9 - Washer, 12-77674, 5PK [ More info ] $4.69 $4.68 Available to Order: Shipping delay up to 10 days.
#45	78036	BASE LOWER (1 required per assembly) — Replaces: 39019
		78036 - Reverse Locking Base - Priced Individually [ More info ] $7.53 10+ In Stock.
#46	43308	CAM REVERSE LOCKING (1 required per assembly) — Replaces: 39021, 98316
		43308 - Reverse Locking Cam [ More info ] Unavailable
		43308 1 - Cam [ More info ] Unavailable
		43308T 1 - Cam [ More info ] $63.40 3 In Stock.
#47	79953Q2	SCREW KIT (.375-16 X .250) DRAIN GREASE FILLER AND VENT HOLE (1 required per assembly) — Replaces: 79953, 79953A2
		10-79953Q 2 - Screw Kit - Priced Individually [ More info ] Unavailable
		10-79953Q04 - Screw Kit - Priced Individually [ More info ] $7.49 7 In Stock.
		18-2244 - Plug Kit, 10-79953A2 [ More info ] $3.79 10+ In Stock.
		10-79953K04 - Drain Screw - Priced Individually [ More info ] $8.19 10+ In Stock.
#47	67892A05	PLUG KIT DRAIN (MAGNETIC) DRAIN (1 required per assembly) — Replaces: 67892, 67892A1
		22-67892A05 - Drain Plug Kit [ More info ] Unavailable
		22-67892A06 - Drain Plug Kit [ More info ] Unavailable
		22-8M0058389 - Screw Kit - Priced Individually [ More info ] $11.69 6 In Stock.
		18-23751-9 - Drain Screw , Package of 50 [ More info ] $346.09 In Stock
		18-2375 - Plug, 22-67892A1 [ More info ] $7.16 10+ In Stock.
		10-02683 - Drain Screw [ More info ] $6.39 $6.03 2 In Stock.
#48	191832	WASHER GREASE FILLER AND VENT HOLE SCREW (2 required per assembly) — Replaces: 20260, 19183
		12-19183 2 - Washer - Priced Individually [ More info ] Unavailable
		12-19183 3 - Seal -Blue - Priced Individually [ More info ] Unavailable
		18-2945-9 - Gasket 12-19183 2-Pack [ More info ] $2.41 10+ In Stock.
		12-19183Q02 - Seals, Pack of 4 (yes this is actually a pack of 4) [ More info ] $6.69 5 In Stock.
		12-19183K02 - Seal, Pack of 4 [ More info ] $7.29 8 In Stock.
		12-8M0187157 - SEAL-BLUE, Sold Individually [ More info ] $1.49 10+ In Stock.
		12-02108-1 - Drain Gasket (1 piece) [ More info ] $1.20 $0.85 10+ In Stock.
#--	7333T24	GEAR HOUSING COMPLETE (1 required per assembly) — Replaces: 7333A24
		1655-7333T24 - GEAR Housing, NLA [ More info ] Unavailable
#1A	85822A10	CONNECTOR ASSEMBLY SPEEDOMETER (1 required per assembly) — Replaces: 85822A1
		22-85822A10 - Connector Assembly [ More info ] $21.16 4 In Stock.
