Parts for 90, 900 (6 Cyl.) 2-Stroke Carbureted Mercury Outboard Motor Cylinder Block & Crankcase Assembly

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 90, 900 (6 Cyl.) > 7147088 - 7208847 - Canada > Cylinder Block & Crankcase Assembly

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

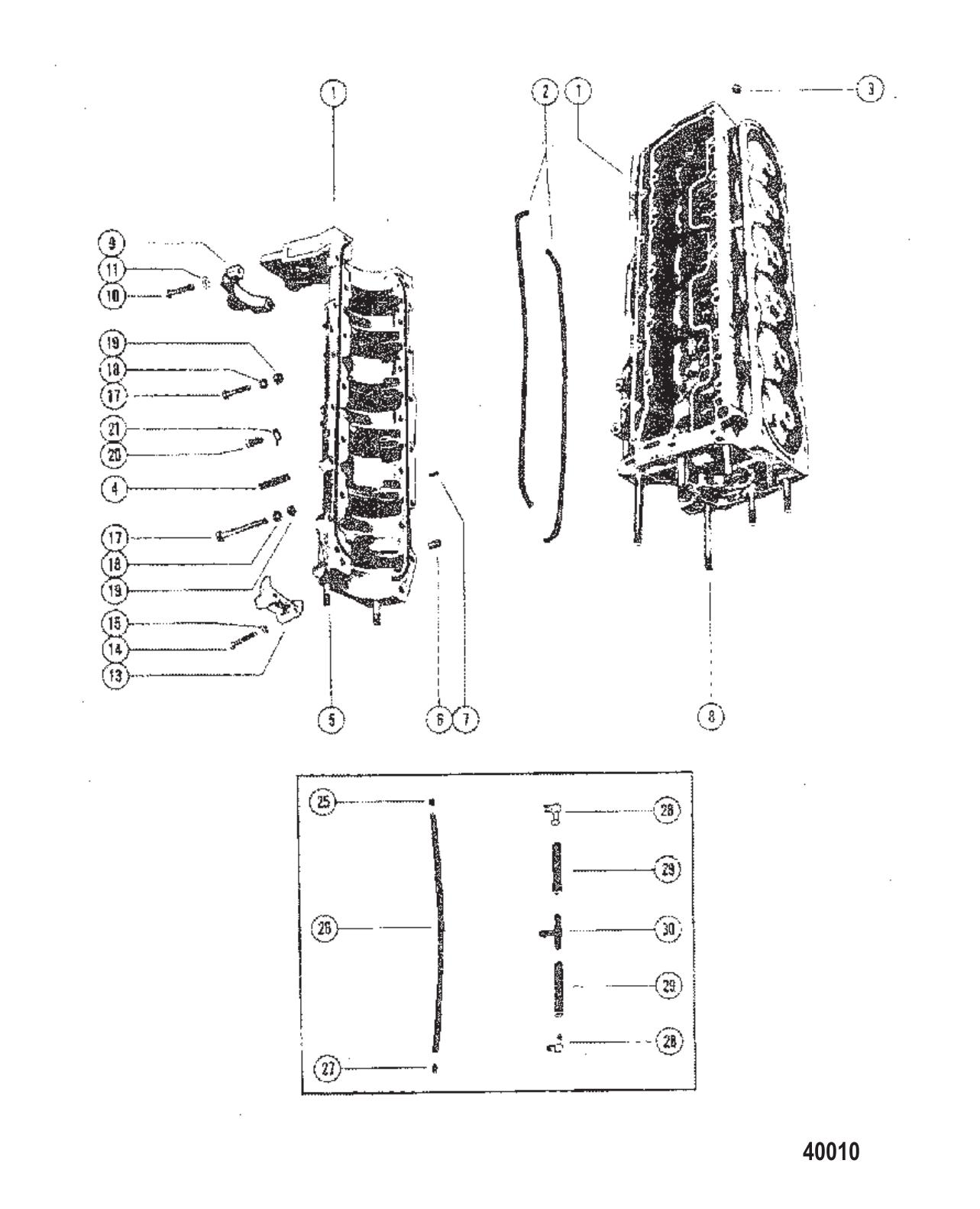

Cylinder Block & Crankcase Assembly

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	85653A87	GASKET SET (1 required per assembly) — Replaces: 85653A32
		27-85653A87 - Gasket Set [ More info ] $144.99 Available to Order: Shipping delay up to 10 days.
#-	97472A32	POWERHEAD MARINE [USA-6026609/Australia-8074513/Canada-7185073] & Up (1 required per assembly) — Replaces: 78911A80
		97472A32 - Powerhead MARINE,NLA [ More info ] Unavailable
#1	8311A4	CYLINDER BLOCK [USA-6026609/Australia-8074513/Canada-7185073] & Up (1 required per assembly) — Replaces: 7697A3
		852-8311A 4 - Cylinder Block,NLA [ More info ] Unavailable
#2	53862	GASKET CRANKCASE TO CYLINDER BLOCK (2 required per assembly)
		27-53862 - Crankcase To Cylinder Block Gasket [ More info ] $6.19 5 In Stock.
#3	66517	RESTRICTOR CRANKCASE BLEED (5 required per assembly)
		66517 - Bleed Restrictor - Priced Individually [ More info ] $3.69 Available to Order: Shipping delay up to 10 days.
#4	64936	STUD CARBURETOR (1-3/16&QUOT;) (6 required per assembly) — Replaces: 64280, 68164
		16-64936 - Stud, NLA [ More info ] $5.99 $5.07 10+ In Stock.
#5	64281	STUD (.375-16/.375-24 X 1.880) CRANKCASE TO EXTENSION PLATE (2 required per assembly)
		16-64281 - Stud, NLA [ More info ] $6.60 $5.59 10+ In Stock.
#6	43044	PIN DOWEL - WITHOUT HOLE (.375 X .625) CRANKCASE TO CYLINDER BLOCK (2 required per assembly) — Replaces: 20033
		17-43044 - Pin -Dowel-solid [ More info ] $2.49 1 In Stock.
#7	63779	PIN DOWEL (.250 X .625) CYLINDER BLOCK TO MAIN BEARING (3 required per assembly)
		17-63779 - Pin, Dowel (.250 X .625) [ More info ] $5.09 2 In Stock.
#8	64282	STUD (4 IN.) CYLINDER BLOCK TO PLATE (4&QUOT;) (6 required per assembly)
		16-64282 - Stud, NLA [ More info ] $18.88 $15.99 10+ In Stock.
#9	86473	COVER STARTER MOTOR - TOP (1 required per assembly)
		86473 - Bracket, NLA [ More info ] Unavailable
#10	73279	SCREW (.312-18 X 1.880) TOP COVER (1-7/8&QUOT;) (2 required per assembly) — Replaces: 69268
		10-73279 - Screw, NLA [ More info ] $4.70 10+ In Stock.
#11	8M0204647	LOCKWASHER @5 TOP COVER SCREWS (2 required per assembly) — Replaces: 26993
		138M0204647 - LOCKWASHER, Priced Individually [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#13	76867	COVER STARTER MOTOR - BOTTOM (1 required per assembly)
		76867 - Cover [ More info ] $27.69 Available to Order: Shipping delay up to 10 days.
#14	73279	SCREW (.312-18 X 1.880) BOTTOM COVER (1-7/8&QUOT;) (2 required per assembly) — Replaces: 69268
#15	8M0204647	LOCKWASHER @5 BOTTOM COVER SCREW (2 required per assembly) — Replaces: 26993
#17	57841	SCREW (.312-18 X 2.750) CRANKCASE TO CYLINDER BLOCK (3 required per assembly)
		10-57841 - Screw, NLA [ More info ] $2.27 $1.92 10+ In Stock.
#17	32293	SCREW (.312-24 X 1.75) CRANKCASE TO CYLINDER BLOCK (3 required per assembly)
		10-32293 - Screw - Priced Individually [ More info ] $2.17 10+ In Stock.
#17	73657	SCREW (.312-18 X 1.50) CRANKCASE TO CYLINDER BLOCK (20 required per assembly)
		10-73657 - Screw - Priced Individually [ More info ] $3.39 Available to Order: Shipping delay up to 10 days.
#17	74824	SCREW (.312-18 X 1.250) CRANKCASE TO CYLINDER BLOCK (1-1/4&QUOT;) (2 required per assembly) — Replaces: 53016
		10-74824 - Screw - Priced Individually [ More info ] $1.80 3 In Stock.
#18	22753	WASHER CRANKCASE SCREWS (25 required per assembly)
		12-22753 - Washer (5/16) [ More info ] $3.39 $1.90 10+ In Stock.
#19	29250	NUT (.312-24) CRANKCASE SCREWS (LOWER) (2 required per assembly)
		11-29250 - Nut (5/16-24) [ More info ] $2.89 $1.63 10+ In Stock.
#20	20359	SCREW (.375-16 X 1.00) CENTER MAIN BEARING LOCKING (2 required per assembly)
		10-20359 - Screw - Priced Individually [ More info ] $1.80 $0.37 10+ In Stock.
#21	20091	TAB WASHER BEARING LOCKING SCREW (2 required per assembly)
		14-20091 - Tab Washer - Priced Individually [ More info ] $1.80 10+ In Stock.
#25	42866	CHECK VALVE BLEED HOSE - UPPER (1 required per assembly) — Replaces: 77560
		21-42866 - Check Valve [ More info ] $35.99 $30.48 10+ In Stock.
#26	9938779	HOSE BLEED (22&QUOT;) (1 required per assembly) — Replaces: 5493579
		32-99387 79 - Hose -27 Inch [ More info ] $7.89 Available to Order: Shipping delay up to 10 days.
#27	428671	CHECK VALVE BLEED HOSE - LOWER (1 required per assembly) — Replaces: 77561, 42867
		21-42867 1 - Check Valve, NLA [ More info ] $30.29 10+ In Stock.
#28	996641	ELBOW BALANCE HOSE (2 required per assembly) — Replaces: 25885, 99664
		22-99664 1 - Elbow [ More info ] Unavailable
		22-99664 2 - Elbow [ More info ] $2.69 6 In Stock.
#29	830756109	HOSE (57.00 INCHES BULK) BALANCE - MAIN BEARING (6-1/4&QUOT;) (2 required per assembly) — Replaces: 34395A1, 99127109
		32-830756109 - Hose, 57 Inch [ More info ] Unavailable
		32-8M0047428 - Hose -57 Inch [ More info ] Unavailable
		32-8M0108355 - Hose, 57 Inch [ More info ] $52.49 In Stock
#30	8M0027799	TEE BALANCE HOSE [USA-6026608/Australia-8074512/Canada-7185072] & Below (1 required per assembly) — Replaces: 85578, 8M0027798
		22-8M0027799 - TEE [ More info ] Unavailable
		22-858553 1 - Fitting -tee [ More info ] Unavailable
#30	97231	TEE BLEED BASE [USA-6026609/Australia-8074513/Canada-7185073] & Up (1 required per assembly)
		22-97231 - Fitting, NLA [ More info ] Unavailable
