Parts for 90 (3 Cyl.) 2-Stroke Carbureted Mercury Outboard Motor Induction Manifold & Reed Block

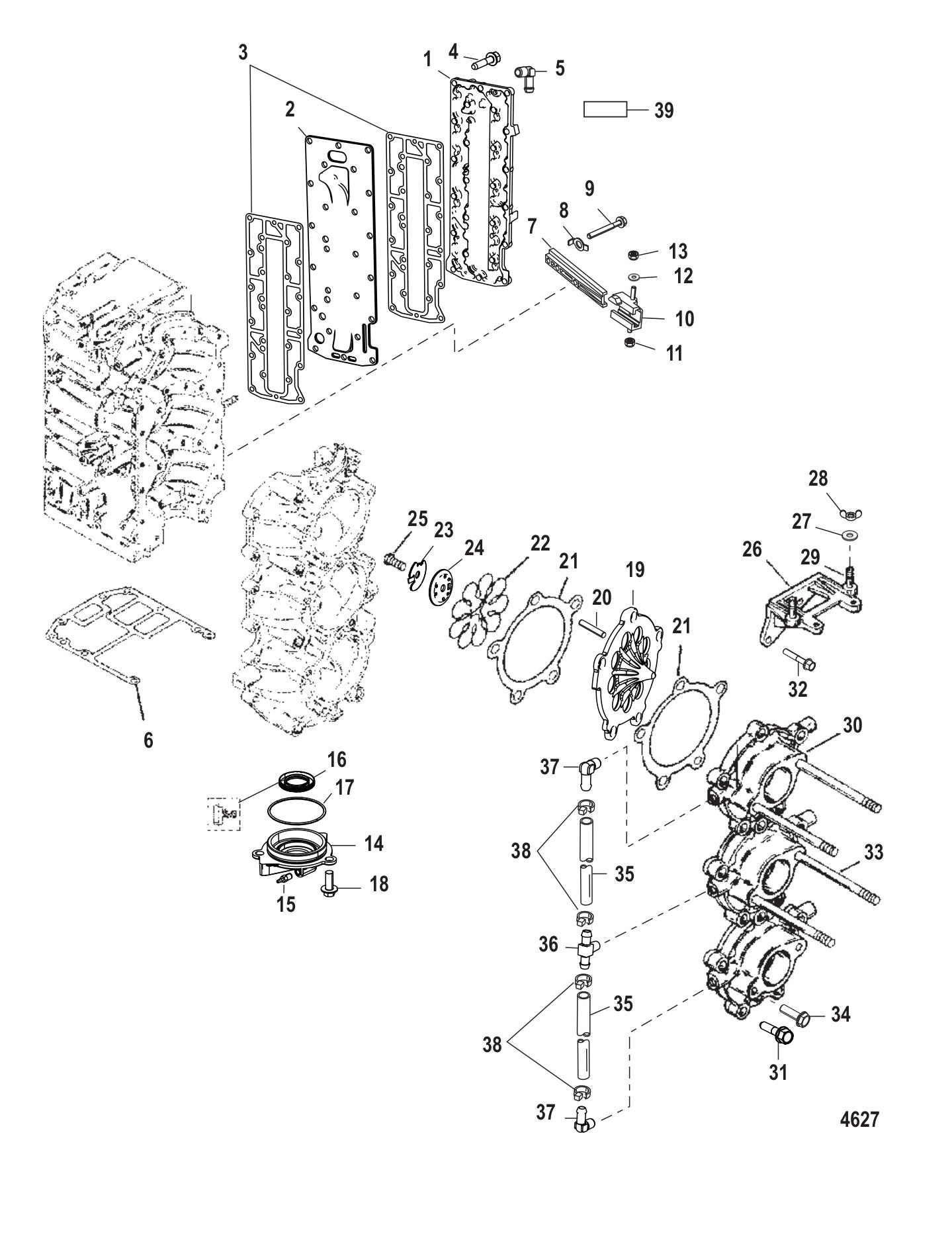

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 43004A99 | GASKET SET (1 required per assembly) |
  |
|
27-43004A99 - Engine Gasket Set [ More info ]
|
| #- | 898208A02 | PH 75/90(ELH/MLH) (Non Oil Injection) [0P401000] & Up (1 required per assembly) — Replaces: 855530T98 |
  |
|
898208A02 - Powerhead 75/90 (elh/Mlh) [ More info ] Unavailable |
| #- | 809837T97 | PH 75/90(OIL INJ) (Oil Injection) (1 required per assembly) |
  |
|
809837T97 - Powerhead 75/90 (oil Inj) [ More info ] Unavailable |
| #1 | 42878A2 | COV/PLATE KIT-EXH (1 required per assembly) |
  |
|
42878A 2 - Cov/Plate Kit - Exhaust [ More info ]
|
| #2 | NSS | NOT SOLD SEPARATE BAFFLE PLATE (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #3 | 43004009 | GASKET (2 required per assembly) — Replaces: 430047 |
  |
|
27-43004009 - Gasket [ More info ]
|
  |
|
18-2741 - Gasket, Exhaust Cover Plate 27-43004 7 [ More info ]
|
| #4 | 82127335 | SCREW (24 required per assembly) |
  |
|
10-821273 35 - Screw [ More info ]
|
| #5 | 996642 | ELBOW (1 required per assembly) |
  |
|
22-99664 2 - Elbow [ More info ]
|
| #6 | 430075 | GASKET (1 required per assembly) |
  |
|
27-43007 5 - Gasket [ More info ]
|
  |
|
18-0670 - Gasket, 27-43007 5 [ More info ]
|
| #7 | 42881A1 | SHIFT RAIL ASSY (1 required per assembly) |
  |
|
42881A 1 - Shift Rail Assembly [ More info ]
|
| #8 | 42981 | TAB WASHER (2 required per assembly) |
  |
|
14-42981 - Tab Washer [ More info ]
|
| #9 | 40001134 | SCREW (2 required per assembly) |
  |
|
10-40001134 - Screw [ More info ]
|
| #10 | 988851 | SLIDE (1 required per assembly) |
  |
|
|
| #11 | 401386 | NUT @5 (1 required per assembly) |
  |
|
11-40138 6 - Nut - Priced Individually [ More info ]
|
| #12 | 35459 | WASHER (1 required per assembly) |
  |
|
12-35459 - Washer (.265 X .620 X .06) [ More info ]
|
| #13 | 401386 | NUT @5 (1 required per assembly) |
| #14 | 858552T2 | END CAP ASSY (1 required per assembly) |
  |
|
1169-858552T 2 - End Cap Assembly [ More info ]
|
| #15 | 426585 | CHECK VALVE (1 required per assembly) |
  |
|
21-42658 5 - Check Valve [ More info ]
|
| #16 | 419533 | SEAL OIL (1 required per assembly) |
  |
|
26-41953 3 - Seal [ More info ]
|
| #17 | 89224 | O-RING (1 required per assembly) |
  |
|
25-89224 - O-ring (2.862 X .103) [ More info ]
|
| #18 | 4010825 | SCREW (3 required per assembly) |
  |
|
10-40108 25 - Screw [ More info ]
|
| #19 | 42963A11 | REED BLOCK ASSY (3 required per assembly) |
  |
42963A11 - Reed Block Assembly [ More info ] Unavailable |
|
  |
|
8M0219198 - REED BLOCK ASSY [ More info ]
|
| #20 | NSS | NOT SOLD SEPARATE DOWEL PIN (18 required per assembly) |
| #21 | 139376 | GASKET (6 required per assembly) |
  |
|
27-13937 6 - Gasket [ More info ]
|
  |
|
18-0320 - Gasket, 27-13937-6 [ More info ]
|
  |
|
27-27531 - Reed Block Gasket, 27-139376 [ More info ]
|
| #22 | 43018A1 | REED SET (3 required per assembly) |
  |
|
34-43018A 1 - Reed Kit [ More info ]
|
| #23 | 429821 | TAB WASHER (3 required per assembly) |
  |
|
14-42982 1 - Tab Washer [ More info ]
|
| #24 | 42924 | RETAINER (3 required per assembly) |
  |
|
42924 - Retainer [ More info ]
|
| #25 | 88421471 | SCREW (M6 X 16) (3 required per assembly) |
  |
|
10-884214 71 - Screw [ More info ]
|
| #26 | 8M0039350 | BRACKET (Non Oil Injection) (1 required per assembly) — Replaces: 8219441 |
  |
|
8M0039350 - Bracket [ More info ]
|
| #26 | 827514 | BRACKET (Oil Injection) (1 required per assembly) |
  |
|
827514 - Bracket [ More info ] Unavailable |
| #27 | 8M0204663 | WASHER @5 (2 required per assembly) — Replaces: 49221 |
  |
|
12-8M0204663 - Washer, Sold Individually [ More info ]
|
| #28 | 816872 | NUT-WING (2 required per assembly) |
  |
|
11-816872 - Wing Nut [ More info ]
|
| #29 | 8161949 | STUD (2 required per assembly) |
  |
|
16-816194 9 - Stud [ More info ]
|
| #30 | 884296T | M FOLD-INDUCTION (3 required per assembly) |
  |
|
884296T - Manifold - Induction [ More info ]
|
| #31 | 82127335 | SCREW (13 required per assembly) |
| #32 | 81742740 | SCREW (2 required per assembly) |
  |
|
10-817427 40 - Screw [ More info ]
|
| #33 | 824470 | STUD (4 required per assembly) |
  |
|
16-824470 - Stud [ More info ]
|
| #34 | 40001167 | SCREW (M8 X 110) (#3 CYLINDER) (2 required per assembly) |
  |
|
10-40001167 - Screw [ More info ]
|
| #35 | 8M0108349 | HOSE (70 INCHES BULK) (CUT TO 4.00 INCH LENGTH) (2 required per assembly) — Replaces: 830757130, 8M0047448 |
  |
|
32-8M0108349 - Hose-70 Inch [ More info ]
|
| #36 | 432881 | CONNECTOR (Electric) (1 required per assembly) |
  |
|
22-43288 1 - Connector [ More info ]
|
| #36 | 8585531 | FITTING-TEE (Manual) (1 required per assembly) |
  |
|
22-858553 1 - Fitting -tee [ More info ] Unavailable |
| #37 | 996642 | ELBOW (2 required per assembly) |
| #38 | 816311T | TIE STRAP @100 (AR required per assembly) |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #39 | 804666A05 | DECAL EPA LABEL INFORMATION (2005) (1 required per assembly) |
  |
|
37-804666A05 - REF OB SB 09-18,NLA [ More info ] Unavailable |
| #39 | 804666A06 | REF SOB 09-18 (1 required per assembly) |
  |
|
37-804666A06 - REF OB SB 09-18,NLA [ More info ] Unavailable |
| #39 | 804666A07 | REF SOB 09-18 (1 required per assembly) |
  |
|
37-804666A07 - REF OB SB 09-18,NLA [ More info ] Unavailable |
| #39 | 804666A08 | REF SOB 09-18 (1 required per assembly) |
  |
|
37-804666A08 - DECAL EPA Label I NLA [ More info ] Unavailable |
| #39 | NSS | NOT SOLD SEPARATE DECAL, EPA (2009 & UP) (Contact Mercury Marine Warranty Administration for Replacement-Service Bulletin 2009-18) (1 required per assembly) |
