Parts for 90 (3 Cyl.) 2-Stroke Carbureted Mercury Outboard Motor Tiller Handle Adaptor Kit (Jet 65)

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 90 (3 Cyl.) > 0P017000 - 0P325499 - Belgium > Tiller Handle Adaptor Kit (Jet 65)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

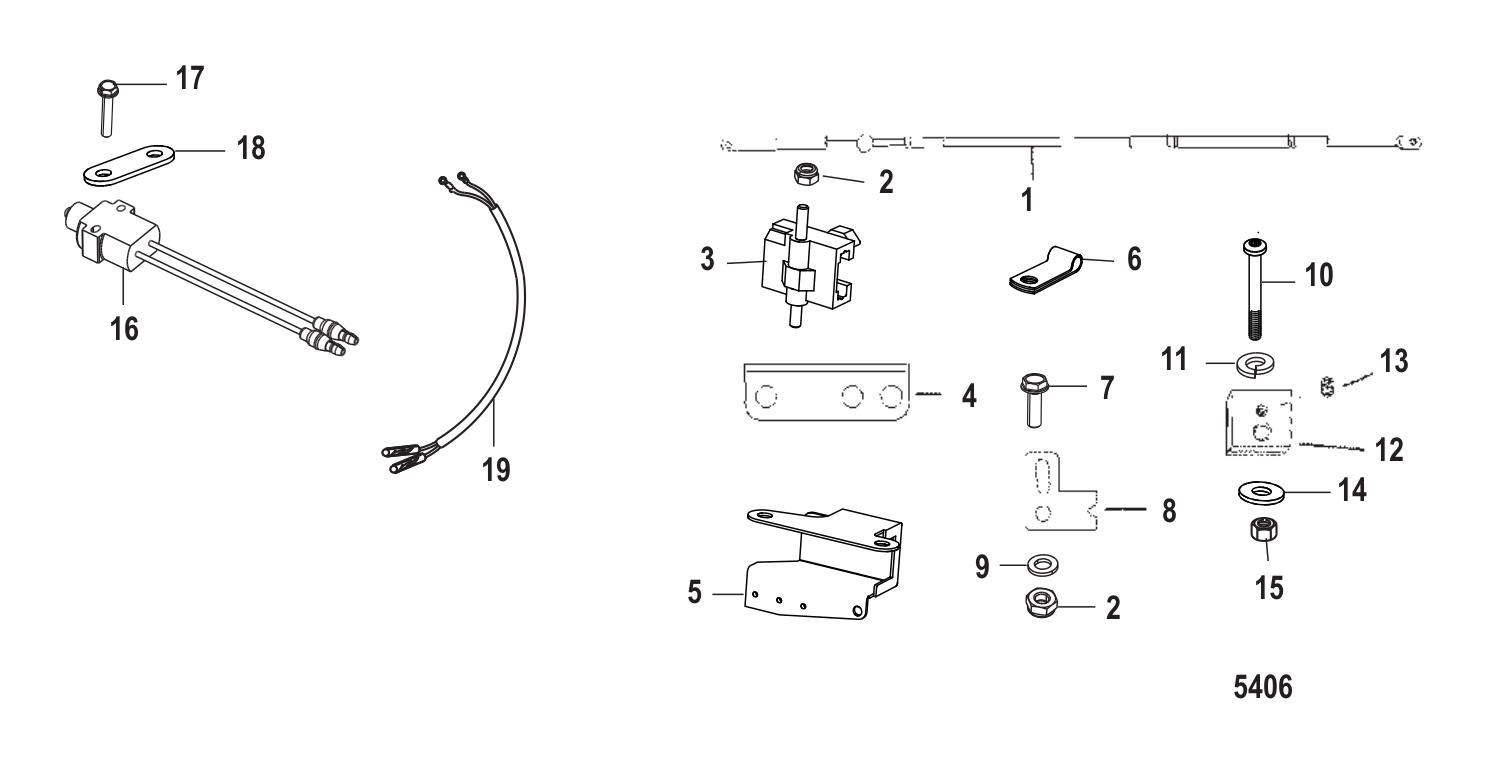

Tiller Handle Adaptor Kit (Jet 65)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	850000A3	ADAPTOR KT-TILLER (1 required per assembly)
		850000A 3 - Adaptor Kit - Tiller [ More info ] Unavailable
#1	832001A6	CABLE ASSEMBLY SHIFT (1 required per assembly)
		832001A 6 - Throttle/Shift Cable [ More info ] Unavailable
#2	401386	NUT (M6) STAINLESS STEEL (2 required per assembly)
		11-40138 6 - Nut - Priced Individually [ More info ] $5.09 9 In Stock.
#3	988851	SLIDE (1 required per assembly)
		98885 1 - Slide [ More info ] $33.53 5 In Stock.
#4	828095	BRACKET (1 required per assembly)
		828095 - Bracket [ More info ] $61.99 Available to Order: Shipping delay up to 10 days.
#5	824930T2	BRACKET (1 required per assembly)
		824930T 2 - Bracket [ More info ] $102.82 1 In Stock.
#6	8054441	CLIP (1 required per assembly) — Replaces: 805444
		54-805444 1 - Clip [ More info ] $13.69 Available to Order: Shipping delay up to 10 days.
#7	40011126	SCREW (M6 X 13) STAINLESS STEEL (1 required per assembly)
		10-40011126 - Screw - Priced Individually [ More info ] $3.69 10+ In Stock.
#8	828096	BLOCK SHIFT CABLE-RETAINING (1 required per assembly)
		828096 - Retaining Block [ More info ] $43.99 Available to Order: Shipping delay up to 10 days.
#9	8M0204649	WASHER @10 (1 required per assembly) — Replaces: 29245
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 10+ In Stock.
#10	71958	SCREW (.250-28 X 1.75) (1 required per assembly)
		10-71958 - Screw - Priced Individually [ More info ] $20.40 1 In Stock.
#11	26992	LOCKWASHER (.250) STAINLESS STEEL (1 required per assembly)
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#12	828094	BLOCK SHIFT CABLE-RETAINING (1 required per assembly)
		828094 - Shift Cable Block [ More info ] $263.49 Available to Order: Shipping delay up to 10 days.
#13	72734	SET SCREW (#10-32 X .310) (1 required per assembly)
		10-72734 - Screw [ More info ] $8.09 $1.62 10+ In Stock.
#14	35459	WASHER (1 required per assembly)
		12-35459 - Washer (.265 X .620 X .06) [ More info ] $1.70 2 In Stock.
#15	35888	NUT (.250-28) STAINLESS STEEL (1 required per assembly)
		11-35888 - Nut (1/4-28) [ More info ] $6.89 $3.04 10+ In Stock.
		18-3722-9 - Lock Nut, 121731, 11-35888, Pack of 5 [ More info ] $11.99 $8.16 Available to Order: Shipping delay up to 10 days.
#16	8M0052927	SWITCH ASSY (1 required per assembly) — Replaces: 813960A3
		878M0052927 - Switch Assembly [ More info ] $109.99 Available to Order: Shipping delay up to 10 days.
#17	88075020	SCREW (M3 X 20) (2 required per assembly) — Replaces: 4001168
		10-880750 20 - Screw [ More info ] $1.50 $0.85 10+ In Stock.
#18	824923	PLATE (1 required per assembly)
		824923 - Switch Plate [ More info ] $9.89 $7.92 10+ In Stock.
#19	824934A1	CABLE ASSEMBLY (1 required per assembly)
		84-824934A 1 - Cable Assembly, NLA [ More info ] Unavailable
