Parts for 120, 120sst S2000 2-Stroke Carbureted Mercury Outboard Motor Hydraulic Trim Pump Kit

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 120, 120sst S2000 > 0D030200 & Up - International > Hydraulic Trim Pump Kit

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Hydraulic Trim Pump Kit

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	87762A04	BRACKET ASSEMBLY TRIM PUMP MOUNTING (1 required per assembly) — Replaces: 87762A2
		87762A04 - Bracket Assembly [ More info ] $155.49 Available to Order: Shipping delay up to 10 days.
#1	818611A2	TRIM PUMP KIT (UP/DOWN) (1 required per assembly)
		818611A 2 - Trim Pump Kit [ More info ] $1,492.72 Available to Order: Shipping delay up to 10 days.
#1	818377A2	TRIM PUMP KIT (IN/OUT) (1 required per assembly)
		818377A 2 - Trim Pump Kit [ More info ] $1,427.36 Available to Order: Shipping delay up to 10 days.
#2	818567	BRACKET (1 required per assembly)
		818567 - Bracket [ More info ] $38.48 2 In Stock.
#3	38837	SCREW (.312-18 X 1.12) (1 required per assembly)
		10-38837 - Screw - Priced Individually [ More info ] $3.19 $1.79 10+ In Stock.
#4	57792	WASHER (1 required per assembly)
		12-57792 - Washer - Priced Individually [ More info ] $1.40 Available to Order: Shipping delay up to 10 days.
#5	34948	SPACER (2 required per assembly)
		23-34948 - Spacer [ More info ] $12.29 10+ In Stock.
#6	65999A12	CABLE ASSEMBLY GROUND (1 required per assembly)
		84-65999A12 - Cable Assembly [ More info ] $2.09 Available to Order: Shipping delay up to 10 days.
#7	79138A9	CABLE ASSEMBLY (6.00 FEET) BLACK-NEGATIVE (NEGATIVE) (1 required per assembly)
		84-79138A 9 - Wire Assembly [ More info ] $72.99 $69.92 5 In Stock.
#8	92051	SCREW (10-16 X .75) (1 required per assembly)
		10-92051 - Screw [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#9	853654T02	SOLENOID (2 required per assembly) — Replaces: 76528A1, 76528T1
		89-853654T02 - Starter Solenoid [ More info ] $98.34 Available to Order: Shipping delay up to 10 days.
#10	41508	SCREW (.250-20 X .500) STAINLESS STEEL (4 required per assembly)
		10-41508 - Screw [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
#11	20110	NUT (#10-32) (4 required per assembly)
		11-20110 - Nut (M10X32) [ More info ] $1.70 10+ In Stock.
#12	22753	WASHER (4 required per assembly)
		12-22753 - Washer (5/16) [ More info ] $3.39 $1.90 10+ In Stock.
#13	8M0204646	NUT @5 (4 required per assembly) — Replaces: 26484
		11-8M0204646 - NUT @5 [ More info ] Unavailable
#14	65999A11	CABLE ASSEMBLY (1 required per assembly)
		84-65999A11 - Cable Assembly [ More info ] $1.90 Available to Order: Shipping delay up to 10 days.
#15	79139A27	CABLE ASSEMBLY BATTERY (POSITIVE) (1 required per assembly)
		84-79139A27 - Cable Assembly [ More info ] $20.26 Available to Order: Shipping delay up to 10 days.
#16	79139A26	CABLE ASSEMBLY RED (1 required per assembly)
		84-79139A26 - Cable Assembly [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#17	46265	BOOT (3 required per assembly)
		46265 - Boot [ More info ] $4.19 $3.36 5 In Stock.
#18	77366	FITTING (2 required per assembly)
		22-77366 - Connector [ More info ] $12.79 5 In Stock.
#19	39609	FITTING (1 required per assembly)
		39609 - Shield, NLA [ More info ] $6.00 $5.08 1 In Stock.
#20	87762	BRACKET (1 required per assembly)
		87762 - Bracket [ More info ] $149.99 $143.92 9 In Stock.
#21	87760T	MOUNTING PLATE (1 required per assembly) — Replaces: 87760
		87760T - Plate [ More info ] $81.99 Available to Order: Shipping delay up to 10 days.
#22	39349	SCREW (.312-18 X .750) STAINLESS STEEL (1 required per assembly)
		10-39349 - Screw - Priced Individually [ More info ] $1.80 $1.44 10+ In Stock.
#23	8M0204647	LOCKWASHER @5 (1 required per assembly) — Replaces: 26993
		138M0204647 - LOCKWASHER, Priced Individually [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#24	90271	SCREW (.375-16 X .62) (2 required per assembly)
		10-90271 - Screw - Priced Individually [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#25	63826	SCREW (.375-16 X 2.50) (2 required per assembly)
		10-63826 - Screw [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#26	82670912	NUT (.375-16) STAINLESS STEEL (2 required per assembly) — Replaces: 68411
		11-826709 12 - Nut, (.375-16) Stainless Steel [ More info ] $6.79 $3.81 10+ In Stock.
#27	58643	LOCKWASHER (.375) (2 required per assembly)
		13-58643 - LockWasher [ More info ] $1.80 $1.30 10+ In Stock.
#28	856774	WASHER (.406 X .750 X .105) STAINLESS STEEL (4 required per assembly) — Replaces: 45175
		12-856774 - Washer, (.406 X .750 X .105) Stainless Steel [ More info ] Unavailable
		128M0214963 - WASHER Note: Priced Individually [ More info ] $2.59 10+ In Stock.
#29	61703A2	HARNESS ASSY (NA required per assembly)
		84-61703A 2 - Harness, NLA [ More info ] Unavailable
#30	61626A1	PLATE ASSEMBLY TRIM SWITCH (1 required per assembly)
		61626A 1 - Bracket, NLA [ More info ] Unavailable

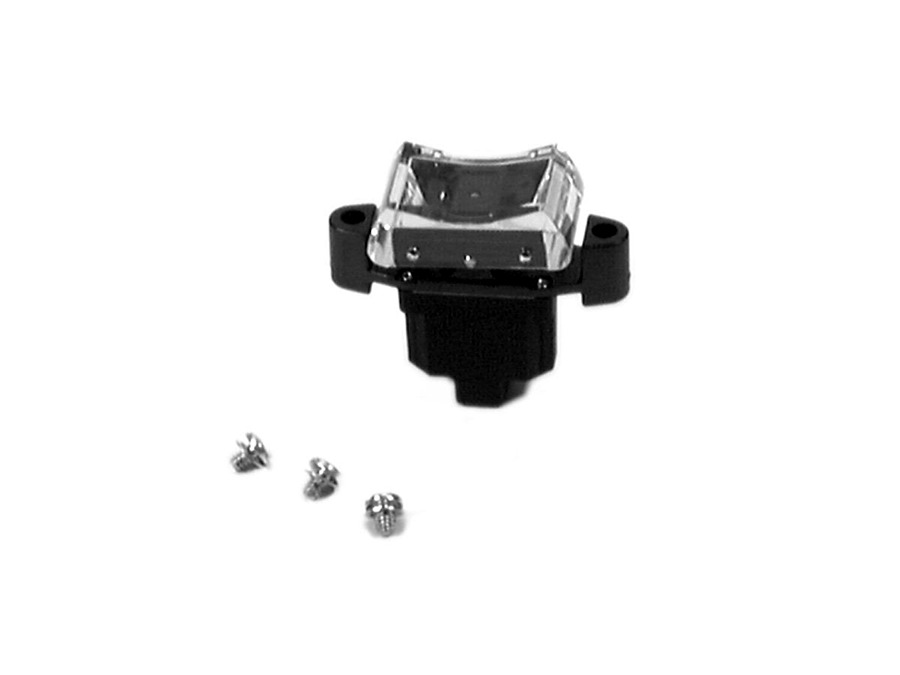

#31	61691	SWITCH (4 required per assembly)
		87-61691 - Switch [ More info ] $192.34 Available to Order: Shipping delay up to 10 days.
