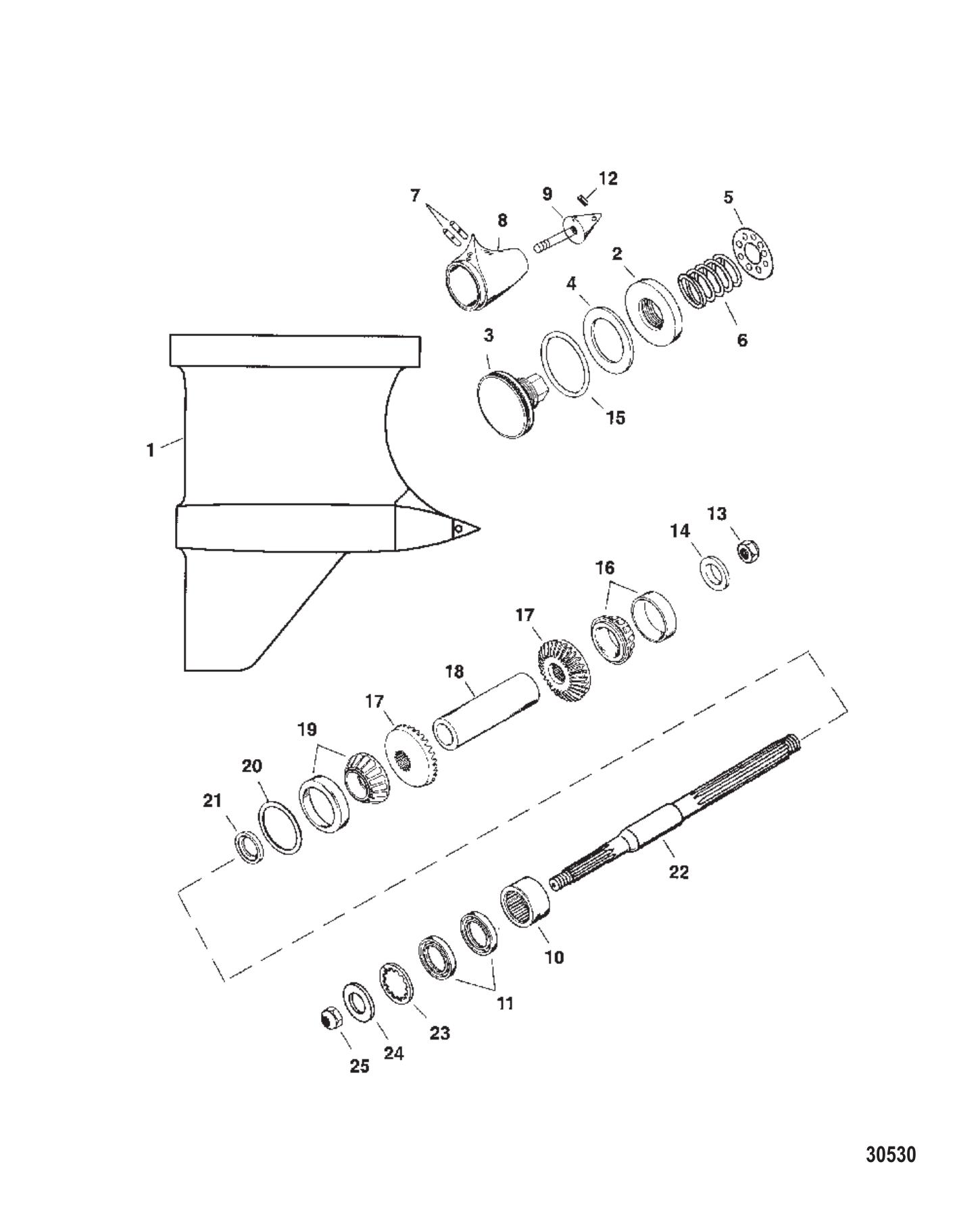

Parts for 120, 120sst S2000 2-Stroke Carbureted Mercury Outboard Motor Gear Housing (Prop Shaft) (IV SSM)
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 8M0084204 | G CASE OB IV SSM (COMPLETE) (1 required per assembly) — Replaces: 818877A13, 818877A19 |
  |
|
16008M0084204 - G CASE OB IV SSM [ More info ] Unavailable |
| #1 | 818877A20 | GEAR HOUSING ASSEMBLY (1 required per assembly) — Replaces: 818877A14 |
  |
|
1681-818877A20 - Gear Housibg-obiv [ More info ] Unavailable |
| #2 | 65683 | NUT (1 required per assembly) |
  |
|
11-65683 - Nut [ More info ] Unavailable |
| #3 | NSS | NOT SOLD SEPARATE ANCHOR STUD (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #4 | 65690 | WASHER (1 required per assembly) |
  |
|
12-65690 - Thrust Washer [ More info ] Unavailable |
| #5 | 65682 | DISC (1 required per assembly) |
  |
|
65682 - Locking Disk [ More info ] Unavailable |
| #6 | 65691 | SPRING (1 required per assembly) |
  |
|
24-65691 - Spring [ More info ] Unavailable |
| #7 | 23803 | PIN (2 required per assembly) |
  |
|
17-23803 - Pin -groove [ More info ] Unavailable |
| #8 | NSS | NOT SOLD SEPARATE NOSE CONE (1 required per assembly) |
| #9 | 87265 | SCREW (1 required per assembly) |
  |
|
10-87265 - Screw [ More info ] Unavailable |
| #10 | 8M0050403 | BEARING ROLLER (1 required per assembly) — Replaces: 55831 |
  |
|
31-8M0050403 - Bearing [ More info ]
|
| #11 | 16553 | SEAL OIL (2 required per assembly) |
  |
|
26-16553 - Seal [ More info ] Unavailable |
| #12 | 65700 | PLUG (1 required per assembly) |
  |
|
65700 - Plug [ More info ] Unavailable |
| #13 | 8M2014641 | NUT (.750-16) (1 required per assembly) — Replaces: 25599, 82671323 |
  |
|
11-8M2014641 - Nut - Priced Individually [ More info ]
|
| #14 | 85354 | BUSHING (1 required per assembly) |
  |
|
23-85354 - Bushing [ More info ] Unavailable |
| #15 | 85355 | QUAD RING (1 required per assembly) |
  |
|
25-85355 - Quad Ring [ More info ] Unavailable |
| #16 | 35924T1 | BEARING ASSEMBLY (FRONT) (1 required per assembly) |
  |
|
31-35924T 1 - Bearing [ More info ] Unavailable |
| #17 | 818931A2 | GEAR SET (1 PINION/1 DRIVEN) (2 required per assembly) |
  |
|
43-818931A 2 - Gear Set [ More info ] Unavailable |
| #18 | 39712 | SPACER (1 required per assembly) |
  |
|
23-39712 - Spacer [ More info ] Unavailable |
| #19 | 65695A1 | BEARING ASSEMBLY (REAR) (1 required per assembly) |
  |
|
31-65695A 1 - Bearing [ More info ] Unavailable |
| #20 | 8M0063268 | SHIM SET (1 required per assembly) — Replaces: 38657A1 |
  |
|
15-8M0063268 - Shim Set [ More info ]
|
| #21 | 39696 | WASHER (1 required per assembly) |
  |
|
12-39696 - Washer [ More info ] Unavailable |
| #22 | 8M0076741 | SHAFT PROPELLER (1 required per assembly) — Replaces: 65711, 8M0053616 |
  |
|
448M0076741 - Prop Shaft [ More info ] Unavailable |
| #23 | 39701 | WASHER (1 required per assembly) |
  |
|
12-39701 - Washer, Splined [ More info ]
|
| #24 | 39698 | WASHER (1 required per assembly) |
  |
|
12-39698 - Washer, Flat [ More info ]
|
| #25 | 52707Q1 | PROP NUT KIT (.750-16) (1 required per assembly) |
  |
|
11-52707Q 1 - Prop Nut Kit - Priced Individually [ More info ]
|
  |
|
18-3701 - Nut Kit, 11-52707A1 [ More info ]
|
  |
|
18-3700 - Prop Nut Only, 11-52707 [ More info ]
|
  |
|
11-52707T 1 - Prop Nut Kit - Priced Individually [ More info ]
|
  |
|
11-00122 - Prop Nut Kit [ More info ]
|
