Parts for 9.8, (Merc 110) 2-Stroke Carbureted Mercury Outboard Motor Bottom Cowl & Shift Linkage

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 9.8, (Merc 110) > 8057545 & Up - Australia > Bottom Cowl & Shift Linkage

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

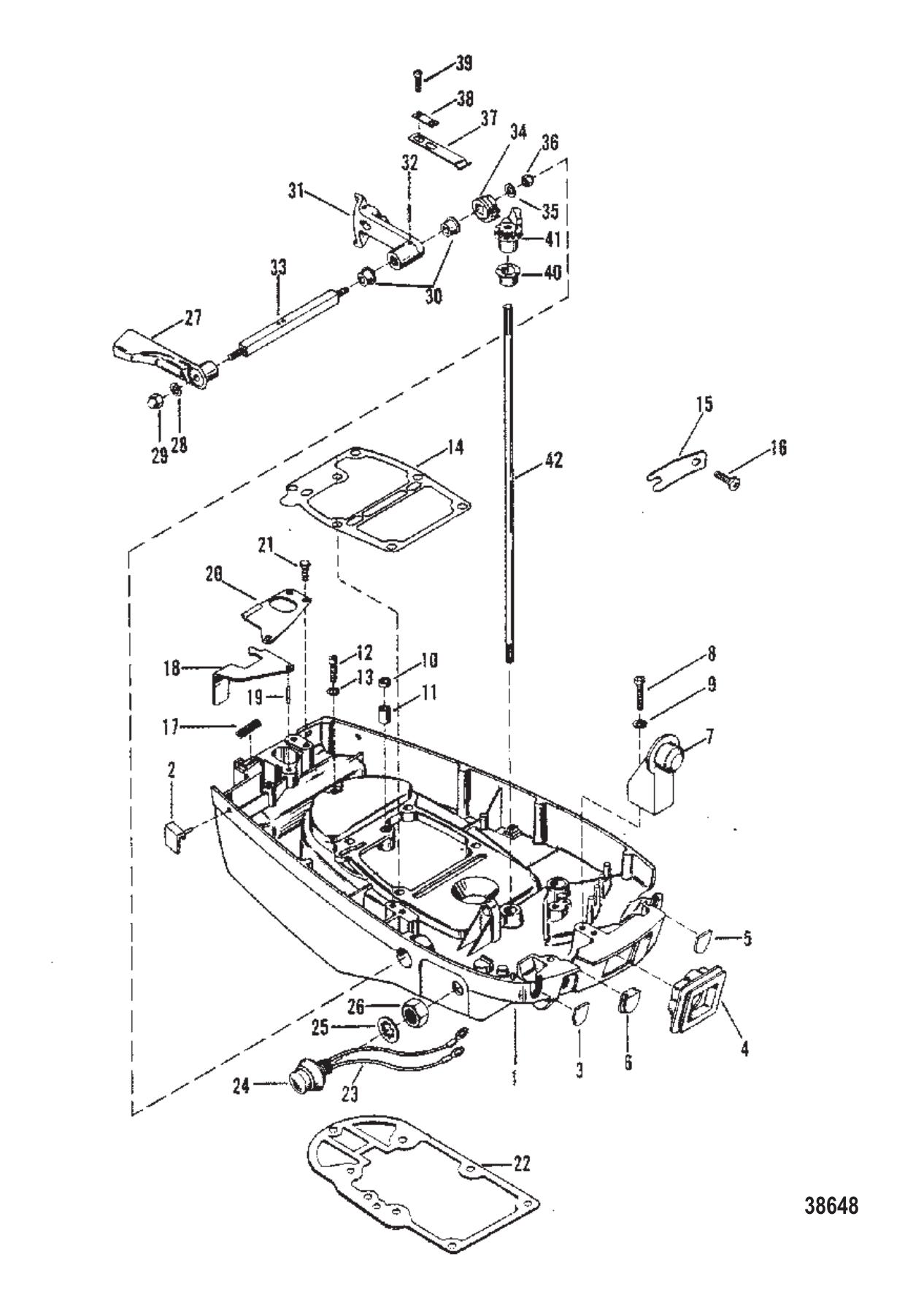

Bottom Cowl & Shift Linkage

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	89014A80	GASKET/SEAL SET ( required per assembly)
		27-89014A80 - Gasket Set [ More info ] Unavailable
#1	6587A5	COWL ASSEMBLY BOTTOM (1 required per assembly)
		2159-6587A 5 - BOTTOM COWL,NLA [ More info ] Unavailable
#2	95925	PLUG BOTTOM COWL (3 required per assembly)
		19-95925 - Plug [ More info ] $5.19 10+ In Stock.
#3	74360	PLUG BOTTOM COWL (1 required per assembly)
		74360 - PLUG,NLA [ More info ] Unavailable
#4	39778	GROMMET CHOKE SHAFT - BOTTOM COWL (1 required per assembly)
		39778 - Boot, NLA [ More info ] Unavailable
#5	66353	COVER ACCESS HOLE (1 required per assembly)
		66353 - Access Hole Cover, NLA [ More info ] Unavailable
#6	65479	COVER ACCESS HOLE (1 required per assembly)
		65479 - Cover, NLA [ More info ] $4.40 1 In Stock.
#7	39474	ANCHOR LATCH - BOTTOM COWL (1 required per assembly)
		39474 - Anchor, NLA [ More info ] $29.99 $25.39 4 In Stock.
#8	22483	SCREW (.250-28 X 1.12) LATCH ANCHOR (2 required per assembly)
		10-22483 - Screw, NLA [ More info ] $1.76 $1.49 10+ In Stock.
#9	26992	LOCKWASHER (.250) STAINLESS STEEL LATCH ANCHOR SCREW (2 required per assembly)
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#10	13127	SPACER NYLON - WATER OUTLET TUBE (1 required per assembly) — Replaces: 86214
		23-13127 - Spacer [ More info ] $5.39 1 In Stock.
#11	36556	SEAL (.500 INCH OUTSIDE DIAMETER) RUBBER - WATER OUTLET TUBE (1 required per assembly)
		26-36556 - Seal - Priced Individually [ More info ] $4.59 6 In Stock.
#12	38111	SCREW BOTTOM COWL (3/4&QUOT;) (1 required per assembly)
		10-38111 - Screw, NLA [ More info ] $2.25 $1.91 10+ In Stock.
#13	26992	LOCKWASHER (.250) STAINLESS STEEL BOTTOM COWL SCREW (1 required per assembly)
#14	89937	GASKET POWERHEAD TO ADOPTOR PLATE (1 required per assembly)
		27-89937 - Powerhead To Adaptor Plate Gasket [ More info ] $5.99 5 In Stock.
#15	74354	RETAINER ELECTRIC (1 required per assembly)
		74354 - Retainer [ More info ] $8.09 $6.85 1 In Stock.
#16	48408	SCREW @5 ELECTRIC (1 required per assembly)
		10-48408 - Screw - Priced Individually [ More info ] $2.29 Available to Order: Shipping delay up to 10 days.
#17	78810	SPRING CALBE TO ARM LATCH (1 required per assembly)
		24-78810 - Spring, Cable To Arm Latch,NLA [ More info ] $1.76 10 In Stock.
#18	78809	LATCH ARM - BOTTOM COWL (1 required per assembly)
		78809 - Lever [ More info ] $23.70 10 In Stock.
#19	714221	BEARING ARM LOCATING (1 required per assembly) — Replaces: 71422
		29-71422 1 - Needle Bearing - Priced Individually [ More info ] $0.30 $0.26 10+ In Stock.
#20	78808	LATCH BODY - BOTTOM COWL (1 required per assembly)
		78808 - Cover [ More info ] $2.93 3 In Stock.
#21	32228	SCREW (#10-32 X .625) LATCH TO BOTTOM COWL (3 required per assembly)
		10-32228 - Screw - Priced Individually [ More info ] $1.80 $0.37 10+ In Stock.
#22	39050	GASKET @2 (1 required per assembly)
		27-39050 - Adaptor Plate To Drive Shaft Housing Gasket [ More info ] $14.49 3 In Stock.
#23	69508A31	SWITCH ASSY MANUAL (1 required per assembly)
		87-69508A31 - Switch Assembly [ More info ] $101.54 1 In Stock.
#24	99525A1	COVER ASSEMBLY STOP SWITCH MANUAL (1 required per assembly)
		87-99525A 1 - Switch [ More info ] $24.29 Available to Order: Shipping delay up to 10 days.
#25	69845	LOCKWASHER STOP SWITCH MANUAL (1 required per assembly)
		13-69845 - LockWasher, NLA [ More info ] $4.43 $3.76 10+ In Stock.
#26	69844	NUT STOP SWITCH MANUAL (1 required per assembly)
		11-69844 - Nut, Stop Switch,NLA [ More info ] Unavailable
#27	93730	HANDLE SHIFT CONTROL (MANUAL) (1 required per assembly) — Replaces: 66376, 74352
		93730 - Handle [ More info ] Unavailable
		93730T - Handle C [ More info ] $23.04 5 In Stock.
#27	93730T	HANDLE SHIFT CONTROL (ELECTRIC) (1 required per assembly) — Replaces: 93730
#28	8M0204649	WASHER @10 SHIFT CONTROL SHAFT (1 required per assembly) — Replaces: 29245
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 10+ In Stock.
#29	826709109	NUT (.250-28) STAINLESS STEEL SHIFT HANDLE TO SHIFT CONTROL SHAFT (1 required per assembly) — Replaces: 39305, 33825
		11-826709109 - Nut, (.250-28) Stainless Steel [ More info ] $3.59 5 In Stock.
#30	66375	BUSHING NYLON - SHIFT CONTROL SHAFT (2 required per assembly)
		23-66375 - Bushing, NLA [ More info ] $13.01 10+ In Stock.
#31	74350	LEVER SHIFT CONTROL (REMOTE) (1 required per assembly)
		74350 - Lever [ More info ] $31.88 $27.00 6 In Stock.
#32	25905	PIN SHIFT LEVER TO SHIFT CONTROL SHAFT (1 required per assembly)
		17-25905 - Pin, Roll, NLA [ More info ] $7.81 10+ In Stock.
#33	66379	SHAFT SHIFT CONTROL (1 required per assembly)
		66379 - Shift Shaft, NLA [ More info ] Unavailable
#34	66377	SECTOR GEAR (1 required per assembly)
		43-66377 - Sector Gear [ More info ] $49.57 10+ In Stock.
#35	8M0204649	WASHER @10 SHIFT CONTROL SHAFT (1 required per assembly) — Replaces: 29245
#36	8267089	NUT (.250-28) SECTOR GEAR TO SHIFT CONTROL SHAFT (1 required per assembly) — Replaces: 20361
		11-826708 9 - Nut - Priced Individually [ More info ] $1.50 10 In Stock.
		18-3722-9 - Lock Nut, 121731, 11-35888, Pack of 5 [ More info ] $11.99 $8.16 Available to Order: Shipping delay up to 10 days.
#37	39627	SPRING DETENT - SHIFT CONTROL LEVER (1 required per assembly)
		24-39627 - Spring, Detent [ More info ] $7.49 Available to Order: Shipping delay up to 10 days.
#38	39601	PLATE DETENT SPRING (1 required per assembly)
		39601 - Plate [ More info ] $9.99 $8.45 10+ In Stock.
#39	25764	SCREW @5 (2 required per assembly)
		10-25764 - Screw - Priced Individually [ More info ] $2.49 Available to Order: Shipping delay up to 10 days.
#40	27132	BUSHING NYLON - UPPER SHIFT SHAFT (1 required per assembly)
		23-27132 - Bushing [ More info ] $4.85 2 In Stock.
#41	86686A1	SECTOR GEAR SHIFT SHAFT (1 required per assembly)
		43-86686A 1 - Sector Gear [ More info ] $70.05 10+ In Stock.
#42	71660	SHAFT (1 required per assembly)
		71660 - Shaft, NLA [ More info ] $29.95 10+ In Stock.
