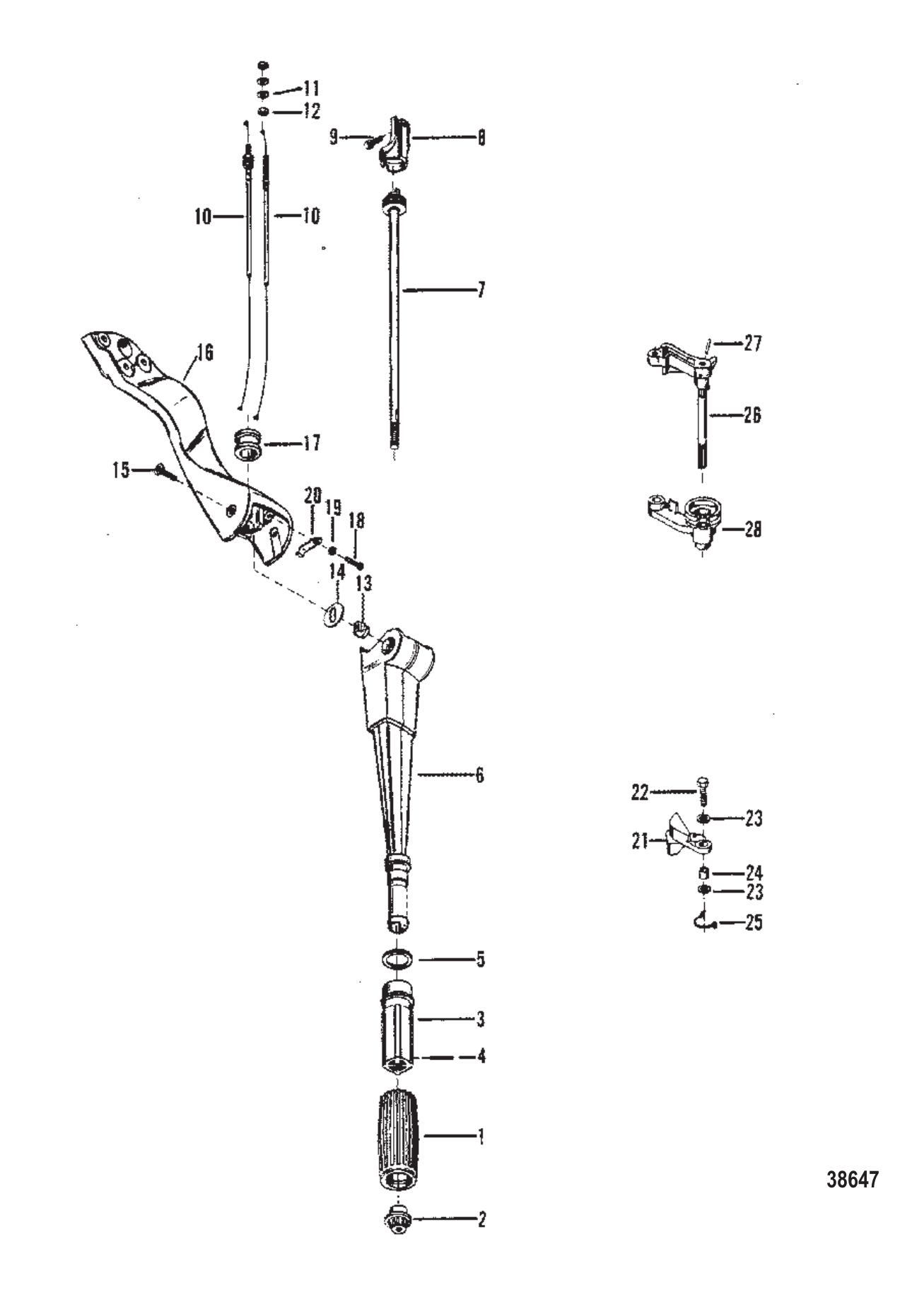

Parts for 9.8, (Merc 110) 2-Stroke Carbureted Mercury Outboard Motor Steering Handle & Throttle Linkage
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 77194A2 | HANDLE ASSY (1 required per assembly) |
  |
|
77194A 2 - Handle Assembly,NLA [ More info ] Unavailable |
| #1 | 60854 | GRIP HANDLE (1 required per assembly) |
  |
|
60854 - Handle Grip, NLA [ More info ] Unavailable |
| #2 | 77237 | CAP HANDLE (1 required per assembly) |
  |
|
77237 - Handle Cap, NLA [ More info ]
|
| #3 | 77238A1 | HANDLE THROTTLE SHAFT (1 required per assembly) |
  |
|
77238A 1 - Handle, NLA [ More info ]
|
| #4 | 31656 | PIN STEERING HANDLE (1 required per assembly) |
  |
|
17-31656 - Pin, Roll [ More info ]
|
| #5 | 62252 | WASHER THROTTLE HANDLE TO STEERING ARM (1 required per assembly) |
  |
|
12-62252 - Washer, Throttle Handle To Steering Arm, NLA [ More info ]
|
| #6 | 77194 | ARM STEERING HANDLE (1 required per assembly) |
  |
|
77194 - Steering Arm, NLA [ More info ] Unavailable |
| #7 | 97379 | SHAFT THROTTLE (1 required per assembly) |
  |
|
97379 - Throttle Shaft [ More info ] Unavailable |
| #7 | 973791 | SHAFT THROTTLE (180 cc SailPower) ( required per assembly) |
  |
|
97379 1 - Throttle Shaft,NLA [ More info ] Unavailable |
| #8 | 77203 | BLOCK CABLE GUIDE (1 required per assembly) |
  |
|
77203 - Cable Guide Block, NLA [ More info ]
|
| #9 | 69069 | SCREW (.250-28 X .750) BLOCK TO STEERING ARM (1 required per assembly) |
  |
|
10-69069 - Screw, NLA [ More info ]
|
| #10 | 86210 | CABLE THROTTLE (2 required per assembly) |
  |
|
86210 - Throttle Cable [ More info ]
|
| #11 | 37998 | WASHER THROTTLE CABLE (4 required per assembly) |
  |
|
12-37998 - Washer - Priced Individually [ More info ]
|
| #12 | 21825 | NUT (.250-28) THROTTLE CABLE (4 required per assembly) |
  |
|
11-21825 - Nut, (1/4x28) [ More info ]
|
| #13 | 48003 | PIVOT STEERING HANDLE TO BRACKET (2 required per assembly) |
  |
|
48003 - Steering Handle to Bracket Pivot, NLA [ More info ]
|
| #14 | 48002015 | SHIM (.015) (AR required per assembly) |
  |
|
15-48002015 - Shim, NLA [ More info ]
|
| #15 | 96138 | SCREW (2 required per assembly) |
  |
|
10-96138 - Screw [ More info ]
|
| #16 | 96432F1 | STEERING BRACKET STEERING ARM (1 required per assembly) — Replaces: 96432, 96432T |
  |
|
96432F 1 - Steering Bracket, NLA [ More info ]
|
| #17 | 67272 | GROMMET STEERING ARM BRACKET (1 required per assembly) |
  |
|
25-67272 - Grommet, NLA [ More info ] Unavailable |
| #18 | 62233 | SCREW @2 (2 required per assembly) |
  |
|
10-62233 - Screw, NLA [ More info ]
|
| #19 | 30164 | WASHER (.192 X .375 X .0312) STAINLESS STEEL DETENT SPRING (4 required per assembly) |
  |
|
12-30164 - Washer, (.192 X .375 X .0312) [ More info ]
|
| #20 | 72847 | SPRING DETENT - STEERING HANDLE (2 required per assembly) |
  |
|
24-72847 - Spring, Detent - Steering Handle,NLA [ More info ]
|
| #21 | 86212 | FOLLOWER OVER - SPEED LIMITER (1 required per assembly) |
  |
|
86212 - Follower, NLA [ More info ]
|
| #22 | 20653 | BOLT @5 (1 required per assembly) |
  |
|
10-20653 - Bolt - Priced Individually [ More info ]
|
| #23 | 8M0204649 | WASHER @10 SPEED LIMITER FOLLOWER SCREW (2 required per assembly) — Replaces: 29245 |
  |
|
12-8M0204649 - WASHER Note: Priced Individually [ More info ]
|
| #24 | 63320 | BUSHING SPEED LIMITER FOLLOWER SCREW (1 required per assembly) |
  |
|
23-63320 - Bushing, NLA [ More info ] Unavailable |
| #25 | 39042 | SPRING NEUTRAL SPEED LIMITER FOLLOWER (1 required per assembly) |
  |
|
24-39042 - Spring, Neutral Speed Limiter Follower,NLA [ More info ]
|
| #26 | 66374A2 | LEVER ASSEMBLY THROTTLE CONTROL (1 required per assembly) |
  |
|
66374A 2 - Lever Assembly [ More info ] Unavailable |
| #27 | 76207 | PIN ROLL THROTTLE CONTROL LEVER (1 required per assembly) |
  |
|
17-76207 - Pin, Roll, Throttle Control Lever,NLA [ More info ]
|
| #28 | 86070 | SPOOL THROTTLE (1 required per assembly) |
  |
|
86070 - Spool, NLA [ More info ] Unavailable |
