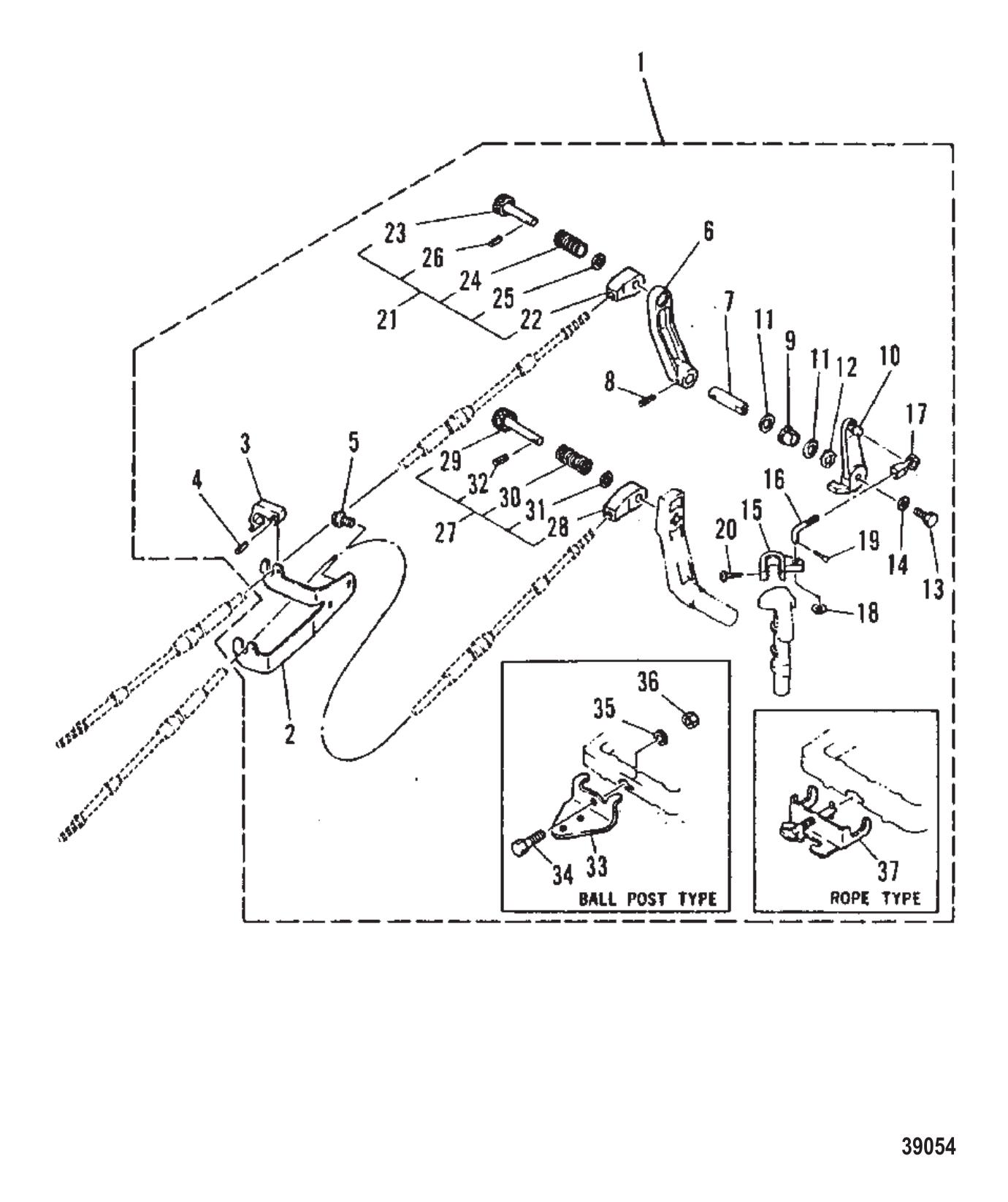

Parts for 8C 2-Stroke Carbureted Mercury Outboard Motor Remote Control Attaching Kit
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 11661A1 | ATTACHING KIT (BALL POST TYPE) (1 required per assembly) |
  |
|
11661A 1 - Attaching Assembly, NLA [ More info ] Unavailable |
| #2 | 11662M | BRACKET REMOTE CONTROL (1 required per assembly) |
  |
|
11662M - Bracket, NLA [ More info ]
|
| #3 | 84113M | CLAMP CABLE (2 required per assembly) |
  |
|
54-84113M - Clamp, NLA [ More info ]
|
| #4 | 82146M | PIN SPRING (2 required per assembly) |
  |
|
17-82146M - Pin -roll, NLA [ More info ] Unavailable |
| #5 | 95456M | BOLT (2 required per assembly) |
  |
|
10-95456M - Bolt, NLA [ More info ]
|
| #6 | 11663M | LEVER MAGNETO CONTROL (1 required per assembly) |
  |
|
11663M - LEVER,NLA [ More info ] Unavailable |
| #7 | 11664M | SHAFT (1 required per assembly) |
  |
|
11664M - Shaft, NLA [ More info ]
|
| #8 | 82155M | PIN (1 required per assembly) |
  |
|
17-82155M - Pin -roll, NLA [ More info ]
|
| #9 | 81946M | BUSHING (1 required per assembly) |
  |
|
23-81946M - Bushing, NLA [ More info ]
|
| #10 | 11665M | LEVER MAGNETO CONTROL (1 required per assembly) |
  |
|
11665M - Lever, NLA [ More info ] Unavailable |
| #11 | 81846M | WASHER (2 required per assembly) |
  |
|
12-81846M - Washer, NLA [ More info ]
|
| #12 | 11666M | WASHER WAVE (1 required per assembly) |
  |
|
13-11666M - Washer, Wave, NLA [ More info ]
|
| #13 | 82879M | BOLT (1 required per assembly) |
  |
|
10-82879M - Bolt, NLA [ More info ]
|
| #14 | 82211M | WASHER (1 required per assembly) |
  |
|
12-82211M - Washer - Priced Individually [ More info ]
|
| #15 | 11667M | LEVER MAGNETO CONTROL (1 required per assembly) |
  |
|
11667M - LEVER,NLA [ More info ] Unavailable |
| #16 | 11668M | ROD (1 required per assembly) |
  |
|
11668M - Link, NLA [ More info ]
|
| #17 | 16715M | JOINT (1 required per assembly) — Replaces: 81225M |
  |
|
|
| #18 | 83768M | WASHER (1 required per assembly) |
  |
|
12-83768M - Washer, NLA [ More info ] Unavailable |
| #19 | 84301M | PIN-COTTER COTTER (1 required per assembly) — Replaces: 82129M |
  |
|
18-84301M - Cotter Pin, NLA [ More info ]
|
| #20 | 11669M | SCREW (1 required per assembly) |
  |
|
10-11669M - SCREW,NLA [ More info ] Unavailable |
| #21 | 84109M | END ASSEMBLY CABLE (THROTTLE) (1 required per assembly) |
  |
|
84109M - Cable End, NLA [ More info ] Unavailable |
| #22 | 84110M | END CABLE (1 required per assembly) |
  |
|
84110M - Cable END,NLA [ More info ] Unavailable |
| #23 | 814499M | HOOK CABLE (1 required per assembly) — Replaces: 83726M |
  |
|
17-814499M - PIN-ANCHOR,NLA [ More info ] Unavailable |
| #24 | 83725M | SPRING (1 required per assembly) |
  |
|
24-83725M - Spring, NLA [ More info ] Unavailable |
| #25 | 82217M | WASHER (1 required per assembly) |
  |
|
12-82217M - Washer, NLA [ More info ]
|
| #26 | 82146M | PIN (1 required per assembly) |
| #27 | 84106M | END ASSEMBLY CABLE (SHIFT) (1 required per assembly) |
  |
|
84106M - Cable End, NLA [ More info ]
|
| #28 | 84107M | END CABLE (1 required per assembly) |
  |
|
84107M - Cable End, NLA [ More info ] Unavailable |
| #29 | 814500M | HOOK CABLE (1 required per assembly) — Replaces: 83722M |
  |
|
17-814500M - Anchor Pin, NLA [ More info ]
|
| #30 | 83721M | SPRING (1 required per assembly) |
  |
|
24-83721M - Spring, NLA [ More info ] Unavailable |
| #31 | 82217M | WASHER (1 required per assembly) |
| #32 | 82146M | PIN (1 required per assembly) |
| #33 | 11670T | BRACKET STEERING (BALL POST TYPE) (1 required per assembly) — Replaces: 11670M |
  |
|
11670T - Bracket [ More info ] Unavailable |
| #34 | 91636M | BOLT (1 required per assembly) |
  |
|
10-91636M - Screw, NLA [ More info ]
|
| #35 | 82220M | WASHER (1 required per assembly) |
  |
|
12-82220M - Washer - Priced Individually [ More info ] Unavailable |
| #36 | 81785M | LOCKNUT SELF LOCKING (1 required per assembly) |
  |
|
11-81785M - Nut, Nylon,NLA [ More info ]
|
| #37 | 83727M | BRACKET STEERING (ROPE TYPE) (OPT required per assembly) |
  |
|
83727M - Bracket, NLA [ More info ] Unavailable |
