Parts for 8C 2-Stroke Carbureted Mercury Outboard Motor Carburetor

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 8C > 6g1-7008786 & Up - USA > Carburetor

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

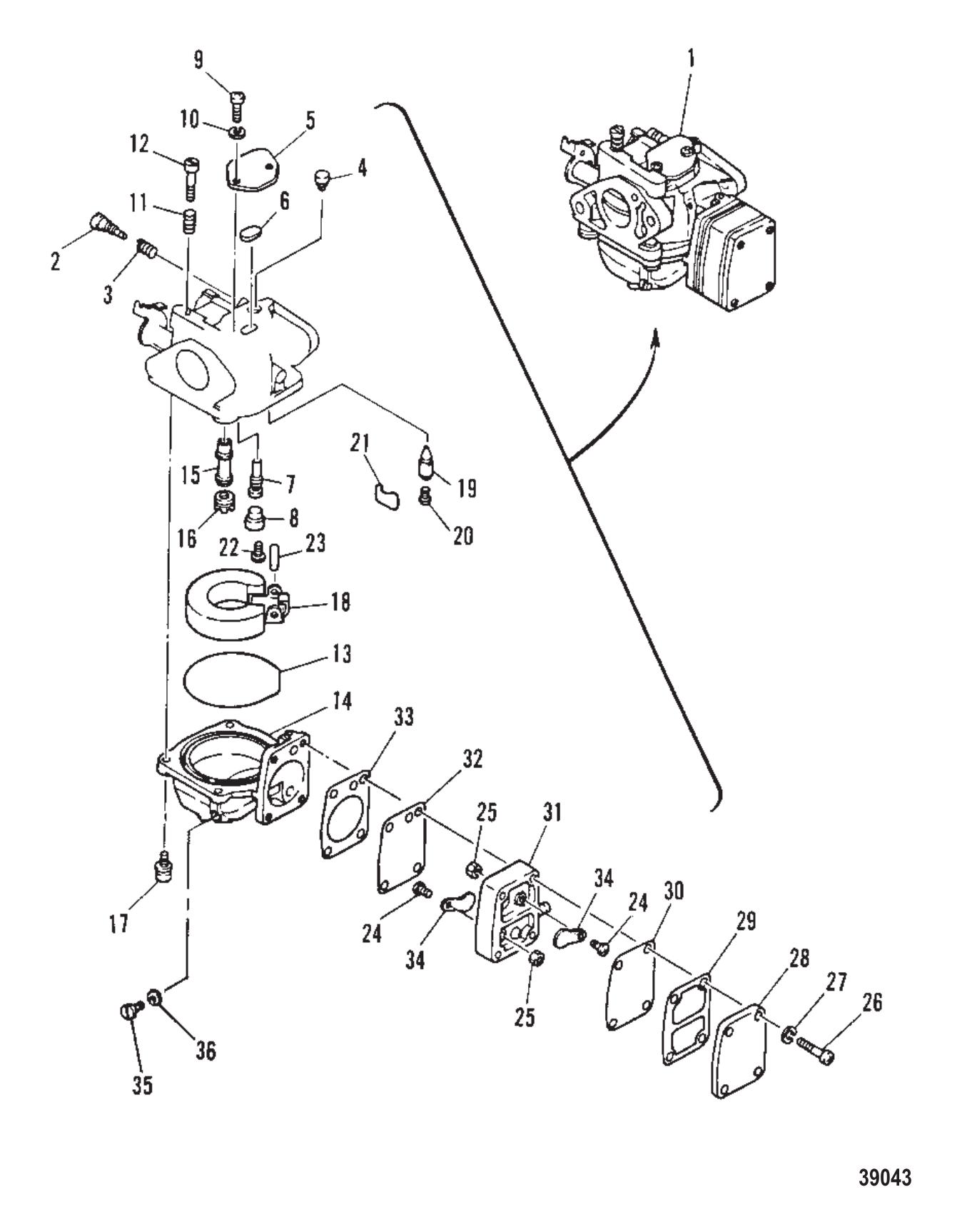

Carburetor

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	11502M	REPAIR KIT-CARB (1 required per assembly)
		11502M - Carburetor Repair Kit [ More info ] $91.48 1 In Stock.
#1	9692M	CARBURETOR (8M) (1 required per assembly)
		1383-9692M - Carburetor [ More info ] Unavailable
#1	9693M	CARBURETOR (6M - 6H8) (1 required per assembly)
		1383-9693M - CARBURETOR ASSEMB NLA [ More info ] Unavailable
#1	9694M	CARBURETOR (6M - 6H6) (1 required per assembly)
		1383-9694M - CARBURETOR ASSEMB NLA [ More info ] Unavailable
#2	83889M	SCREW ADJUSTING (1 required per assembly)
		10-83889M - SCREW,NLA [ More info ] Unavailable
#3	94499M	SPRING (1 required per assembly)
		24-94499M - Spring, NLA [ More info ] Unavailable
#4	11477M	CAP (1 required per assembly)
		19-11477M - CAP,NLA [ More info ] $8.00 2 In Stock.
#5	11478M	PLATE (1 required per assembly)
		11478M - PLATE,NLA [ More info ] Unavailable
#6	11479M	PACKING (1 required per assembly)
		11479M - Packing, NLA [ More info ] Unavailable
#7	11480M	JET SLOW (#45) (1 required per assembly)
		11480M - Jet, NLA [ More info ] Unavailable
#8	8M0080455	PLUG (1 required per assembly) — Replaces: 83369M
		228M0080455 - Plug [ More info ] $14.99 Available to Order: Shipping delay up to 10 days.
#9	82568M	BOLT @2 (2 required per assembly) — Replaces: 82509M, 82504M
		10-82568M - BOLT,NLA [ More info ] Unavailable
#10	82206M	LOCKWASHER (2 required per assembly) — Replaces: 82184M
		13-82206M - LockWasher - Priced Individually [ More info ] $1.08 10+ In Stock.
#11	82080M	SPRING (1 required per assembly)
		24-82080M - Spring [ More info ] Unavailable
#12	81277M	SCREW STOP (1 required per assembly)
		10-81277M - Screw, NLA [ More info ] $6.00 $5.08 10+ In Stock.
#13	11483M	GASKET FLAOT CHAMBER (1 required per assembly)
		27-11483M - Float Chamber Gasket [ More info ] $3.02 $2.56 4 In Stock.
#14	17358M	BODY FLOAT CHAMBER (1 required per assembly)
		17358M - BODY,NLA [ More info ] Unavailable
#15	11485M	NOZZLE MAIN (8M) (1 required per assembly)
		11485M - Main Nozzle,NLA [ More info ] Unavailable
#15	11486M	NOZZLE MAIN (6M - 6H8) (1 required per assembly)
		11486M - NOZZLE NLA [ More info ] Unavailable
#15	17359M	NOZZLE MAIN (6M - 6H6) (1 required per assembly)
		17359M - NOZZLE NLA [ More info ] Unavailable
#16	11487M	JET MAIN (#98) (8M) (1 required per assembly)
		11487M - Main Jet, NLA [ More info ] $5.00 $4.24 5 In Stock.
#16	11488M	JET MAIN (#100) (6M - 6H8) (1 required per assembly)
		11488M - JET NLA [ More info ] Unavailable
#16	17360M	JET MAIN (#98) (6M - 6H6) (1 required per assembly)
		17360M - Jet [ More info ] $7.00 $5.93 10+ In Stock.
#17	83913M	SCREW WITH WASHER (4 required per assembly) — Replaces: 83373M, 814566M
		10-83913M - SCREW Note: Priced Individually [ More info ] Unavailable
		10-11796M - Screw, NLA [ More info ] $1.72 10+ In Stock.
#18	11489M	FLOAT (1 required per assembly)
		11489M - Float, NLA [ More info ] Unavailable
#19	11490M	VALVE FLOAT (1 required per assembly)
		11490M - Valve, NLA [ More info ] $5.56 $4.71 6 In Stock.
#20	92639M	PIN FLOAT VALVE (1 required per assembly)
		17-92639M - Pin, Float [ More info ] $12.89 Available to Order: Shipping delay up to 10 days.
#21	82781M	CLIP (1 required per assembly)
		54-82781M - Clip - Priced Individually [ More info ] Unavailable
		54-8M0120624 - CLIP @2 NLA [ More info ] Unavailable
#22	82500M	SCREW (M4 X 8) (1 required per assembly)
		10-82500M - Screw, NLA [ More info ] $1.79 10+ In Stock.
#23	97730M	PIN ARM (1 required per assembly)
		17-97730M - Pin, NLA [ More info ] $1.25 $1.06 10+ In Stock.
#24	11492M	SCREW (2 required per assembly)
		10-11492M - Screw, NLA [ More info ] Unavailable
#25	11493M	NUT (2 required per assembly)
		11-11493M - NUT,NLA [ More info ] Unavailable
#26	11494M	SCREW (4 required per assembly)
		10-11494M - Screw, NLA [ More info ] Unavailable
#27	82206M	LOCKWASHER (4 required per assembly) — Replaces: 82184M
#28	11495M	COVER PUMP (1 required per assembly)
		11495M - Cover [ More info ] $7.00 $5.93 5 In Stock.
#29	11496T	GASKET (1 required per assembly) — Replaces: 11496M
		27-11496T - Gasket [ More info ] $9.99 Available to Order: Shipping delay up to 10 days.
#30	11497M	DIAPHRAGM (1 required per assembly)
		11497M - Diaphragm [ More info ] $22.99 Available to Order: Shipping delay up to 10 days.
		18-7833 - Fuel Pump Diaphragm 6G1-24471 [ More info ] $16.49 $13.86 2 In Stock.
#31	11498M	BODY PUMP (1 required per assembly)
		11498M - PUMP BODY,NLA [ More info ] Unavailable
#32	11499T	DIAPHRAGM (1 required per assembly) — Replaces: 11499M
		11499T - Diaphragm [ More info ] Unavailable
#33	11500M	GASKET (1 required per assembly)
		27-11500M - Carburetor Gasket [ More info ] $13.68 8 In Stock.
#34	11501M	VALVE CHECK (2 required per assembly)
		21-11501M - Check Valve, NLA [ More info ] $7.78 $6.59 5 In Stock.
#35	17361M	SCREW DRAIN (1 required per assembly)
		10-17361M - SCREW-DRAIN,NLA [ More info ] Unavailable
#36	17362M	WASHER (1 required per assembly)
		12-17362M - Washer, NLA [ More info ] $1.36 $1.16 10+ In Stock.
