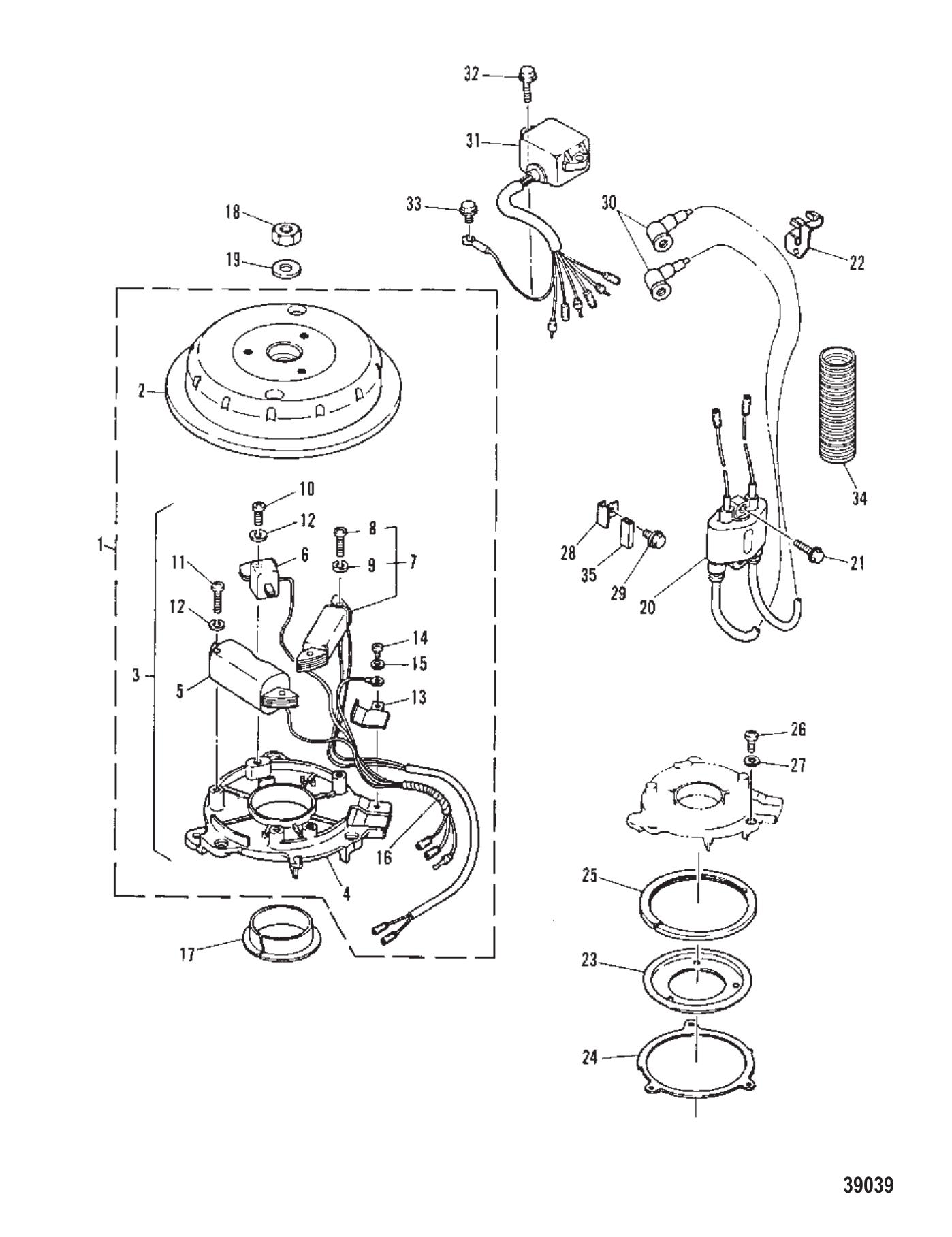

Parts for 8C 2-Stroke Carbureted Mercury Outboard Motor C.d.i. Magneto
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 9302M | FLYWHEEL MAGNETO (1 required per assembly) |
  |
|
253-9302M - Flywheel MA,NLA [ More info ] Unavailable |
| #2 | 9303M | ROTOR ASSEMBLY (1 required per assembly) |
  |
|
253-9303M - Flywheel, NLA [ More info ] Unavailable |
| #3 | 11435M | BASE AAS'Y (1 required per assembly) |
  |
|
11435M - BASE ASSY,NLA [ More info ] Unavailable |
| #4 | 11436M | BASE MAGNETO (1 required per assembly) |
  |
|
11436M - Base, NLA [ More info ] Unavailable |
| #5 | 41829T | COIL (1 required per assembly) — Replaces: 41829M |
  |
|
41829T - Coil, NLA [ More info ]
|
| #6 | 41830M | COIL ASSEMBLY PULSER (1 required per assembly) |
  |
|
41830M - Coil, NLA [ More info ]
|
| #7 | 41866M | COIL ASSEMBLY LIGHTING (SEE NOTE) (1 required per assembly) |
  |
|
41866M - Coil Assembly, NLA [ More info ]
|
| #8 | 83108M | SCREW (2 required per assembly) — Replaces: 82521M |
  |
|
10-83108M - Screw, NLA [ More info ]
|
| #9 | 82186M | WASHER (2 required per assembly) — Replaces: 82208M |
  |
|
13-82186M - LockWasher, NLA [ More info ]
|
| #10 | 95178M | SCREW (1 required per assembly) |
  |
|
10-95178M - SCREW,NLA [ More info ] Unavailable |
| #11 | 815005M | SCREW (2 required per assembly) — Replaces: 95174M |
  |
|
10-815005M - SCREW,NLA [ More info ] Unavailable |
| #12 | 82186M | WASHER (3 required per assembly) — Replaces: 82208M |
| #13 | 11437M | CLAMP (1 required per assembly) |
  |
|
54-11437M - Clamp [ More info ]
|
| #14 | 82500M | SCREW (M4 X 8) (1 required per assembly) — Replaces: 82513M |
  |
|
10-82500M - Screw, NLA [ More info ]
|
| #15 | 82206M | LOCKWASHER (1 required per assembly) — Replaces: 82184M |
  |
|
13-82206M - LockWasher - Priced Individually [ More info ]
|
| #16 | 11439M | WIRE LEAD (1 required per assembly) |
  |
|
84-11439M - Lead Wire, NLA [ More info ] Unavailable |
| #17 | 11440M | BUSHING (1 required per assembly) |
  |
|
23-11440M - Bushing, NLA [ More info ]
|
| #18 | 81769M | NUT (1 required per assembly) |
  |
|
11-81769M - Nut, Flywheel ,NLA [ More info ]
|
| #19 | 81805M | WASHER @2 (1 required per assembly) |
  |
|
12-81805M - Washer, Flywheel Nut, NLA [ More info ]
|
| #20 | 11441M | IGNITION COIL (1 required per assembly) |
  |
|
11441M - Ignition Coil, NLA M [ More info ] Unavailable |
| #21 | 11945M | BOLT (2 required per assembly) |
  |
|
10-11945M - Bolt, NLA [ More info ]
|
| #22 | 11442M | BRACKET (1 required per assembly) |
  |
|
11442M - Bracket, NLA [ More info ] Unavailable |
| #23 | 11443M | RETAINER MAGNETO BASE (1 required per assembly) |
  |
|
11443M - Retainer,NLA [ More info ] Unavailable |
| #24 | 11444M | RETAINER MAGNETO BASE (1 required per assembly) |
  |
|
11444M - Retainer,NLA [ More info ] Unavailable |
| #25 | 92572M | PLATE BASE FRICTION (1 required per assembly) |
  |
|
92572M - PLATE,NLA [ More info ] Unavailable |
| #26 | 83523M | SCREW @2 (3 required per assembly) |
  |
|
10-83523M - Screw, NLA [ More info ]
|
| #27 | 82211M | WASHER @5 (3 required per assembly) |
  |
|
12-82211M - Washer - Priced Individually [ More info ]
|
| #28 | 11445M | STOPPER MAGNETO BASE (1 required per assembly) |
  |
|
11445M - STOPPER,NLA [ More info ] Unavailable |
| #29 | 95456M | BOLT (1 required per assembly) |
  |
|
10-95456M - Bolt, NLA [ More info ]
|
| #30 | 63709A1 | BOOT KIT-BLK@10 (2 required per assembly) — Replaces: 82788M |
  |
|
85-63709A 1 - Boot Kit - Black - Priced Individually [ More info ]
|
| #31 | 41305M | SWITCHBOX ASSEMBLY (1 required per assembly) |
  |
|
41305M - Switch Box, NLA [ More info ]
|
  |
|
18-99317 - Ignition Pack, Yamaha 2 Cylinder , 117-696-12 [ More info ]
|
| #32 | 91674M | BOLT (2 required per assembly) |
  |
|
10-91674M - Bolt, NLA [ More info ]
|
| #33 | 95456M | BOLT (1 required per assembly) |
| #34 | 11446M | TUBING (1 required per assembly) |
  |
|
32-11446M - TUBING,NLA [ More info ] Unavailable |
| #35 | 11447M | CAP (1 required per assembly) |
  |
|
11447M - CAP,NLA [ More info ] Unavailable |
