Parts for 9.8 (2 Cyl.) (International) 2-Stroke Carbureted Mercury Outboard Motor Electrical

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 9.8 (2 Cyl.) (International) > 0N007788 - 0N055109 > Electrical

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

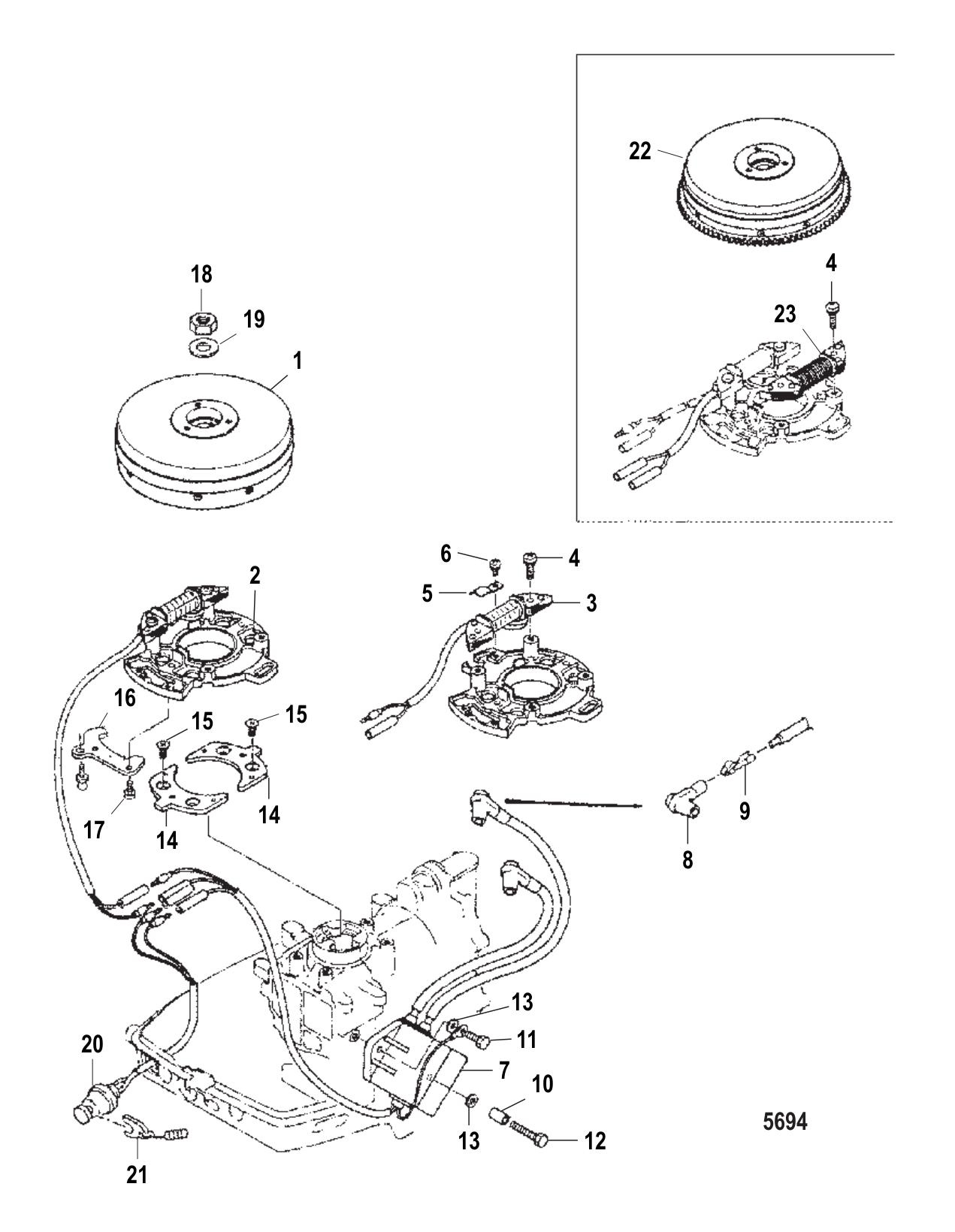

Electrical

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	804976T01	FLYWHEEL CUP (1 required per assembly) — Replaces: 8049761
		261-804976T01 - Flywheel CUP [ More info ] $455.49 Available to Order: Shipping delay up to 10 days.
#2	804987T01	COIL PLATE (1 required per assembly) — Replaces: 804987A1
		804987T01 - Coil Plate [ More info ] Unavailable
		8M0135298 - COIL PLATE [ More info ] Unavailable
#3	804988T	EXCITER COIL (1 required per assembly) — Replaces: 804988
		804988T - Exciter Coil [ More info ] $81.49 Available to Order: Shipping delay up to 10 days.
#4	82303115	SCREW (2 required per assembly) — Replaces: 804989
		1082303115 - Screw [ More info ] $1.99 Available to Order: Shipping delay up to 10 days.
#5	804990	HOLDER (1 required per assembly)
		804990 - HOLDER [ More info ] Unavailable
#6	8230314	SCREW (1 required per assembly)
		10-823031 4 - Screw [ More info ] $2.29 Available to Order: Shipping delay up to 10 days.
#7	803704T01	CD UNIT (1 required per assembly) — Replaces: 8037041
		803704T01 - CD Unit [ More info ] $420.49 Available to Order: Shipping delay up to 10 days.
#8	8555431	CAP (2 required per assembly)
		85-855543 1 - Cap [ More info ] $2.99 Available to Order: Shipping delay up to 10 days.
#8	855543	BOOT WITH RESISTANCE (2 required per assembly)
		85-855543 - Boot [ More info ] $57.68 1 In Stock.
#9	NSS	NOT SOLD SEPARATE TERMINAL (2 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#10	8537156	SPACER (1 required per assembly)
		23-8537156 - SPACER [ More info ] Unavailable
#11	16705	BOLT (1 required per assembly)
		10-16705 - Bolt [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#12	168308	BOLT (1 required per assembly)
		10-16830 8 - Bolt [ More info ] $1.60 Available to Order: Shipping delay up to 10 days.
#13	16826	WASHER (2 required per assembly)
		12-16826 - Washer, Stainless Steel [ More info ] $3.29 Available to Order: Shipping delay up to 10 days.
#14	804890T	SET PLATE (2 required per assembly) — Replaces: 804890
		804890T - SET Plate [ More info ] $8.00 Available to Order: Shipping delay up to 10 days.
#15	16194	SCREW (4 required per assembly)
		10-16194 - Screw [ More info ] $2.19 1 In Stock.
#16	804891T	STOPPER (9.8) (1 required per assembly) — Replaces: 804891
		804891T - Stopper [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
#16	8048911	STOPPER (8 SeaPro) (1 required per assembly)
		8048911 [ More info ] Unavailable Replaced by 0434451
		0434451 - 91 O/M JO 48 HP (434451) [ More info ] Unavailable
#17	8555441	SCREW (2 required per assembly)
		10-855544 1 - Screw [ More info ] $1.90 Available to Order: Shipping delay up to 10 days.
#18	16071	NUT (1 required per assembly)
		11-16071 - Nut, Flywheel [ More info ] $13.09 Available to Order: Shipping delay up to 10 days.
#19	16072	WASHER (1 required per assembly)
		12-16072 - Washer, Flywheel [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#20	823037A2	SWITCH-LANYARD (1 required per assembly)
		87-823037A 2 - Switch -Lanyard [ More info ] $92.99 Available to Order: Shipping delay up to 10 days.
#21	823054	LANYARD (1 required per assembly)
		823054 - Lanyard Assembly [ More info ] $26.71 3 In Stock.
		823054Q - Lanyard Assembly - Priced Individually [ More info ] $25.99 Available to Order: Shipping delay up to 10 days.
#22	804976T	FLYWHEEL CUP (Electric) (1 required per assembly) — Replaces: 804976
		261804976T - Flywheel CUP [ More info ] $262.49 Available to Order: Shipping delay up to 10 days.
#23	804977T01	ALTERNATOR SET (Electric) (1 required per assembly) — Replaces: 804977A1
		804977T01 - Alternator Set [ More info ] $58.99 Available to Order: Shipping delay up to 10 days.
