Parts for 80 Jet 2-Stroke Carbureted Mercury Outboard Motor Flywheel / Starter Motor USA-0G438000 / Bel-9927000 & Up

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 80 Jet > 9793577 - 0P016999 - Belgium > Flywheel / Starter Motor USA-0G438000 / Bel-9927000 & Up

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

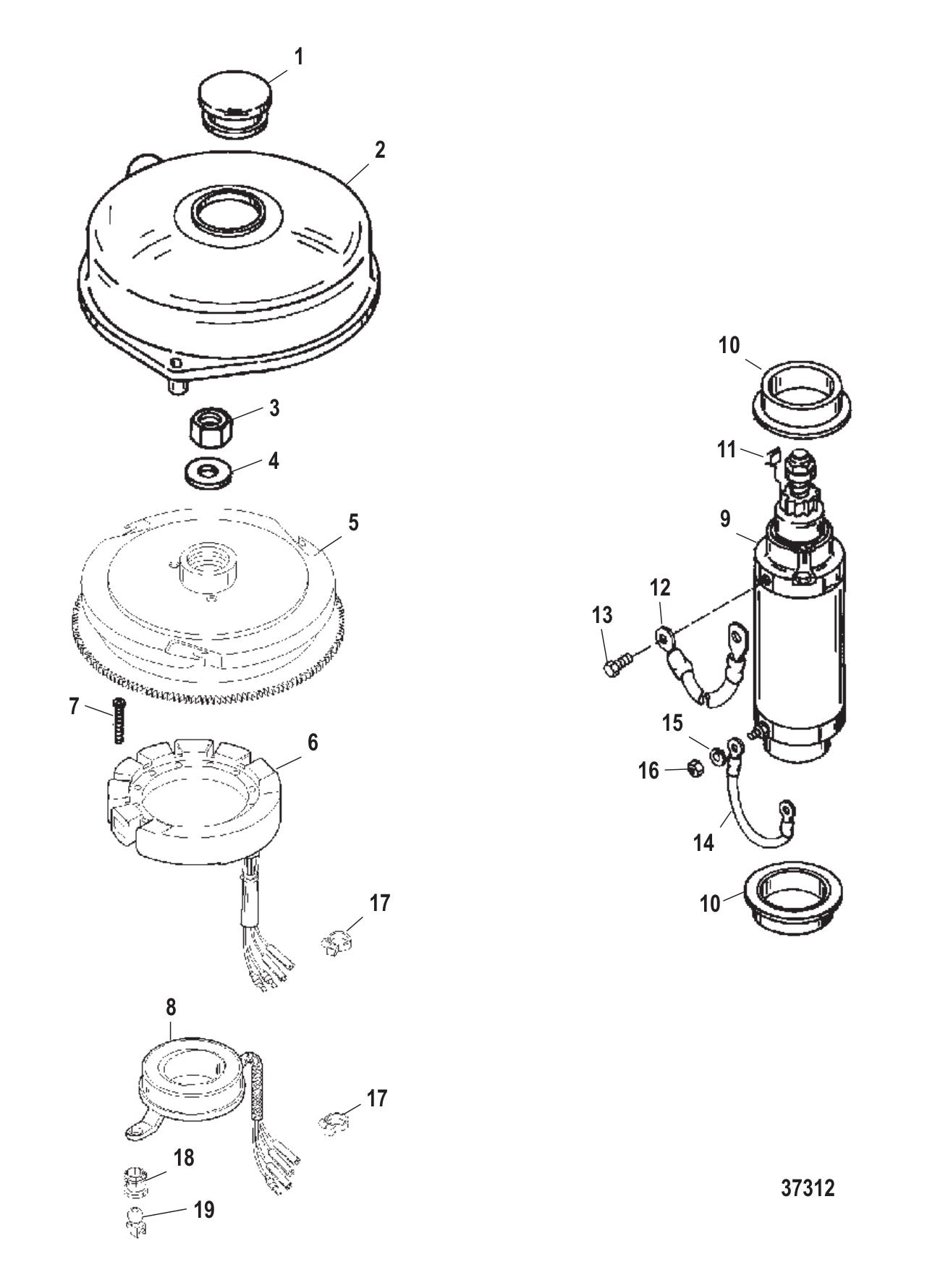

Flywheel / Starter Motor USA-0G438000 / Bel-9927000 & Up

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	45907	PLUG (1 required per assembly)
		19-45907 - Plug [ More info ] $7.09 2 In Stock.
#2	812777T1	COVER (1 required per assembly)
		812777T 1 - Cover [ More info ] $103.99 Available to Order: Shipping delay up to 10 days.
#3	42979	NUT (1 required per assembly)
		11-42979 - Nut (M16 X 1.5) [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
#4	33001	WASHER @2 (1 required per assembly) — Replaces: 68229
		12-33001 - Washer, Flywheel Nut [ More info ] $11.59 Available to Order: Shipping delay up to 10 days.
#5	878227T2	FLYWHEEL (1 required per assembly) — Replaces: 9008A64, 859236T4
		261-878227T 2 - Flywheel [ More info ] $770.99 Available to Order: Shipping delay up to 10 days.
#6	832075A21	STATOR ASSY (1 required per assembly) — Replaces: 832075A4
		398-832075A21 - Stator Assembly [ More info ] $402.99 In Stock
		18-5870-1 - Stator, 16 AMP , Mercury 398-832075A21 [ More info ] $309.91 2 In Stock.
		18-5870 - Stator, 398-832075A4 [ More info ] $324.99 $299.10 10+ In Stock.
#7	4013930	SCREW @5 (4 required per assembly) — Replaces: 4007330
		10-40139 30 - Screw - Priced Individually [ More info ] $2.89 $2.32 2 In Stock.
#8	854513T	TRIGGER (1 required per assembly)
		854513T - Trigger [ More info ] $165.49 Available to Order: Shipping delay up to 10 days.
		18-99415 - Trigger, 4 Cylinder, 854513T, 134-4513-4 [ More info ] $163.85 2 In Stock.
#9	893892T	STARTER ASSY (1 required per assembly) — Replaces: 660153
		50-893892T - Starter Assembly [ More info ] $448.99 Available to Order: Shipping delay up to 10 days.
		18-5610 - Starter, 50-66015-1 [ More info ] $312.99 $285.33 8 In Stock.
		5392 - Starter, 50-66015-1, 8 Tooth [ More info ] $276.64 1 In Stock.
#10	8M0034918	COLLAR (2 required per assembly) — Replaces: 56703, 8M0001391
		23-8M0034918 - Collar [ More info ] $9.29 3 In Stock.
#11	8M0043376	STOP (2 required per assembly) — Replaces: 57247, 68042
		8M0043376 - Stop [ More info ] $47.11 2 In Stock.
#12	93388A1	CABLE ASSY (1 required per assembly)
		84-93388A 1 - Cable Assembly [ More info ] $13.19 Available to Order: Shipping delay up to 10 days.
#13	69035	SCREW/LOCKWASHER (1 required per assembly)
		10-69035 - Screw/LockWasher [ More info ] $1.90 $1.52 10+ In Stock.
#14	88439A4	CABLE ASSY-NEG (1 required per assembly)
		84-88439A 4 - Cable Assembly -neg [ More info ] $48.89 2 In Stock.
#15	26992	LOCKWASHER @5 (1 required per assembly)
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#16	64015	NUT @3 (1 required per assembly)
		11-64015 - Nut (1 /4-20) [ More info ] $2.79 10+ In Stock.
#17	56762	TIE STRAP @5 (3 required per assembly)
		56762 - Tie Strap - Priced Individually [ More info ] $0.50 3 In Stock.
#18	93254	BASE (1 required per assembly)
		93254 - Swivel Base [ More info ] $13.19 3 In Stock.
#19	93421	BALL (1 required per assembly)
		93421 - Swivel Ball [ More info ] $14.19 7 In Stock.
