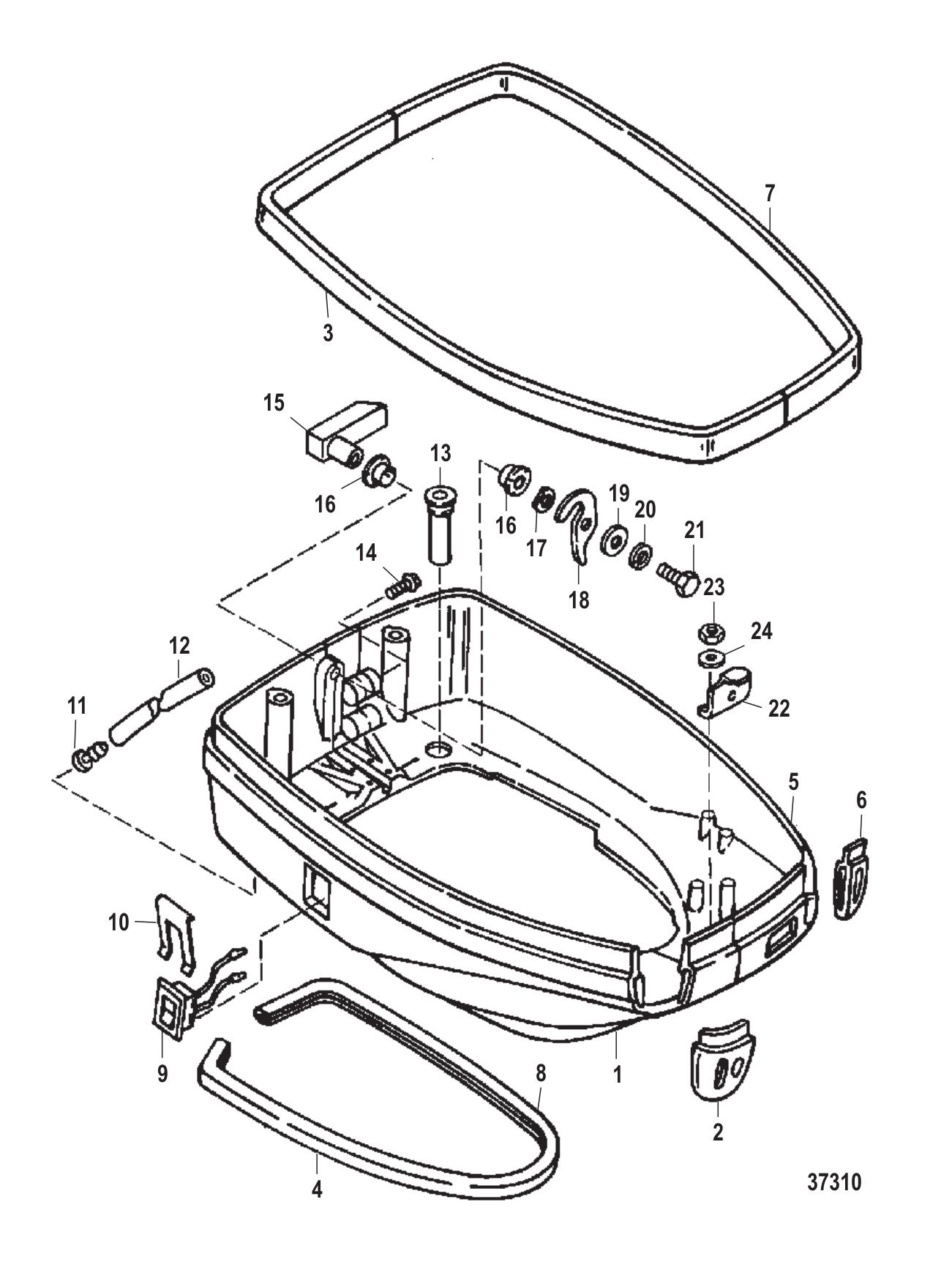

Parts for 80 Jet 2-Stroke Carbureted Mercury Outboard Motor Bottom Cowl
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 8M0113918 | COWL-LOWER STBD (BLACK) (1 required per assembly) — Replaces: 821873A1, 8M0107327 |
  |
|
1008M0113918 - COWL-LOWER STBD [ More info ]
|
| #1 | 821873A2 | COWL-BOT-STBD-GRA (GRAY) (1 required per assembly) |
  |
|
2187-821873A 2 - Cowl -bot- Stbd-gra [ More info ] Unavailable |
| #1 | 821873A3 | COWL-BOT-STBD-TRA (TRACKER-GRAPHITE GRAY) (1 required per assembly) |
  |
|
2187-821873A 3 - Cowl -bot- Stbd-tr, NLA [ More info ] Unavailable |
| #2 | 822556003 | GROMMET (1 required per assembly) — Replaces: 822556, 8225562 |
  |
|
25-822556003 - Grommet [ More info ]
|
| #3 | 8M0109216 | SEAL- COWL (1 required per assembly) — Replaces: 8253182, 8M0043273 |
  |
|
8M0109216 - Cowl Seal [ More info ]
|
| #4 | 8238052 | SEAL LOWER COWL (1 required per assembly) |
  |
|
823805 2 - Seal [ More info ] Unavailable |
| #5 | 8M0113919 | COWL-LOWER PORT (BLACK) (1 required per assembly) — Replaces: 821874A1, 8M0107328 |
  |
|
1008M0113919 - COWL-LOWER PORT [ More info ]
|
| #5 | 821874A2 | COWL-BOT-PORT-GRA (GRAY) (1 required per assembly) |
  |
|
2188-821874A 2 - Cowl -bot- Port-gr, NLA [ More info ] Unavailable |
| #5 | 821874A3 | COWL-BOT-PORT-TRA (TRACKER-GRAPHITE GRAY) (1 required per assembly) |
  |
|
2188-821874A 3 - COWL-BOT-PORT-TR,NLA [ More info ] Unavailable |
| #6 | 822555001 | GROMMET (1 required per assembly) — Replaces: 822555 |
  |
|
25-822555001 - Grommet [ More info ]
|
| #7 | 8M0109216 | SEAL- COWL (1 required per assembly) — Replaces: 8253182, 8M0043273 |
| #8 | 8238052 | SEAL LOWER COWL (1 required per assembly) |
| #9 | 896620 | SWITCH-TRIM (1 required per assembly) — Replaces: 850691, 856990 |
  |
|
87-896620 - Trim Switch [ More info ]
|
  |
87-8M0042301 - Trim Switch [ More info ] In Stock |
|
  |
|
87-09058 - Power Trim Switch [ More info ]
|
  |
|
SWITCH TRIM [ More info ]
|
| #10 | 8M0032848 | RETAINER SWITCH (USE WHERE APPLICABLE) (1 required per assembly) — Replaces: 8124431 |
  |
|
8M0032848 - Retainer [ More info ]
|
| #11 | 813613 | FITTING (1 required per assembly) |
  |
|
22-813613 - Fitting [ More info ]
|
| #12 | 8M0047448 | TUBING-70 INCH (1 required per assembly) — Replaces: 83075780, 830757130 |
  |
32-8M0047448 - Tubing-70 Inch [ More info ] Unavailable |
|
  |
|
32-8M0108349 - Hose-70 Inch [ More info ]
|
| #13 | 817519A2 | CHECK VALVE ASSY (2 required per assembly) |
  |
|
21-817519A 2 - Check Valve Assembly [ More info ]
|
| #14 | 82130040 | SCREW (3 required per assembly) |
  |
|
10-821300 40 - Screw [ More info ]
|
| #15 | 8M0041366 | HANDLE ASSY-BLACK (TRACKER-GRAPHITE GRAY) (1 required per assembly) — Replaces: 820000A2, 820000A3, 820000A6 |
  |
|
8M0041366 - Handle Assembly - Black [ More info ]
|
| #16 | 812707 | BUSHING (2 required per assembly) |
  |
|
23-812707 - Bushing [ More info ]
|
| #17 | F2047 | WASHER-WAVE (1 required per assembly) |
  |
|
13-F2047 - Wave Washer [ More info ]
|
| #18 | 8M0001081 | CAM (1 required per assembly) — Replaces: F481777, 889566 |
  |
|
|
| #19 | 4002316 | WASHER @5 (1 required per assembly) |
  |
|
12-40023 16 - Washer - Priced Individually [ More info ]
|
  |
|
128M0214930 - WASHER Note: Must be ordered in multiples of 5 [ More info ]
|
| #20 | 26992 | LOCKWASHER @5 (1 required per assembly) |
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #21 | 28635 | SCREW @5 (1 required per assembly) |
  |
|
10-28635 - Screw - Priced Individually [ More info ]
|
| #22 | 822363T1 | RETAINER (1 required per assembly) — Replaces: 8223631 |
  |
|
822363T 1 - Retainer [ More info ] Unavailable |
| #23 | 401386 | NUT @5 (2 required per assembly) — Replaces: 8268336, 40144 |
  |
|
11-40138 6 - Nut - Priced Individually [ More info ]
|
| #24 | 4002316 | WASHER @5 (2 required per assembly) |
