Parts for 80 (3 Cyl.) 2-Stroke Carbureted Mercury Outboard Motor Oil Injection Components

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 80 (3 Cyl.) > 9506481 - 9589038 - Belgium > Oil Injection Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

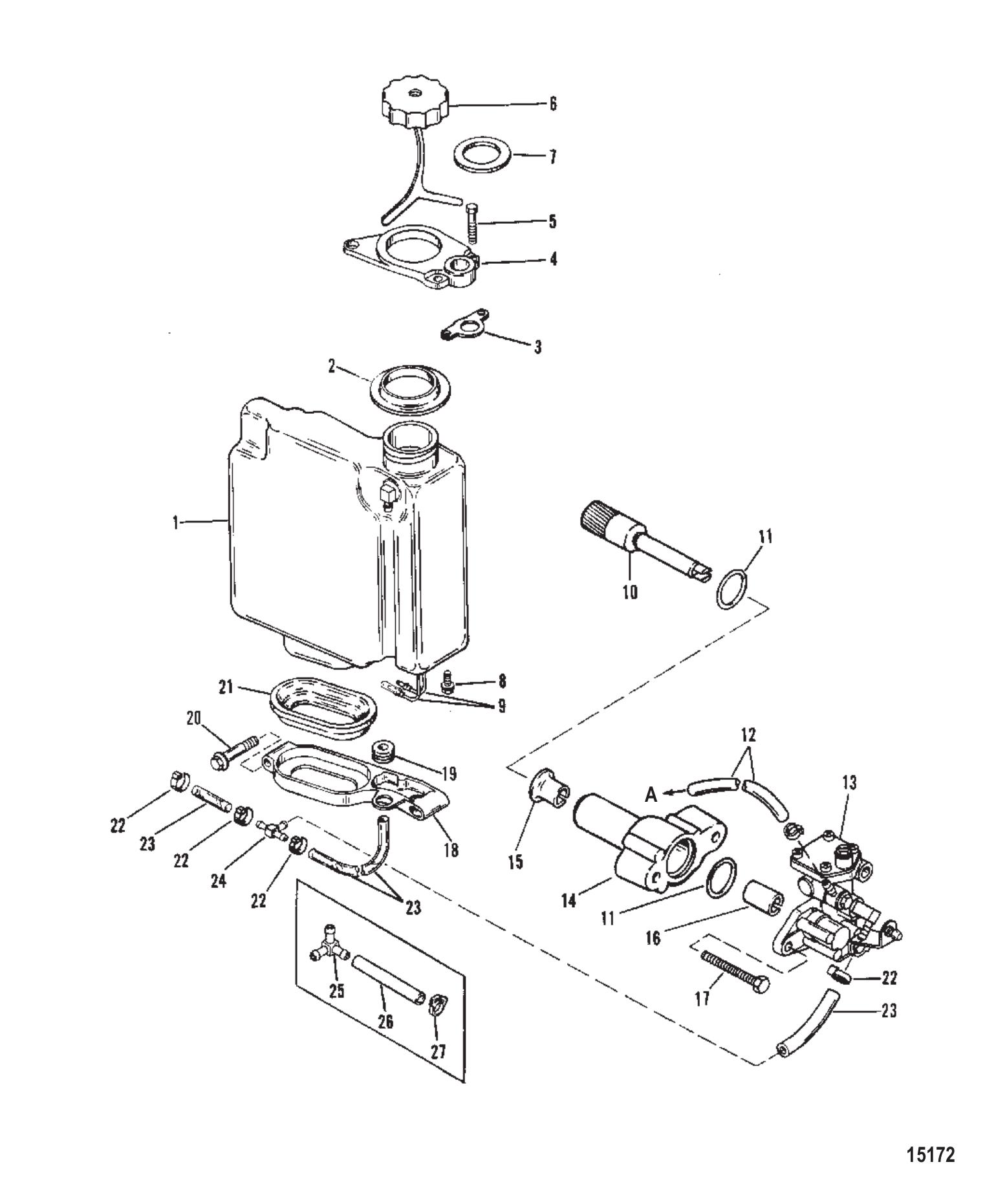

Oil Injection Components

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	8627A7	TANK ASSY-OIL (1 required per assembly) — Replaces: 8627A6
		1255-8627A 7 - Oil Tank Assembly [ More info ] $114.09 10+ In Stock.
#2	99160001	BOOT OIL TANK, UPPER (1 required per assembly) — Replaces: 99160
		99160001 - Boot - Oil Tank Nck [ More info ] $8.39 Available to Order: Shipping delay up to 10 days.
#3	44437	COVER (1 required per assembly)
		44437 - Cover, NLA [ More info ] Unavailable
#4	988952	BRACKET OIL TANK NECK OIL TANK, UPPER (1 required per assembly) — Replaces: 98895, 988951
		98895 2 - Bracket, NLA [ More info ] Unavailable
#5	4010630	SCREW (M6 X 30) STAINLESS STEEL OIL TANK BRACKET (2 required per assembly) — Replaces: 4009430
		10-40106 30 - Screw [ More info ] $6.89 Available to Order: Shipping delay up to 10 days.
#6	42653A3	CAP ASSEMBLY OIL TANK (1 required per assembly)
		36-42653A 3 - Cap Assembly [ More info ] $57.46 1 In Stock.
#7	42999T	GASKET (1 required per assembly) — Replaces: 42999
		27-42999T -Cap Gasket [ More info ] $14.49 Available to Order: Shipping delay up to 10 days.
#8	12896	SCREW (#8-18 X .310) SWITCH (1 required per assembly)
		10-12896 - Screw [ More info ] $1.00 Available to Order: Shipping delay up to 10 days.
#9	12886A6	SWITCH ASSEMBLY OIL TANK (1 required per assembly) — Replaces: 12886A3, 12886A5
		87-12886A 6 - Switch Assembly [ More info ] $31.79 6 In Stock.
		18-1800 - Oil Reservoir Float Switch, 12886A6 [ More info ] $24.99 $24.81 10+ In Stock.
#10	430204	GEAR-DRIVEN (1 required per assembly) — Replaces: 430203
		43-43020 4 - Driven Gear [ More info ] Unavailable
#11	8M0204667	O RING @2 OIL PUMP (2 required per assembly) — Replaces: 62705
		25-8M0204667 - O RING Note: Priced Individually [ More info ] $1.70 10 In Stock.
#12	4301625	TUBING-10 INCH (A = To Fuel Pump) (1 required per assembly) — Replaces: 4301619, 4301622
		32-43016 25 - TUBING-10 INCH [ More info ] Unavailable
		32-823813 25 - Tubing, 10 Inch [ More info ] Unavailable
		32-823813 29 - TUBING-12 INCH [ More info ] Unavailable
		32-823813 35 - Tubing - 15 Inch [ More info ] $10.89 10 In Stock.
#13	42959A2	PUMP ASSY-OIL INJ (1 required per assembly) — Replaces: 42959A1
		42959A 2 - Oil Pump Assembly Injection [ More info ] $412.49 Available to Order: Shipping delay up to 10 days.
#14	17335A3	ADAPTER ASSEMBLY OIL PUMP (1 required per assembly)
		17335A 3 - Adaptor Assembly [ More info ] $53.99 Available to Order: Shipping delay up to 10 days.
#15	17597	BUSHING FLANGED, ADAPTOR (1 required per assembly)
		23-17597 - Bushing [ More info ] $7.39 Available to Order: Shipping delay up to 10 days.
#16	17596	BUSHING ADAPTER (1 required per assembly)
		23-17596 - Bushing [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#17	82104540	SCREW (M5 X 40) OIL PUMP (2 required per assembly) — Replaces: 4009340
		10-821045 40 - Screw [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.
#18	42888	BRACKET OIL TANK BASE OIL TANK (1 required per assembly)
		42888 - Bracket, NLA [ More info ] Unavailable
#19	56291	GROMMET (1 required per assembly)
		25-56291 - Grommet, NLA [ More info ] $7.33 $6.21 6 In Stock.
#20	82155050	SCREW (M8 X 50) STAINLESS STEEL BASE (2 required per assembly) — Replaces: 4011350, 81475250
		10-821550 50 - Screw [ More info ] $4.30 10+ In Stock.
#21	99161	BOOT OIL TANK BASE (1 required per assembly)
		99161 - Oil Tank Boot, NLA [ More info ] $41.92 10 In Stock.
#22	816311T	TIE STRAP @100 (AR required per assembly) — Replaces: 90077, 816311
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#23	82381451	TUBING REFER TO REFERENCE NUMBER 25 (2 required per assembly) — Replaces: 4301736, 82381436
		32-823814 51 - TUBING-23 INCH [ More info ] Unavailable
		32-823814 55 - Tubing - 25 In - Priced Individually [ More info ] $23.69 5 In Stock.
#24	73318	TEE PLASTIC REFER TO REFERENCE NUMBER 24 (1 required per assembly)
		22-73318 - Fitting [ More info ] $5.39 Available to Order: Shipping delay up to 10 days.
#25	44456	FITTING REFER TO REFERENCE NUMBER 25 (1 required per assembly)
		22-44456 - Fitting, NLA [ More info ] $17.23 10+ In Stock.
#26	82381455	TUBING (25.00 INCHES BULK) (10.00 INCH) REFER TO REFERENCE NUMBER 25 (1 required per assembly) — Replaces: 9004934
#27	415823	CLAMP REFER TO REFERENCE NUMBER 25 (2 required per assembly)
		54-41582 3 - Clamp, NLA [ More info ] $6.51 $5.51 10+ In Stock.
