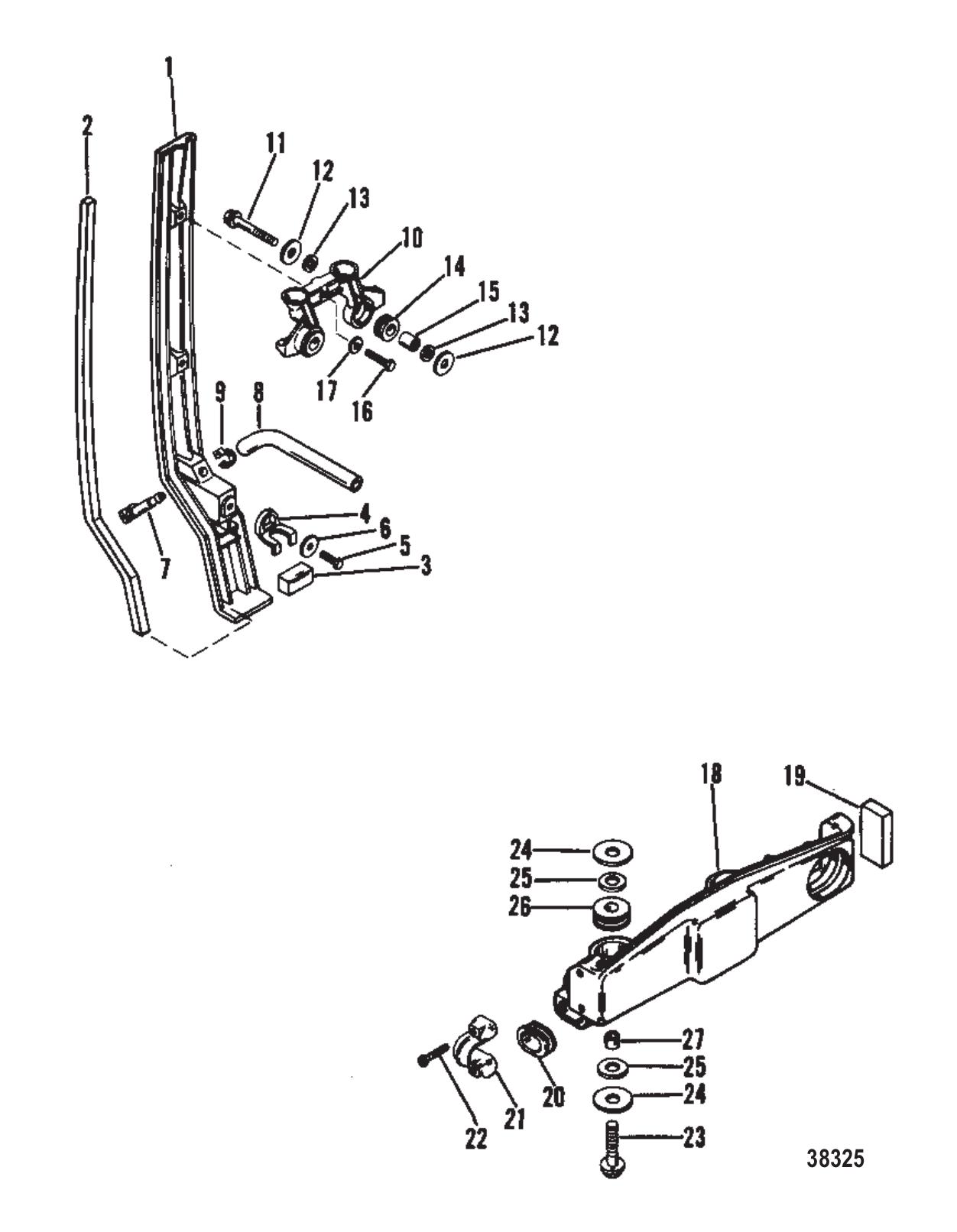

Parts for 80 (3 Cyl.) 2-Stroke Carbureted Mercury Outboard Motor Cowl Mounting Brackets
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 42965A1 | BRACKET ASSEMBLY COWL SEAL (MERCURY) (1 required per assembly) |
  |
|
42965A 1 - Bracket, NLA [ More info ] Unavailable |
| #1 | 42965A2 | BRACKET ASSEMBLY COWL SEAL (MARINER) (1 required per assembly) |
  |
|
42965A 2 - Bracket, NLA [ More info ] Unavailable |
| #2 | 183061 | SEAL BRACKET (2 required per assembly) |
  |
|
18306 1 - Seal, NLA [ More info ]
|
| #3 | 42935 | SEAL (1 required per assembly) |
  |
|
42935 - Seal, NLA [ More info ] Unavailable |
| #4 | 42908 | RESTRAINT (1 required per assembly) |
  |
|
42908 - Restraint, NLA [ More info ]
|
| #5 | 400015 | SCREW (M5 X 10) RESTRAINT (1 required per assembly) |
  |
|
10-40001 5 - Screw, NLA [ More info ]
|
| #6 | 42118 | WASHER RESTRAINT SCREW (1 required per assembly) — Replaces: 43423 |
  |
|
12-42118 - Washer, Oil Reservoir Screw [ More info ]
|
| #7 | 42907 | CONNECTOR TELL TALE (1 required per assembly) |
  |
|
42907 - Connector [ More info ] Unavailable |
| #8 | 83075780 | TUBING (28.00 INCHES BULK) TELL TALE (1 required per assembly) — Replaces: 9912976, 9912980 |
  |
32-830757 80 - Tubing-28 Inch [ More info ] Unavailable |
|
  |
32-830757130 - Tubing-70 Inch [ More info ] Unavailable |
|
  |
32-8M0047448 - Tubing-70 Inch [ More info ] Unavailable |
|
  |
|
32-8M0108349 - Hose-70 Inch [ More info ]
|
| #9 | 816311 | TIE STRAP (1 required per assembly) — Replaces: 73498, 90077 |
  |
54-816311 - TIE STRAP Note: Priced Individually [ More info ] Unavailable |
|
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #10 | 932642 | HOUSING HINGE (2 required per assembly) — Replaces: 932641 |
  |
|
93264 2 - Hinge Housing, NLA [ More info ] Unavailable |
| #11 | 88552660 | SCREW (M8 X 60) HOUSING (4 required per assembly) — Replaces: 4009560, 4010760 |
  |
10-885526 60 - Screw - Priced Individually [ More info ] Unavailable |
|
  |
|
108M0103817 - Screw - Priced Individually [ More info ]
|
| #12 | 814803 | WASHER HOUSING SCREW (8 required per assembly) — Replaces: 93853 |
  |
|
12-814803 - Washer [ More info ]
|
| #13 | 8M0204690 | WASHER (.344 X .688 X .065) STAINLESS STEEL HOUSING SCREW (8 required per assembly) — Replaces: 53705, 814806 |
  |
|
12-8M0204690 - WASHER [ More info ] Unavailable |
| #14 | 88033 | GROMMET HOUSING SCREW (4 required per assembly) |
  |
|
25-88033 - Grommet, Bracket,NLA [ More info ]
|
| #15 | 14395 | BUSHING HOUSING SCREW (4 required per assembly) |
  |
|
23-14395 - Bushing, NLA [ More info ] Unavailable |
| #16 | 4000120 | SCREW (M5 X 25) HOUSING TO BRACKET (2 required per assembly) |
  |
|
10-40001 20 - Screw, NLA [ More info ]
|
| #17 | 42118 | WASHER HOUSING SCREW (2 required per assembly) — Replaces: 43423 |
| #18 | 42952T | BRACKET SUPPORT (FRONT) (MERCURY) (1 required per assembly) |
  |
|
42952T - Bracket, NLA [ More info ] Unavailable |
| #18 | 42952T6 | BRACKET SUPPORT (FRONT) (MARINER) (1 required per assembly) |
  |
|
42952T 6 - Cowl Bracket, NLA [ More info ]
|
| #19 | 67260 | SEAL CONTROL CABLES (1 required per assembly) |
  |
|
67260 - Seal, NLA [ More info ]
|
| #20 | 67272 | GROMMET BRACKET (2 required per assembly) |
  |
|
25-67272 - Grommet, NLA [ More info ] Unavailable |
| #21 | 88621 | RETAINER CONTROL CABLES (NON POWER TRIM) (1 required per assembly) |
  |
|
88621 - Retainer, NLA [ More info ]
|
| #21 | 99447 | RETAINER CONTROL CABLES (POWER TRIM) (1 required per assembly) — Replaces: 99447T |
  |
|
99447 - Cable Retainer, NLA [ More info ] Unavailable |
| #22 | 40011109 | SCREW (M5 X 25) STAINLESS STEEL RETAINER (2 required per assembly) — Replaces: 40057109, 40056109 |
  |
|
10-40011109 - Screw [ More info ]
|
| #23 | 82127335 | SCREW (M8 X 35 MM) BRACKET (2 required per assembly) — Replaces: 4011135, 81742735 |
  |
|
10-821273 35 - Screw [ More info ]
|
| #24 | 814803 | WASHER BRACKET SCREW (4 required per assembly) — Replaces: 93853 |
| #25 | 8M0204690 | WASHER (.344 X .688 X .065) STAINLESS STEEL BRACKET SCREW (4 required per assembly) — Replaces: 53705, 814806 |
| #26 | 88033 | GROMMET BRACKET (2 required per assembly) |
| #27 | 14395 | BUSHING BRACKET SCREW (2 required per assembly) |
