Parts for 8 Seapro (2 Cyl.) (International) 2-Stroke Carbureted Mercury Outboard Motor Driveshaft Housing

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 8 Seapro (2 Cyl.) (International) > 0N014717 - 0N055109 > Driveshaft Housing

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

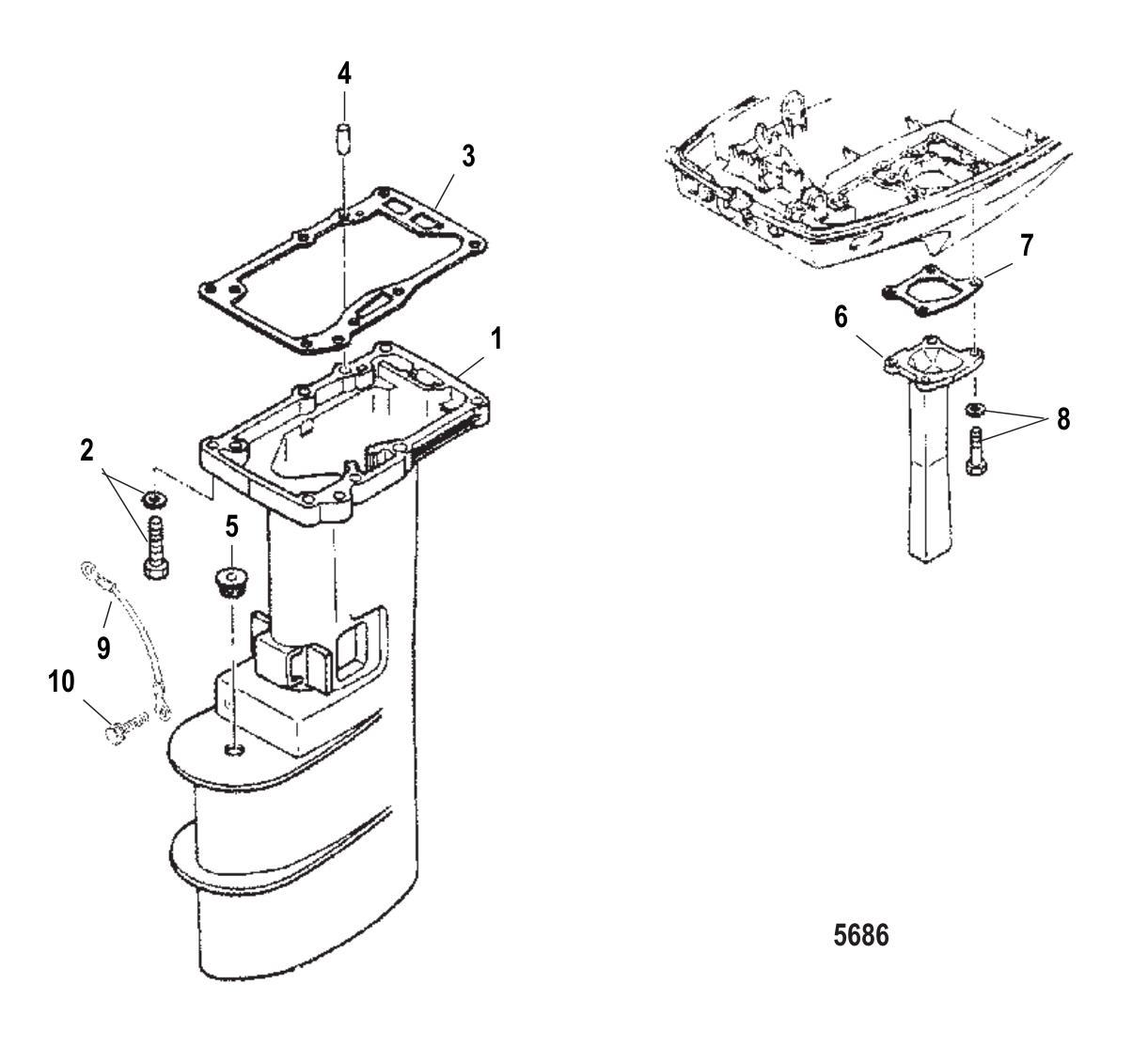

Driveshaft Housing

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	804908A02	GASKET SET (1 required per assembly) — Replaces: 804908A00, 8M0060176
		27-804908A02 - Gasket Set [ More info ] Unavailable
		278M0065830 - Gasket Set [ More info ] Unavailable
		278M0082883 - Gasket Set [ More info ] Unavailable
		27-8M0130156 - Gasket Set [ More info ] $111.99 Available to Order: Shipping delay up to 10 days.
#1	804901T	HOUSING-DSH (SHORT) (1 required per assembly) — Replaces: 804901
		1599-804901T - Housing-DSH [ More info ] $308.99 Available to Order: Shipping delay up to 10 days.
#1	804902T	HOUSING-DSH (LONG) (1 required per assembly) — Replaces: 804902
		1599-804902T - Housing-DSH [ More info ] $371.99 Available to Order: Shipping delay up to 10 days.
#2	8M0098606	BOLT (6 required per assembly) — Replaces: 82304230, 879194265
		108M0098606 - Bolt [ More info ] Unavailable
		10-8M0147119 - BOLT [ More info ] Unavailable
#3	803663028	GASKET (1 required per assembly) — Replaces: 80366313, 8M0060174
		27-803663028 - Gasket [ More info ] $17.69 Available to Order: Shipping delay up to 10 days.
#4	161191	DOWEL PIN (2 required per assembly)
		17-161191 - DOWEL PIN [ More info ] Unavailable
#5	161181	GROMMET (1 required per assembly)
		25-16118 1 - Grommet [ More info ] $4.79 Available to Order: Shipping delay up to 10 days.
#6	8037271	EXHAUST TUBE (1 required per assembly)
		8037271 - Exhaust Tube [ More info ] $44.99 Available to Order: Shipping delay up to 10 days.
#7	803728002	GASKET (1 required per assembly) — Replaces: 8037281, 8M0060175
		27803728002 - Gasket [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
#8	82304231	BOLT (4 required per assembly)
		10-823042 31 - Bolt [ More info ] $1.20 Available to Order: Shipping delay up to 10 days.
#9	898101091	WIRE-GROUND (1 required per assembly) — Replaces: 878357
		84-898101091 - Wire - Ground [ More info ] $14.19 Available to Order: Shipping delay up to 10 days.
#10	8230427	BOLT (1 required per assembly) — Replaces: 82304234, 879194261
		10-823042 7 - Bolt [ More info ] $4.09 $2.30 10+ In Stock.
