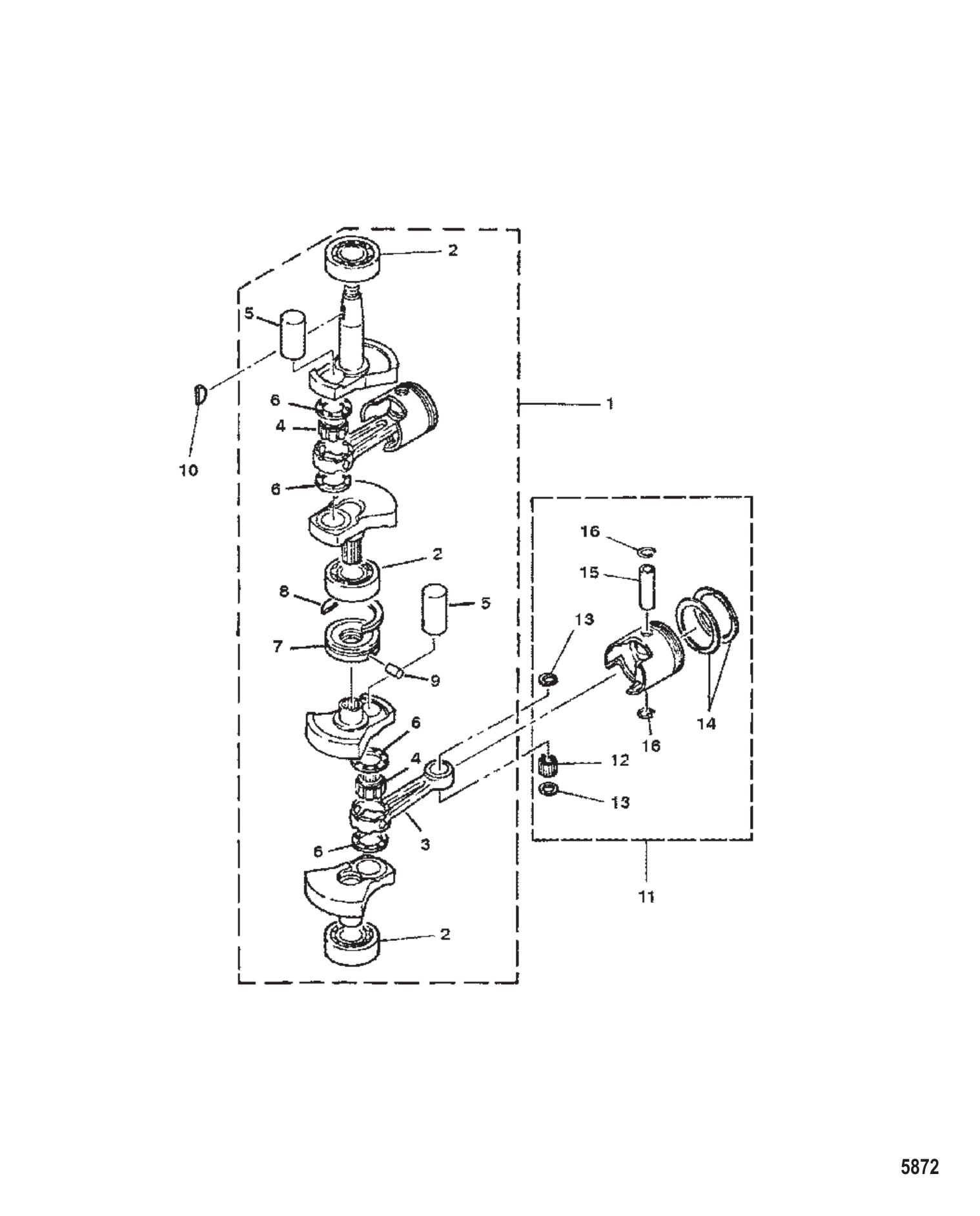

Parts for 8 K 2-Stroke Carbureted Mercury Outboard Motor Crankshaft & Piston
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 827167M | POWERHEAD (1 required per assembly) |
  |
|
827167M - POWERHEAD ASSEMBL NLA [ More info ] Unavailable |
| #- | 95600M | GASKET SET (1 required per assembly) |
  |
|
27-95600M - Gasket Set, NLA [ More info ] Unavailable |
| #1 | 9255M | CRANKSHAFT (1 required per assembly) |
  |
|
463-9255M - CRANKSHAFT ASSEMB NLA [ More info ] Unavailable |
| #2 | 18859T | BEARING (3 required per assembly) |
  |
|
30-18859T - Ball Bearing, NLA [ More info ] Unavailable |
| #3 | 9492M | CONNECTING ROD (2 required per assembly) |
  |
|
629-9492M - CONNECTING ROD NLA [ More info ] Unavailable |
| #4 | 94769M | BEARING (2 required per assembly) |
  |
|
31-94769M - Bearing, NLA [ More info ] Unavailable |
| #5 | 14193M | PIN (2 required per assembly) |
  |
|
17-14193M - PIN NLA [ More info ] Unavailable |
| #6 | 84620M | WASHER (4 required per assembly) |
  |
|
12-84620M - Washer, NLA [ More info ] Unavailable |
| #7 | 84618M | SEAL (1 required per assembly) |
  |
|
84618M - Seal, NLA [ More info ] Unavailable |
| #7 | 84618001 | SEAL [ML-680K-000101] & Up (1 required per assembly) |
  |
|
84618001 - SEAL NLA [ More info ] Unavailable |
| #8 | 82935M | RING SNAP (1 required per assembly) |
  |
|
53-82935M - SNAP RING,NLA [ More info ]
|
| #9 | 82145M | PIN (1 required per assembly) |
  |
|
17-82145M - PIN [ More info ] Unavailable |
| #10 | 893761 | KEY @2 (1 required per assembly) — Replaces: 18856M |
  |
|
28893761 - Key - Priced Individually [ More info ]
|
| #11 | 8224M | PISTON (STANDARD) (2 required per assembly) |
  |
|
761-8224M - Piston, NLA [ More info ] Unavailable |
| #11 | 8225M | PISTON (1ST. O.S. 51.25MM) (AR required per assembly) |
  |
|
761-8225M - Piston, NLA [ More info ] Unavailable |
| #11 | 8226M | PISTON (2ND O.S. 51 .50MM) (AR required per assembly) |
  |
|
761-8226M - Piston, NLA [ More info ] Unavailable |
| #12 | 82350M | NEEDLE BRG @75 (56 required per assembly) |
  |
|
29-82350M - Needle Bearing [ More info ]
|
| #13 | 81816M | WASHER @2 (4 required per assembly) |
  |
|
12-81816M - Washer, NLA [ More info ]
|
| #14 | 80422T | PISTON RING SET (STANDARD) (2 required per assembly) |
  |
|
39-80422T - Rings, NLA [ More info ]
|
| #14 | 80423T | PISTON RING SET (1ST O.S. 51 .25MM) (AR required per assembly) |
  |
|
39-80423T - Rings, NLA [ More info ] Unavailable |
| #14 | 80424M | PISTON RING SET (2ND O.S. 51 .50MM) (AR required per assembly) |
  |
|
39-80424M - Rings, NLA [ More info ] Unavailable |
| #15 | 80005M | PIN-PISTON (2 required per assembly) |
  |
|
41-80005M - Piston Pin, NLA [ More info ]
|
| #16 | 82342M | SNAP RING @2 (4 required per assembly) |
  |
|
53-82342M - Snap Ring, NLA [ More info ]
|
