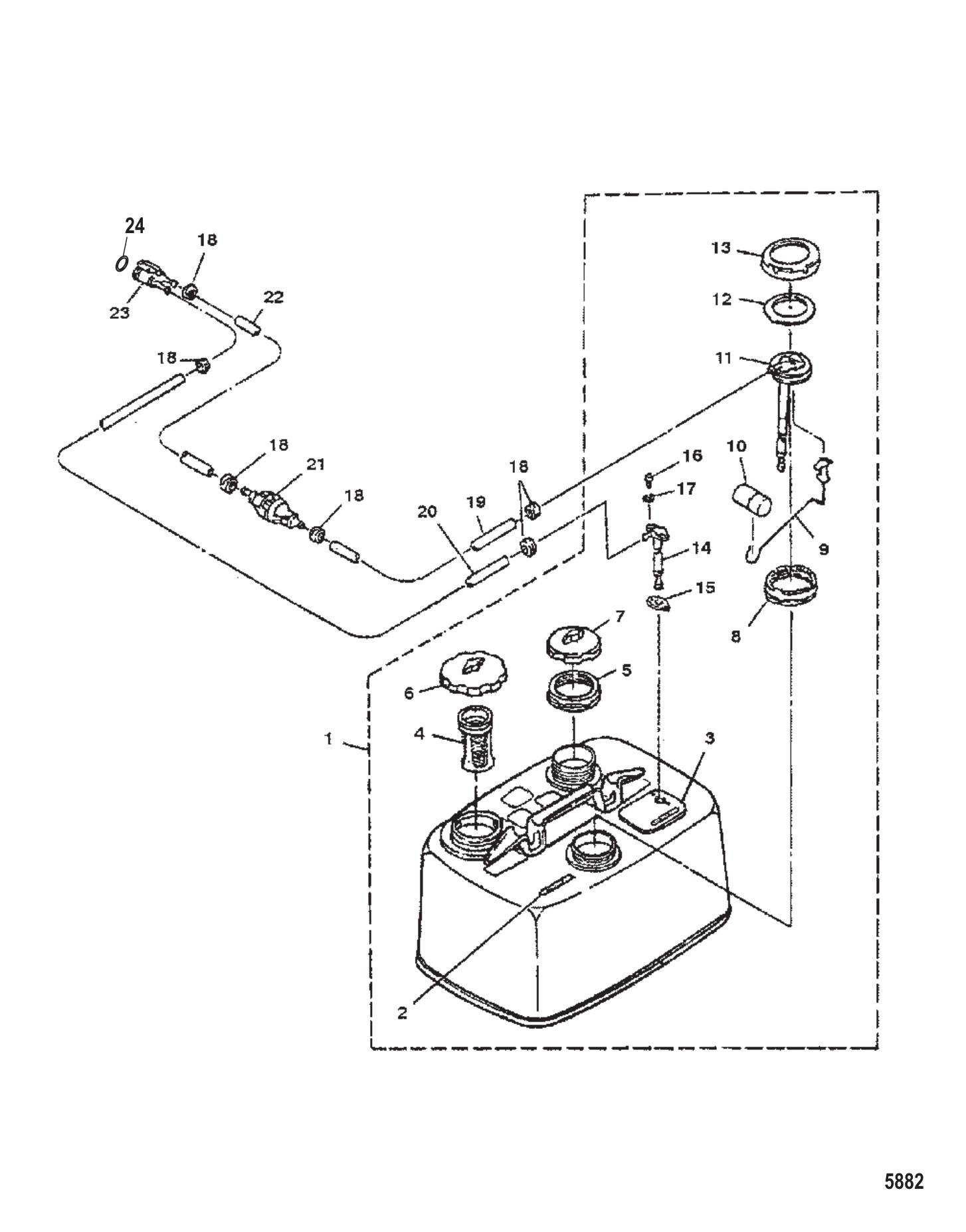

Parts for 8 K 2-Stroke Carbureted Mercury Outboard Motor Fuel Tank
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 9522M | FUEL TANK (1 required per assembly) |
  |
|
1252-9522M - TANK ASSEMBLY Fue NLA [ More info ] Unavailable |
| #2 | 94703M | DECAL (TOP) (1 required per assembly) |
  |
|
37-94703M - DECAL NLA [ More info ] Unavailable |
| #3 | 94704M | DECAL (TOP) (1 required per assembly) |
  |
|
37-94704M - DECAL NLA [ More info ] Unavailable |
| #4 | 95568M | STRAINER (1 required per assembly) |
  |
|
35-95568M - Filter, NLA [ More info ] Unavailable |
| #5 | 97620M | NUT (1 required per assembly) |
  |
|
97620M - Ring [ More info ] Unavailable |
| #6 | 814497M | CAP (1 required per assembly) |
  |
|
36-814497M - CAP ASSY,NLA [ More info ] Unavailable |
| #7 | 814498M | CAP (1 required per assembly) |
  |
|
36-814498M - Cap Assembly [ More info ]
|
| #8 | 97622M | NUT (1 required per assembly) |
  |
|
97622M - Ring [ More info ] Unavailable |
| #9 | 14274M | INDICTOR (1 required per assembly) |
  |
|
14274M - Indicator, NLA [ More info ]
|
| #10 | 81319M | FLOAT (1 required per assembly) |
  |
|
81319M - Float, NLA [ More info ] Unavailable |
| #11 | 95616M | METER FUEL (1 required per assembly) |
  |
|
95616M - Fuel Meter [ More info ] Unavailable |
| #12 | 97623M | GASKET (1 required per assembly) |
  |
|
27-97623M - GASKET NLA [ More info ] Unavailable |
| #13 | 97624M | SUPPORT (1 required per assembly) |
  |
|
97624M - Support [ More info ] Unavailable |
| #14 | 99954M | HOUSING CONNECTOR (1 required per assembly) |
  |
|
99954M - Housing, NLA [ More info ] Unavailable |
| #15 | 16720M | GASKET (1 required per assembly) |
  |
|
27-16720M - GASKET NLA [ More info ] Unavailable |
| #16 | 95502M | SCREW (2 required per assembly) |
  |
|
10-95502M - Screw, NLA [ More info ]
|
| #17 | 95501M | SEAL (2 required per assembly) |
  |
|
12-95501M - Washer, NLA [ More info ]
|
| #18 | 16725M | CLAMP @5 (6 required per assembly) |
  |
|
54-16725M - Hose Clamp [ More info ]
|
| #19 | 94727M | HOSE (1 required per assembly) |
  |
|
32-94727M - Hose, NLA [ More info ]
|
| #20 | 16571M | HOSE (1 required per assembly) |
  |
|
32-16571M - Hose, Connector Houding To Bulb, 5/16 inch ID [ More info ]
|
| #21 | 89396Q01 | PRIMER BULB @4 (1 required per assembly) — Replaces: 89396Q38 |
  |
|
89396Q01 - 8M0052975 [ More info ] Unavailable |
  |
|
18-8004EP-1 - Primer Bulb 5/16 Inch [ More info ]
|
  |
|
32-03881 - Fuel Line Primer Bulb, EPA, 5/16 inch [ More info ]
|
| #22 | 94727M | HOSE (1 required per assembly) |
| #23 | 95569M | CONNECTOR (1 required per assembly) |
  |
|
95569M - Connector [ More info ] Unavailable |
| #24 | 82789M | O-RING (1 required per assembly) |
  |
|
25-82789M - O-ring,NLA [ More info ]
|
