Parts for 8 (2 Cyl.) (2-Stroke) (International) 2-Stroke Carbureted Mercury Outboard Motor Carburetor

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 8 (2 Cyl.) (2-Stroke) (International) > 0N027903 - 0N055109 - International > Carburetor

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

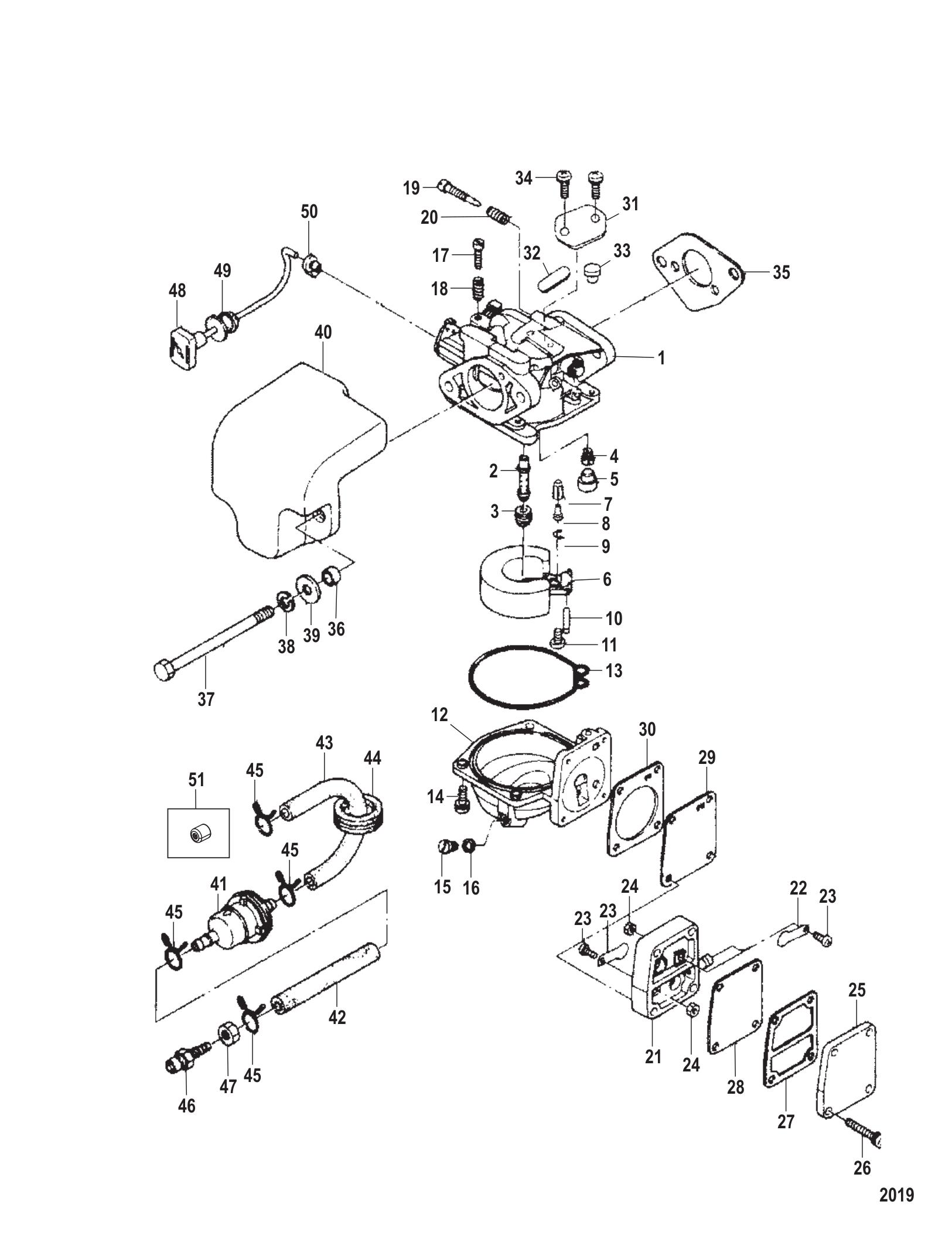

Carburetor

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	803826A2	REPAIR KIT-CARB (1 required per assembly)
		803826A2 - Carburetor Repair Kit [ More info ] $145.99 Available to Order: Shipping delay up to 10 days.
#-	8M0146270	GASKET SET (1 required per assembly) — Replaces: 883274A01, 883274A02
		27-8M0146270 - 27-8M0146270 - ->8M0146271 [ More info ] Unavailable Replaced by -8M0146271
		27-8M0146271 - GASKET SET [ More info ] Unavailable
#1	803687T04	CARBURETOR (6) (1 required per assembly) — Replaces: 803687A04
		3303-803687T04 - Carburetor [ More info ] $271.99 Available to Order: Shipping delay up to 10 days.
#1	803687T03	CARBURETOR (8) (1 required per assembly) — Replaces: 803687A3
		3303-803687T03 - Carburetor [ More info ] $267.99 Available to Order: Shipping delay up to 10 days.
#2	803692003	MAIN NOZZLE (6) (1 required per assembly)
		803692003 - Main Nozzle [ More info ] $22.49 Available to Order: Shipping delay up to 10 days.
#2	8036922	MAIN NOZZLE (8) (1 required per assembly)
		803692 2 - Main Nozzle [ More info ] $19.79 Available to Order: Shipping delay up to 10 days.
#3	803688003	JET MAIN (#80) (#80) (6) (1 required per assembly)
		803688003 - Main Jet [ More info ] $11.59 Available to Order: Shipping delay up to 10 days.
#3	8036882	JET MAIN (#98) (#98) (8) (1 required per assembly)
		803688 2 - Main Jet [ More info ] $12.49 Available to Order: Shipping delay up to 10 days.
#4	8036892	JET PILOT (#48) (1 required per assembly)
		8036892 - Pilot Jet (#48) [ More info ] $16.79 Available to Order: Shipping delay up to 10 days.
#5	16252	CAP (1 required per assembly)
		16252 - Slow Jet Cap [ More info ] $7.39 Available to Order: Shipping delay up to 10 days.
#6	16253	FLOAT (1 required per assembly)
		16253 - Float [ More info ] $50.49 Available to Order: Shipping delay up to 10 days.
#7	898101063	FLOAT VALVE (1 required per assembly) — Replaces: 162544
		898101063 - Float Valve [ More info ] Unavailable
#8	853721	PIN VALVE (1 required per assembly)
		853721 - Valve Pin [ More info ] $2.99 Available to Order: Shipping delay up to 10 days.
#9	16255	CLIP (1 required per assembly)
		54-16255 - Clip [ More info ] Unavailable
#10	16256	PIN (1 required per assembly)
		17-16256 - Pin, Float [ More info ] $7.39 Available to Order: Shipping delay up to 10 days.
#11	162571	SCREW (1 required per assembly)
		10-16257 1 - Screw [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#12	803691T01	FLOAT BOWL (1 required per assembly) — Replaces: 8036911
		803691T01 - Float Bowl [ More info ] $21.59 Available to Order: Shipping delay up to 10 days.
#13	16259	O-RING (1 required per assembly)
		25-16259 - O-ring, Carburetor Float Bowl [ More info ] $19.49 Available to Order: Shipping delay up to 10 days.
#14	162601	SCREW (4 required per assembly)
		10-16260 1 - Screw [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#15	16261	SCREW DRAIN (1 required per assembly)
		10-16261 - Screw [ More info ] $15.29 Available to Order: Shipping delay up to 10 days.
#16	16262	GASKET (1 required per assembly)
		27-16262 - Drain Screw Gasket [ More info ] $3.69 Available to Order: Shipping delay up to 10 days.
#17	16263	SCREW (1 required per assembly)
		10-16263 - Screw [ More info ] $8.39 Available to Order: Shipping delay up to 10 days.
#18	16264	SPRING (1 required per assembly)
		24-16264 - Spring, Stop Screw [ More info ] $4.39 Available to Order: Shipping delay up to 10 days.
#19	8129351	SCREW PILOT ADJUST (1 required per assembly)
		10-812935 1 - Adjust. Screw [ More info ] $13.79 Available to Order: Shipping delay up to 10 days.
#20	16266	SPRING (1 required per assembly)
		24-16266 - Spring, Adjusting Screw [ More info ] $11.39 Available to Order: Shipping delay up to 10 days.
#21	16268	BODY PUMP (1 required per assembly)
		16268 - Pump Body [ More info ] $44.99 Available to Order: Shipping delay up to 10 days.
#22	16269	CHECK VALVE (2 required per assembly)
		21-16269 - Check Valve [ More info ] $12.39 Available to Order: Shipping delay up to 10 days.
#23	8518131	SCREW (2 required per assembly)
		108518131 - Screw [ More info ] $1.99 Available to Order: Shipping delay up to 10 days.
#24	8518141	NUT (2 required per assembly)
		118518141 - NUT [ More info ] $0.30 Available to Order: Shipping delay up to 10 days.
#25	16272	COVER PUMP (1 required per assembly)
		16272 - Cover [ More info ] $22.39 Available to Order: Shipping delay up to 10 days.
#26	162606	SCREW (4 required per assembly)
		10-16260 6 - Screw [ More info ] $5.59 $4.48 4 In Stock.
#27	16274	GASKET (1 required per assembly)
		27-16274 - Pump Cover Gasket [ More info ] $10.89 1 In Stock.
#28	16275	DIAPHRAGM (1 required per assembly)
		16275 - Diaphragm [ More info ] $18.60 1 In Stock.
#29	16325	DIAPHRAGM (1 required per assembly)
		16325 - Diaphragm [ More info ] $26.80 3 In Stock.
#30	16326	GASKET (1 required per assembly)
		27-16326 - Pump Body Gasket [ More info ] $9.99 1 In Stock.
#31	855540	COVER CARBURETOR (1 required per assembly)
		855540 - Carburetor Cover [ More info ] $6.39 Available to Order: Shipping delay up to 10 days.
#32	855541	GASKET (1 required per assembly)
		27-855541 - Plug Gasket [ More info ] $6.69 Available to Order: Shipping delay up to 10 days.
#33	8555411	GASKET (1 required per assembly)
		27-855541 1 - Gasket [ More info ] $5.99 Available to Order: Shipping delay up to 10 days.
#34	855542	SCREW (2 required per assembly)
		10-855542 - Screw, NLA [ More info ] $1.76 10+ In Stock.
#35	16327	GASKET (1 required per assembly)
		27-16327 - Carburetor Gasket [ More info ] $6.99 4 In Stock.
#36	8537151	SPACER (2 required per assembly)
		23-853715 1 - Spacer [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.
#37	855809003	BOLT (2 required per assembly) — Replaces: 16329, 16329002
		10-855809003 - Bolt [ More info ] $5.19 Available to Order: Shipping delay up to 10 days.
#38	400256	LOCKWASHER @5 (2 required per assembly)
		13-40025 6 - LockWasher - Priced Individually [ More info ] $1.80 $1.01 10+ In Stock.
#39	953921	WASHER (2 required per assembly)
		12-95392 1 - Washer [ More info ] $5.59 Available to Order: Shipping delay up to 10 days.
#40	8036971	AIR SILENCER (1 required per assembly)
		803697 1 - Air Silencer [ More info ] $35.99 Available to Order: Shipping delay up to 10 days.
#41	8M0157133	FILTER-FUEL (1 required per assembly) — Replaces: 16248
		35-8M0157133 - In-Line Fuel Filter, Mercury Mariner 2 cycle and 4 stroke [ More info ] $21.39 3 In Stock.
		35-35406 - Inline Fuel Filter, Mercury Mercruiser 35-8M0157133 [ More info ] $13.49 $12.51 4 In Stock.
#42	804889130	FUEL PIPE (1 required per assembly)
		32804889130 - Fuel Pipe [ More info ] $8.09 Available to Order: Shipping delay up to 10 days.
#43	804889130	FUEL PIPE (1 required per assembly)
#44	162262	GROMMET (1 required per assembly)
		0162262 - Part (162262) [ More info ] Unavailable
#45	95395	CLIP (4 required per assembly)
		54-95395 - Clip [ More info ] $3.09 1 In Stock.
#46	853736	FUEL CONNECTOR (1 required per assembly)
		22-853736 - Fuel Connector [ More info ] $29.39 Available to Order: Shipping delay up to 10 days.
#47	17480	NUT-TH (1 required per assembly)
		11-17480 - Nut-TH [ More info ] $2.69 Available to Order: Shipping delay up to 10 days.
#48	8036951	CHOKE ROD (1 required per assembly)
		8036951 - Choke Rod [ More info ] Unavailable
		8M0155129 - ROD CHOKE [ More info ] Unavailable
#49	16332	GROMMET (1 required per assembly)
		25-16332 - Grommet, Choke Rod [ More info ] $4.59 Available to Order: Shipping delay up to 10 days.
#50	16333	ROD SNAP (1 required per assembly)
		16333 - Rod Snap [ More info ] Unavailable
#51	42657A3	VALVE ASSY-CHECK (2 required per assembly)
		21-42657A 3 - Check Valve Assembly [ More info ] $7.29 Available to Order: Shipping delay up to 10 days.
