Parts for 8 2-Stroke Carbureted Mercury Outboard Motor Electric Components

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 8 > 9461526 - 9792199 - Belgium > Electric Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

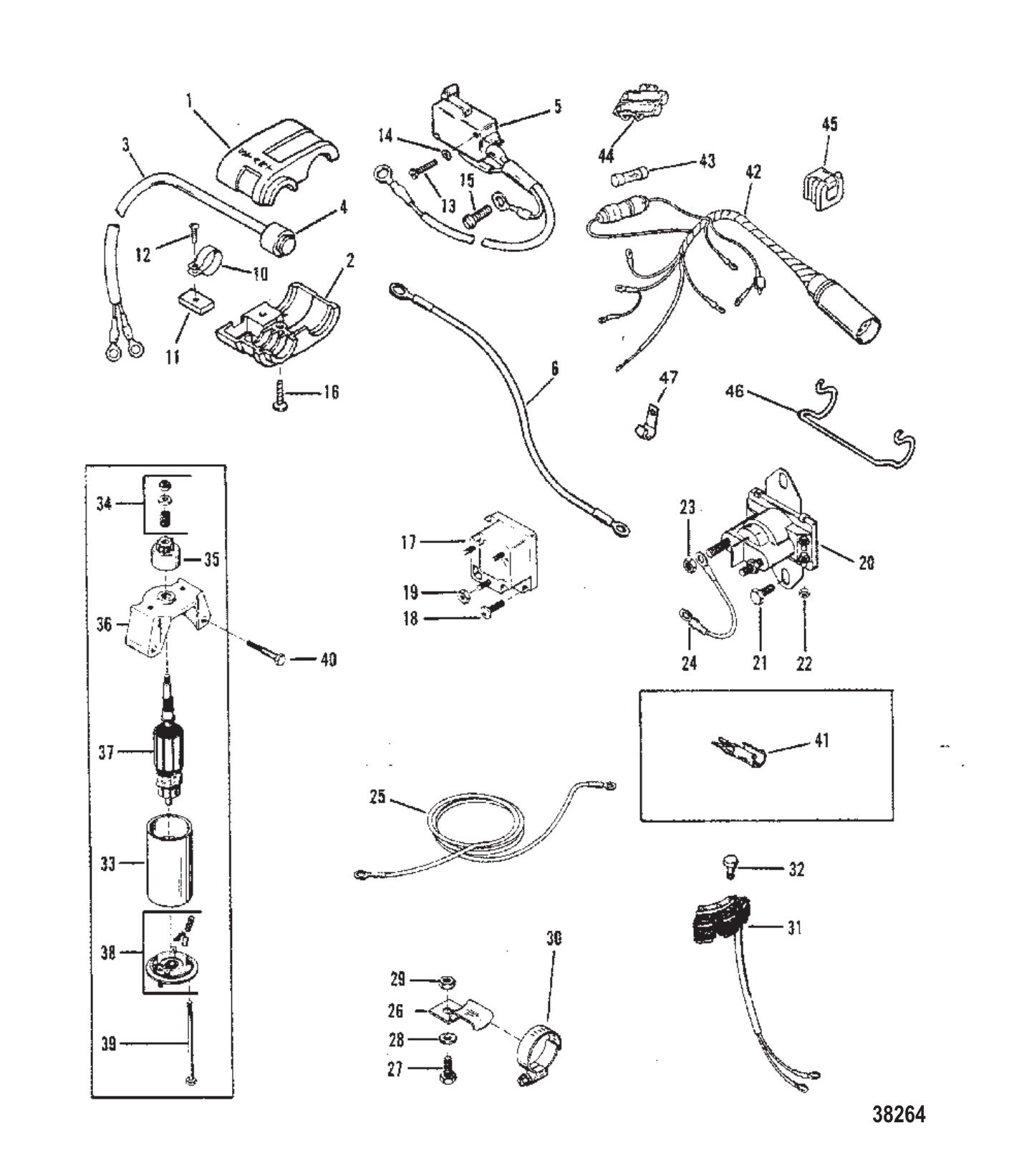

Electric Components

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	95815	COVER (TOP) (1 required per assembly)
		95815 - Top Cover, NLA [ More info ] $23.70 10+ In Stock.
#2	95828	COVER (BOTTOM) (1 required per assembly)
		95828 - Bottom Cover, NLA [ More info ] $28.01 10+ In Stock.
#3	95810A1	SWITCH ASSY (1 required per assembly)
		87-95810A 1 - Switch Assembly [ More info ] $88.66 6 In Stock.
#4	55741001	BOOT (1 required per assembly) — Replaces: 55741
		55741001 - Boot [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
#5	88890A2	SWITCH ASSY (1 required per assembly)
		87-88890A 2 - Switch Assembly [ More info ] $149.99 $143.92 8 In Stock.
#6	79139A20	CABLE ASSEMBLY (RED) (1 required per assembly)
		84-79139A20 - Cable Assembly [ More info ] $15.49 1 In Stock.
#10	95814	STRAP (1 required per assembly)
		95814 - Strap [ More info ] $8.19 Available to Order: Shipping delay up to 10 days.
#11	95813	FASTENER (1 required per assembly)
		95813 - Fastener, NLA [ More info ] $16.31 1 In Stock.
#12	40019108	SCREW (1 required per assembly) — Replaces: 40056108
		10-40019108 - Screw [ More info ] Unavailable
#13	4005727	SCREW (2 required per assembly)
		10-40057 27 - Screw, NLA [ More info ] $2.49 $2.11 10+ In Stock.
#14	45771	WASHER (2 required per assembly)
		12-45771 - Washer, NLA [ More info ] $1.99 $1.68 10+ In Stock.
#15	62568	SCREW @4 (1 required per assembly)
		10-62568 - Screw - Priced Individually [ More info ] $1.10 $0.88 10+ In Stock.
#16	69570	SCREW (1 required per assembly)
		10-69570 - Screw [ More info ] $1.80 8 In Stock.
#17	8M0058226	RECTIFIER (1 required per assembly) — Replaces: 816770, 816770T
		8M0058226 - Rectifier - Outboard [ More info ] $99.99 In Stock
		18-99416 - Regulated Rectifier 445114, 193-5114 [ More info ] $119.79 $110.72 In Stock
		18-5707 - Rectifier 816770 [ More info ] $55.99 $54.04 1 In Stock.
		300-01404 - Rectifier, 8M0058226 [ More info ] $46.99 $42.60 1 In Stock.
		AR351 - Rectifier [ More info ] $49.15 $45.57 In Stock
#18	48409	SCREW @2 (2 required per assembly)
		10-48409 - Screw - Priced Individually [ More info ] $2.49 9 In Stock.
#19	45076	NUT @10 (3 required per assembly)
		11-45076 - Nut (#10-32) (brass) [ More info ] $1.80 10+ In Stock.
#20	96054T	SOLENOID (1 required per assembly) — Replaces: 96054
		89-96054T - Solenoid [ More info ] Unavailable
		18-5816 - Solenoid, 89-96054 [ More info ] $31.35 In Stock
		89-8M0185149 - Start Solenoid [ More info ] $38.99 Available to Order: Shipping delay up to 10 days.
		89-02719 - Solenoid, 89-96054T [ More info ] $20.72 10+ In Stock.
		SW054 - Solenoid [ More info ] $28.65 $27.68 In Stock
#21	4000327	SCREW (2 required per assembly)
		10-40003 27 - Screw [ More info ] $2.99 Available to Order: Shipping delay up to 10 days.
#22	26419	NUT @5 (2 required per assembly)
		11-26419 - Nut (#8-32) (brass) [ More info ] $1.70 10+ In Stock.
#23	64015	NUT @3 (2 required per assembly)
		11-64015 - Nut (1 /4-20) [ More info ] $2.79 10+ In Stock.
#24	88809A5	WIRE ASSEMBLY (YELLOW) (1 required per assembly)
		84-88809A 5 - Wire Assembly [ More info ] $17.09 Available to Order: Shipping delay up to 10 days.
#25	88439A27	CABLE ASSEMBLY RED - BATTERY (RED) (1 required per assembly) — Replaces: 88439A8
		84-88439A27 - Battery Cable Assembly [ More info ] $33.99 Available to Order: Shipping delay up to 10 days.
#25	88439A28	CABLE ASSEMBLY BATTERY - BLACK (BLACK) (1 required per assembly) — Replaces: 88439A6
		84-88439A28 - Battery Cable Assembly [ More info ] $34.99 Available to Order: Shipping delay up to 10 days.
#26	92439	BRACKET (OLD DESIGN) (1 required per assembly)
		92439 - Bracket, NLA [ More info ] $5.90 $5.00 2 In Stock.
#27	4000327	SCREW (M6 X 14) (OLD DESIGN) (1 required per assembly)
#28	35044	WASHER (.281 X .625 X .065) STAINLESS STEEL (OLD DESIGN) (1 required per assembly)
		12-35044 - Washer, (.281 X .625 X .065) Stainless Steel [ More info ] $2.49 10+ In Stock.
#29	400212	NUT (M6) STAINLESS STEEL (OLD DESIGN) (1 required per assembly)
		11-40021 2 - Nut [ More info ] $2.89 2 In Stock.
#30	815504310	CLAMP WORM GEAR (OLD DESIGN) (1 required per assembly)
		54-815504310 - Clamp [ More info ] $17.99 1 In Stock.
#31	86704A10	STATOR ASSY (1 required per assembly) — Replaces: 86704A2, 86704T2
		86704A10 - Stator Assembly [ More info ] $311.81 4 In Stock.
#32	4000123	SCREW (3 required per assembly)
		10-40001 23 - Screw [ More info ] $1.00 Available to Order: Shipping delay up to 10 days.
#33	893889T	STARTER ASSY (1 required per assembly) — Replaces: 90983A1, 90983T1
		50-893889T - Starter Assembly [ More info ] Unavailable
		50-8M0033984 - Starter Assembly [ More info ] $287.49 In Stock
		18-5611 - Starter, 50-90983A1 [ More info ] $212.99 $200.09 In Stock
		5367 - Starter, 50-90983A1, T1 [ More info ] $187.40 10+ In Stock.
#34	96561	DRIVE KIT (1 required per assembly)
		96561 - Drive Retainer Kit [ More info ] $25.00 7 In Stock.
#35	96562	DRIVE (1 required per assembly)
		96562 - Drive [ More info ] $127.49 $122.32 2 In Stock.
		DV367 - Starter Drive [ More info ] $31.76 $25.77 1 In Stock.
#36	96563T	END CAP (1 required per assembly) — Replaces: 96563
		96563T - End Cap [ More info ] $70.49 Available to Order: Shipping delay up to 10 days.
#37	96565	ARMATURE (1 required per assembly)
		96565 - Armature [ More info ] Unavailable
#38	96564T	END CAP (1 required per assembly) — Replaces: 96564
		96564T - End Cap [ More info ] Unavailable
		SR367 - Repair Kit End Cap, 96564T [ More info ] $40.79 $40.06 1 In Stock.
#39	96566	THRU BOLT (1 required per assembly)
		10-96566 - Bolt -thru [ More info ] Unavailable
#40	421251	SCREW (2 required per assembly)
		10-42125 1 - Screw [ More info ] $2.99 10+ In Stock.
		10-42125 - SCREW [ More info ] $3.09 Available to Order: Shipping delay up to 10 days.
#41	424291	RETAINER (1 required per assembly)
		42429 1 - Retainer [ More info ] $13.30 Available to Order: Shipping delay up to 10 days.
#42	12334A2	HARNESS KIT (REMOTE CONTROL MODELS) (1 required per assembly)
		84-12334A 2 - Harness Kit [ More info ] $232.06 $222.78 5 In Stock.
#43	8M0207796	FUSE-20 AMP @5 (1 required per assembly) — Replaces: 79091
		888M0207796 - FUSE-20 AMP Note: Priced Individually [ More info ] $9.09 Available to Order: Shipping delay up to 10 days.
#44	134731	HOLDER FUSE (OLD DESIGN) (1 required per assembly)
		13473 1 - Fuse Holder, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#45	12152	RETAINER (1 required per assembly)
		12152 - Retainer [ More info ] $7.59 Available to Order: Shipping delay up to 10 days.
#46	92753	RETAINER (1 required per assembly)
		92753 - Harness Retainer [ More info ] $3.69 Available to Order: Shipping delay up to 10 days.
#47	55098	J CLIP @5 (1 required per assembly)
		54-55098 - J Clip - Priced Individually [ More info ] $4.90 5 In Stock.
		54-8M0024808 - J-CLIP [ More info ] Unavailable
